 Post subject: EB XR8 - Steering rack question
Posted: Wed Jan 27, 2010 1:49 am
Getting Side Ways
Offline
User avatar

Age: 41

Posts: 4125

Joined: 8th Dec 2004

Gallery: 25 images

Ride: EB2 Ghia,Mighty Boy,Eb1 Xr8 5spd

Location: ** In the Shed! **
VIC, Australia

Hey fellow ford modders....

Been doing a bit of searching for this answer i'm looking for, but can't find it.

Steering racks - 6cylinder ED & V8 EB - do they differ or are they the same rack - just different steel power steering hoses?

I've got a buggered v8 rack here in a EB s1 XR8 and was wondering if i can swap in my spare 6cyl rack or not, what's the go?

I have worked out the 6cyl radiator works, altho the v8 apparently has more fins in the core than the 6cyl. With thermo fans i don't think it will any issue.

Cheers

ToranaGuy



_________________

I am the ToranaGuy!|74 Lh Torana Turbo|78 Hz PanelVan|86 Mighty Boy Ute|93 EB2 Ghia,GT Mockup,5spd,LPGI,Full Leather|2 x EB Xr8 5spd's|FS [VIC]: Wrecking - Eb XR8 - Parts available |Build Thread|Ebay Items - Ford Parts|

Top
 Profile


 Post subject: Re: EB XR8 - Steering rack question
Posted: Wed Jan 27, 2010 4:20 pm
Getting Side Ways
Offline
User avatar

Age: 41

Posts: 4125

Joined: 8th Dec 2004

Gallery: 25 images

Ride: EB2 Ghia,Mighty Boy,Eb1 Xr8 5spd

Location: ** In the Shed! **
VIC, Australia

Doesn't anyone know?

Cheers

ToranaGuy



_________________

I am the ToranaGuy!|74 Lh Torana Turbo|78 Hz PanelVan|86 Mighty Boy Ute|93 EB2 Ghia,GT Mockup,5spd,LPGI,Full Leather|2 x EB Xr8 5spd's|FS [VIC]: Wrecking - Eb XR8 - Parts available |Build Thread|Ebay Items - Ford Parts|

Top
 Profile


 Post subject: Re: EB XR8 - Steering rack question
Posted: Wed Jan 27, 2010 7:14 pm
Fordmods Newbie
Offline

Posts: 7

Joined: 27th Jan 2010

Ride: Just Street Perfomance

Location: Adelaide
SA, Australia

Don't quote me on this its has been along time since ive changed the rack, but i think the only difference was variable rack which was the fairlane ghia stuff was different. Finger light steering or not and the racks was interchangeble bettween 6 & 8?

Look for pressure switch on the rack i think that was the only difference? look at the pipe angles too!



_________________

Just Street Performance

Youtube Channel
http://www.youtube.com/user/DR327VK

Top
 Profile


 Post subject: Re: EB XR8 - Steering rack question
Posted: Wed Jan 27, 2010 7:49 pm
Getting Side Ways
Offline
User avatar

Age: 41

Posts: 4125

Joined: 8th Dec 2004

Gallery: 25 images

Ride: EB2 Ghia,Mighty Boy,Eb1 Xr8 5spd

Location: ** In the Shed! **
VIC, Australia

DR327VK wrote:
Don't quote me on this its has been along time since ive changed the rack, but i think the only difference was variable rack which was the fairlane ghia stuff was different. Finger light steering or not and the racks was interchangeble bettween 6 & 8?

Look for pressure switch on the rack i think that was the only difference? look at the pipe angles too!


After a lot of digging around it would seem the racks are the same except i think the V8 doesn't have the idle up switch on it. I've gotta get under & have a good look at the racks to compare. I know the pipes are different, and that's no issue as i have 1 set of each, 6 & 8. I was just hoping to use the rack out of my ED 6cyl to fix the Xr8's busted rack.....

Thanks for the help dude.

Cheers

ToranaGuy



_________________

I am the ToranaGuy!|74 Lh Torana Turbo|78 Hz PanelVan|86 Mighty Boy Ute|93 EB2 Ghia,GT Mockup,5spd,LPGI,Full Leather|2 x EB Xr8 5spd's|FS [VIC]: Wrecking - Eb XR8 - Parts available |Build Thread|Ebay Items - Ford Parts|

Top
 Profile


 Post subject: Re: EB XR8 - Steering rack question
Posted: Wed Jan 27, 2010 9:28 pm
Getting Side Ways
Offline

Age: 35

Posts: 4183

Joined: 30th May 2005

Ride: 1993 EB XR8

Location: BrisVegas
QLD, Australia

ToranaGuy wrote:
DR327VK wrote:
Don't quote me on this its has been along time since ive changed the rack, but i think the only difference was variable rack which was the fairlane ghia stuff was different. Finger light steering or not and the racks was interchangeble bettween 6 & 8?

Look for pressure switch on the rack i think that was the only difference? look at the pipe angles too!


After a lot of digging around it would seem the racks are the same except i think the V8 doesn't have the idle up switch on it. I've gotta get under & have a good look at the racks to compare. I know the pipes are different, and that's no issue as i have 1 set of each, 6 & 8. I was just hoping to use the rack out of my ED 6cyl to fix the Xr8's busted rack.....

Thanks for the help dude.

Cheers

ToranaGuy


You can use an I6 rack in a V8, they just have the pressure switch in the 6, not the V8.



_________________

ILL60 - EF XR8, Sunroof, Ticky Kit, 19x8.5/19x11 TE37's, 347, AFr185's, TFS BoxRcustom converter, Hurst Quarterstick, huge billet cam.

OO0Y4 - BA2 XR6 Turbo, Nizpro Plenum, Process West stage 3 cooler, 4” dump, 3.5” exhaust, ID1000’s, ZF Auto - 11.8@116

Top
 Profile


 Post subject: Re: EB XR8 - Steering rack question
Posted: Wed Jan 27, 2010 10:21 pm
Getting Side Ways
Offline

Posts: 5503

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

My understanding is that the racks ARE DIFFERENT. I believe the high and low pressure hoses enter the rack from a different location/direction to provide clearance for the headers.

A quick inspection of both rack types would verify this.

Cheers
BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: EB XR8 - Steering rack question
Posted: Wed Jan 27, 2010 10:36 pm
Getting Side Ways
Offline
User avatar

Age: 41

Posts: 4125

Joined: 8th Dec 2004

Gallery: 25 images

Ride: EB2 Ghia,Mighty Boy,Eb1 Xr8 5spd

Location: ** In the Shed! **
VIC, Australia

BenJ wrote:
My understanding is that the racks ARE DIFFERENT. I believe the high and low pressure hoses enter the rack from a different location/direction to provide clearance for the headers.

A quick inspection of both rack types would verify this.

Cheers
BenJ


That's what i've been told, but i've also been told & read that they will fit & work. As per 67RCE's comment. The car has extractors in it that gives a little more clearance around the rack, so i might be ok. Was hoping to get the anser before having to pull both racks out of the cars. Not a job i really love to do! Ah well, I'll be pulling the racks out soon, worst case I'll have to pull the rack from the other Xr8 to get the white one thru rwc. Red one won't need it's rack for a while yet.

67RCE -> I take it you have to leave the switch in or does the v8 rack have a blanking plug/plate i can fit onto the 6cyl rack?

Cheers

ToranaGuy



_________________

I am the ToranaGuy!|74 Lh Torana Turbo|78 Hz PanelVan|86 Mighty Boy Ute|93 EB2 Ghia,GT Mockup,5spd,LPGI,Full Leather|2 x EB Xr8 5spd's|FS [VIC]: Wrecking - Eb XR8 - Parts available |Build Thread|Ebay Items - Ford Parts|

Top
 Profile


 Post subject: Re: EB XR8 - Steering rack question
Posted: Thu Jan 28, 2010 12:02 am
Getting Side Ways
Offline

Age: 35

Posts: 4183

Joined: 30th May 2005

Ride: 1993 EB XR8

Location: BrisVegas
QLD, Australia

ToranaGuy wrote:
BenJ wrote:
My understanding is that the racks ARE DIFFERENT. I believe the high and low pressure hoses enter the rack from a different location/direction to provide clearance for the headers.

A quick inspection of both rack types would verify this.

Cheers
BenJ


That's what i've been told, but i've also been told & read that they will fit & work. As per 67RCE's comment. The car has extractors in it that gives a little more clearance around the rack, so i might be ok. Was hoping to get the anser before having to pull both racks out of the cars. Not a job i really love to do! Ah well, I'll be pulling the racks out soon, worst case I'll have to pull the rack from the other Xr8 to get the white one thru rwc. Red one won't need it's rack for a while yet.

67RCE -> I take it you have to leave the switch in or does the v8 rack have a blanking plug/plate i can fit onto the 6cyl rack?

Cheers

ToranaGuy

Switch stays in but doesn't get connected. My old ED XR6 had a modified V8 rack in it without the switch, so they do go the other way



_________________

ILL60 - EF XR8, Sunroof, Ticky Kit, 19x8.5/19x11 TE37's, 347, AFr185's, TFS BoxRcustom converter, Hurst Quarterstick, huge billet cam.

OO0Y4 - BA2 XR6 Turbo, Nizpro Plenum, Process West stage 3 cooler, 4” dump, 3.5” exhaust, ID1000’s, ZF Auto - 11.8@116

Top
 Profile


 Post subject: Re: EB XR8 - Steering rack question
Posted: Thu Jan 28, 2010 12:16 am
Getting Side Ways
Offline
User avatar

Age: 41

Posts: 4125

Joined: 8th Dec 2004

Gallery: 25 images

Ride: EB2 Ghia,Mighty Boy,Eb1 Xr8 5spd

Location: ** In the Shed! **
VIC, Australia

67RCE wrote:
Switch stays in but doesn't get connected. My old ED XR6 had a modified V8 rack in it without the switch, so they do go the other way


Brilliant news. Thanks for that. I'll be swapping the rack from the ED 6cyl into the EB very soon. :D

Cheers

ToranaGuy



_________________

I am the ToranaGuy!|74 Lh Torana Turbo|78 Hz PanelVan|86 Mighty Boy Ute|93 EB2 Ghia,GT Mockup,5spd,LPGI,Full Leather|2 x EB Xr8 5spd's|FS [VIC]: Wrecking - Eb XR8 - Parts available |Build Thread|Ebay Items - Ford Parts|

Top
 Profile


 Post subject: Re: EB XR8 - Steering rack question
Posted: Thu Jan 28, 2010 12:58 am
Getting Side Ways
Offline
User avatar

Posts: 636

Joined: 21st Nov 2008

Location: Melbourne
VIC, Australia

ToranaGuy wrote:
67RCE wrote:
Switch stays in but doesn't get connected. My old ED XR6 had a modified V8 rack in it without the switch, so they do go the other way


Brilliant news. Thanks for that. I'll be swapping the rack from the ED 6cyl into the EB very soon. :D

Cheers

ToranaGuy


keep us up to date on how you go mate, a couple pics to show any differences wouldnt hurt either

cheers
Top
 Profile


 Post subject: Re: EB XR8 - Steering rack question
Posted: Thu Jan 28, 2010 12:25 pm
Getting Side Ways
Offline
User avatar

Age: 41

Posts: 4125

Joined: 8th Dec 2004

Gallery: 25 images

Ride: EB2 Ghia,Mighty Boy,Eb1 Xr8 5spd

Location: ** In the Shed! **
VIC, Australia

jaysway wrote:
ToranaGuy wrote:
67RCE wrote:
Switch stays in but doesn't get connected. My old ED XR6 had a modified V8 rack in it without the switch, so they do go the other way


Brilliant news. Thanks for that. I'll be swapping the rack from the ED 6cyl into the EB very soon. :D

Cheers

ToranaGuy


keep us up to date on how you go mate, a couple pics to show any differences wouldnt hurt either

cheers


I plan on taking some pics, just so anyone else that asks will have photo evidence one way or the other lol.

Cheers

ToranaGuy



_________________

I am the ToranaGuy!|74 Lh Torana Turbo|78 Hz PanelVan|86 Mighty Boy Ute|93 EB2 Ghia,GT Mockup,5spd,LPGI,Full Leather|2 x EB Xr8 5spd's|FS [VIC]: Wrecking - Eb XR8 - Parts available |Build Thread|Ebay Items - Ford Parts|

Top
 Profile


 Post subject: Re: EB XR8 - Steering rack question
Posted: Thu Jan 28, 2010 11:10 pm
Getting Side Ways
Offline
User avatar

Age: 41

Posts: 4125

Joined: 8th Dec 2004

Gallery: 25 images

Ride: EB2 Ghia,Mighty Boy,Eb1 Xr8 5spd

Location: ** In the Shed! **
VIC, Australia

Here is the evidence - pics of the racks. 6cyl has the switch in it. v8 doesn't.

They are the same aside the switch. After being under the Xr8, i'm not sure if the switch will clear the extractors or not, so i'm going to remove it & plug it up. I have something that will plug the hole, so i should be right.

I've not long pulled the v8 one out, had to cut down a 19mm spanner to get the power steer lines undone. :( I'll have to go buy a spanner tomorrow, it's a size i seem to use a lot. Time to grab a quick bite to eat & then remove the 6cyl switch, plug it up & refit the rack.

Cheers

ToranaGuy





Attachments:

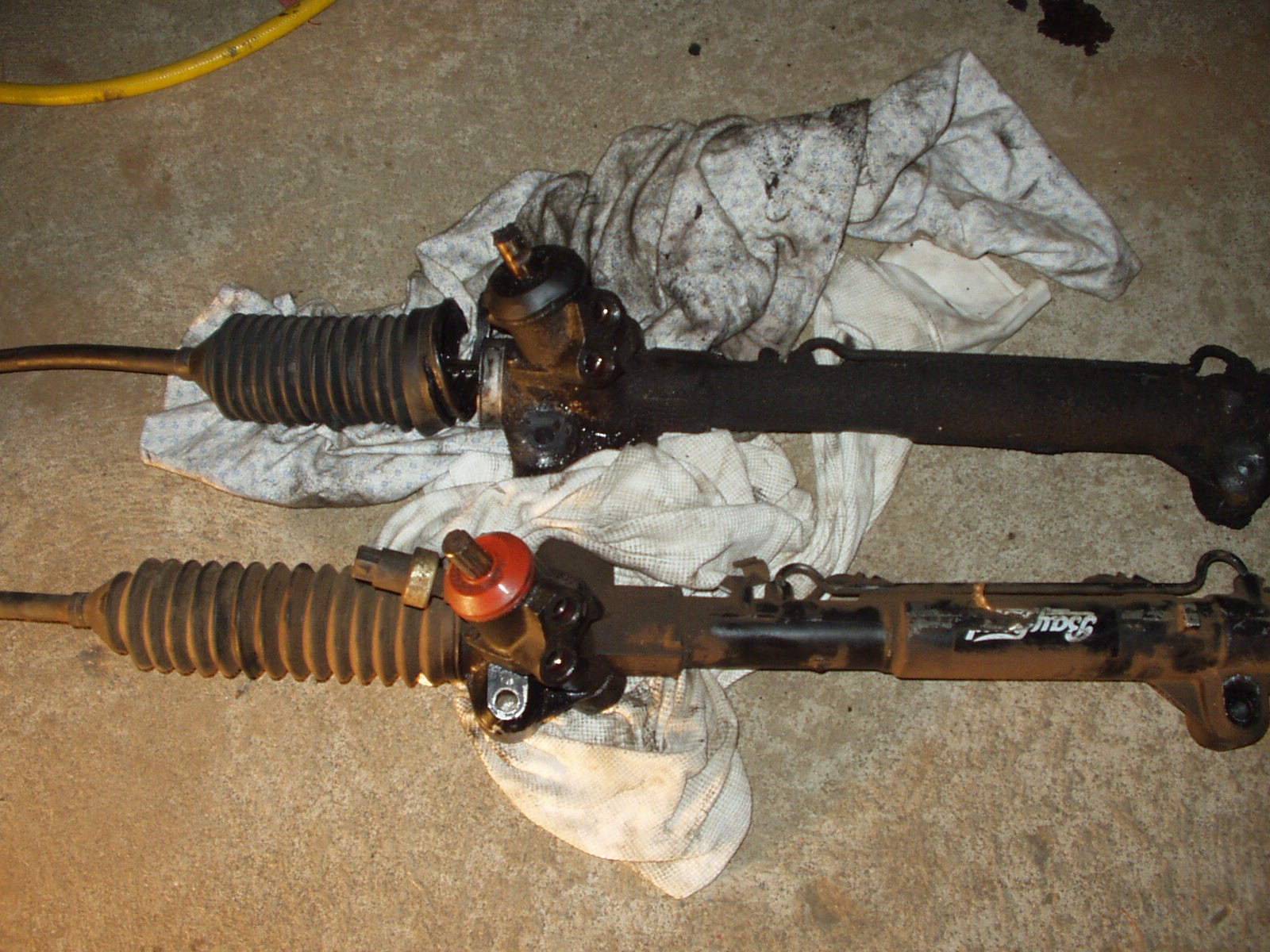

File comment: 2nd pic racks.
P1010007.JPG [ 405.89 KiB | Viewed 196 times ]

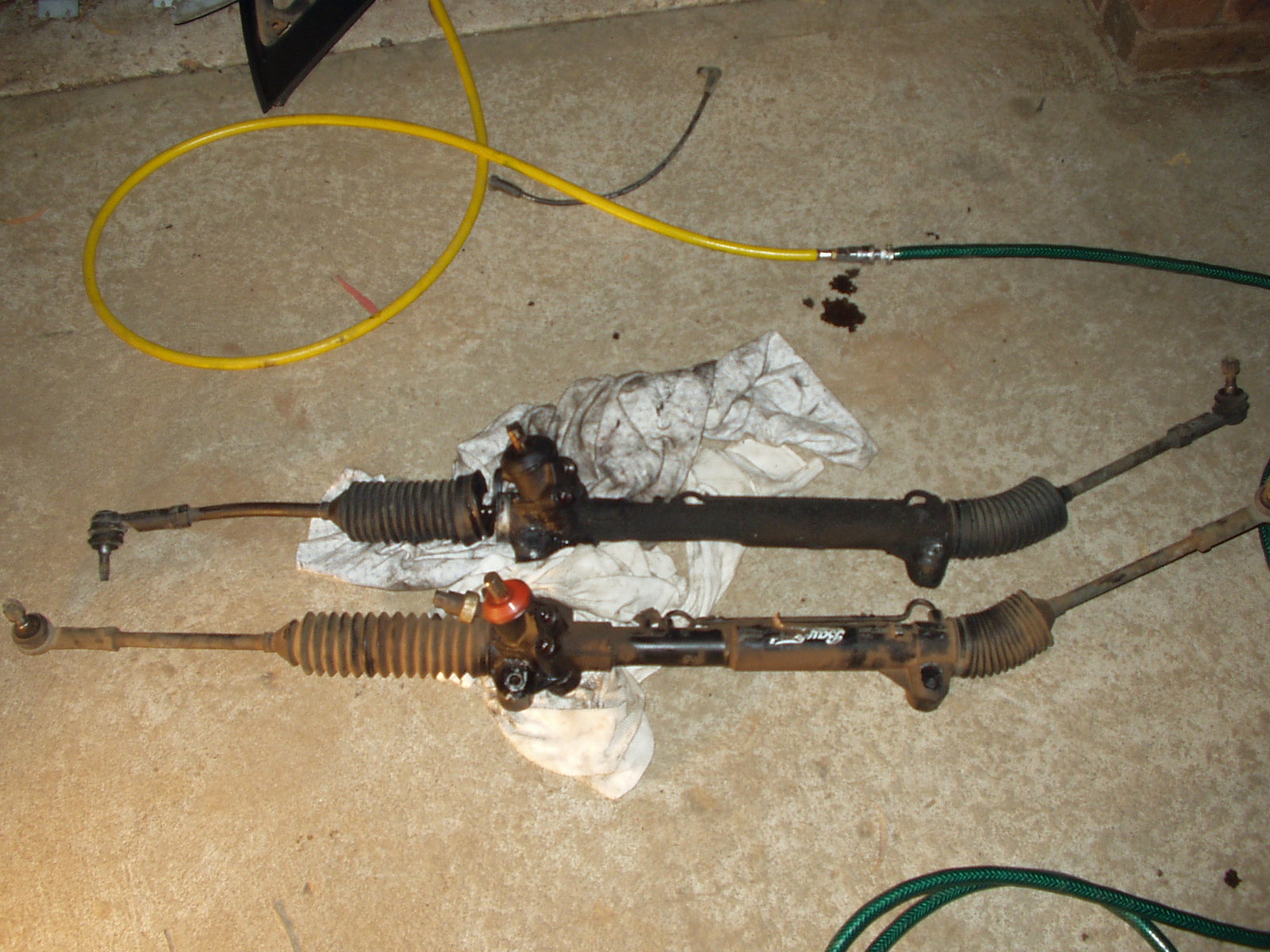

File comment: Racks......
P1010006.JPG [ 408.96 KiB | Viewed 209 times ]



_________________

I am the ToranaGuy!|74 Lh Torana Turbo|78 Hz PanelVan|86 Mighty Boy Ute|93 EB2 Ghia,GT Mockup,5spd,LPGI,Full Leather|2 x EB Xr8 5spd's|FS [VIC]: Wrecking - Eb XR8 - Parts available |Build Thread|Ebay Items - Ford Parts|

Top
 Profile


 Post subject: Re: EB XR8 - Steering rack question
Posted: Thu Jan 28, 2010 11:32 pm
Parts Gopher
Offline

Age: 50

Posts: 78

Joined: 23rd Apr 2007

Gallery: 1 images

Ride: ED GLi

Location: Brisbane
QLD, Australia

by the looks of the rack head you may find the steering heavier but looks like it may fit. Hope you didnt go to all this trouble just over the rack boot!



_________________

and on the eighth day God created the Falcon

Top
 Profile


 Post subject: Re: EB XR8 - Steering rack question
Posted: Thu Jan 28, 2010 11:53 pm
Getting Side Ways
Offline
User avatar

Age: 41

Posts: 4125

Joined: 8th Dec 2004

Gallery: 25 images

Ride: EB2 Ghia,Mighty Boy,Eb1 Xr8 5spd

Location: ** In the Shed! **
VIC, Australia

falcon hell wrote:
by the looks of the rack head you may find the steering heavier but looks like it may fit. Hope you didnt go to all this trouble just over the rack boot!


If it's a bit heavier i don't really care atm, car only has std 205's on it, and i'm saving a lot on a v8 rack.

Take a look at the left end on the v8 rack, it's BENT. Worse than it looks in the photos. :(

Cheers

ToranaGuy



_________________

I am the ToranaGuy!|74 Lh Torana Turbo|78 Hz PanelVan|86 Mighty Boy Ute|93 EB2 Ghia,GT Mockup,5spd,LPGI,Full Leather|2 x EB Xr8 5spd's|FS [VIC]: Wrecking - Eb XR8 - Parts available |Build Thread|Ebay Items - Ford Parts|

Top
 Profile


 Post subject: Re: EB XR8 - Steering rack question
Posted: Thu Jan 28, 2010 11:57 pm
Parts Gopher
Offline

Age: 50

Posts: 78

Joined: 23rd Apr 2007

Gallery: 1 images

Ride: ED GLi

Location: Brisbane
QLD, Australia

yeah i see the bend now you point it out. Let us know the difference.



_________________

and on the eighth day God created the Falcon

Top
 Profile
