extractors wont fit xh with gt40p heads can anyone help!



Page 1 of 2 [ 17 posts ] Go to page 1, 2  Next


 Post subject: extractors wont fit xh with gt40p heads can anyone help!
Posted: Thu Feb 01, 2007 12:11 am
Fordmods Newbie
Offline

Age: 29

Posts: 13

Joined: 31st Mar 2005

Location: perth
WA, Australia

g'day
i am replacing my old motor out of my xh ute with an au series 3 220kw xr8 motor but its all in and i cant wait to get it on the streets but the standard xr8 + pacemaker extractors wont fit in the ute with the gt40p heads dose any one know of any extractors that will fit in cheers



_________________

AUTOMATICS are like girls with hairy nipples YOU DONT WANT THEM!!!!!

Top
 Profile


Posted: Thu Feb 01, 2007 2:49 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2450

Joined: 5th Nov 2004

Gallery: 1 images

Ride: NL V8 Fairlane

Location: Sydney
NSW, Australia

AU extractors won't fit into an EF-EL. You're going to need EF-EL extractors, or find some stockies somewhere.



_________________

There are 10 types of people in this world.
Those who know binary and those who don't.

Top
 Profile


Posted: Thu Feb 01, 2007 11:17 am
Smokin em up
Offline
User avatar

Age: 33

Posts: 291

Joined: 5th Nov 2004

Ride: EL GT - T2 TS50

Location: Cairns
QLD, Australia

Why wont they fit? I had Pacemakers on my EB with GT40P heads, Just made a couple of them hard to get out, and I had to get leads with 90 degree ends on them.
Top
 Profile


Posted: Thu Feb 01, 2007 2:54 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2450

Joined: 5th Nov 2004

Gallery: 1 images

Ride: NL V8 Fairlane

Location: Sydney
NSW, Australia

Pacemakers made for an EB will fit an EB. AU extractors won't fit E series as it fouls with the cross member.



_________________

There are 10 types of people in this world.
Those who know binary and those who don't.

Top
 Profile


Posted: Thu Feb 01, 2007 3:28 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 291

Joined: 5th Nov 2004

Ride: EL GT - T2 TS50

Location: Cairns
QLD, Australia

One Drone wrote:
Pacemakers made for an EB will fit an EB. AU extractors won't fit E series as it fouls with the cross member.


I put GT40P heads on my EB, the extractors are designed for E7TE heads, so XH/EF/L should follow the same line.
Top
 Profile


Posted: Thu Feb 01, 2007 5:32 pm
Smokin em up
Offline

Posts: 276

Joined: 2nd Aug 2005

Location: brisbane
QLD, Australia

jeffb wrote:
One Drone wrote:
Pacemakers made for an EB will fit an EB. AU extractors won't fit E series as it fouls with the cross member.


I put GT40P heads on my EB, the extractors are designed for E7TE heads, so XH/EF/L should follow the same line.


what he is saying, is do you have the au extractors on your car or are the pacemakers ones you already had on there
Top
 Profile


Posted: Thu Feb 01, 2007 9:25 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2450

Joined: 5th Nov 2004

Gallery: 1 images

Ride: NL V8 Fairlane

Location: Sydney
NSW, Australia

The difference isn't in the heads. The AU is a different car.



_________________

There are 10 types of people in this world.
Those who know binary and those who don't.

Top
 Profile


Posted: Thu Feb 01, 2007 10:03 pm
Fordmods Newbie
Offline

Age: 29

Posts: 13

Joined: 31st Mar 2005

Location: perth
WA, Australia

cheers i was under the impression that the ports were not quite the same as the earlyer heads thanks for putting me on the right track.



_________________

AUTOMATICS are like girls with hairy nipples YOU DONT WANT THEM!!!!!

Top
 Profile


 Post subject: ph 4000
Posted: Sat Feb 03, 2007 3:21 pm
Tyre Shredder
Offline

Age: 31

Posts: 372

Joined: 3rd Aug 2005

Gallery: 3 images

Ride: ef XR8 / xe fairmont ghia 393.

Location: clare valley
SA, Australia

i doing the same conversion with my ef xr8....

pacie PH4000 extractors will fit. only prob will be the clearence on the furthurest left on each head sparkplug. i will post up pics of the clearance... are you going to use the coilpacks and everything or u converting it all back to original accesories so u can use your old loom...

i found there was a lot of stuffing around with the electrics. on mine. so opting for original front end accesories just seemed like the easiest option... also did u get the au trans with it also... if so where are you planning to mount the oil cooler... if u need any info on this conversion give me a call on 0400269667. it may be preety helpfull.



_________________

Ef xr8. Charged 9psi, tw 170 heads,track heat intakes,1.72 rockers, f303 cam, custom plazma man/ rapid cooler, 60lb injectors, tko600, sct eliminator, aeromotive fuel system.

393 xe ghia stage 5 als raceglides c4,9" full spool 31spline moser axles. Will be looking at running high 9s low 10's

Top
 Profile


 Post subject: pics of
Posted: Sat Feb 03, 2007 4:00 pm
Tyre Shredder
Offline

Age: 31

Posts: 372

Joined: 3rd Aug 2005

Gallery: 3 images

Ride: ef XR8 / xe fairmont ghia 393.

Location: clare valley
SA, Australia

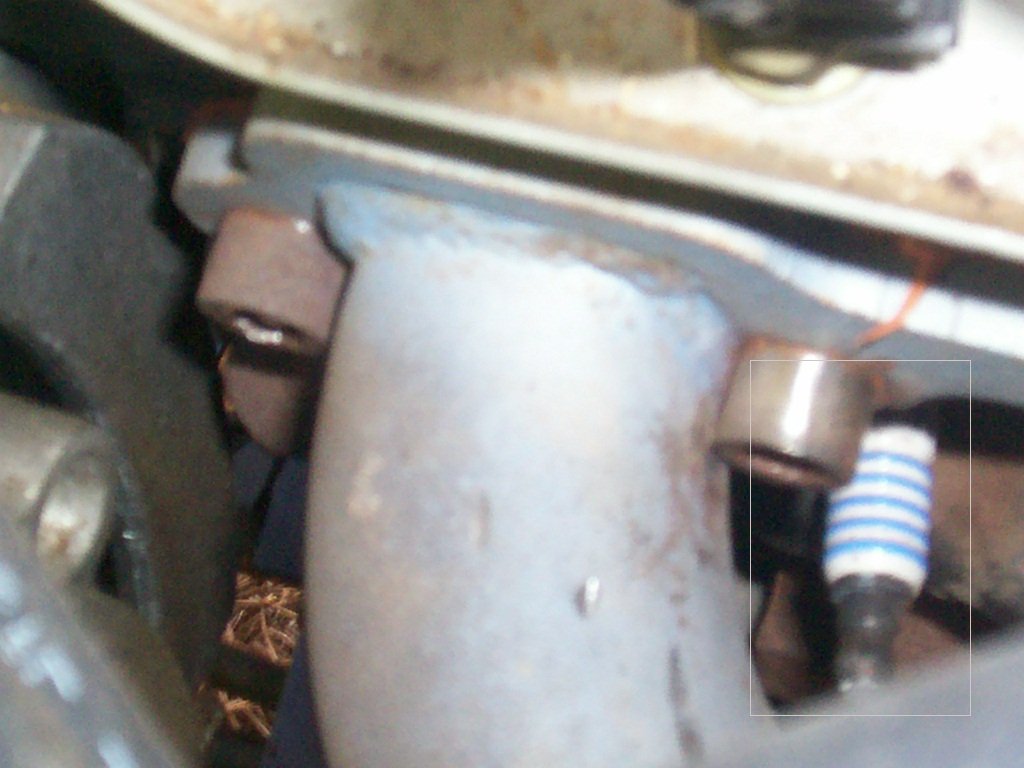

ok so im not sure if it will help u but here is a pic of the clearance...

also from experience. i would get yourself really good plugs that are gonna last coz it is going to make changing tha sparkpluge a big job... hope i have helped





Attachments:
File comment: very little clearance...
sparkplug clearance 2.jpg
sparkplug clearance 2.jpg [ 97.59 KiB | Viewed 74 times ]



_________________

Ef xr8. Charged 9psi, tw 170 heads,track heat intakes,1.72 rockers, f303 cam, custom plazma man/ rapid cooler, 60lb injectors, tko600, sct eliminator, aeromotive fuel system.

393 xe ghia stage 5 als raceglides c4,9" full spool 31spline moser axles. Will be looking at running high 9s low 10's

Top
 Profile


Posted: Tue Feb 06, 2007 9:08 am
Stock as a Rock
Offline

Age: 31

Posts: 197

Joined: 3rd Dec 2005

Ride: XHII V8S Ute

Location: Darwin
NT, Australia

What is an AU III 220kW motor worth these days?

Is it worth the conversion in say a XH ute with a 165kW V8 in it?



_________________

Pacies & single 2.5'. New manifold to come soon...

Top
 Profile


 Post subject: roughly
Posted: Tue Feb 06, 2007 1:11 pm
Tyre Shredder
Offline

Age: 31

Posts: 372

Joined: 3rd Aug 2005

Gallery: 3 images

Ride: ef XR8 / xe fairmont ghia 393.

Location: clare valley
SA, Australia

roughly 3500. with trans..... but id say it depends on what ur buying it for. did u wanna run things like au power steering, au coil packs etc... pain in the but. use all ur old front end accesories and yes id say its a worthy mod... u get gt40p heads, yella terra cam n roller rockers, explorer intakes, 70mm throttle body and maf, need diff plugs put on it throttle body tho. can re use ur maf plug...



_________________

Ef xr8. Charged 9psi, tw 170 heads,track heat intakes,1.72 rockers, f303 cam, custom plazma man/ rapid cooler, 60lb injectors, tko600, sct eliminator, aeromotive fuel system.

393 xe ghia stage 5 als raceglides c4,9" full spool 31spline moser axles. Will be looking at running high 9s low 10's

Top
 Profile


Posted: Tue Feb 06, 2007 1:18 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1239

Joined: 1st Jul 2005

Gallery: 9 images

Ride: EF XR8 & 2002 GSXR-1000

Location: Perth
WA, Australia

I thought AU II motors were 200kw, not 220?



_________________

The fast fun: Suzuki GSXR1000
The one I use when I can't use the fast fun: Blown EF XR8

Top
 Profile


 Post subject: it is a au 3
Posted: Tue Feb 06, 2007 1:23 pm
Tyre Shredder
Offline

Age: 31

Posts: 372

Joined: 3rd Aug 2005

Gallery: 3 images

Ride: ef XR8 / xe fairmont ghia 393.

Location: clare valley
SA, Australia

it is a au3 motor... r u talking bout mine...kilma... if so yes it is au3. i was originally told it was taken out of a au rebel. but it was just a au3 xr8 it was removed from



_________________

Ef xr8. Charged 9psi, tw 170 heads,track heat intakes,1.72 rockers, f303 cam, custom plazma man/ rapid cooler, 60lb injectors, tko600, sct eliminator, aeromotive fuel system.

393 xe ghia stage 5 als raceglides c4,9" full spool 31spline moser axles. Will be looking at running high 9s low 10's

Top
 Profile


 Post subject: it is a au 3
Posted: Tue Feb 06, 2007 1:23 pm
Tyre Shredder
Offline

Age: 31

Posts: 372

Joined: 3rd Aug 2005

Gallery: 3 images

Ride: ef XR8 / xe fairmont ghia 393.

Location: clare valley
SA, Australia

it is a au3 motor... r u talking bout mine...kilma... if so yes it is au3. i was originally told it was taken out of a au rebel. but it was just a au3 xr8 it was removed from



_________________

Ef xr8. Charged 9psi, tw 170 heads,track heat intakes,1.72 rockers, f303 cam, custom plazma man/ rapid cooler, 60lb injectors, tko600, sct eliminator, aeromotive fuel system.

393 xe ghia stage 5 als raceglides c4,9" full spool 31spline moser axles. Will be looking at running high 9s low 10's

Top
 Profile
