 Post subject: f150 Ignition Coil how do you know if faulty??????
Posted: Mon Jun 27, 2005 1:01 am
Getting Side Ways
Offline
User avatar

Posts: 455

Joined: 6th Feb 2005

Gallery: 32 images

Ride: NEW MACHINE 323i GOES HELL FAST

Power: 169 rwkw

Location: in the middle of peak hour traffic
SA, Australia

f150 Ignition Coil how do you know if faulty??????:shock: the f150 want go MAYBE NOT PUTTING OUT ANY VOLTS? HOW MANY VOLTS SOULD IT PUT OUT??????????? :idea:



_________________

eb 4.0 falcon & f150 351 & caprice 5.0

Top
 Profile


Posted: Mon Jun 27, 2005 2:58 am
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

Hang onto the F**k thing no shock no spark no coil, its just a piece of copper and plastic...



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


Posted: Mon Jun 27, 2005 3:37 am
Getting Side Ways
Offline

Age: 36

Posts: 7287

Joined: 5th Nov 2004

Gallery: 12 images

Ride: 1994 ED XR8 Sprint

Location: Somewhere in
QLD, Australia

best way is to change it out for a coil that you know works, if it doesnt fire then, you know the coil isnt at fault



_________________

Banned

Top
 Profile


 Post subject: coil
Posted: Mon Jun 27, 2005 4:12 am
Getting Side Ways
Offline
User avatar

Posts: 455

Joined: 6th Feb 2005

Gallery: 32 images

Ride: NEW MACHINE 323i GOES HELL FAST

Power: 169 rwkw

Location: in the middle of peak hour traffic
SA, Australia

yeah thats a good idea but i dont have a spare one floating around :cry:



_________________

eb 4.0 falcon & f150 351 & caprice 5.0

Top
 Profile


 Post subject: rotor button
Posted: Mon Jun 27, 2005 11:03 pm
Getting Side Ways
Offline
User avatar

Posts: 455

Joined: 6th Feb 2005

Gallery: 32 images

Ride: NEW MACHINE 323i GOES HELL FAST

Power: 169 rwkw

Location: in the middle of peak hour traffic
SA, Australia

i replaced the rotor button $7.50 but still 'no go' :oops: geez i know maybe a dizzy prob



_________________

eb 4.0 falcon & f150 351 & caprice 5.0

Top
 Profile


Posted: Tue Jun 28, 2005 10:01 am
Stock as a Rock
Offline
User avatar

Age: 38

Posts: 183

Joined: 5th Apr 2005

Gallery: 5 images

Ride: NC fairlane + f150 4X4

Location: berwick
VIC, Australia

g'day cobber

EBXR8380 wrote:
Hang onto the F**k thing no shock no spark no coil


also a great way to find out
-if you've got an existing heart condition.
-if your bonnet is up all the way (test instrument is you head)
-how much it hurts biting the end off your tonge

if you've got a multimeter you can do some tests . there are 3 terminals one marked (-) another small terminal and the hightention end they're all conected like this
(-)0ww0wwwwwwwwwwwwwwwwwwwwwww0 (spark hightention)

w's are windings. so your multimeter should show about 1.5ohm between (-)and (+) and 10kohm between (ht) and (+) and if your multimeter is far more accurate than mine it should be 10 001.5 ohm between (ht) and (-) otherwise it'll just show the 10kohm these are approxamte values and not to scale but you get the idea

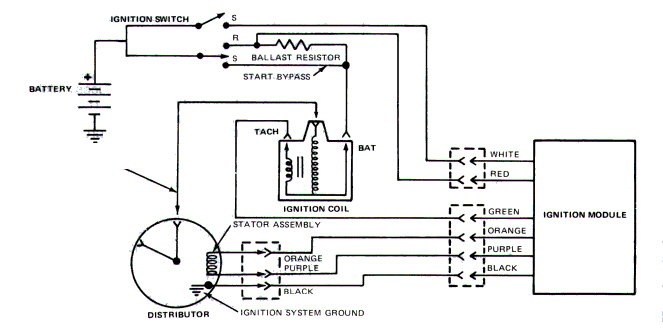

if you've got the duraspark ignition the wiring diagram is below

have you finished the respray yet. howza bout some pics.





Attachments:
durasparkwiring.gif [ 18.08 KiB | Viewed 773 times ]



_________________

If mistakes are the best way to learn why the hell arn't I a freekin genius yet.

I AM THE SPELLING KING BEHOLD MY
ineqati-inekwati-enequoati.....crapness!


Top
 Profile


Posted: Wed Jun 29, 2005 12:36 am
Getting Side Ways
Offline
User avatar

Posts: 455

Joined: 6th Feb 2005

Gallery: 32 images

Ride: NEW MACHINE 323i GOES HELL FAST

Power: 169 rwkw

Location: in the middle of peak hour traffic
SA, Australia

[
:D yeah thats good dale, ill try tonite with that seems u gone 2 some effort there ThANKS yeah i just got the f150 back ill post some pics sone it looks as new again , i think because its been sitting around 4 a while at the panel shop iam getting some greif :cry:

quote="dalesf150"]g'day cobber

EBXR8380 wrote:
Hang onto the F**k thing no shock no spark no coil


also a great way to find out
-if you've got an existing heart condition.
-if your bonnet is up all the way (test instrument is you head)
-how much it hurts biting the end off your tonge

if you've got a multimeter you can do some tests . there are 3 terminals one marked (-) another small terminal and the hightention end they're all conected like this
(-)0ww0wwwwwwwwwwwwwwwwwwwwwww0 (spark hightention)

w's are windings. so your multimeter should show about 1.5ohm between (-)and (+) and 10kohm between (ht) and (+) and if your multimeter is far more accurate than mine it should be 10 001.5 ohm between (ht) and (-) otherwise it'll just show the 10kohm these are approxamte values and not to scale but you get the idea

if you've got the duraspark ignition the wiring diagram is below

have you finished the respray yet. howza bout some pics.[/quote]



_________________

eb 4.0 falcon & f150 351 & caprice 5.0

Top
 Profile


Posted: Wed Jun 29, 2005 12:43 am
Getting Side Ways
Offline
User avatar

Posts: 455

Joined: 6th Feb 2005

Gallery: 32 images

Ride: NEW MACHINE 323i GOES HELL FAST

Power: 169 rwkw

Location: in the middle of peak hour traffic
SA, Australia

EBXR8380 wrote:
Hang onto the F**k thing no shock no spark no coil, its just a piece of copper and plastic...

lol :D ummm thats a good way to find out ,but why is my hair standing on end & and my fingers are black :evil:



_________________

eb 4.0 falcon & f150 351 & caprice 5.0

Top
 Profile


Posted: Wed Jun 29, 2005 12:08 pm
Oompa Loompa
Offline

Age: 36

Posts: 49

Joined: 9th May 2005

Ride: 300zx tt

Location: Adelaide
SA, Australia

i know that on the 6's, if the tfi module fails, you won't get a spark out of the coil. test the module first, you'll need a multimeter.



_________________

i'm huge in japan...

Top
 Profile


 Post subject: fully awake
Posted: Wed Jun 29, 2005 4:08 pm
Getting Side Ways
Offline
User avatar

Posts: 455

Joined: 6th Feb 2005

Gallery: 32 images

Ride: NEW MACHINE 323i GOES HELL FAST

Power: 169 rwkw

Location: in the middle of peak hour traffic
SA, Australia

sleepwalker wrote:
i know that on the 6's, if the tfi module fails, you won't get a spark out of the coil. test the module first, you'll need a multimeter.
yeah mate your on the money ,your fully awake man .this part seems cracked and busted :lol: ill check it out and get a new one u would think $50/00 approx 8-)



_________________

eb 4.0 falcon & f150 351 & caprice 5.0

Top
 Profile


Posted: Fri Jul 01, 2005 1:40 pm
Oompa Loompa
Offline

Age: 36

Posts: 49

Joined: 9th May 2005

Ride: 300zx tt

Location: Adelaide
SA, Australia

if it's the same tfi module as on the ea+ sixes, i've got a couple. pm me your address and i'll send them to you. they're just collecting dust in the garage...



_________________

i'm huge in japan...

Top
 Profile
