Posted: Thu Oct 16, 2008 11:10 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 1037

Joined: 5th Nov 2004

Gallery: 1 images

Ride: V8 T5 Fairmont & BA XR6T

Location: Sydney
NSW, Australia

some graphs to add thanks to Ford Muscle, they have done these flow tests back to back on the same flowbench, same day, same operator etc





Attachments:

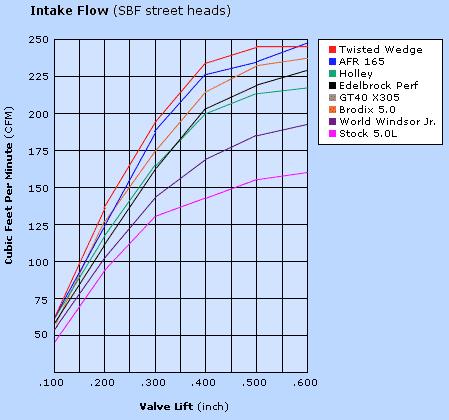

Windsor Intake Flow Graph.JPG
Windsor Intake Flow Graph.JPG [ 34.79 KiB | Viewed 519 times ]

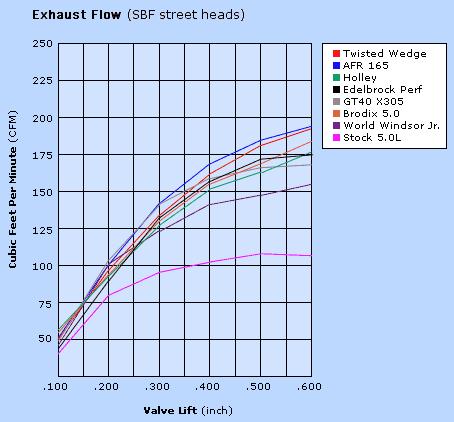

Windsor Exhaust Flow Graph.JPG
Windsor Exhaust Flow Graph.JPG [ 32.33 KiB | Viewed 520 times ]



_________________

Dima, Mitch & Jay's RPD

Top
 Profile


Posted: Fri Oct 17, 2008 7:31 am
Getting Side Ways
Offline
User avatar

Age: 48

Posts: 402

Joined: 22nd May 2007

Gallery: 28 images

Ride: '03 BA-LTD.

Location: s/e melb
VIC, Australia

BOTTLEDUP wrote:

If you are planning to stay with a 5.0L and feel the AFRs are out of your budget, consider RHS's new 160cc alloy head. They run a 1.94" intake valve so no piston mods are necessary, and prior to the $$$ heading to Antarctica they were approx $1800 a pair complete.


that's the price range i'm looking at for a complete pair, i can get a complete pair of windsor snr's for $1750 here in melb.
the rhs 160's is that au$ ? if so who stocks them?

blked: are those heads on the stroker motor your got? which would have notched piston's?.

jaysen: thanks for the graph's, what is the combo your running with those heads? out of interest & what sort of power is it making?

thanks steve.k.
Top
 Profile


Posted: Fri Oct 17, 2008 10:52 am
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 1037

Joined: 5th Nov 2004

Gallery: 1 images

Ride: V8 T5 Fairmont & BA XR6T

Location: Sydney
NSW, Australia

Ive got the windsor jr's, E303, 24lb/hr's ported HO and EL GT extractors with a 3" exhaust. Probably making something in the order of 180RWKW, nothing flash, but its fun



_________________

Dima, Mitch & Jay's RPD

Top
 Profile


Posted: Fri Oct 17, 2008 11:50 am
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 661

Joined: 14th Jan 2007

Ride: T1 TE50 P01

Location: Perth NoR
WA, Australia

steveurban wrote:
that's the price range i'm looking at for a complete pair, i can get a complete pair of windsor snr's for $1750 here in melb.
the rhs 160's is that au$ ? if so who stocks them?
thanks steve.k.


Performance Wholesale in Brisbane, 07 3808 1986 ask for Mick or Bruce.



_________________

TE50 T1 P01
200kw 5.0L, T5, Koni shocks, King S/Lows, Whiteline swaybars, DBA 4000 rotors, Acron CAI, 80mm Accufab TB, Difillipo headers & cats, twin 2.5" & Aerochambers, 3.91 LSD.

To Come:
Long rod 306, TFS 11R 205cc heads, SHP camshaft, 1.72 R/R, ported TFS Box R, 400hp NX SHO kit...

Top
 Profile


Posted: Fri Oct 17, 2008 12:37 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 2058

Joined: 25th May 2006

Ride: ef xr8

Power: 229 rwkw

Location: Perth
WA, Australia

Looks like AFR and Trickflows seem to deliver the goods.

Im looking forward. :D



_________________

Because of Beer, Thirst is a Beautiful Thing!

'95 EF XR8 auto, Advance headers, 3" exhaust, Cobra manifold, BBK 75mm throttle body , 80MM Marauder MAF, Vortech V2 T Trim , 307 rwhp, 405 ft/lb 13.2 @ 105 MPH

Now N/A (permanent Lag) - AFR 165's, Comp XE270 cam, 1.6 RR - 269 rwhp 14.1 @ 102mph.

Top
 Profile


Posted: Sun Oct 19, 2008 10:27 pm
Getting Side Ways
Offline
User avatar

Age: 48

Posts: 402

Joined: 22nd May 2007

Gallery: 28 images

Ride: '03 BA-LTD.

Location: s/e melb
VIC, Australia

BOTTLEDUP wrote:
steveurban wrote:
that's the price range i'm looking at for a complete pair, i can get a complete pair of windsor snr's for $1750 here in melb.
the rhs 160's is that au$ ? if so who stocks them?
thanks steve.k.


Performance Wholesale in Brisbane, 07 3808 1986 ask for Mick or Bruce.

have had a look at there & rhs website but no info on the 160's only the 180,200,215's, checked a "yank" online site but no info just a price.

after thinking of the info at hand , are going to put on what part's i've got
along with a cam & rocker upgrade & put away some cash for...
A: a crate motor that has all the good bit's ready to go. or...
B: a vortec kit to strap onto what i've got.
so now are after more info :?
the engine is a stock 5l & i've added, a ss cai, k&n filter, te50 maf housing with std electrics (for 19 lb injector's), custom 3" intake tube, underdrive pulley's, pacie / hiflow metal cat's & 3" mandrel exhaust, & upgraded from a 3.23 single to a 3.45 lsd.

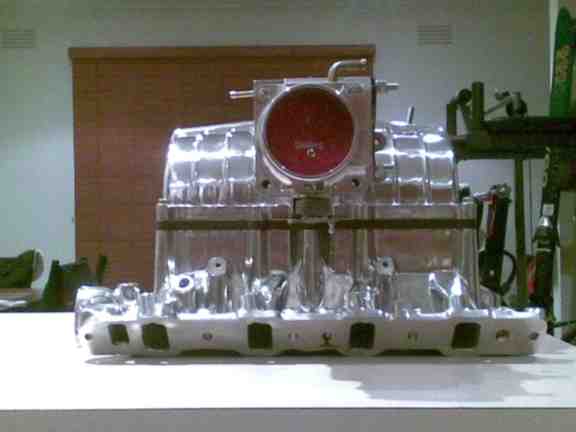

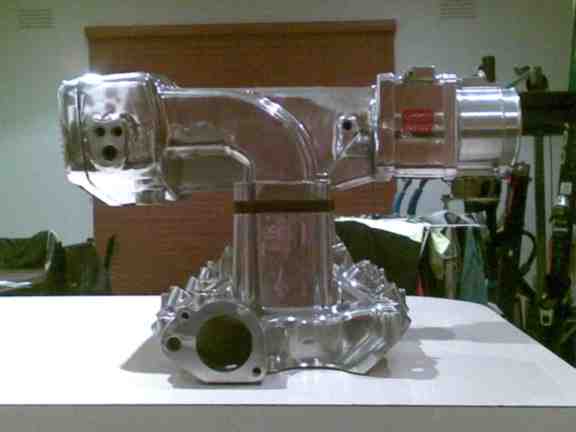

i have a typhoon manifold (performer ripoff)with a 1/2" spacer & both a 70 & 80mm holley t/body & egr to suit , as well as 24lb injector's ready to go on.

so :roll: what cam & rocker setup will suit what i've got/ready to go on?

thanks steve.k.





Attachments:
Image025_1.jpg [ 14.44 KiB | Viewed 345 times ]
Image024_1.jpg [ 14.36 KiB | Viewed 343 times ]
Top
 Profile


Posted: Sun Oct 19, 2008 10:40 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2116

Joined: 13th Aug 2005

Gallery: 15 images

Ride: 1999 XHII XR8, 2002 AU Fairmont

Power: 236 rwkw

Location: Perth
WA, Australia

steveurban wrote:
so :roll: what cam & rocker setup will suit what i've got/ready to go on?


You dont want to decide this untill you have chosen the heads you want to run. Choose the heads then choose the cam to suit then choose the rockers to suit the cam.
Or are you keeping the E7's and adding a blower? Surely not.



_________________

STREETBUILT RACING
1999 XHII Falcon XR8 Ute 5.0L, TKO600 5spd, KB 2.1L Blower, 6.5psi, 12.2@113mph!!

Top
 Profile


Posted: Mon Oct 20, 2008 12:59 am
Getting Side Ways
Offline
User avatar

Age: 55

Posts: 1566

Joined: 12th Apr 2008

Gallery: 17 images

Ride: 5.0lt NF /351 ZD Fairlane

Location: Wattle Grove
NSW, Australia

ok i know this is probably a silly question, but what do you think of the Procomp heads?



_________________

NF Fairlane with 5.0 and 5 speed goodness!
ZD build thread under construction at post1136180.html#p1136180

Top
 Profile


Posted: Mon Oct 20, 2008 1:02 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2116

Joined: 13th Aug 2005

Gallery: 15 images

Ride: 1999 XHII XR8, 2002 AU Fairmont

Power: 236 rwkw

Location: Perth
WA, Australia

fairlane6970 wrote:
ok i know this is probably a silly question, but what do you think of the Procomp heads?


Do a search :wink:



_________________

STREETBUILT RACING
1999 XHII Falcon XR8 Ute 5.0L, TKO600 5spd, KB 2.1L Blower, 6.5psi, 12.2@113mph!!

Top
 Profile


Posted: Mon Oct 20, 2008 1:30 am
Getting Side Ways
Offline
User avatar

Age: 48

Posts: 402

Joined: 22nd May 2007

Gallery: 28 images

Ride: '03 BA-LTD.

Location: s/e melb
VIC, Australia

XH5LWEPN wrote:
steveurban wrote:
so :roll: what cam & rocker setup will suit what i've got/ready to go on?


You dont want to decide this untill you have chosen the heads you want to run. Choose the heads then choose the cam to suit then choose the rockers to suit the cam.
Or are you keeping the E7's and adding a blower? Surely not.


sorry :oops: after what cam & rockers would suit what i've/part's got to put on. to keep me happy for now.

the blower is option (b) which would need heads to suit :wink:
i'm more likely to get a crate motor as it comes with all the goodies 8-)
Top
 Profile


Posted: Tue Oct 21, 2008 3:46 pm
Getting Side Ways
Offline
User avatar

Age: 48

Posts: 402

Joined: 22nd May 2007

Gallery: 28 images

Ride: '03 BA-LTD.

Location: s/e melb
VIC, Australia

anyone with some cam & rocker combo ideas i can use with what i got?
e303 cam? , 1.6 or 1.7 rockers?
any feed back would be good.
thanks steve.k.
Top
 Profile


Posted: Tue Oct 21, 2008 3:50 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2116

Joined: 13th Aug 2005

Gallery: 15 images

Ride: 1999 XHII XR8, 2002 AU Fairmont

Power: 236 rwkw

Location: Perth
WA, Australia

E303 shoudl work well. Definately run 1.7's with it though if P/V clearance permits. As you would know that is what im running in mine.



_________________

STREETBUILT RACING
1999 XHII Falcon XR8 Ute 5.0L, TKO600 5spd, KB 2.1L Blower, 6.5psi, 12.2@113mph!!

Top
 Profile


Posted: Wed Oct 22, 2008 1:24 am
Getting Side Ways
Offline
User avatar

Age: 48

Posts: 402

Joined: 22nd May 2007

Gallery: 28 images

Ride: '03 BA-LTD.

Location: s/e melb
VIC, Australia

XH5LWEPN wrote:
E303 shoudl work well. Definately run 1.7's with it though if P/V clearance permits. As you would know that is what im running in mine.


thanks jeff, had a look at couple of build's just wondering if there were any other comb's people are running?
looks like that is the cam of choice .
hope to have it done for the trip to summernat's ?


thanks again for all your input....steve.k.
Top
 Profile


Posted: Wed Oct 22, 2008 6:13 am
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 3531

Joined: 5th Nov 2004

Gallery: 25 images

Ride: 93 Maverick LWB/S2 LWB Delica

Power: 75 rwkw

Location: uoʇǝlƃuıs lʍoq ʇsnp
NSW, Australia

XH5LWEPN wrote:
fairlane6970 wrote:
ok i know this is probably a silly question, but what do you think of the Procomp heads?


Do a search :wink:


Just in case you don't search,

ANY PROCOMP PRODUCT = BAD
They make the $2 shop look like they sell nothing but high quality products.



_________________

93 Ford Maverick LWB automatic petrol guzzler (gets stuck where Deli doesn't, big pumpkins :evil:)
97 S2 Mitsubishi Delica LWB (off the road getting v8 transplant) http://tmacmechanical.com.au/

Top
 Profile


Posted: Wed Oct 22, 2008 9:56 am
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

Macca wrote:
XH5LWEPN wrote:
fairlane6970 wrote:
ok i know this is probably a silly question, but what do you think of the Procomp heads?


Do a search :wink:


Just in case you don't search,

ANY PROCOMP PRODUCT = BAD
They make the $2 shop look like they sell nothing but high quality products.

They are NOT even that good...
I know a machine shop that uses them for door stops..



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
