Help on thermo fan install



Page 1 of 3 [ 41 posts ] Go to page 1, 2, 3  Next


 Post subject: Help on thermo fan install
Posted: Sun May 09, 2010 3:45 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1700

Joined: 24th Nov 2005

Gallery: 12 images

Ride: DCII LTD V8

Location: Dunedin
New Zealand

Hi guys, after looking for hours at Bunters thermo fan doco, i can't work mine out.


I must have a different fan, my fans have a single plug with two red wires, and two black wires. Which do i connect to what?

Also could someone kindly take some pictures of their wiring set ups, as i find it easier to follow pictures, than to follow writing.

Cheers



_________________

1993 LTD V8 Oregon 5 speed "click me"

Trick Flow Heads/Cam/Intake, Crane Ignition, T5Z Trans.

Top
 Profile


 Post subject: Re: Help on thermo fan install
Posted: Sun May 09, 2010 11:09 pm
Getting Side Ways
Offline
User avatar

Age: 37

Posts: 688

Joined: 4th Mar 2010

Ride: BF Fairmont Ghia & TS Magna

Location: central coast
NSW, Australia

XFWAGON wrote:
Hi guys, after looking for hours at Bunters thermo fan doco, i can't work mine out.


I must have a different fan, my fans have a single plug with two red wires, and two black wires. Which do i connect to what?

Also could someone kindly take some pictures of their wiring set ups, as i find it easier to follow pictures, than to follow writing.

Cheers

hey

just done a thermo fan install on my ed wagon


if your wiring the thermos in series connect a red and a black together and connect the other red to the power out on the relay which is pin 30 i remember rightly

if wiring the thermos to a individual relay connect bothe blacks to earth and a red cable to the positive out (pin 30) on each relay

cheers bear



_________________

I don't know what to write in here LOL
Bear's Build Thread

Top
 Profile


 Post subject: Re: Help on thermo fan install
Posted: Tue May 11, 2010 4:22 am
Getting Side Ways
Offline
User avatar

Posts: 633

Joined: 21st Nov 2008

Location: Melbourne
VIC, Australia

borrowed from another site
iv used it a couple of times and works well
hope it helps mate
cheers
Top
 Profile


 Post subject: Re: Help on thermo fan install
Posted: Tue May 11, 2010 7:54 am
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1700

Joined: 24th Nov 2005

Gallery: 12 images

Ride: DCII LTD V8

Location: Dunedin
New Zealand

jaysway wrote:
borrowed from another site
iv used it a couple of times and works well
hope it helps mate
cheers

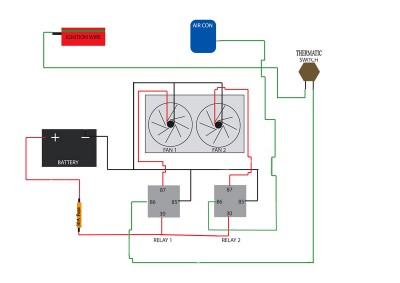

Hey man, that's awesome, thanks for that! Solves the puzzle very well. I just did a quick photo chop so it ties in with what i'm doing, how does this look? Will it work ok? I CBF putting another cable into my firewall, so that part can wait.





Attachments:
thermo1.jpg [ 126.2 KiB | Viewed 352 times ]



_________________

1993 LTD V8 Oregon 5 speed "click me"

Trick Flow Heads/Cam/Intake, Crane Ignition, T5Z Trans.

Top
 Profile


 Post subject: Re: Help on thermo fan install
Posted: Tue May 11, 2010 8:05 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

XFWAGON wrote:


I must have a different fan, my fans have a single plug with two red wires, and two black wires. Which do i connect to what?

Cheers


the fans with the single plug are el fans.. ef fans have 2 plugs...
Top
 Profile


 Post subject: Re: Help on thermo fan install
Posted: Tue May 11, 2010 8:30 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 1634

Joined: 8th Jul 2007

Gallery: 21 images

Ride: EL F100 CAPRI XR EF

Power: 234 rwkw

Location: brighton
SA, Australia

u will need 1x 30 amp fuse for each fan though
Top
 Profile


 Post subject: Re: Help on thermo fan install
Posted: Tue May 11, 2010 9:33 am
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1700

Joined: 24th Nov 2005

Gallery: 12 images

Ride: DCII LTD V8

Location: Dunedin
New Zealand

XRfairmont67 wrote:
u will need 1x 30 amp fuse for each fan though

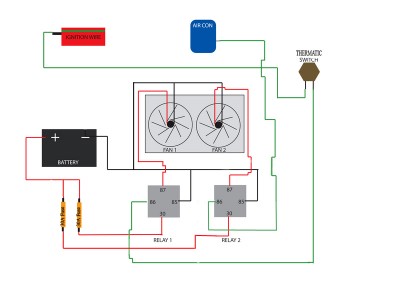

like this?





Attachments:
794w1dq6.jpg [ 131.7 KiB | Viewed 274 times ]



_________________

1993 LTD V8 Oregon 5 speed "click me"

Trick Flow Heads/Cam/Intake, Crane Ignition, T5Z Trans.

Top
 Profile


 Post subject: Re: Help on thermo fan install
Posted: Tue May 11, 2010 9:55 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 1634

Joined: 8th Jul 2007

Gallery: 21 images

Ride: EL F100 CAPRI XR EF

Power: 234 rwkw

Location: brighton
SA, Australia

perfect
but u realise u will only have one fan on when the temp switch cuts in, unless u turn the a/c on
Top
 Profile


 Post subject: Re: Help on thermo fan install
Posted: Fri May 14, 2010 8:29 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1700

Joined: 24th Nov 2005

Gallery: 12 images

Ride: DCII LTD V8

Location: Dunedin
New Zealand

XRfairmont67 wrote:
perfect
but u realise u will only have one fan on when the temp switch cuts in, unless u turn the a/c on


Thats how it is on the EF/L's isn't it? Or do they run both fans when temp cuts in?



_________________

1993 LTD V8 Oregon 5 speed "click me"

Trick Flow Heads/Cam/Intake, Crane Ignition, T5Z Trans.

Top
 Profile


 Post subject: Re: Help on thermo fan install
Posted: Fri May 14, 2010 8:35 pm
Getting Side Ways
Offline

Posts: 2448

Joined: 5th Nov 2004

Gallery: 7 images

Location: Brisbane
QLD, Australia

Dont remove the A/C Relay - if you dont have the fans on with the A/C then your going to at best stall your A/C Compressor, at worst overpressurise it.

Nigel
Top
 Profile


 Post subject: Re: Help on thermo fan install
Posted: Fri May 14, 2010 8:37 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1700

Joined: 24th Nov 2005

Gallery: 12 images

Ride: DCII LTD V8

Location: Dunedin
New Zealand

Nigel wrote:
Dont remove the A/C Relay - if you dont have the fans on with the A/C then your going to at best stall your A/C Compressor, at worst overpressurise it.

Nigel


I would definitely still have the AC relay in there for when the AC is used, what i was getting at above is don't the EF fans only use one fan for temp and one for AC? Or do both fans turn on when temp is triggered?



_________________

1993 LTD V8 Oregon 5 speed "click me"

Trick Flow Heads/Cam/Intake, Crane Ignition, T5Z Trans.

Top
 Profile


 Post subject: Re: Help on thermo fan install
Posted: Fri May 14, 2010 9:20 pm
Getting Side Ways
Offline

Posts: 2448

Joined: 5th Nov 2004

Gallery: 7 images

Location: Brisbane
QLD, Australia

Be creative with the wiring.

Using Factory Wiring, there are 3 wires that control the speed. The options are :

2 fans low speed, 1 fan low and 1 medium, and then both fast (From memory)

On the EL, they options are both on Low speed, and both on high.

Most people seem to switch them seperately. Ive done this before (Way before BPT) using the BMW Thermoswitch which has 2 temperatures to trigger. Fans come on low when temp rises, high when it gets hotter, and the A/C turns them on Low as well. The only thing I never figured using thermofan logic was how to get the fans to go on Low for A/C, unless they were already on low in which case they went to high. But... I think ive just got an idea!.

I'll be wiring these into my XF as well - same switch. I sketched a basic circuit out at work 2 days ago again. Your looking at : Low speed is fans running in Series, High Speed is fans running in Parallel.

If you have the fans "Wired" in series as default, then turning one relay on will turn on the low speed.
If you have another two relays wired correctly (one NO, One Changeover) then when the "high" speed function turns on, the fans are disconnected from each other - and each switched directly to 12v.

Make sense? - no. I have the factory wiring diagram somewhere.

Nigel


Cheers

Nigel
Top
 Profile


 Post subject: Re: Help on thermo fan install
Posted: Sun May 30, 2010 9:08 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

Hey,

How did you go with this?

I drew this up, this is the factory stuff off the EL... That is two speed settings... both on low, or both on high... EF has three speed settings...

Attachment:
EL Falcon Thermatic Fan Wiring.pdf [72.62 KiB]
Downloaded 435 times


If you want something custom to work with air con I can draw it up for you so your ac brings them on slow or fast (your call) and can trigger it off a tridon temp switch (something with two contacts so you get both low and high speeds)...

http://www.tridon.com.au/Products/Produ ... 483&P=2014

Super cheap can get tridon things... Just pick one with the right thread and right temps for the fans...

Probably too late by now, but better late than never... :D

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: Help on thermo fan install
Posted: Sun May 30, 2010 9:14 pm
Getting Side Ways
Offline

Posts: 2448

Joined: 5th Nov 2004

Gallery: 7 images

Location: Brisbane
QLD, Australia

Ef Fans are all ECU Controlled - so the ECU knows that A/C is on, and also if the A/C Circuit goes over pressure - so fans can be any speed.
... not a fixed combination. Hence some cars have a seperate fan for A/C.
Top
 Profile


 Post subject: Re: Help on thermo fan install
Posted: Sun May 30, 2010 9:17 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

was ages ago I drew that up... Only thing I missed was the fact the wires that run power to the relays are switched with the key, not on all the time...

Also the colours represent the Ford wiring colours...



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit
