Installing engine and wont turn over?



Page 1 of 2 [ 17 posts ] Go to page 1, 2  Next


 Post subject: Installing engine and wont turn over?
Posted: Tue Oct 30, 2007 7:38 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 451

Joined: 5th Nov 2004

Ride: 5lt Turbo NC, TE V6 Gemini

Location: Castlemaine
VIC, Australia

Ok... when i hit the key the starter is struggling, after maybe 3 seconds smoke is coming off it... Took the sparkplugs out of the engine thinking it mighta been too tight and it did make a difference but not much... Engine was taken out 6mths ago and starter was fine back then. Engine just had cometic gaskets installed, and auto / converter etc bolted back on and reinstalled in the bay? Any suggestions?
Top
 Profile


Posted: Tue Oct 30, 2007 7:46 pm
Fordmods Addict
Offline
User avatar

Age: 31

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

Is it turning over at all?
Can you turn it over by hand?
Sounds like something is stuck.



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


Posted: Tue Oct 30, 2007 7:46 pm
Getting Side Ways
Offline

Age: 38

Posts: 1319

Joined: 5th Nov 2004

Ride: 66 Coupe

Location: Perth
WA, Australia

sure the converters in the auto properly? if its not all the way in, it can jam on the pump gears causing that problem.

Have you tried a socket and bar on the harmonic balancer bolt and turn the motor by hand?
Top
 Profile


Posted: Tue Oct 30, 2007 8:04 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 451

Joined: 5th Nov 2004

Ride: 5lt Turbo NC, TE V6 Gemini

Location: Castlemaine
VIC, Australia

i tried turning it by hand before the auto went on and it turned easy, its tricky turning it now coz the crossover pipe is in the way... ill go try that again...
Top
 Profile


Posted: Tue Oct 30, 2007 9:20 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 451

Joined: 5th Nov 2004

Ride: 5lt Turbo NC, TE V6 Gemini

Location: Castlemaine
VIC, Australia

engine turns over REAL easy with a ratchet on the crank... admittedly no sparkplugs are in it, but i guess its not seized... any other ideas?
Top
 Profile


Posted: Tue Oct 30, 2007 9:33 pm
Getting Side Ways
Offline

Age: 38

Posts: 1319

Joined: 5th Nov 2004

Ride: 66 Coupe

Location: Perth
WA, Australia

jammed starter motor maybe?
bad battery cable / terminal / connection?
Top
 Profile


Posted: Tue Oct 30, 2007 9:36 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 451

Joined: 5th Nov 2004

Ride: 5lt Turbo NC, TE V6 Gemini

Location: Castlemaine
VIC, Australia

the starter does turn....but slowly and is struggling. I just upgraded the earth...i have one battery cable bolted to my block and the other end to my chassis rail, its been done properly... do i need more? and if it was an earthing issue, would the starter smoke after 3 seconds?
Top
 Profile


Posted: Tue Oct 30, 2007 10:22 pm
Smokin em up
Offline

Age: 36

Posts: 210

Joined: 14th May 2005

Location: Perth
WA, Australia

Easy, Remove the starter and bench test it.
Ive seen this issue before and it does happen that the windings in the starter breakdown suddenly. Especially if its been moist and not dryed by engine bay heat.

For 150 dollars I would slap in a new starter and give it a spin. Guarantee it will turn over and start.
Normally if a engine has seized when the starter engages it will dis-engage because the Ampers needed cant be provided and you will experiance the CLACKING noise of a flat battery.

Best way to test for jammed gearbox put it in netural and try to turn by hand with no sparkplugs in. you should beable to turn it over.
Top
 Profile


Posted: Wed Oct 31, 2007 12:22 am
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 451

Joined: 5th Nov 2004

Ride: 5lt Turbo NC, TE V6 Gemini

Location: Castlemaine
VIC, Australia

Thanks to everyone for your help! Finally got it going, the starter must be stuffed.... and i think the neighbours are unhappy at being woken up by a turbocharged windsor at 11.30 with no exhaust lol
Top
 Profile


Posted: Wed Oct 31, 2007 12:49 am
Fordmods Junkie
Offline
User avatar

Posts: 11739

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

BlownNc wrote:
Thanks to everyone for your help! Finally got it going, the starter must be stuffed.... and i think the neighbours are unhappy at being woken up by a turbocharged windsor at 11.30 with no exhaust lol


Hahaha...stuff the neighbours :P they can hear the whirring and clacking of your car. I'm sure after a while of trying to start the car, the neighbours were hoping the engine would start so that you would stop fiddling with it HAHAHA..

good on you for getting it working again =D

phong =P~



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


Posted: Wed Oct 31, 2007 1:26 am
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 5889

Joined: 2nd Mar 2006

Gallery: 5 images

Ride: '14 Grand Cherokee

Location: Port Lincoln
SA, Australia

BlownNc wrote:
Thanks to everyone for your help! Finally got it going, the starter must be stuffed.... and i think the neighbours are unhappy at being woken up by a turbocharged windsor at 11.30 with no exhaust lol


ahaha dont worry ur neighbours arent the only oes that'll be unhappy... mine are too at the moment, for the past week ive been starting the EA up with no exhaust at about 8am :P



_________________

11/93 ED OPT20 GLi | Full Boat Spec

Top
 Profile


Posted: Wed Oct 31, 2007 9:16 am
Tyre Shredder
Offline

Posts: 311

Joined: 3rd Jan 2006

Location: tauranga
New Zealand

drop off a few packets of ear plugs to surrounding neighbours :lol: :lol:
Top
 Profile


Posted: Wed Oct 31, 2007 9:34 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 451

Joined: 5th Nov 2004

Ride: 5lt Turbo NC, TE V6 Gemini

Location: Castlemaine
VIC, Australia

haha the neighbour looked over the fence this arvo trying to figure out what the loud whine was hahaha im in love
Top
 Profile


Posted: Wed Oct 31, 2007 9:51 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 1160

Joined: 25th Apr 2005

Gallery: 11 images

Location: Melbourne
VIC, Australia

got any photos of your setup ?
Top
 Profile


Posted: Wed Oct 31, 2007 10:01 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 451

Joined: 5th Nov 2004

Ride: 5lt Turbo NC, TE V6 Gemini

Location: Castlemaine
VIC, Australia

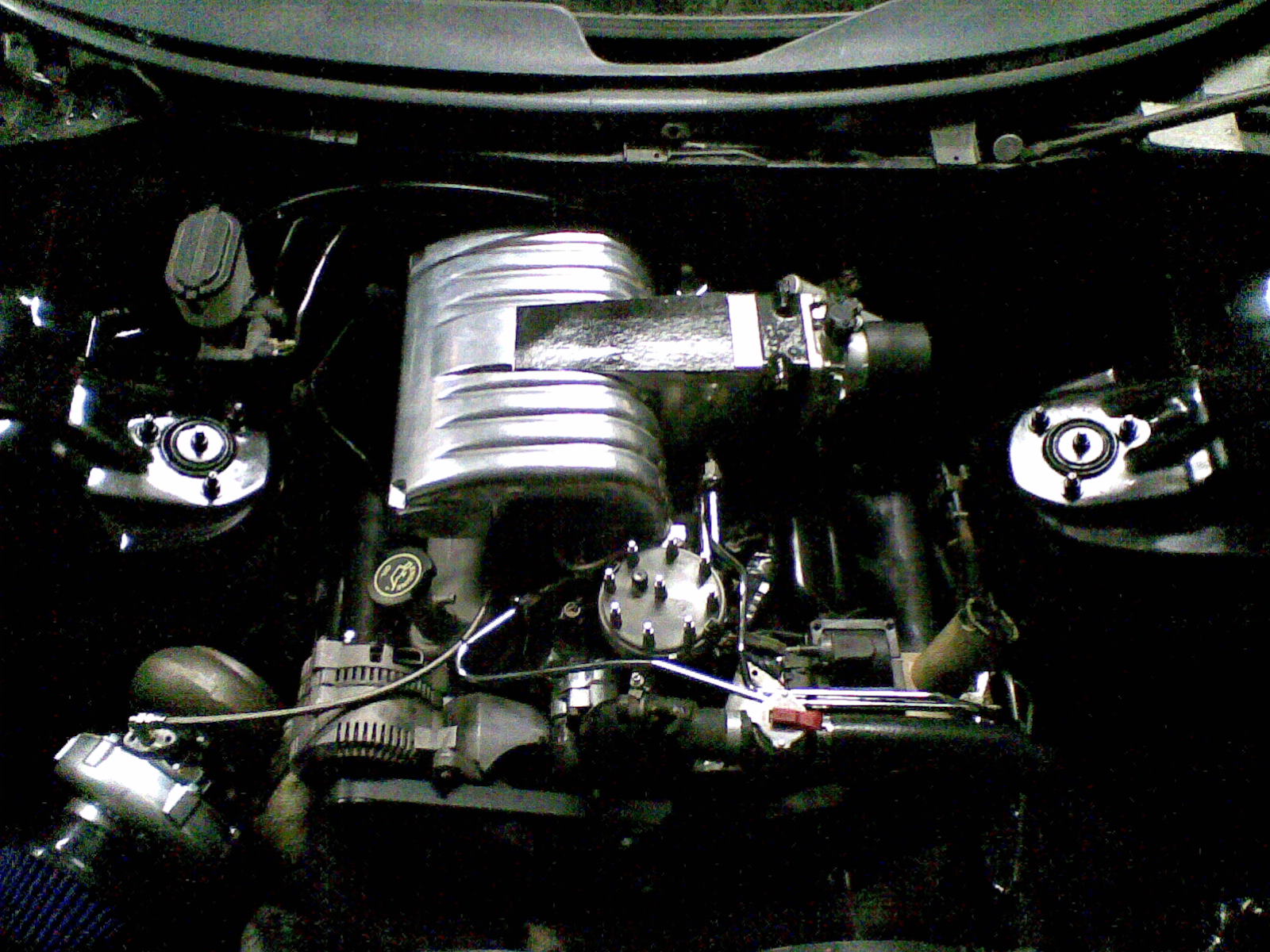

this is from the weekend... ill post another when i can





Attachments:
24102007(003).jpg [ 295.61 KiB | Viewed 72 times ]
