 Post subject: Intake idea. Would it be worth the effort?
Posted: Mon Feb 08, 2010 2:19 pm
Getting Side Ways
Offline
User avatar

Posts: 446

Joined: 11th Sep 2005

Gallery: 1 images

Ride: Fairmont

Location: Werribee
VIC, Australia

Hey guys,

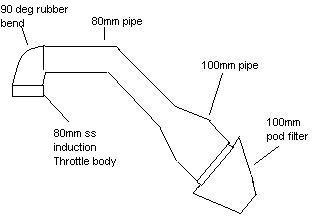

Below is a pitcure of an intake im looking at getting made it will be 100mm stainless pipeing that narrows down to 80mm piping which will be attached to an 80mm ss induction throttle body. It will have a 100mm pod filter on the end of it. Just was wondering if its worth spending the extra dosh having the pipe starting at 100mm or should i just get 80mm the whole way. I'm also planning on making my own CAI box. Its for a BA V8 mont.
Thanks

My plans

Attachment:
intakdesign.JPG [ 9.86 KiB | Viewed 1174 times ]

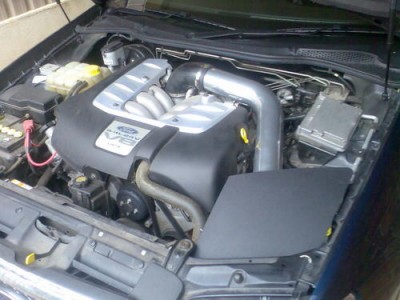

My inspiration
Attachment:
ba intake ACE CAI.jpg
ba intake ACE CAI.jpg [ 38.84 KiB | Viewed 25 times ]
Top
 Profile


 Post subject: Re: Intake idea. Would it be worth the effort?
Posted: Mon Feb 08, 2010 2:31 pm
Getting Side Ways
Offline

Age: 30

Posts: 1434

Joined: 14th Jul 2008

Gallery: 1 images

Ride: Falcon EF Gli

Location: Melbourne
VIC, Australia

Looks like a C**k.



_________________

AsIzZy

My Build Thread:
post994940.html#p994940

For Sale Thread 1
forums/viewtopic.php?t=70845&highlight=

Top
 Profile


 Post subject: Re: Intake idea. Would it be worth the effort?
Posted: Mon Feb 08, 2010 2:39 pm
Getting Side Ways
Offline
User avatar

Posts: 446

Joined: 11th Sep 2005

Gallery: 1 images

Ride: Fairmont

Location: Werribee
VIC, Australia

asizzy wrote:
Looks like a C**k.

Very helpful thanks
Top
 Profile


 Post subject: Re: Intake idea. Would it be worth the effort?
Posted: Mon Feb 08, 2010 2:47 pm
Getting Side Ways
Offline

Age: 34

Posts: 1166

Joined: 31st Mar 2005

Gallery: 2 images

Ride: ef falcon, el fairmont ghia

Location: Christchurch
New Zealand

so the picture is the end result? looks good in the pic, i'd stick to 80mm but depends how much extra for the bit of 100mm
Top
 Profile


 Post subject: Re: Intake idea. Would it be worth the effort?
Posted: Mon Feb 08, 2010 8:51 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 1093

Joined: 29th Nov 2004

Gallery: 15 images

Ride: BA Ford Fairlane V8

Location: Lower Hunter Valley
NSW, Australia

If you focus on the right pod filter, you will find that you wont need the 100mm section. Get a good K&N that has an internal radius on the rubber flange. Cheap pods wont have this, but keep looking until you get the right one. I used such a filter on a DIY cold air intake on my BA XR8 and it picked up some good power. The intake that you have shown in the photo is a proven way of getting more power out of your 3V, especially the rubber elbow at your throttle body.

I wouldn't worry about the aftermarket throttle body. Yours will get you to the maximum NA power achievable from a 3V.



_________________

Interested in a fair go for the Hunter-New England area of NSW?

Top
 Profile


 Post subject: Re: Intake idea. Would it be worth the effort?
Posted: Tue Feb 09, 2010 3:21 pm
Getting Side Ways
Offline
User avatar

Posts: 446

Joined: 11th Sep 2005

Gallery: 1 images

Ride: Fairmont

Location: Werribee
VIC, Australia

Already got the throttle body lol, got it off ebay for $300. Might just go for the straight 80mm pipe then. Am i right in assuming the more surface area on the filter the better. I am definatley getting a K&N filter its just a matter of which one. I'm going to measure it all up i tomorrow and see was size filter would be easy to fit.
Top
 Profile


 Post subject: Re: Intake idea. Would it be worth the effort?
Posted: Wed Feb 10, 2010 7:32 pm
Getting Side Ways
Offline
User avatar

Posts: 446

Joined: 11th Sep 2005

Gallery: 1 images

Ride: Fairmont

Location: Werribee
VIC, Australia

anyone here with a CAI i can take a look at ti get ideas when i make my box.
Top
 Profile


 Post subject: Re: Intake idea. Would it be worth the effort?
Posted: Wed Feb 10, 2010 10:37 pm
Smokin em up
Offline

Age: 34

Posts: 239

Joined: 20th Jan 2007

Ride: Custom Bedford, 79 Firebird

Location: Perth
WA, Australia

hey mate, you want the filter with the highest CFM, as it will have less restriction trying to breathe. Adding the 100mm on the end will cost you more than you're likely to gain, but an easy way to test this would be to have the end cut off and have a silicon joiner than can swap the pod end from 80mm to 100mm and vice versa.



_________________

Wrecking BA lots of parts available Pictures and prices here
3 Decks with stackers PRICE DROP

Top
 Profile


 Post subject: Re: Intake idea. Would it be worth the effort?
Posted: Thu Feb 11, 2010 2:25 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Nothing wrong with that design, used a very similar one on a Courier 2.6 EFI.
You will need that 100mm cone...gets air speed up, and provides volume for snappy throttle response....personal expirience.
Go for it.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Intake idea. Would it be worth the effort?
Posted: Thu Feb 11, 2010 5:07 pm
Getting Side Ways
Offline
User avatar

Posts: 446

Joined: 11th Sep 2005

Gallery: 1 images

Ride: Fairmont

Location: Werribee
VIC, Australia

Goin to get quotes on the pipe next week, the price will make my decision for me.
Top
 Profile


 Post subject: Re: Intake idea. Would it be worth the effort?
Posted: Thu Feb 11, 2010 9:12 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

blue wrote:
Goin to get quotes on the pipe next week, the price will make my decision for me.


Don't ask for " pipe ".....you need " tubing "....pipe is like, minimum 3mm wall....tubing will have a 1.6mm wall.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Intake idea. Would it be worth the effort?
Posted: Fri Feb 12, 2010 1:09 pm
Getting Side Ways
Offline
User avatar

Posts: 446

Joined: 11th Sep 2005

Gallery: 1 images

Ride: Fairmont

Location: Werribee
VIC, Australia

cjh wrote:
blue wrote:
Goin to get quotes on the pipe next week, the price will make my decision for me.


Don't ask for " pipe ".....you need " tubing "....pipe is like, minimum 3mm wall....tubing will have a 1.6mm wall.


Will do
