 Post subject: manifold hoseing
Posted: Fri Mar 27, 2009 5:47 pm
Technical Contributor
Offline
User avatar

Age: 34

Posts: 4355

Joined: 14th Dec 2005

Gallery: 36 images

Ride: Fairlane

Location: Newy
NSW, Australia

Can someone tell me what hoses go where on the different manifolds.

I am going from HO manifold to the Cobra manifold.

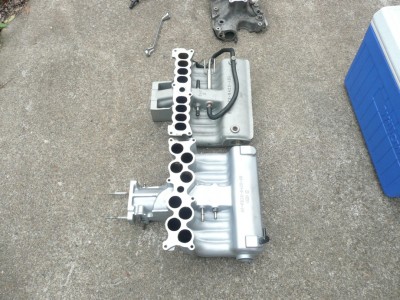

Here are some pics.

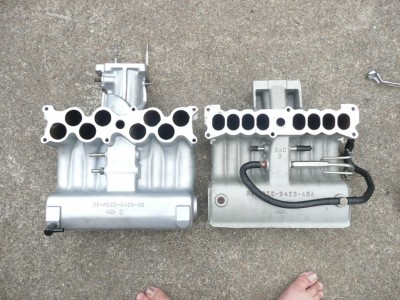

Cobra is the left, HO is the right.

The cobra has 2 fittings on the left but none on the right. and also only 1 port on buldge bit.

The HO has 2 on left, and 2 on the right (along with that 3 piped fitting), and also has 2 ports on buldge bit

So obviously there are some modifications you have to do hoseing wise to get this working.

Any help would be appreciated. Im getting stressed out big time on this job, trying to find info sometimes is near impossible, and trying to order parts is near impossible when they dont know what the hell your on about.

But anyways,

cheers

Ben 8-)





Attachments:
P1030853-1.JPG [ 393.75 KiB | Viewed 30 times ]
P1030852-1.JPG [ 394.45 KiB | Viewed 32 times ]



_________________

The Lane Lives.... Finally!!!!

Top
 Profile


 Post subject: Re: manifold hoseing
Posted: Sat Mar 28, 2009 7:42 am
Technical Contributor
Offline
User avatar

Age: 34

Posts: 4355

Joined: 14th Dec 2005

Gallery: 36 images

Ride: Fairlane

Location: Newy
NSW, Australia

Anybody?

I wanna try and get this knocked over this weekend. Rego is due :evil:



_________________

The Lane Lives.... Finally!!!!

Top
 Profile


 Post subject: Re: manifold hoseing
Posted: Sat Mar 28, 2009 8:14 am
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 1093

Joined: 29th Nov 2004

Gallery: 15 images

Ride: BA Ford Fairlane V8

Location: Lower Hunter Valley
NSW, Australia

Hmm it's been ages since I did this, so I'll try to remember. You're going to need some new hose for your PCV and booster, connect your booster to the big dark fitting on the plenum. Connect your PCV to one of the smaller centre fittings. Perhaps then buy a T fitting and run some hose from the other centre pipe to the T fitting and run a new hose to your vacuum connection climate control and the other to your purge solenoid. That will get you going.

Can you remember what else connected to the small tree at the back? I'm thinking purge solenoid and the climate control. If you have more, such as EGR stuff, buy a T piece with more connections on it.

Ben, if you need a hand, let me know and I can come over and help you.

Can't come over, baby sitting duties.....



_________________

Interested in a fair go for the Hunter-New England area of NSW?

Top
 Profile


 Post subject: Re: manifold hoseing
Posted: Fri Apr 10, 2009 9:35 am
Technical Contributor
Offline
User avatar

Age: 34

Posts: 4355

Joined: 14th Dec 2005

Gallery: 36 images

Ride: Fairlane

Location: Newy
NSW, Australia

ok so finally have time to work this out today.

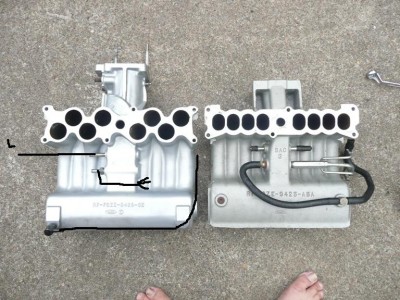

can i drill and tap a hole here for the tree shaped fitting? the tree is for emmsions crap, dont know exactly what they are, but thats what they are.





Attachments:
P1030852-1.JPG [ 152.26 KiB | Viewed 26 times ]



_________________

The Lane Lives.... Finally!!!!

Top
 Profile


 Post subject: Re: manifold hoseing
Posted: Fri Apr 10, 2009 4:32 pm
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 1780

Joined: 31st Jan 2005

Gallery: 10 images

Ride: 07 BF mk2 E-gas wagon + eb 5.0

Power: 174 rwkw

Location: Adelaide
SA, Australia

see fordforums.

the 3 tree one is mainly for egr i think. i got rid of mine and all the hoses. had some thing that was mounted to drivers side guard that had a few vac lines to it.

the way banarcus has said to do the booster and pcv is opposite to your ho. the pcv runs off the plenum and the booster off the one in the middle. not sure if it makes any diff though.



_________________

eb v8: low loud and fast. just how a v8 should be. i guess the big question is, is it fast enough...

Top
 Profile


 Post subject: Re: manifold hoseing
Posted: Fri Apr 10, 2009 7:23 pm
Technical Contributor
Offline
User avatar

Age: 34

Posts: 4355

Joined: 14th Dec 2005

Gallery: 36 images

Ride: Fairlane

Location: Newy
NSW, Australia

alright basically this is what i done today, hopefully it is allgood, and wont disrupt anything.

basically eliminated the piece from the centre to the t piece, as i couldnt fit it all in there witht eh fittings i had.

Will it cause any dramas?





Attachments:
P1030852-2.JPG [ 108.67 KiB | Viewed 34 times ]
