My new build with numbers (& times)



Page 1 of 3 [ 33 posts ] Go to page 1, 2, 3  Next


 Post subject: My new build with numbers (& times)
Posted: Thu Dec 06, 2007 10:27 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 1085

Joined: 6th Nov 2004

Ride: BF XR Turbo

Location: Castle Hill
NSW, Australia

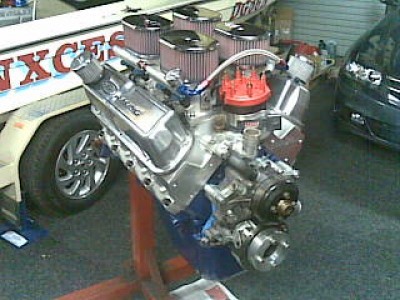

just got off the dyno tuning up my new motor :)

it consists of

stock 5l bottom end (re ringed and bearing'd)
all arp bolts
trickflow main girdle
trickflow track heat heads (complete)
comp cams 1.6 roller rockers
trickflow "stage 2" cam
pacey headers into twin 2.5 exhaust
with a 8throt injected weber style intake
24lb fms injectors
powered by a megasquirt

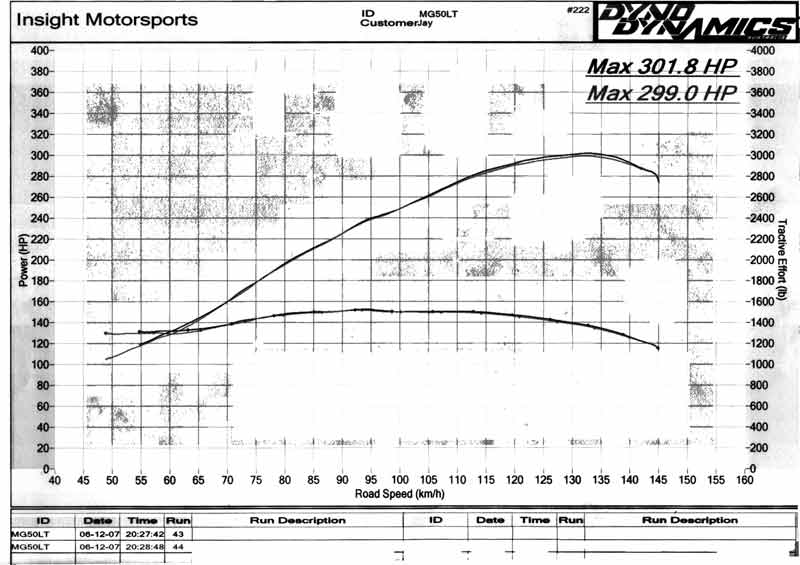

driving through my auto and 3.45's it pulled 301.8rwhp

very happy with the power and drivability so much stronger than the stocker :)



many appologies about the pics my scanner sucks and the phone camera sucks more,
will get some good photos with my slr when i get a chance





Attachments:
dyno-301hp-smaller2.jpg [ 48.17 KiB | Viewed 81 times ]
22112007(003).jpg [ 30.26 KiB | Viewed 89 times ]



_________________

BF XR6T 6spd Auto. 60lb injectors, Hybrid Cooler, Custom Piping, Custom Surge Tank, Actuator.

12.3 @ 114

Last edited by mitchg911 on Wed Dec 19, 2007 10:23 pm, edited 1 time in total.

Top
 Profile


Posted: Thu Dec 06, 2007 10:32 pm
Getting Side Ways
Offline

Age: 108

Posts: 927

Joined: 27th Sep 2007

Location: Adelaide
SA, Australia

Do the aircleaners fit under the bonnet,.Whats a manifold like that cost?Looks very tough



_________________

165 Killer Wasps all packaged in a green kmart car, almost an explorer in a way...

Top
 Profile


Posted: Thu Dec 06, 2007 10:37 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 1085

Joined: 6th Nov 2004

Ride: BF XR Turbo

Location: Castle Hill
NSW, Australia

yep they fit.. just but they fit..
as for what it cost...
4x $260usd for the throttles
4x $50usd for the filters
1x 250odd for the manifold
plus the anodized fittings etc (probably $100usd all up)
my grandfather and i made all the linkages, vacuum tree etc


its a fair bit dearer than the typical single tb setup, but i like it :)



_________________

BF XR6T 6spd Auto. 60lb injectors, Hybrid Cooler, Custom Piping, Custom Surge Tank, Actuator.

12.3 @ 114

Top
 Profile


Posted: Thu Dec 06, 2007 11:14 pm
Tyre Shredder
Offline
User avatar

Age: 33

Posts: 320

Joined: 23rd Nov 2004

Ride: XHII XR8 Ute - Supercharged

Location: Perth
WA, Australia

Sick!



_________________

Old - XF with XH XR8 Driveline... http://www.fordmods.com/ford-v8-f2/my-xr8-power-xf-falcon-t20529.html
Current - XHII XR8 ute - Kenne Bell Supercharged - Build in progress

SUPERCHARGED XHII XR8 UTE - BUILD THREAD >http://www.fordmods.com/post1195532.html#p1195532

Top
 Profile


Posted: Thu Dec 06, 2007 11:22 pm
Getting Side Ways
Offline

Age: 108

Posts: 927

Joined: 27th Sep 2007

Location: Adelaide
SA, Australia

mitchg911 wrote:
yep they fit.. just but they fit..
as for what it cost...
4x $260usd for the throttles
4x $50usd for the filters
1x 250odd for the manifold
plus the anodized fittings etc (probably $100usd all up)
my grandfather and i made all the linkages, vacuum tree etc


its a fair bit dearer than the typical single tb setup, but i like it :)


Looks very nice,i would be very happy with that.Are they 45mm t/b?



_________________

165 Killer Wasps all packaged in a green kmart car, almost an explorer in a way...

Top
 Profile


Posted: Thu Dec 06, 2007 11:23 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 1085

Joined: 6th Nov 2004

Ride: BF XR Turbo

Location: Castle Hill
NSW, Australia

48mm



_________________

BF XR6T 6spd Auto. 60lb injectors, Hybrid Cooler, Custom Piping, Custom Surge Tank, Actuator.

12.3 @ 114

Top
 Profile


Posted: Thu Dec 06, 2007 11:29 pm
Getting Side Ways
Offline

Age: 108

Posts: 927

Joined: 27th Sep 2007

Location: Adelaide
SA, Australia

I saw a setup similar to yours on bob romano's eb ghia but i think his were 45mm and he was geting 450bhp so theres definite potential in your setup



_________________

165 Killer Wasps all packaged in a green kmart car, almost an explorer in a way...

Top
 Profile


Posted: Thu Dec 06, 2007 11:35 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 1085

Joined: 6th Nov 2004

Ride: BF XR Turbo

Location: Castle Hill
NSW, Australia

with a bigger cam and more comp (or more cubes) its could make alot more.. but for a off the shelf head cam combo im stoked..



_________________

BF XR6T 6spd Auto. 60lb injectors, Hybrid Cooler, Custom Piping, Custom Surge Tank, Actuator.

12.3 @ 114

Top
 Profile


Posted: Fri Dec 07, 2007 12:08 am
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 1886

Joined: 26th Nov 2006

Gallery: 7 images

Ride: EL XR8, '08 Mondeo XR5t

Power: 205 rwkw

Location: Perth
WA, Australia

Very nice mate. With the TFS heads and cam did you need to crank any more timing into it?



_________________

Trickflow Street Heat top end kit, 70mm BBK TB & EGR, 24lb injectors, Underdrives & 3.73s: 275rwhp - 13.15@105mph NA / 12.37@116mph N20

When injustice becomes law, resistance becomes duty

Top
 Profile


Posted: Fri Dec 07, 2007 12:58 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2116

Joined: 13th Aug 2005

Gallery: 15 images

Ride: 1999 XHII XR8, 2002 AU Fairmont

Power: 236 rwkw

Location: Perth
WA, Australia

Very nice mate. That motor look great with the quad T/B's!!!! Love the rocker covers too.

Very nice power figure there aswell. I guess with that cam and quad T/B's it isnt quite as strong at low RPM but comes on strong up high?

Would love to see what sort of power it'd mak through a T5 and i bet it'd be a whole lot more fun to drive.

Any idea of a true torque figure? And here peak torque is?



_________________

STREETBUILT RACING
1999 XHII Falcon XR8 Ute 5.0L, TKO600 5spd, KB 2.1L Blower, 6.5psi, 12.2@113mph!!

Top
 Profile


Posted: Fri Dec 07, 2007 2:22 am
Fordmods Addict
Offline
User avatar

Age: 31

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

Thats tough as, love it.



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


Posted: Fri Dec 07, 2007 7:23 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 1085

Joined: 6th Nov 2004

Ride: BF XR Turbo

Location: Castle Hill
NSW, Australia

ill have to have a look at the maps to see where the peak timing was but im sure it was just shy of 40degrees right up top.
it pulls pretty strong down low but it certainly does come on a bit at about 3grand..
the lower line on the graph is tractive effort which is as close to a torque graph as i have, no idea of a true figure. id say peak torque is somewhere in the middle of the rev range 3000-3500ish?



-mitch



-mitch



_________________

BF XR6T 6spd Auto. 60lb injectors, Hybrid Cooler, Custom Piping, Custom Surge Tank, Actuator.

12.3 @ 114

Top
 Profile


Posted: Sat Dec 08, 2007 6:53 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

are those TB the EFI hardwhare ones?
if so, how did you find quality and what are they like to deal with.
been looking at thier gear for a while, to use on a 4cyl.



_________________

PERMANENTLY BANNED

Top
 Profile


Posted: Sat Dec 08, 2007 7:09 pm
Getting Side Ways
Offline

Age: 55

Posts: 434

Joined: 8th Nov 2004

Gallery: 13 images

Ride: 94 Futura

Location: Bilpin
NSW, Australia

And it sounds so good on full throttle and pure sex in the car when the bonnet is opened :lol:



_________________

In Henry I Trust

Top
 Profile


Posted: Sat Dec 08, 2007 7:24 pm
Getting Side Ways
Offline

Posts: 6166

Joined: 8th May 2007

bloody hell....... so much for the gutless eseries V8's..... great work!!!

You should offer this as some sort of drive in drive out package........ im sure theres alot people sick of being on par performance wise with a mild inline 6 !!!!
