 Post subject: Need help with Fuel lines
Posted: Tue Aug 19, 2008 9:34 pm
Technical Contributor
Offline
User avatar

Age: 34

Posts: 4355

Joined: 14th Dec 2005

Gallery: 36 images

Ride: Fairlane

Location: Newy
NSW, Australia

Howdy fellas,

Decided to get stuck into pulling the engine apart tonight, anyways i got down to ripping the fuel lines out, but i cant seem to dissconnect them.

Do you just pull at them to seperate? or is there a trick?

I was trying to get this all ripped out tonight.

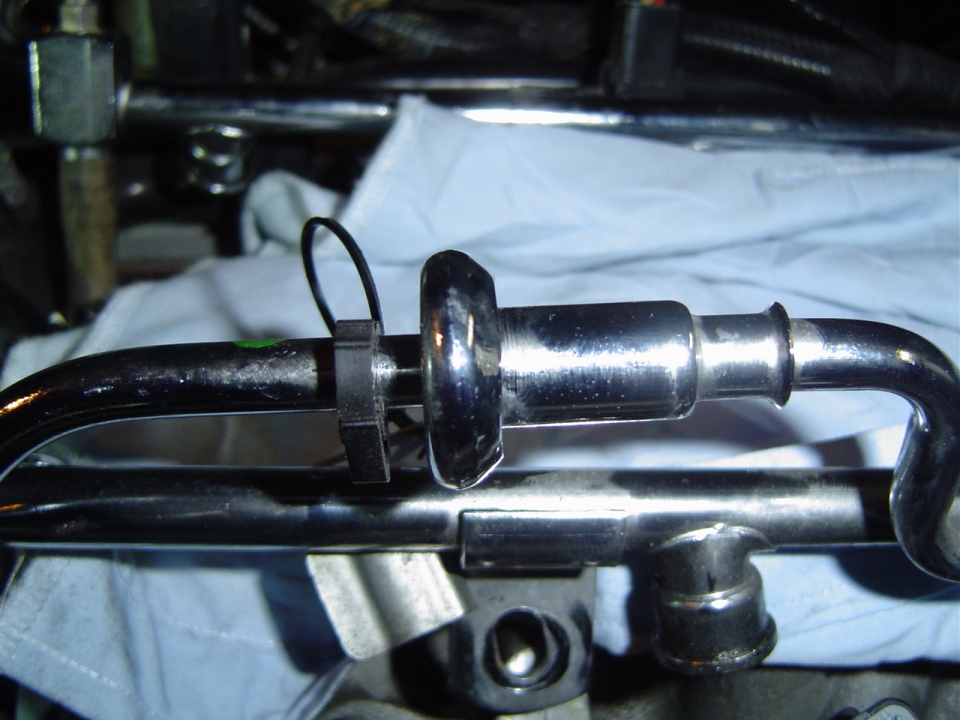

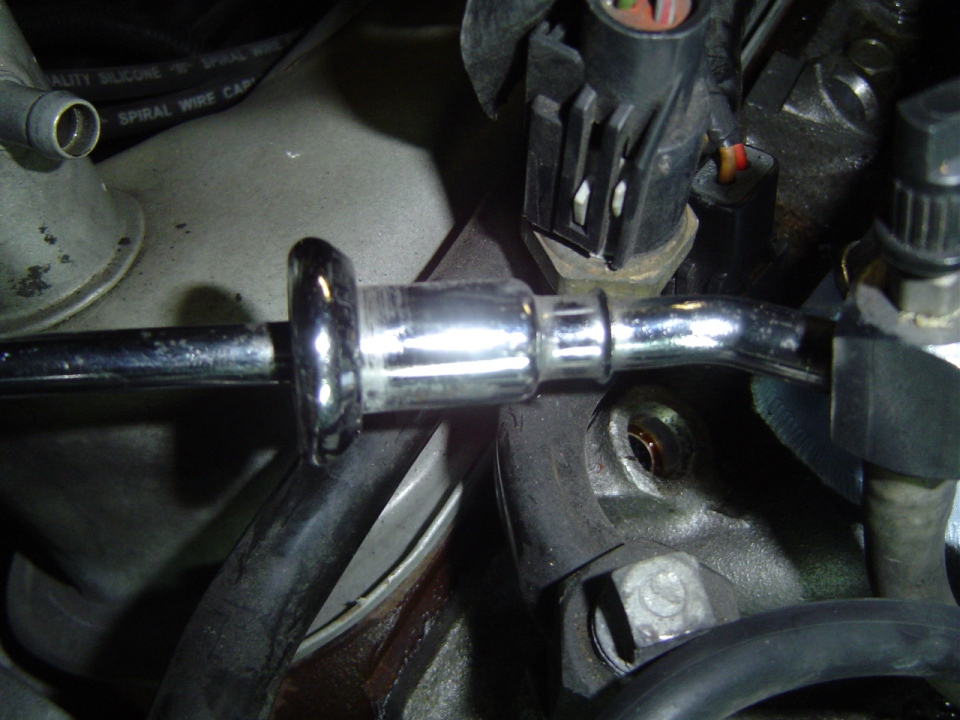

Pics of what im trying to disconnect

Cheers

BEN





Attachments:
DSC01485.JPG [ 263.43 KiB | Viewed 1057 times ]
DSC01484.JPG [ 242.98 KiB | Viewed 1061 times ]



_________________

The Lane Lives.... Finally!!!!

Top
 Profile


Posted: Tue Aug 19, 2008 9:47 pm
Tyre Shredder
Offline

Age: 37

Posts: 311

Joined: 10th May 2005

Ride: ebxr8

Location: melbourne
VIC, Australia

i think u need a special tool for that? im not sure. i just undo mine where it joins to the hose part

Greg



_________________

347, crane cam, Pro topline 180 heads, Edelbrock victor efi intake, 80mm C&L maf, 75mm tb, 30lb injectors and 1/4 horse

Top
 Profile


Posted: Tue Aug 19, 2008 10:27 pm
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

You need a special tool...Snap-on(bluepoint) make a set. They are sometimes used for A/C connections so if you ask the tool shop make sure you mention that.
You can make a tool yourself but it's much easier to just buy a set. I used a piece of cable tie to form a circle and pushed into the coil spring area of the connector with some pliers. It worked but it wasn't much fun.
Note that inlet fuel connector is a larger size than the return one...that's why you need at least two tools. From memory the set had four tools.
Top
 Profile


Posted: Wed Aug 20, 2008 12:08 am
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 1093

Joined: 29th Nov 2004

Gallery: 15 images

Ride: BA Ford Fairlane V8

Location: Lower Hunter Valley
NSW, Australia

Cut a strip of flat plastic from a Coke bottle and roll it into a circle or if you have some handy, some small emery rolls for a die grinder work well. Very easy to do once you have the knack.



_________________

Interested in a fair go for the Hunter-New England area of NSW?

Top
 Profile


Posted: Wed Aug 20, 2008 6:59 am
Technical Contributor
Offline
User avatar

Age: 34

Posts: 4355

Joined: 14th Dec 2005

Gallery: 36 images

Ride: Fairlane

Location: Newy
NSW, Australia

Bugger hey, well looks like im off to work to tell them they need to buy me a set of these tools :P

So you can disconnect where it joins the hose part? How does that one come apart, i really dont wanna break anything.

Cheers fellas



_________________

The Lane Lives.... Finally!!!!

Top
 Profile


Posted: Wed Aug 20, 2008 7:26 am
Tyre Shredder
Offline

Posts: 311

Joined: 3rd Jan 2006

Location: tauranga
New Zealand

i just take the plastic hose end off ....just push the lock in the centre in (like push lock air lines) then take the whole fuel rail off .....its a good idea to take the fuel pump relay out of the fuse box and wind over with your foot on the gas to get rid of the pressure
Top
 Profile


Posted: Wed Aug 20, 2008 7:37 am
Fordmods Addict
Offline
User avatar

Age: 31

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

fairy v8 wrote:
i just take the plastic hose end off ....just push the lock in the centre in (like push lock air lines) then take the whole fuel rail off .....its a good idea to take the fuel pump relay out of the fuse box and wind over with your foot on the gas to get rid of the pressure

Yep thats what I did.
It takes a bit of force, so don't think your are going to break it.



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


Posted: Wed Aug 20, 2008 7:47 am
Technical Contributor
Offline
User avatar

Age: 34

Posts: 4355

Joined: 14th Dec 2005

Gallery: 36 images

Ride: Fairlane

Location: Newy
NSW, Australia

Cool shall try that this arvo before i go getting any special tools.

cheers fellas



_________________

The Lane Lives.... Finally!!!!

Top
 Profile


Posted: Thu Aug 21, 2008 3:48 pm
Smokin em up
Offline

Age: 64

Posts: 225

Joined: 9th Nov 2004

Ride: EDV8 Fairmont

Location: perth
WA, Australia

Cut very top section off plastic coke bottle (the screw thread) slit it lengthwise. You now have the right tool - you can alter size downwards by cutting out more of the slit. Beauty of using this end of bottle is its stiffness.

Richie.



_________________

1993 ED F/mont 5.0L, Auto, Edelbrock RPM's, CompCam XE276HR, Crane Gold Race 1.7's, Edelbrock Performer, 75mm T/B, MAP, 42lb , GenIII coils, PH4000's , Twin 2.5", Thermos & underspeeds, 3.7 LSD, 2800 stall and MoTec M800, 372fwhp @ 5400rpm & 387 ft-lb @ 4400 rpm.

Top
 Profile


Posted: Fri Aug 22, 2008 8:59 pm
Tyre Shredder
Offline

Age: 28

Posts: 391

Joined: 26th Mar 2007

Ride: eb

Location: frankston
VIC, Australia

i used spark plug plastic cover thingy and it worked great
Top
 Profile


Posted: Sat Aug 23, 2008 1:58 pm
Tyre Shredder
Offline
User avatar

Posts: 326

Joined: 18th Feb 2007

Ride: ED GHIA V8

Location: ford town
NSW, Australia

richie wrote:
Cut very top section off plastic coke bottle (the screw thread) slit it lengthwise. You now have the right tool - you can alter size downwards by cutting out more of the slit. Beauty of using this end of bottle is its stiffness.

Richie.


What and how do u actually do it?

Im goin to change the fuel reg tomorrow so do u have to take the fuel rail off to un do it??



_________________

Black ED Ghia
V8 with lpg
Full leather
waitng on sunroof..


Top
