 Post subject: Need info on this manifold?
Posted: Sat Dec 29, 2007 5:57 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 451

Joined: 5th Nov 2004

Ride: 5lt Turbo NC, TE V6 Gemini

Location: Castlemaine
VIC, Australia

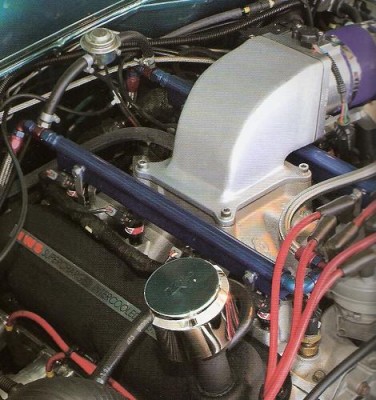

I really really want this manifold...and am hoping that someone can help with info... Where the injectors sit, are they already drilled? And would the gaps suit the stock fuel rails? Im assuming the manifold is a Edelbrock Super Victor....





Attachments:
Edelbrock.jpg [ 53.84 KiB | Viewed 73 times ]
Top
 Profile


Posted: Sat Dec 29, 2007 7:18 pm
Smokin em up
Offline

Posts: 276

Joined: 2nd Aug 2005

Location: brisbane
QLD, Australia

try searching at edelbrock
Top
 Profile


Posted: Sat Dec 29, 2007 7:27 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 2058

Joined: 25th May 2006

Ride: ef xr8

Power: 229 rwkw

Location: Perth
WA, Australia

I'd say you'd have to drill the bosses that are there. The have allowance for them, but you'd have to drillem yourself.



_________________

Because of Beer, Thirst is a Beautiful Thing!

'95 EF XR8 auto, Advance headers, 3" exhaust, Cobra manifold, BBK 75mm throttle body , 80MM Marauder MAF, Vortech V2 T Trim , 307 rwhp, 405 ft/lb 13.2 @ 105 MPH

Now N/A (permanent Lag) - AFR 165's, Comp XE270 cam, 1.6 RR - 269 rwhp 14.1 @ 102mph.

Top
 Profile


Posted: Sat Dec 29, 2007 7:57 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 451

Joined: 5th Nov 2004

Ride: 5lt Turbo NC, TE V6 Gemini

Location: Castlemaine
VIC, Australia

would they be easy to drill? Is it something i can do myself or would it be an engineering shop job?
Top
 Profile


Posted: Sat Dec 29, 2007 9:30 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

BlownNc wrote:
would they be easy to drill? Is it something i can do myself or would it be an engineering shop job?


Probably an engineering shop job. Would need to use a milling machine with an appropriate tool to machine those holes to suit the injectors.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sat Dec 29, 2007 10:39 pm
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

Yep you can drill them easy.. They are more for higher end rpm and better with forced induction where it low rpm torque doesn't matter...
Used mainly on 351 stroker's ... A boxed 5.0 / 5.8 truck lower EFI would work out easier...



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


Posted: Sun Dec 30, 2007 1:45 am
Getting Side Ways
Offline
User avatar

Age: 48

Posts: 402

Joined: 22nd May 2007

Gallery: 28 images

Ride: '03 BA-LTD.

Location: s/e melb
VIC, Australia

i'm sure i had a look at those to suit efi on the vpw website.
Top
 Profile


Posted: Sun Dec 30, 2007 1:47 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 556

Joined: 10th Dec 2006

Gallery: 4 images

Ride: EAII Falcon S

Location: Brisbane
QLD, Australia

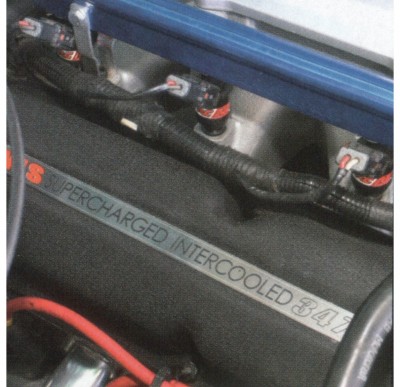

the pic is from an XH Tickford ute with an EL XR8 front. its featured in the latest Extreme Fords #03. the manifold is a Ported Elderbrock Super Victor.





Attachments:
Image1.jpg [ 293.78 KiB | Viewed 58 times ]



_________________

Speed Safely! ;-)

Top
 Profile


Posted: Sun Dec 30, 2007 5:07 pm
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

They usually don't come machined but I think edelbrock do a kit with rails and everything. Notice also that the injectors are straight up and down, not angled to fire at the back of the intake valve. Unfortunately almost all carb type intakes that have injector bosses cast in are in actual fact nitrous nozzle bosses which do not need to fire at the valve to work best...they just jump on the EFI bandwagon to sell more intakes.
Even the CHI intake I have for my cleveland is going need some welding to the "injector bosses" to allow correct injector angle machining.

Pete.
Top
 Profile


Posted: Mon Dec 31, 2007 1:46 pm
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

Yep std they are angled towards chamber and approx 20* angle...



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


Posted: Fri Jan 04, 2008 10:29 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 451

Joined: 29th Nov 2004

Gallery: 1 images

Ride: XR8(EF) & XR8BOSS290 Ute(FG)

Location: Sydney
NSW, Australia

Any idea who makes/sell the TB adaptor elbow :?:



_________________

________________________________________

Better off with not enough traction than not enough power.

Top
 Profile


Posted: Sat Jan 05, 2008 7:06 pm
Getting Side Ways
Offline
User avatar

Age: 48

Posts: 402

Joined: 22nd May 2007

Gallery: 28 images

Ride: '03 BA-LTD.

Location: s/e melb
VIC, Australia

take a look on the vpw website , they have the same sort of setup from chp (efi spydersystem) it comes with fuel rails & power elbow which can take upto a 90mm throttle body , you maybe able to get the elbow seperate?
Top
