 Post subject: new throttle body - cable linkage
Posted: Sat Jul 08, 2006 6:08 pm
Smokin em up
Offline

Posts: 235

Joined: 15th Jan 2006

Gallery: 11 images

Location: central coast
NSW, Australia

Got a new throttle body from the states and was wondering what you fellas may had done to overcome the reversed cable linkage.

Is there a manufactured plate that can be bought and fitted to revert cable and linkage to the front of the throttle body?

thanx
Top
 Profile


Posted: Sat Jul 08, 2006 9:40 pm
Tyre Shredder
Offline
User avatar

Age: 33

Posts: 320

Joined: 23rd Nov 2004

Ride: XHII XR8 Ute - Supercharged

Location: Perth
WA, Australia

maybe mount upside down?

Dont know cos i havent looked but maybe try that...



_________________

Old - XF with XH XR8 Driveline... http://www.fordmods.com/ford-v8-f2/my-xr8-power-xf-falcon-t20529.html
Current - XHII XR8 ute - Kenne Bell Supercharged - Build in progress

SUPERCHARGED XHII XR8 UTE - BUILD THREAD >http://www.fordmods.com/post1195532.html#p1195532

Top
 Profile


Posted: Sun Jul 09, 2006 11:56 am
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 568

Joined: 15th Jan 2005

Gallery: 2 images

Ride: EF GLi (V8)

Location: Sale
VIC, Australia

I ended up with one of these, I sourced another stock TB, I used the linkage off it, didn't want to use my original incase I stuffed it up, took a bit of modding, had to grind down the old and new shaft to get the linakge off and then drill and use a small self tapper into the new TB shaft then made it permanent with some liquid metal but worked a treat.



_________________

former FORD V8 owner :(
MAY THE FORDS BE WITH YOU

Top
 Profile


Posted: Sun Jul 09, 2006 6:03 pm
Smokin em up
Offline

Posts: 235

Joined: 15th Jan 2006

Gallery: 11 images

Location: central coast
NSW, Australia

[quote="znipa-x"]I ended up with one of these, I sourced another stock TB, I used the linkage off it, didn't want to use my original incase I stuffed it up, took a bit of modding, had to grind down the old and new shaft to get the linakge off and then drill and use a small self tapper into the new TB shaft then made it permanent with some liquid metal but worked a treat.[/quote]

Thats a good idea, just a bit worried about splitting the shaft, but I will have a look into it and see whether I can get a small enough drill into it. Thanx

As for mounting it upside down it wont work in this case thanx anyways.
Top
 Profile


Posted: Sun Jul 09, 2006 6:53 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 568

Joined: 15th Jan 2005

Gallery: 2 images

Ride: EF GLi (V8)

Location: Sale
VIC, Australia

I used the smallest drill in my set, the screw was only about 5mm long with a a 1-2mm shaft dia, just enough to give a positve lock, not to tight as to risk stripping the screw, a drop in loctite of the thread as well, but the liquid metal did the absolute securing, I can take some photo's if you like, should be able to get under there with the camera.



_________________

former FORD V8 owner :(
MAY THE FORDS BE WITH YOU

Top
 Profile


Posted: Sun Jul 09, 2006 8:19 pm
Stock as a Rock
Offline
User avatar

Posts: 140

Joined: 12th May 2006

Gallery: 17 images

Location: Brisbane
QLD, Australia

I must admit this thread has me a bit confused. I've bought quite a few t/bodies from the states before and never had a problem with reverse action - all that was required was fitting a ball at the opposite end of the cable arm. What throttle body did you buy and do you have a pic?
Top
 Profile


Posted: Sun Jul 09, 2006 8:28 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 568

Joined: 15th Jan 2005

Gallery: 2 images

Ride: EF GLi (V8)

Location: Sale
VIC, Australia

actually I think my TB was a from an AU, the linkage was smaller and shaped sorta like a kidney, and the cable pull was on the wrong end, it wasn't as simple as swapping the ball to the other end as the linkage was asymetrical and the ball was buldged (sweaged) over.



_________________

former FORD V8 owner :(
MAY THE FORDS BE WITH YOU

Top
 Profile


Posted: Tue Jul 11, 2006 3:47 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 896

Joined: 3rd May 2005

Gallery: 18 images

Ride: Blueprint EB II Fairmont 5L

Location: Wanneroo
WA, Australia

Free347 wrote:
I must admit this thread has me a bit confused. I've bought quite a few t/bodies from the states before and never had a problem with reverse action - all that was required was fitting a ball at the opposite end of the cable arm. What throttle body did you buy and do you have a pic?

exactly wat i done......
Top
 Profile


Posted: Wed Jul 19, 2006 2:57 pm
Tyre Shredder
Offline
User avatar

Age: 33

Posts: 320

Joined: 23rd Nov 2004

Ride: XHII XR8 Ute - Supercharged

Location: Perth
WA, Australia

I see what u mean now. I bought both a BBK 70mm Throttle body and spacer from the states...

Couple of probs.

- Spacer doesnt have mounting points for accelerator cable mount
- Water flow connector on spacer is on front (not bot on back)
- TPS extension wont fit on butterfly rod thingy (hard to explain)
- No 'ball' for cable to connect to.

I installed mine today, after almost giving up. I bypassed water pipes, so no coolant runs through spacer anymore.

Made my own dodgey little bracket to support accelerator cable (which conects to TB, not spacer)

Angle grinder fixed TPS problem.

Used nut and bolt, and grinded end of bolt to make a 'ball' for accel cable to link onto.

See pics below

Went for a drive and made a hell of a difference!! Tomorrow new cam/heads (TFS1/GT40Ps) then exhaust being fitted. So cant wait. By the way tyres lit up easy as without brake, and power kept coming on after 2k thru to redline...



_________________

Old - XF with XH XR8 Driveline... http://www.fordmods.com/ford-v8-f2/my-xr8-power-xf-falcon-t20529.html
Current - XHII XR8 ute - Kenne Bell Supercharged - Build in progress

SUPERCHARGED XHII XR8 UTE - BUILD THREAD >http://www.fordmods.com/post1195532.html#p1195532

Top
 Profile


Posted: Wed Jul 19, 2006 2:59 pm
Tyre Shredder
Offline
User avatar

Age: 33

Posts: 320

Joined: 23rd Nov 2004

Ride: XHII XR8 Ute - Supercharged

Location: Perth
WA, Australia

cant seem to get pics to work.....
ill try again later or email to whoeva wants them



_________________

Old - XF with XH XR8 Driveline... http://www.fordmods.com/ford-v8-f2/my-xr8-power-xf-falcon-t20529.html
Current - XHII XR8 ute - Kenne Bell Supercharged - Build in progress

SUPERCHARGED XHII XR8 UTE - BUILD THREAD >http://www.fordmods.com/post1195532.html#p1195532

Top
 Profile


Posted: Sat Jul 22, 2006 10:57 am
Smokin em up
Offline

Posts: 235

Joined: 15th Jan 2006

Gallery: 11 images

Location: central coast
NSW, Australia

[quote="xf84"]I see what u mean now. I bought both a BBK 70mm Throttle body and spacer from the states...

Couple of probs.

- Spacer doesnt have mounting points for accelerator cable mount
- Water flow connector on spacer is on front (not bot on back)
- TPS extension wont fit on butterfly rod thingy (hard to explain)
- No 'ball' for cable to connect to.

These are probs I am lookin at today actually after sourcing another "ball" and drilling new hole and bolting it opposite end of lever which seemed easiest solution. I will have to re route water hoses no probs there and I should be able to get away with longer bolts for the tps extension.

I do need to fabricate a new accelerator cable mounting bracket but wondering what sort of ideas you fellas have come up with, like what you mounted it to etc.

thanx
Top
 Profile


Posted: Mon Jul 24, 2006 8:11 pm
Tyre Shredder
Offline
User avatar

Age: 33

Posts: 320

Joined: 23rd Nov 2004

Ride: XHII XR8 Ute - Supercharged

Location: Perth
WA, Australia

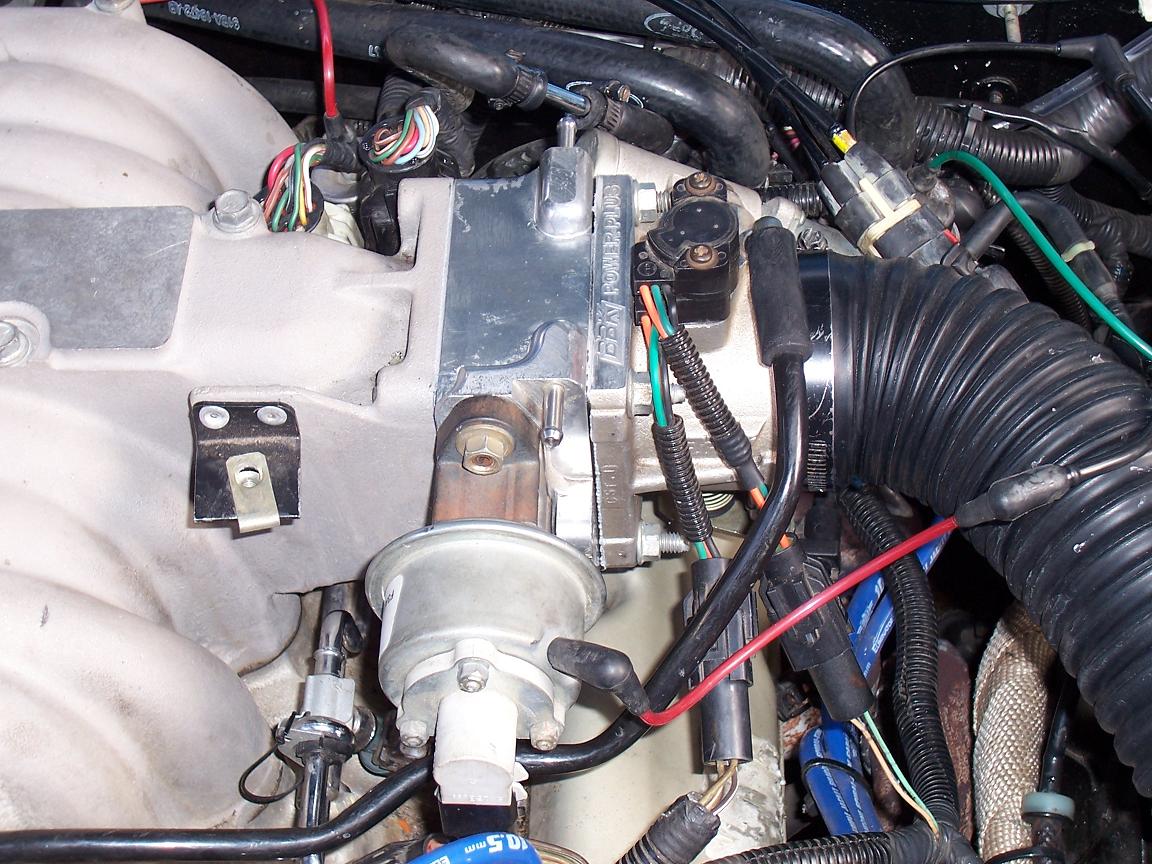

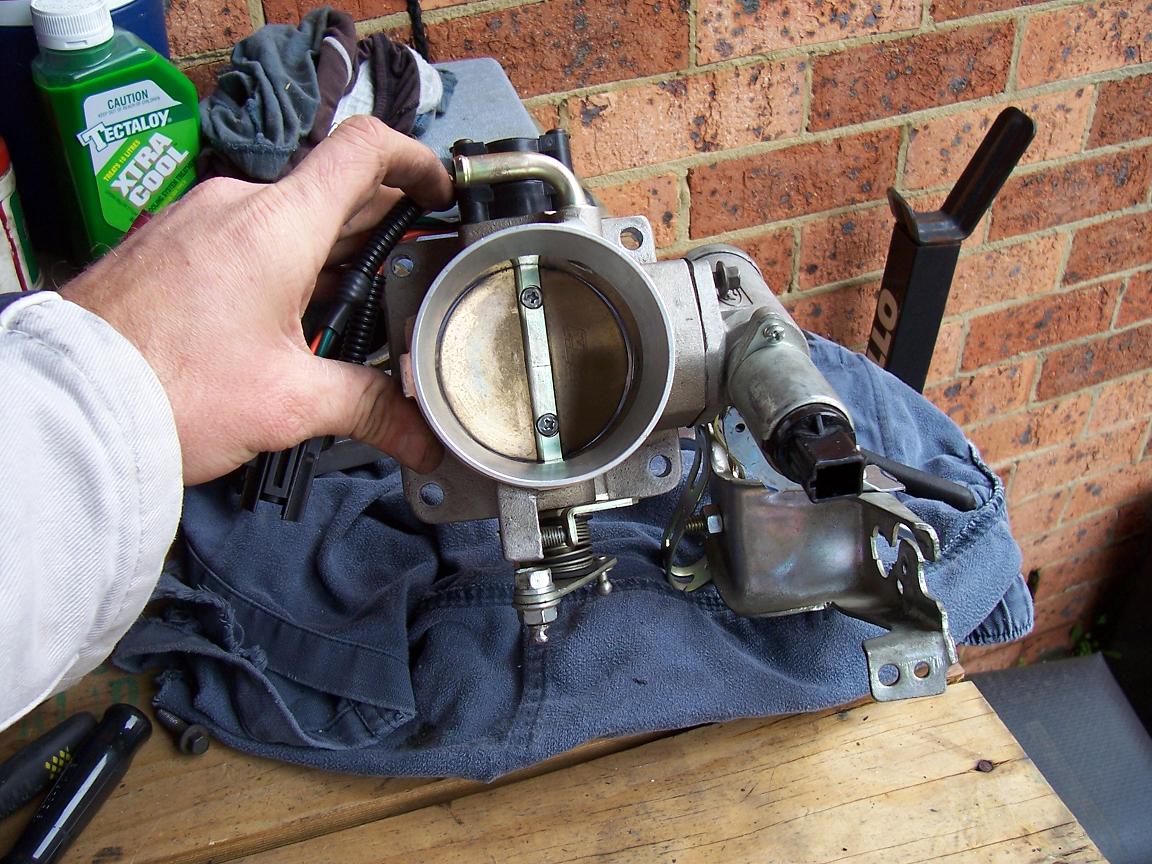

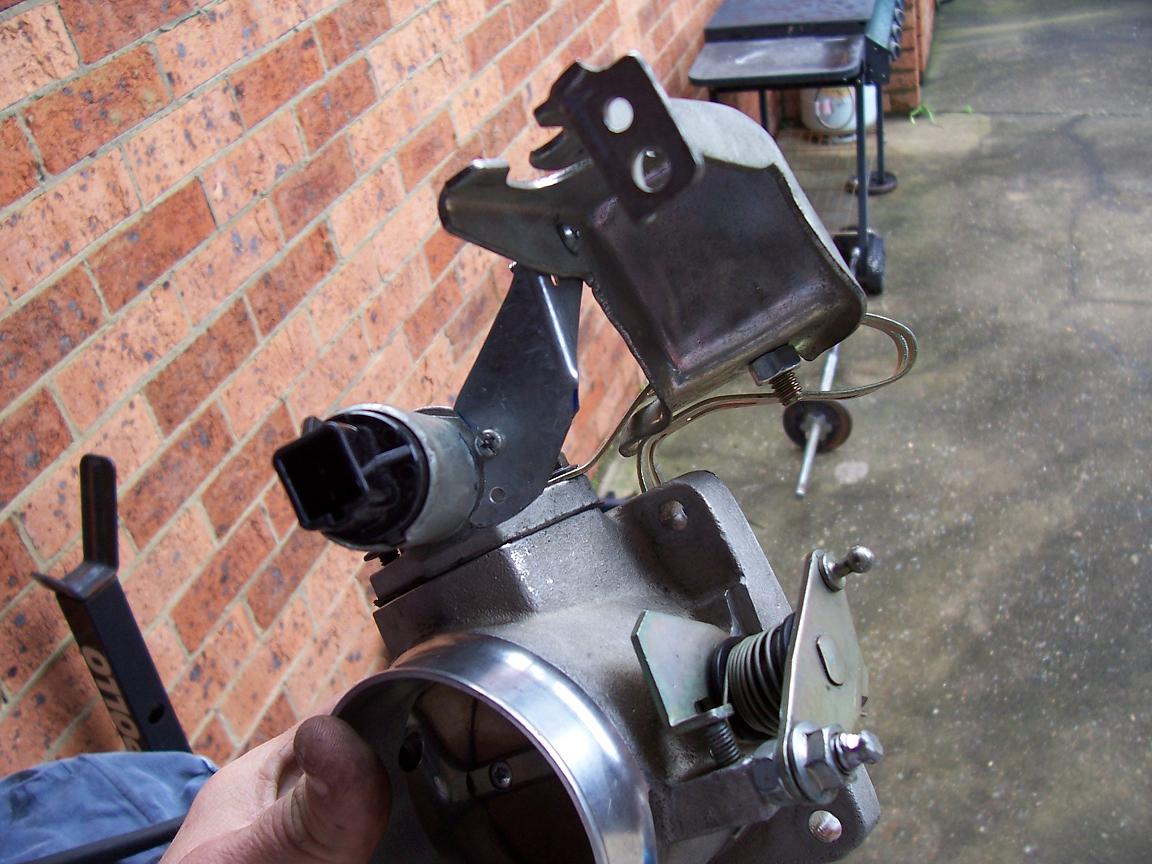

pics work now

dodgey as, but works well

ill fix it properly one day....





Attachments:
3.JPG [ 194.34 KiB | Viewed 45 times ]
1.JPG [ 206.15 KiB | Viewed 39 times ]
2.JPG [ 143.92 KiB | Viewed 48 times ]



_________________

Old - XF with XH XR8 Driveline... http://www.fordmods.com/ford-v8-f2/my-xr8-power-xf-falcon-t20529.html
Current - XHII XR8 ute - Kenne Bell Supercharged - Build in progress

SUPERCHARGED XHII XR8 UTE - BUILD THREAD >http://www.fordmods.com/post1195532.html#p1195532

Top
 Profile


Posted: Mon Jul 24, 2006 9:26 pm
Smokin em up
Offline

Posts: 235

Joined: 15th Jan 2006

Gallery: 11 images

Location: central coast
NSW, Australia

good fix to get you goin and it works?

Had to put mine off till I can sit and think about it a little more.
Top
 Profile


Posted: Mon Jul 24, 2006 11:24 pm
Stock as a Rock
Offline
User avatar

Posts: 140

Joined: 12th May 2006

Gallery: 17 images

Location: Brisbane
QLD, Australia

I've been through this exact thing. When mucking around with the spacer I noticed that the bolt holes in the throttle bracket mounting/boss on the US spacer where exactly the same width apart as the Aussie one. So I had the boss cut off and simply rewelded to the spacer in the same position as that on the Aussie spacer - works a treat and cost me about 20mins and $50 to get done.
Top
 Profile


Posted: Sun Jul 30, 2006 12:46 am
Tyre Shredder
Offline

Age: 33

Posts: 341

Joined: 9th Nov 2004

Ride: EB XR8

Location: brisbane south
QLD, Australia

Or you can just bore out the original 5.0L EGR to whatever size throttle. Its easily done with a die grinder or get a machine shop to do it. Plus it'll look factory
