No spark on 302w



Page 1 of 1 [ 6 posts ]


 Post subject: No spark on 302w
Posted: Fri Jun 15, 2007 1:06 pm
Stock as a Rock
Offline

Posts: 147

Joined: 9th Mar 2006

Location: melbourne
VIC, Australia

Hi guys. Not getting spark on my 302w ZC fairlane.


Can anyone suggest whats wrong and where i can go check? The ignition wiring looks pretty dodge and dont know if i hooked it back up right, is there a page where theres a diagram of how to wire one?


Cheers
Top
 Profile


Posted: Fri Jun 15, 2007 1:12 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 830

Joined: 7th Nov 2004

Gallery: 12 images

Ride: au xr8 & 5.0 eb

Location: yarrawonga
VIC, Australia

pull the dizzy cap off and crank it over and check if the rotor button is turning if it still has the old fiber gear it may have striped
Top
 Profile


Posted: Fri Jun 15, 2007 1:54 pm
Stock as a Rock
Offline

Posts: 147

Joined: 9th Mar 2006

Location: melbourne
VIC, Australia

Rotor is spinning



Would the car not be on TDC cause it not to spark?
Top
 Profile


Posted: Sun Jun 17, 2007 8:19 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 830

Joined: 7th Nov 2004

Gallery: 12 images

Ride: au xr8 & 5.0 eb

Location: yarrawonga
VIC, Australia

tim2x wrote:
Rotor is spinning



Would the car not be on TDC cause it not to spark?
no it doesnt have to be on tdc while you have the cap off spin it over again and see if the points are sparking?
Top
 Profile


Posted: Sun Jun 17, 2007 9:40 pm
Getting Side Ways
Offline
User avatar

Age: 85

Posts: 1088

Joined: 30th Jan 2005

Gallery: 16 images

Ride: F350

Location: Brisbane
QLD, Australia

Do you have power to the coil?
Top
 Profile


 Post subject: coil wiring
Posted: Wed Jun 20, 2007 9:25 pm
Parts Gopher
Offline

Age: 60

Posts: 75

Joined: 26th Jul 2006

Gallery: 5 images

Location: Gin Gin
QLD, Australia

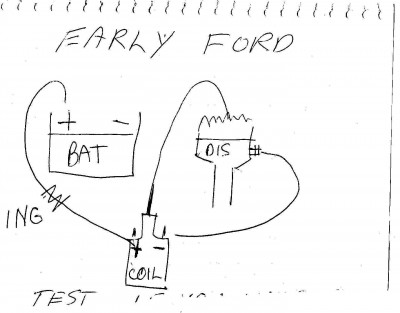

Pic included. Make sure you have power to coil when ingition is on.
also neg wire needs to go from neg - coil to dizz. 12v wires





Attachments:
early ford coil.jpg
early ford coil.jpg [ 80.99 KiB | Viewed 55 times ]
early ford coil.jpg
early ford coil.jpg [ 80.99 KiB | Viewed 49 times ]
