Pod Filter and after market induction pipework



Page 1 of 1 [ 6 posts ]


 Post subject: Pod Filter and after market induction pipework
Posted: Wed Aug 15, 2007 11:22 am
Oompa Loompa
Offline

Age: 64

Posts: 41

Joined: 9th Apr 2006

Ride: Holden

Location: Adelaide
SA, Australia

Hi,
Has anyone fitted a Pod Filter( K&N) or filter setup with associated pipework to a Windsor 5 litre EFI V8? I'm not that happy with the genuine Ford airbox and snorkel, takes up a lot of space and I find it awkward to check or change the air cleaner element .
Regards,
Gary. :?:
Top
 Profile


Posted: Wed Aug 15, 2007 1:41 pm
Getting Side Ways
Offline
User avatar

Posts: 6432

Joined: 5th Nov 2004

Gallery: 6 images

Well a pod filter will feed hot air to the engine as opposed to the snorkel setup. The larger EL GT style snorkel is more than enough to feed a good volume of cooler air to the engine and is far cheaper to obtain, and I've never had much drama to remove the top airbox cover to get to the panel filter on mine. How often do you actually need to check up on your filter?



_________________

5.6L of carbon footprint.

Top
 Profile


Posted: Wed Aug 15, 2007 7:23 pm
Oompa Loompa
Offline

Age: 64

Posts: 41

Joined: 9th Apr 2006

Ride: Holden

Location: Adelaide
SA, Australia

Hi Vic,
Sure! if you mount your pod filter directly alongside the engine the air to the engine will be hot, I agree. The airbox cover on mine jams in the corner and must be pushed back as well us up against the rubber connection to the MAF to check on the state of the filter element. I check the air cleaner element usually each time I check the fluid levels. If it's dirty I blow it out with compressed air. I replace it as required. The clips on the airbox cover outboard side are not too easy to access, (I currently have 3 clips only) and the cover does not appear to seal all that well. My partners MX5 has stainless screws to fasten the airbox cover, much neater and easier to remove. I guess my arguement is more with the airbox than the snorkel, just wondering if anyone has fitted an alternative setup.
Regards,
Gary. :?:
Top
 Profile


Posted: Tue Oct 09, 2007 10:31 am
Oompa Loompa
Offline

Age: 51

Posts: 26

Joined: 17th Jan 2007

Location: newcastle
NSW, Australia

yes I fitted one of these aftermarket pods up and had nothing but trouble
I got a hell of a lot of flat spots so I changed the length of the pipe
even mounted the pod in the box what a big waste of time & money

the standard one is the best one even better if it is a xr8 type!
If you still want to go down this road & you have a xr8 air intake
I`ll swap you the pod & hoses



_________________

ON THE EIGHTH DAY GOD CREATED HOLDENS TO KEEP THE d***head OUT OF FORDS

Top
 Profile


Posted: Tue Oct 09, 2007 10:50 am
Oompa Loompa
Offline

Age: 64

Posts: 41

Joined: 9th Apr 2006

Ride: Holden

Location: Adelaide
SA, Australia

Thx, 1Bad EF but I think I'll learn to live with what I've got, flat spots I don't want. :o
Regards,
Gary.
Top
 Profile


Posted: Tue Oct 09, 2007 12:11 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1079

Joined: 19th May 2005

Gallery: 29 images

Ride: ELXR8 SERIES 2

Location: naracoorte
SA, Australia

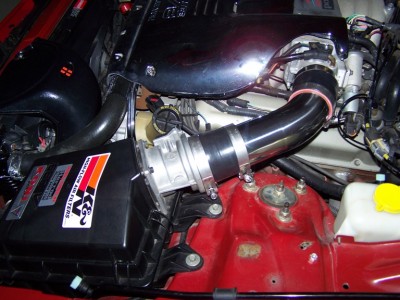

to make the airbox lid seal just bend the clips a bit so they are a tighter fit. here is a pic of my aunger snorkel and intake pipe, i can fit my arm through the snorkel, through the airbox and touch the pannel filter inside the airbox. no need for more air than that. on a stock setup the maf will be your biggest restriction





Attachments:
ss intake 002.jpg
ss intake 002.jpg [ 146.35 KiB | Viewed 65 times ]
DSCF0145.JPG [ 121.18 KiB | Viewed 52 times ]



_________________

EL XR8 SERIES 2, 5SPD, HOT CHILLI RED, 200 ODD RWKW OF V8 FUN AND GAMES

EF XR6, 5SPD, HERITAGE GREEN, AU XR6 VCT ENGINE

VL COMMODORE, 5SPD, WHITE

BA XT, AUTO, OFFSHORE BLUE
