Power steering leak



Page 1 of 2 [ 17 posts ] Go to page 1, 2  Next


 Post subject: Power steering leak
Posted: Wed Mar 02, 2011 7:37 pm
Stock as a Rock
Offline

Posts: 144

Joined: 26th Apr 2010

Location: newcastle
NSW, Australia

Looks like i have a power steering leak. Ive cleaned up the rack and looks like one of the thin metal pipes has a small hole in it. The clutch cable has been rubbing against it. What are these pipes called??? There are two thin metal lines that connect to the main rack and then near where column attaches.

Anything else i should look out for??
Top
 Profile


 Post subject: Re: Power steering leak
Posted: Wed Mar 02, 2011 7:37 pm
Stock as a Rock
Offline

Posts: 144

Joined: 26th Apr 2010

Location: newcastle
NSW, Australia

Should add. its an Au2/3 XR8 ute.
Top
 Profile


 Post subject: Re: Power steering leak
Posted: Wed Mar 02, 2011 7:55 pm
Stock as a Rock
Offline

Posts: 144

Joined: 26th Apr 2010

Location: newcastle
NSW, Australia

Thanks Ash

So busy with work i need the ute on the road! PITA!! Done a search and it seems the pressure switch is a problem but buggered if i could find a switch!!
Top
 Profile


 Post subject: Re: Power steering leak
Posted: Wed Mar 02, 2011 8:04 pm
Stock as a Rock
Offline

Posts: 144

Joined: 26th Apr 2010

Location: newcastle
NSW, Australia

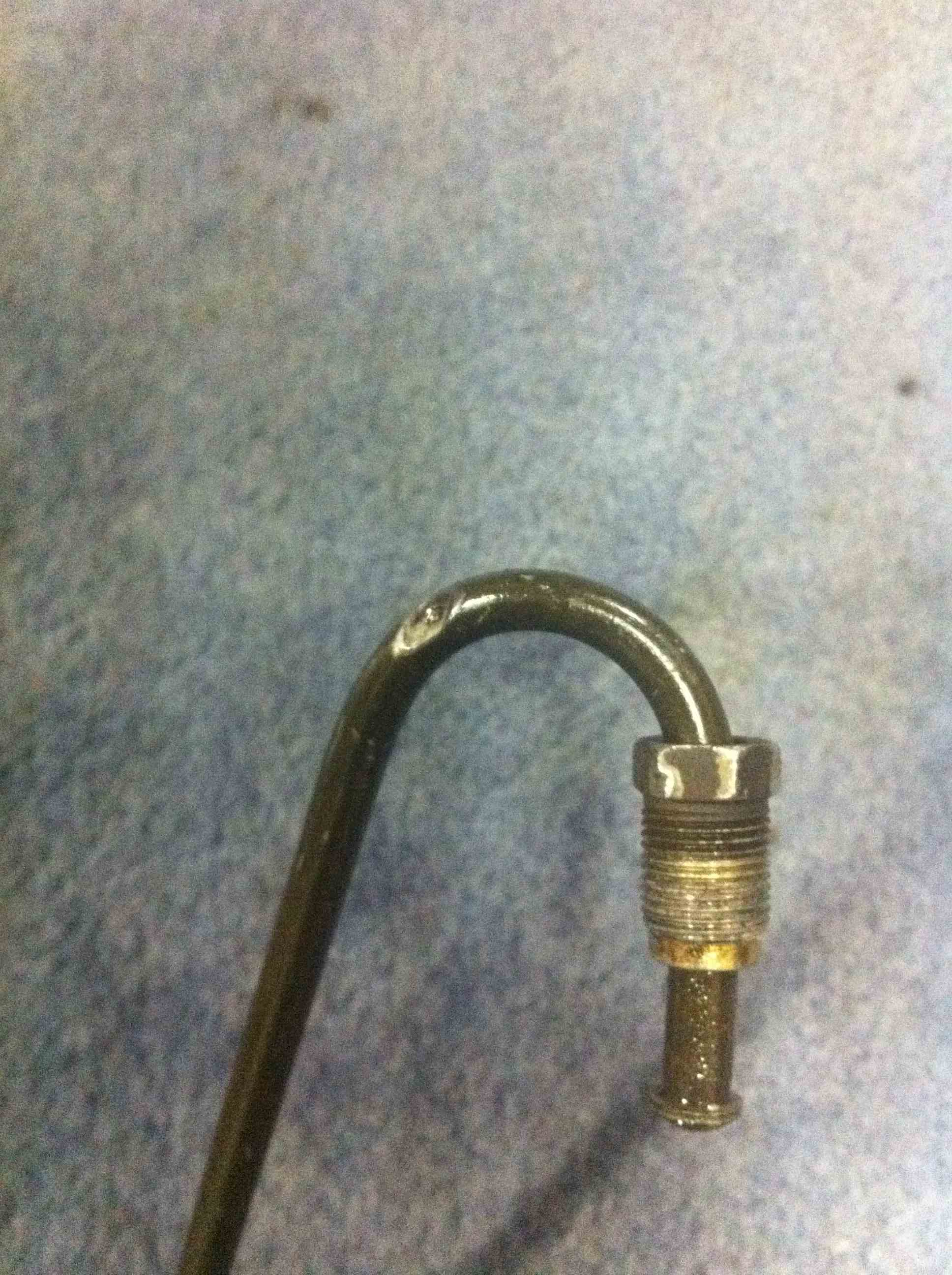

Pic of damaged pipe.

Thanks mate will go and have a look





Attachments:
IMG_0458.jpg [ 366.54 KiB | Viewed 45 times ]
Top
 Profile


 Post subject: Re: Power steering leak
Posted: Wed Mar 02, 2011 8:20 pm
Stock as a Rock
Offline

Posts: 144

Joined: 26th Apr 2010

Location: newcastle
NSW, Australia

Whats it called? Low pressure return??
Top
 Profile


 Post subject: Re: Power steering leak
Posted: Wed Mar 02, 2011 8:28 pm
Stock as a Rock
Offline

Posts: 144

Joined: 26th Apr 2010

Location: newcastle
NSW, Australia

Had another look and cant see anything that resembles a pressure switch. Im assuming the V8s have them??
Top
 Profile


 Post subject: Re: Power steering leak
Posted: Wed Mar 02, 2011 10:37 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

ro88bo wrote:
Looks like i have a power steering leak. Ive cleaned up the rack and looks like one of the thin metal pipes has a small hole in it. The clutch cable has been rubbing against it. What are these pipes called??? There are two thin metal lines that connect to the main rack and then near where column attaches. Anything else i should look out for??
The pipes are pressure/return for the rack piston, depending on where the piston is. From the pic, it looks like a std O ring fitting - they're not flared are they ??? Fit new O rings, make sure the old ones are not left in the rack housing.
Check the clutch cable, and make sure it's not chafed through to the inner cable - cable tie it to help it maintain position.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


 Post subject: Re: Power steering leak
Posted: Thu Mar 03, 2011 7:12 am
Getting Side Ways
Offline

Age: 48

Posts: 1061

Joined: 7th Sep 2007

Gallery: 3 images

Ride: BF3 Egas wag SY AWD Terry Ghia

Location: Brookfield
VIC, Australia

My old bus is pissing steering fluid all over the place. I think Its the high pressure hose?

I have replaced the o-rings on the pump fittings which helped a while ago but now there is so much fluid on everything it's hard to pin point the source. I will find out when I do the head soon...



_________________

BF3 Egas XT Wagon
SY Territory Ghia AWD 6spA :))

Top
 Profile


 Post subject: Re: Power steering leak
Posted: Thu Mar 03, 2011 3:18 pm
Getting Side Ways
Offline
User avatar

Posts: 633

Joined: 21st Nov 2008

Location: Melbourne
VIC, Australia

e series v8 dont have a switch. i assume au wouldnt either
Top
 Profile


 Post subject: Re: Power steering leak
Posted: Thu Mar 03, 2011 3:22 pm
Stock as a Rock
Offline

Posts: 144

Joined: 26th Apr 2010

Location: newcastle
NSW, Australia

jaysway wrote:
e series v8 dont have a switch. i assume au wouldnt either



Not that i can see! Looks like leak is fixed for now with new pipe installed.
