 Post subject: Powerchip
Posted: Wed Jun 08, 2005 1:45 pm
Getting Side Ways
Offline

Age: 31

Posts: 425

Joined: 1st Dec 2004

Location: Noble Park
VIC, Australia

Seen some people on the V8 forum with powerchip gold 98, what are they and do they do anything? been searchin around the net for a chip for the windsor e series motors but having no luck. can anyone give me help on what they do, how to get them, cost etc?

cheers
Top
 Profile


Posted: Wed Jun 08, 2005 1:48 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 8655

Joined: 5th Nov 2004

Gallery: 37 images

Ride: V8 EF Futura

Location: Adelaide CBD
SA, Australia

They are hit an miss.... they plug into the J3 port (which is good) but they are tuned remotely on a simulator. They adjust the tune to suit 98 octane. Can also get powerchip 95 for premium...

Personally i think you would achieve a similar result bumping the timing up a couple of degrees and running 98 octane...



_________________

I promise..... I will never die.

Fordmods Administration Group MINOR PUNKED

Top
 Profile


Posted: Wed Jun 08, 2005 2:13 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1440

Joined: 7th Nov 2004

Ride: 320kw BA XR8

Location: Adelaide
SA, Australia

4.9 EF Futura wrote:
Personally i think you would achieve a similar result bumping the timing up a couple of degrees and running 98 octane...


Yeah exactly, bump the timing up and save youself $600 which can be put towards other mods. The EEC used on the 5L engines is quite a good unit and can cope with some pretty heavy mods. A lot of 5L's get to 180+rwkw without any chips or EEC mods at all although they would peobably see some improvements at that level but only with a custom tuned chip.
Top
 Profile


Posted: Wed Jun 08, 2005 2:43 pm
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 3763

Joined: 25th Nov 2004

Gallery: 6 images

Ride: EFII 5.8 NOS TerroristGhia

Power: 274 rwkw

Location: Sydney Australia
NSW, Australia

I can recomend the unichip for slight mods, but do it as the last mod as retunes are not cheap. Mine cost me 995 fitted
Brett



_________________

The Terrorist ED Retired due to RUST.
The TerrosistGhia, EF Ghia 351 EFI 5 Speed.
Millennium Falcon, Sleeper EL DOHC 6 Speed Manual EFI LPG
Member#1131
I didn't Vote for Multiculturalism, DID YOU!!!

Top
 Profile


Posted: Thu Jun 09, 2005 5:15 pm
Stock as a Rock
Offline
User avatar

Age: 35

Posts: 174

Joined: 9th May 2005

Ride: BF Fairmont

Location: Gippsland
VIC, Australia

So how does one advance the timing? :D I'll never know until I'm shown or told... I rarely figure out stuff on my own, but seem to cotton on quite well ;)

-Dave-



_________________

EB Ghia Leather interior & more - CLICK HERE

Lightning Strike '06 BF Fairmont - powered by ICOM JTG

Top
 Profile


Posted: Thu Jun 09, 2005 11:41 pm
Getting Side Ways
Offline
User avatar

Posts: 1392

Joined: 5th Nov 2004

Ride: XR6 Turbo, XR8, Transit

Location: Somewhere
VIC, Australia

I can sell you a sticker that will give you more power than a power chip... will only cost ya $5.00 too.



_________________

www.XR8Chic.com
1993 ED XR8 - Poly Green, AFR 185 Alloy heads, Edlebrock Performer RPM Manifold, Crane 2031, T56 6 Speed, 3.9 diff, = 205.7 rwkw.
1993 ED Fairmont - Cobalt Blue, 5L, 17" CSA's and not much else.
1969 Mustang Fastback - Gunmetal Grey, 302, Auto, LHD. Doesn't go very hard, but looks sexy as !

Top
 Profile


Posted: Fri Jun 10, 2005 11:46 am
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 8655

Joined: 5th Nov 2004

Gallery: 37 images

Ride: V8 EF Futura

Location: Adelaide CBD
SA, Australia

XR8Chic wrote:
I can sell you a sticker that will give you more power than a power chip... will only cost ya $5.00 too.


Hahahaha, well i was trying to put it more delicately... but yeah, good call.

Dave - just like any other car, with a timing light, loosen the dizzy and rotate...

Need to put engine into diagnostic mode, timing should then be static (easy to see with the timing light). Ford spec is 30 degrees BTDC +/- 2 degrees. So bump her up to 32 and see how she goes.

Or the yankee style is to pull the connector from the TFI module and it should revert to 10 degrees BTDC static timing... bump timing up, turn the engine off and plug it back together.

Just be careful... you cant always hear detonation.



_________________

I promise..... I will never die.

Fordmods Administration Group MINOR PUNKED

Top
 Profile


Posted: Fri Jun 17, 2005 4:44 pm
Getting Side Ways
Offline

Age: 31

Posts: 425

Joined: 1st Dec 2004

Location: Noble Park
VIC, Australia

has anyone got the chiptorque HP2 chip for their e series 5ltr? Might be interested in one of these if they give good improvements. can u install it yourself?

cheers
Top
 Profile


Posted: Fri Jun 17, 2005 4:58 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 8655

Joined: 5th Nov 2004

Gallery: 37 images

Ride: V8 EF Futura

Location: Adelaide CBD
SA, Australia

gunit18 wrote:
has anyone got the chiptorque HP2 chip for their e series 5ltr? Might be interested in one of these if they give good improvements. can u install it yourself?

cheers


I'm no expert but i believe chiptorque plugs into the J3 port on the bottom of the EEC.

Very easy to install if this is the case...

Disconnect the battery, unplug the harness and remove EEC. Take the case off and remove the blanking plug from the J3 port... clean the terminals very very very well but dont damage them.

Put the case back on EEC, plug the chip in and put back in the car.

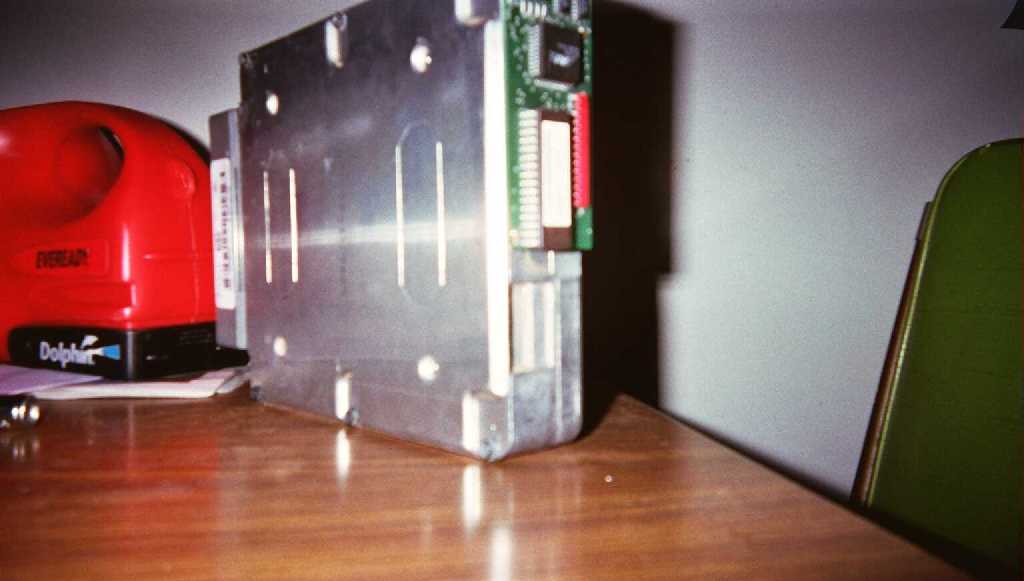

Attached is a picture of the CAPA chip im running, fitted to EEC





Attachments:
4DED chipped.jpg
4DED chipped.jpg [ 36.9 KiB | Viewed 59 times ]



_________________

I promise..... I will never die.

Fordmods Administration Group MINOR PUNKED

Top
 Profile


Posted: Fri Jun 17, 2005 6:31 pm
Getting Side Ways
Offline

Posts: 1687

Joined: 5th Nov 2004

Gallery: 5 images

Ride: 1994 ED Ricer

Location: Perth
WA, Australia

what do u celan it with dude?
Top
 Profile


Posted: Fri Jun 17, 2005 6:45 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 8655

Joined: 5th Nov 2004

Gallery: 37 images

Ride: V8 EF Futura

Location: Adelaide CBD
SA, Australia

eed-250 wrote:
what do u celan it with dude?


You'll find that once the plug is removed, there is a grease-like substance which has been put on the J3 connector...

Wipe the majority off with a cloth... then gently gently gently scrape each and every finger on the connector. This is real important, i had one part not 100% clean and the engine went loopy!!

Dont use any solvents or anything, just wipe and scrape...

And BTW whatever ford put on there is apparantley very poisonous.. so no eating it!! lol



_________________

I promise..... I will never die.

Fordmods Administration Group MINOR PUNKED

Top
 Profile


Posted: Fri Jun 17, 2005 6:46 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1440

Joined: 7th Nov 2004

Ride: 320kw BA XR8

Location: Adelaide
SA, Australia

Instructions say wipe off silicon with a cloth and then use a small scraper (blade) to scrape all the contacts. I also used some alcohol and electrcal contact cleaner to clean it up, just dont use any harsh solvents and anything that leaves a residue.
Top
 Profile


Posted: Fri Jun 17, 2005 8:54 pm
Getting Side Ways
Offline

Posts: 1687

Joined: 5th Nov 2004

Gallery: 5 images

Ride: 1994 ED Ricer

Location: Perth
WA, Australia

does it matter if u scratch the connectors at all of the computer?
Top
 Profile


Posted: Fri Jun 17, 2005 9:01 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1440

Joined: 7th Nov 2004

Ride: 320kw BA XR8

Location: Adelaide
SA, Australia

eed-250 wrote:
does it matter if u scratch the connectors at all of the computer?


No, unless you were really rough and took the entire strip off, then you would have to re-tin it with some solder. I was fairly rough with mine to make sure it was really clean.
Top
 Profile


Posted: Fri Jun 17, 2005 11:32 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 2282

Joined: 14th Jan 2005

Gallery: 8 images

Ride: ED Fairmont Ghia & EF XR8

Location: Melbourne
VIC, Australia

EDXR8 wrote:
4.9 EF Futura wrote:
Personally i think you would achieve a similar result bumping the timing up a couple of degrees and running 98 octane...


Yeah exactly, bump the timing up and save youself $600 which can be put towards other mods. The EEC used on the 5L engines is quite a good unit and can cope with some pretty heavy mods. A lot of 5L's get to 180+rwkw without any chips or EEC mods at all although they would peobably see some improvements at that level but only with a custom tuned chip.


a friend of mine is running 206kw at the wheels on a stock eng with the factory ecu. ah the joys off boost :lol:
