Trigger for EB V8 starter motor? ECU?



Page 1 of 1 [ 7 posts ]


 Post subject: Trigger for EB V8 starter motor? ECU?
Posted: Fri Nov 02, 2007 10:38 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 451

Joined: 5th Nov 2004

Ride: 5lt Turbo NC, TE V6 Gemini

Location: Castlemaine
VIC, Australia

Car wont turn over and on inspection, there is no power to solenoid when turning the key. Does the ECU give the starter power? Or is it directly from the ignition barrel, but with a relay in between? I swapped the relay and it made no difference, is there a fuse somewhere? Any ideas? Could i run a wire from the ign barrel to a relay to the starter and overcome my problem?
Top
 Profile


Posted: Fri Nov 02, 2007 11:04 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 451

Joined: 5th Nov 2004

Ride: 5lt Turbo NC, TE V6 Gemini

Location: Castlemaine
VIC, Australia

oh yeah EB1 so no smartlock
Top
 Profile


Posted: Sat Nov 03, 2007 3:11 am
Getting Side Ways
Offline

Age: 29

Posts: 4182

Joined: 30th May 2005

Ride: 1993 EB XR8

Location: BrisVegas
QLD, Australia

they run a relay in between the starter and the ignition



_________________

ILL60 - EF XR8, Sunroof, Ticky Kit, 19x8.5/19x11 TE37's, 347, AFr185's, TFS BoxRcustom converter, Hurst Quarterstick, huge billet cam.

51TER - DL LTD. Stock.

Top
 Profile


Posted: Sat Nov 03, 2007 10:48 pm
Tyre Shredder
Offline
User avatar

Age: 35

Posts: 356

Joined: 29th Jan 2007

Gallery: 5 images

Ride: AU Fairmont wagon

Location: Burnie
TAS, Australia

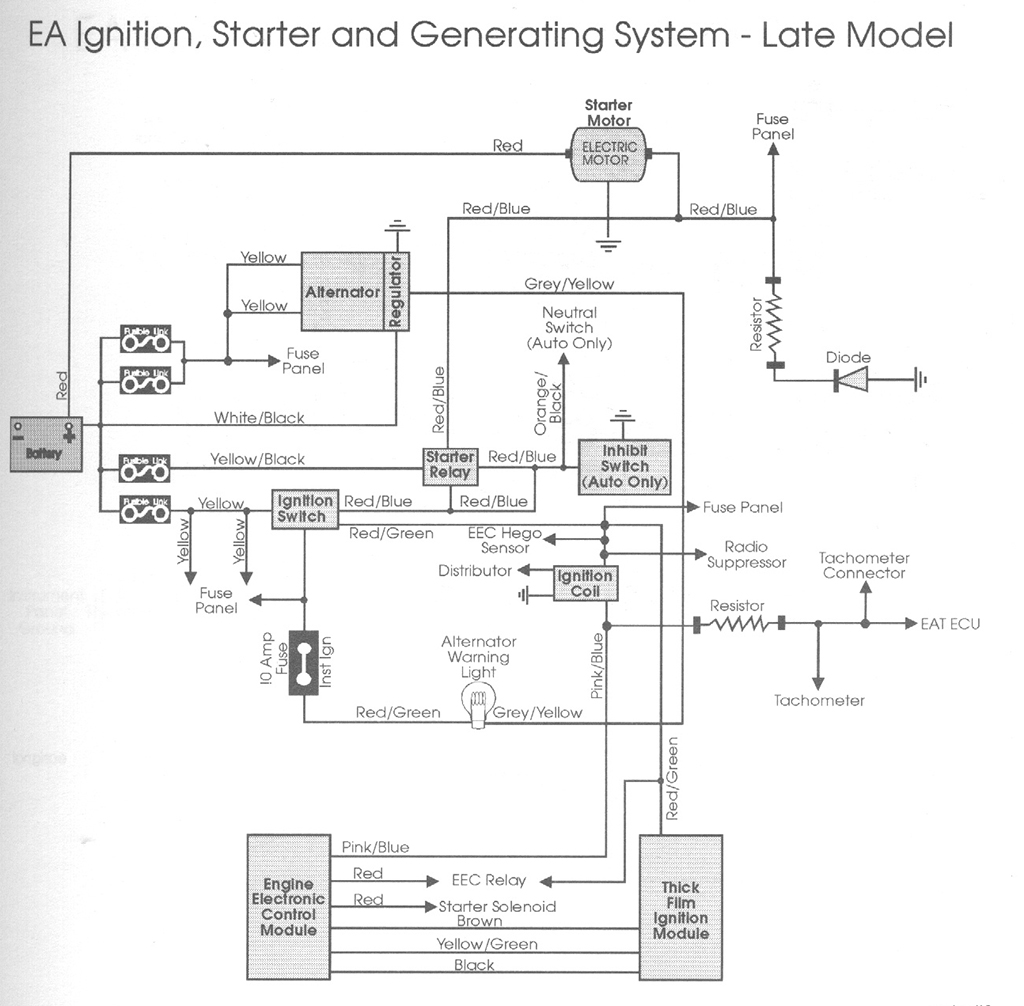

Hope this helps.
I know it's for an EA but the only EB one I have is for smartlock.





Attachments:
Ignition.jpg [ 282.01 KiB | Viewed 84 times ]



_________________

Cheers
Mick

Top
 Profile


Posted: Tue Nov 13, 2007 12:32 am
Oompa Loompa
Offline
User avatar

Age: 40

Posts: 28

Joined: 14th Apr 2007

Gallery: 12 images

Ride: NA,AU XR6,ZH,P6 LTD,EXPLORER

Location: Adelaide
SA, Australia

might be a silly question but is it auto?check neutral saftey switch



_________________

MAYBE YOU WOULD RATHER PUSH YOUR HOLDEN THAN DRIVE MY FORD AND YOU WILL PROBLY NEED TO.
H.O.L.D.E.N
HOPE
OUR
LUCK
DOESN'T
END
NOW

Top
 Profile


Posted: Tue Nov 13, 2007 12:45 am
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

Check the little red wire on starter motor ??
They have been known to have a high resistance due to heat etc on the connection....
Check all connections on battery ...



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


Posted: Tue Nov 13, 2007 12:56 am
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 5889

Joined: 2nd Mar 2006

Gallery: 5 images

Ride: '14 Grand Cherokee

Location: Port Lincoln
SA, Australia

eMpTy wrote:
Hope this helps.
I know it's for an EA but the only EB one I have is for smartlock.


is that out of a Max Ellery repair manual? if so they have that diagram for an EB with no smartlock, it just says EB - Early Model. *i think* i cant find mine to check lol



_________________

11/93 ED OPT20 GLi | Full Boat Spec
