 Post subject: Re: what manifold 4 a au 2 xr 8
Posted: Tue Jan 26, 2010 5:13 pm
Oompa Loompa
Offline

Posts: 42

Joined: 11th Aug 2009

Ride: ef falcon

Location: perth
WA, Australia

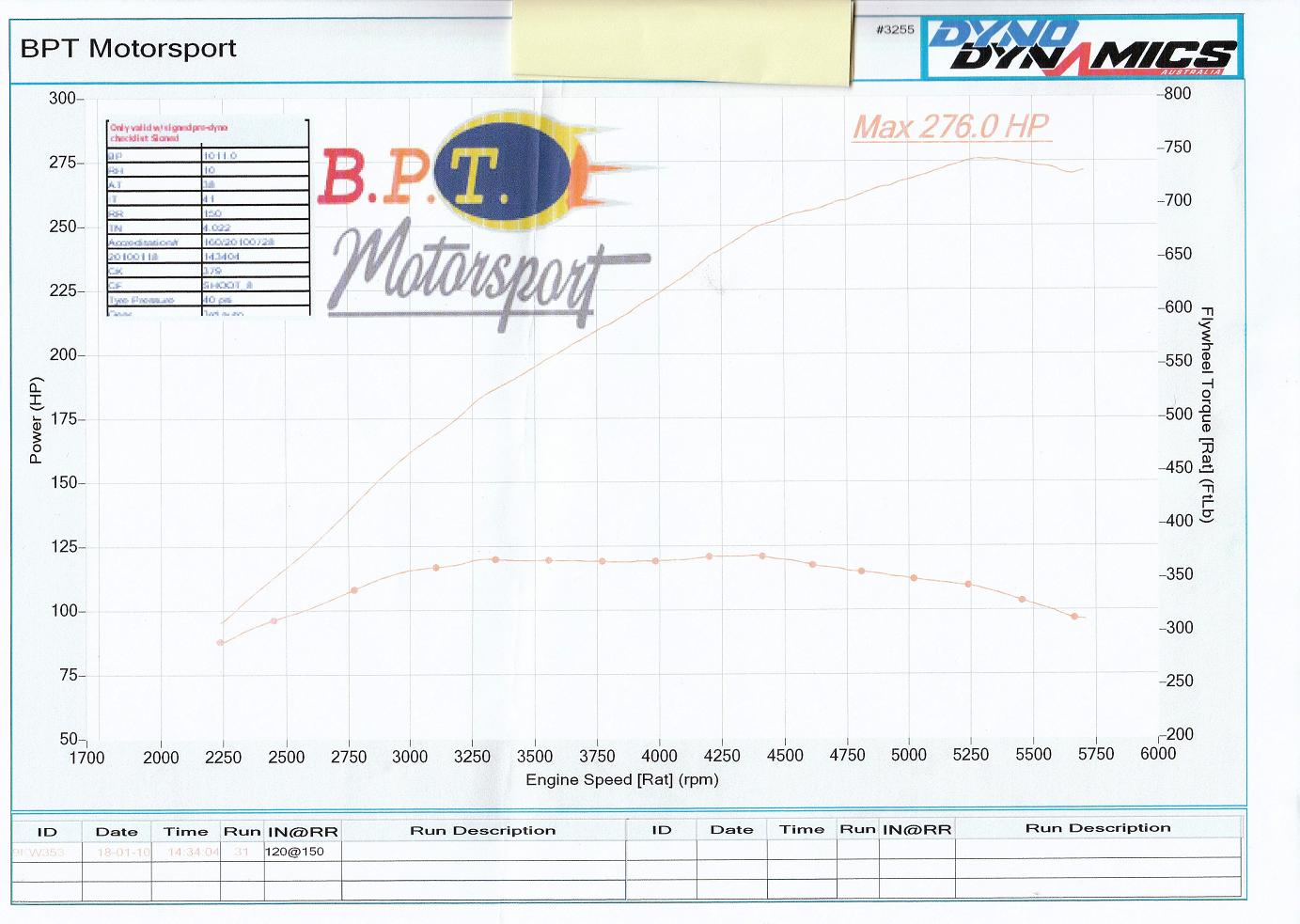

thanks for the help Scaffy I have had a look at the ISC and disconected it and still have the whistling no matter what I do, the base idle is already bumped up to 1000 rpm and it still stalls. I have attatched the dyno readout but I will get another one once I have my new exhaust and everthing else is sorted out, I am interested in how your stroker will turn out as thats the path I want to go do next, I also think its unfair you are buying up all the elxr8's in perth :lol:





Attachments:
1dyno jan 2010.JPG
1dyno jan 2010.JPG [ 149.37 KiB | Viewed 60 times ]
Top
 Profile


 Post subject: Re: what manifold 4 a au 2 xr 8
Posted: Wed Jan 27, 2010 10:00 pm
Parts Gopher
Offline

Age: 33

Posts: 68

Joined: 19th Oct 2009

Gallery: 8 images

Ride: BA MKII DEVIL R XR8

Power: 257 rwkw

Location: singleton
NSW, Australia

at least u have a nice curve 2 build on :)



_________________

If in doubt, rev it out

542rwhp of forced V8 goodness

Top
 Profile


 Post subject: Re: what manifold 4 a au 2 xr 8
Posted: Wed Jan 27, 2010 11:39 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2116

Joined: 13th Aug 2005

Gallery: 15 images

Ride: 1999 XHII XR8, 2002 AU Fairmont

Power: 236 rwkw

Location: Perth
WA, Australia

Who built the motor? :shock:



_________________

STREETBUILT RACING
1999 XHII Falcon XR8 Ute 5.0L, TKO600 5spd, KB 2.1L Blower, 6.5psi, 12.2@113mph!!

Top
 Profile


 Post subject: Re: what manifold 4 a au 2 xr 8
Posted: Thu Jan 28, 2010 12:18 am
Oompa Loompa
Offline

Posts: 42

Joined: 11th Aug 2009

Ride: ef falcon

Location: perth
WA, Australia

It was all done at BPT but I bought most of the parts from the US myself
Top
 Profile


 Post subject: Re: what manifold 4 a au 2 xr 8
Posted: Thu Jan 28, 2010 12:25 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2116

Joined: 13th Aug 2005

Gallery: 15 images

Ride: 1999 XHII XR8, 2002 AU Fairmont

Power: 236 rwkw

Location: Perth
WA, Australia

Can they not fix the stalling/whistling untill your happy?



_________________

STREETBUILT RACING
1999 XHII Falcon XR8 Ute 5.0L, TKO600 5spd, KB 2.1L Blower, 6.5psi, 12.2@113mph!!

Top
 Profile


 Post subject: Re: what manifold 4 a au 2 xr 8
Posted: Thu Jan 28, 2010 12:48 am
Oompa Loompa
Offline

Posts: 42

Joined: 11th Aug 2009

Ride: ef falcon

Location: perth
WA, Australia

They told me that the whistling was the manifold and i would have to live with it and the stalling was that i needed a new ecu but I wanted to do a bit of research before I go back because I am still trying to learn, I am going to give them a call tomorrow and try to sort it out, if it is a vacum leak it could be the reason behind the stalling, either way I'm not happy with it at the moment
Top
 Profile


 Post subject: Re: what manifold 4 a au 2 xr 8
Posted: Fri Jan 29, 2010 1:07 am
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 1886

Joined: 26th Nov 2006

Gallery: 7 images

Ride: EL XR8, '08 Mondeo XR5t

Power: 205 rwkw

Location: Perth
WA, Australia

Ah s**t... I didn't realise you were in Perth... They did mine and I had heaps of problems... If they changed your fuel pump, check the lid is screwed on the top of the fuel tank. Check the throttle body has all 4 nuts fastening it rather than just 2 that are finger-tight and half the gasket between EGR and tb hasn't been sucked in. Also, ensure all the fasteners on the lower manifold are tight.

What have they used to tune it? I might be able to help you out with the tune. Why would you need to get a new ecu?

Sorry, is this in an EL or AU?



_________________

Trickflow Street Heat top end kit, 70mm BBK TB & EGR, 24lb injectors, Underdrives & 3.73s: 275rwhp - 13.15@105mph NA / 12.37@116mph N20

When injustice becomes law, resistance becomes duty

Top
 Profile


 Post subject: Re: what manifold 4 a au 2 xr 8
Posted: Fri Jan 29, 2010 11:13 am
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

It's an EF scaffy, He's going to try one of my 4DEG's but I don't think it's the EEC either....at least we'll eliminate that possibility.
Top
 Profile


 Post subject: Re: what manifold 4 a au 2 xr 8
Posted: Fri Jan 29, 2010 4:59 pm
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 1886

Joined: 26th Nov 2006

Gallery: 7 images

Ride: EL XR8, '08 Mondeo XR5t

Power: 205 rwkw

Location: Perth
WA, Australia

Yep, the best thing to do is give it a go, I guess. I really hope it eliminates his problem but am doubtful.



_________________

Trickflow Street Heat top end kit, 70mm BBK TB & EGR, 24lb injectors, Underdrives & 3.73s: 275rwhp - 13.15@105mph NA / 12.37@116mph N20

When injustice becomes law, resistance becomes duty

Top
 Profile


 Post subject: Re: what manifold 4 a au 2 xr 8
Posted: Fri Jan 29, 2010 6:34 pm
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 3763

Joined: 25th Nov 2004

Gallery: 6 images

Ride: EFII 5.8 NOS TerroristGhia

Power: 274 rwkw

Location: Sydney Australia
NSW, Australia

Putting a plate over the ISC doesnt aleviate the whistling noise. I tried that. Filling it with epoxy will make it go away, but then there is no ISC. I had the same issues with mine, and i run full programmable ECU. Try filling the isc port with papermache and see if it goes away. I am betting its the TB causing the bad idle and the whistle. Also enlarge the hole in the center of the TB, this helped my idle issue when i had no ISC. I found the TB has a big tendancy to slam shut and prevent idle, yet to get it to idle the air whistles past the end of the blade when set so it is open, and the idle is way to high.
Hope that helps
Brett



_________________

The Terrorist ED Retired due to RUST.
The TerrosistGhia, EF Ghia 351 EFI 5 Speed.
Millennium Falcon, Sleeper EL DOHC 6 Speed Manual EFI LPG
Member#1131
I didn't Vote for Multiculturalism, DID YOU!!!

Top
 Profile


 Post subject: Re: what manifold 4 a au 2 xr 8
Posted: Fri Jan 29, 2010 6:50 pm
Getting Side Ways
Offline
User avatar

Posts: 6432

Joined: 5th Nov 2004

Gallery: 6 images

If the edges of the ISC are sharp and straight then that may be the issue. BBK found that the air passing over the sharp edges caused a whistling sound, hence further BBK TB's had the edges beveled down to eliminate the whistling.



_________________

5.6L of carbon footprint.

Top
 Profile


 Post subject: Re: what manifold 4 a au 2 xr 8
Posted: Fri Jan 29, 2010 6:56 pm
Oompa Loompa
Offline

Posts: 42

Joined: 11th Aug 2009

Ride: ef falcon

Location: perth
WA, Australia

thanks Brett, i was just thinking today about what i can fill in the ISC to see if thats the problem, i will give the ECU swap a try first. If it is the TB causing the whistle would it get louder under heavy throttle?
Top
 Profile


 Post subject: Re: what manifold 4 a au 2 xr 8
Posted: Fri Jan 29, 2010 7:07 pm
Oompa Loompa
Offline

Posts: 42

Joined: 11th Aug 2009

Ride: ef falcon

Location: perth
WA, Australia

I checked the edges on the ISC and they are beveled down already, I have seen a number of people in the US drill a hole in the centre of the TB as Brett suggested with mixed results
Top
 Profile


 Post subject: Re: what manifold 4 a au 2 xr 8
Posted: Sat Jan 30, 2010 2:30 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2116

Joined: 13th Aug 2005

Gallery: 15 images

Ride: 1999 XHII XR8, 2002 AU Fairmont

Power: 236 rwkw

Location: Perth
WA, Australia

Dutchy, is your car a Moroon EF/EL Fairmont?



_________________

STREETBUILT RACING
1999 XHII Falcon XR8 Ute 5.0L, TKO600 5spd, KB 2.1L Blower, 6.5psi, 12.2@113mph!!

Top
 Profile


 Post subject: Re: what manifold 4 a au 2 xr 8
Posted: Sat Jan 30, 2010 3:11 pm
Oompa Loompa
Offline

Posts: 42

Joined: 11th Aug 2009

Ride: ef falcon

Location: perth
WA, Australia

Nah its just a silver gli ef
