 Post subject: Windsor cam timing, whats the limit of advance?
Posted: Sat Dec 03, 2005 12:46 am
Getting Side Ways
Offline
User avatar

Posts: 596

Joined: 6th Nov 2004

Gallery: 11 images

Ride: BA mkII XR8

Location: NEWCASTLE
NSW, Australia

Howdy all, I am just in the process of degreeing in a new cam into my XR8 & can't get a closer spot than 2 1/2 degrees advanced or 3 degrees retarded, the cam is meant to have -27 degrees BTDC @ .050'' but because of the geardrive I am using I can only get 30 deg or 24.5 deg BTDC, has anyone experimented with the results of advance/retarding cams in a 302w. I feel that it would be safer to advance it, but I have only played with clevo's in this dept.
any advice from experience would be much appreciated
cheers kenny

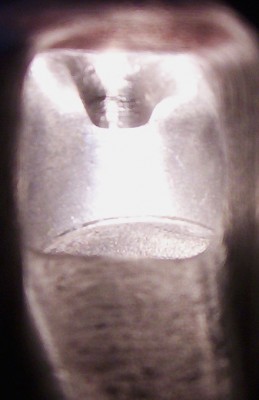

here's a shot of my newly ported inlet port.





Attachments:
E7TE inlet port.jpg
E7TE inlet port.jpg [ 60.48 KiB | Viewed 49 times ]



_________________

IF YOU HAVE IT UNDER CONTROL
YOU SIMPLY DON'T HAVE ENOUGH POWER!!!
Detroit 8V71 for sale, taking offers

Top
 Profile


Posted: Sat Dec 03, 2005 1:05 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2449

Joined: 5th Nov 2004

Ride: Falcon EB-s

Location: Manjimup
WA, Australia

Is it an option to have a new key way ground into the cam gear? Or whatever it is that they use? The alternative would be to swap them for some vernier gears that are fully adjustable?



_________________

The problem with America is stupidity. I'm not saying there should be a capital punishment for stupidity, but why don't we just take the safety labels off of everything and let the problem solve itself?

Top
 Profile


Posted: Sat Dec 03, 2005 1:13 am
Getting Side Ways
Offline
User avatar

Posts: 596

Joined: 6th Nov 2004

Gallery: 11 images

Ride: BA mkII XR8

Location: NEWCASTLE
NSW, Australia

they have multi ofset dowels, but it appears that they are only in 6 degree inciments, I will experiment a bit more 2morro with moving a tooth & backing up with the dowels.
but from experience 2-3 deg advanced wasn't the end of the world, only retarding it gave me grief



_________________

IF YOU HAVE IT UNDER CONTROL
YOU SIMPLY DON'T HAVE ENOUGH POWER!!!
Detroit 8V71 for sale, taking offers

Top
 Profile


Posted: Sat Dec 03, 2005 1:45 am
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1440

Joined: 7th Nov 2004

Ride: 320kw BA XR8

Location: Adelaide
SA, Australia

+/- 4 degrees should be fine, any more and you may run into issues though. 4 degrees will move the powerband by about 200rpm, advancing it will obviously improve low end power and probably help idle out a bit too.
Top
 Profile


Posted: Sat Dec 03, 2005 12:47 pm
Getting Side Ways
Offline
User avatar

Posts: 596

Joined: 6th Nov 2004

Gallery: 11 images

Ride: BA mkII XR8

Location: NEWCASTLE
NSW, Australia

well, got it in at 1/2 degree advanced by advancing it a tooth and retarding it 6 degrees, so hopefully I might be able to hit 300hp at the treads this time around still using E7 heads ,as I am not gonna use the vic Jr heads on this combo, yet!
cheers kenny



_________________

IF YOU HAVE IT UNDER CONTROL
YOU SIMPLY DON'T HAVE ENOUGH POWER!!!
Detroit 8V71 for sale, taking offers

Top
 Profile
