AU 6 cyl engine conversion into an XC



Page 1 of 2 [ 22 posts ] Go to page 1, 2  Next


 Post subject: AU 6 cyl engine conversion into an XC
Posted: Fri Jul 11, 2008 4:00 pm
Fordmods Newbie
Offline

Posts: 10

Joined: 29th Oct 2007

Location: Auckland
New Zealand

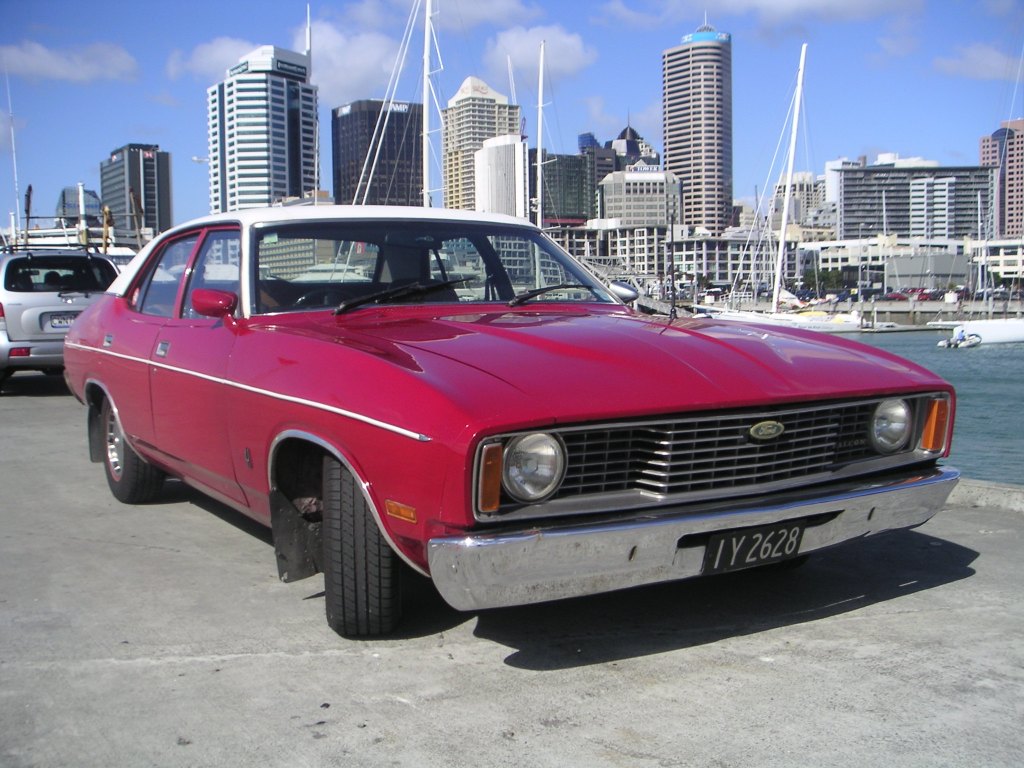

Hi guys – pointed this way from the 6 cylinder workshop. I have tidy XC and access to a very good condition (>5000km) AU 6 cylinder from a reputable wrecker. *EDIT - BA 6 cylinder from a reputable wrecker... This obviously changes everything!*

The plan is remove the 4.1 crossflow and Trans, replace the engine mounts (any suggestions which ones?) and reinstall the new engine mated to the old transmission.

Wiring is not really a concern as I have a reliable friend who is very good in this area including overcoming SmartLock – but am I being naïve in what issues I may face?
Which mounts work/fit? Will the old Trans bolt up to the newer engine? Since engine and trans looms are combined in the AU - will the engine go into limp mode if there is no Trans? What pressure fuel pump will I need ? Will the advice from this post (http://www.fordmods.com/forums/viewtopi ... conversion) to use the stock EA_B_D radiator with XF drivers side mounts also work on an XC?

I have looked and can’t find too much on AU to XC conversions, mainly XE- XG though my understanding is they are very similar chassis but the Trans will be different from XF on. I have access to the existing AU Trans if I want it, but it seems to raise questions about tunnel size and drive shafts etc.

Just looking at a cheap – easy (as it can be anyway) upgrade. Feel free to set me straight about any misconceptions I may have, which may be everything. I drive like a nana so not going to upgrade the diff etc.

Thanks for looking.





Attachments:
PICT0015.JPG [ 164.72 KiB | Viewed 2217 times ]

Last edited by Brooke on Tue Aug 05, 2008 8:27 am, edited 1 time in total.

Top
 Profile


Posted: Fri Jul 11, 2008 9:28 pm
Smokin em up
Offline
User avatar

Posts: 212

Joined: 11th Mar 2005

Gallery: 4 images

Location: Melbourne
VIC, Australia

you may have problems with teh K frame i am unsure on the XC, but on the XF -EL you have to modify the K frame to make it fit, or modify the sump as it hits, you can grind off the front fins on the front of the sump to get teh cleaerance, some agree with this some dont

the gearbox for simplicity i would use a T5 if you can get your hands on one, alot less buggering around with wiring.
Top
 Profile


Posted: Sun Jul 13, 2008 10:31 am
Parts Gopher
Offline

Posts: 78

Joined: 20th Mar 2007

Ride: XC UTE

Location: sydney
NSW, Australia

I have done a couple of 4.0l's with no real dramas. You will have no dramas with tunnel size. The EF engine used the XC mounts and both the auto and manual fitted inside the tunnel easily. I drilled a single hole through the crossmember for the mount.

For the fuel pump, I fitted a VR commodore pump/pickup next to the original XC pickup. commodore pickups are longer than E-series.

It is a big job to get them right, Just keep at it. It is worth it in the long run.
Top
 Profile


Posted: Mon Jul 14, 2008 8:53 am
Fordmods Newbie
Offline

Posts: 10

Joined: 29th Oct 2007

Location: Auckland
New Zealand

Thanks guys - as fate would have it the trans packed it in over the weekend, its stuck in Drive and no reverse, so all options are open now.
Top
 Profile


Posted: Thu Jul 24, 2008 4:41 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 624

Joined: 21st Mar 2005

Ride: Triton ute BA Futura

Location: Woori Yallock
VIC, Australia

351 cleveland it
Top
 Profile


Posted: Mon Jul 28, 2008 9:33 am
Fordmods Newbie
Offline

Posts: 10

Joined: 29th Oct 2007

Location: Auckland
New Zealand

So it can be heavier and go slower? good for burnouts, but bugger all else.
Top
 Profile


Posted: Mon Jul 28, 2008 12:28 pm
Getting Side Ways
Offline

Age: 26

Posts: 2553

Joined: 19th Feb 2007

Gallery: 21 images

Ride: 98 EL Futura

Power: 199 rwkw

Location: Lilydale
VIC, Australia

The XC should go pretty hard with the AU engine, the XC only weighs 1475kg



_________________

EL Futura: CVE head, Wolf V500, ICE Ignition and Coil, 36lb injectors, Walbro 255lb, Paci comps, 3" exhaust, T5, Harrop Truetrac with 3.9s. Now with 198.9rwkw, (~185rwkw and 13.80 @99.1mph) with more power to come

Top
 Profile


Posted: Mon Jul 28, 2008 12:44 pm
Fordmods Newbie
Offline

Posts: 10

Joined: 29th Oct 2007

Location: Auckland
New Zealand

Showing my lack of knowledge here - but whats the dry weight of an AU?
Top
 Profile


Posted: Mon Jul 28, 2008 2:57 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4402

Joined: 25th Mar 2005

Ride: BA XT, BA XR6T, ED Ghia 5.0

Location: Perth
WA, Australia

About 1600kg or thereabouts I think.



_________________

What's the difference between a Holden and a sheep? It's less embarrasing getting out of the back of a sheep..

Top
 Profile


Posted: Mon Jul 28, 2008 5:54 pm
Smokin em up
Offline
User avatar

Age: 52

Posts: 235

Joined: 10th Feb 2008

Gallery: 3 images

Ride: BA XR6,ED Wagon,EA Sedans,XF Ghi

Location: Brisbane
QLD, Australia

xf_man wrote:
351 cleveland it


:D I agree & you also get a sweet note!



_________________

"When Cars Were Steel"
"Cars Were Real"

Top
 Profile


Posted: Fri Aug 01, 2008 8:11 pm
Smokin em up
Offline
User avatar

Posts: 262

Joined: 5th Nov 2006

Location: wilcannia
NSW, Australia

i used to have an XB van with an alloyhead crossflow in it. it went pretty good. then i decided to do the clevo " upgrade " the car actually groaned when i lowered the engine in. it became a pos to drive.

i'd just drop it in the 'bay and see how it all fits. only sure way to know. this sounds like a good conversion to me.



_________________

vote for pedro ? f**k pedro, f**k him up his stupid a***hole.

Top
 Profile


Posted: Sat Aug 02, 2008 6:51 pm
Stock as a Rock
Offline
User avatar

Age: 29

Posts: 176

Joined: 27th Nov 2004

Ride: Cortina TE

Location: Perth
WA, Australia

i got a 351 Clevo with the Heave-Ho. but it definatly is a heavy donk.

for a car that tips the scales at 1188kilo with the Six.. weighed in at 1500kilo exact with me in it @ the weighbridge the other day when i went to the scrap metal yard.

turning corners at fast speeds is definatly not recomended.. so i might be pulling the 351 out.. dunno yet.



_________________


Top
 Profile


Posted: Sun Aug 03, 2008 2:48 pm
Fordmods Newbie
Offline

Posts: 10

Joined: 29th Oct 2007

Location: Auckland
New Zealand

From what I can gather - I will be going from 96KW (on a good day) from the 250 X-flow to 182 KW (all day) from the barra and shaving 40 kg's from the front going to the all alloy engine. That gives me 7.91 KG per 1KW. If I whack in a 351 @ 356 kg dry weight, I am guessing I could be adding anywhere from 110 kgs over the Barra conversion and have a power to weight of 7.04 Kg pr 1KW... but using twice the gas. Feel free to rip these numbers apart - I cannot find anywhere the dry weight of a Barra 182.
Top
 Profile


Posted: Sun Aug 03, 2008 3:41 pm
Getting Side Ways
Offline

Posts: 553

Joined: 28th Oct 2005

Ride: Peacock EB Falcon

Location: Brisbane
QLD, Australia

Barra's still have a cast iron block, however you'll still save plenty of weight over the clevo. And I recommend reading fordman351's thread if you decide to go Barra, he recently went through the ordeal of putting one into his EL.

However it should be easier for you as you'll have more of a blank canvas to work with.



_________________

Wanted, CFI manifold

Top
 Profile


Posted: Sun Aug 03, 2008 3:55 pm
Tyre Shredder
Offline
User avatar

Posts: 364

Joined: 16th Nov 2004

Power: 120 rwkw

Location: Christchurch
New Zealand

it might not be what your after but it's possible to run the AU motor with a carbie set up check out the ford 6 manifold section on www.Aussiespeed.com

That way you could get around a lot of the electrical issues.
