XK 144ci gearbox upgrade



Page 1 of 1 [ 9 posts ]


 Post subject: XK 144ci gearbox upgrade
Posted: Sat Oct 24, 2009 6:45 pm
Fordmods Newbie
Offline

Age: 36

Posts: 3

Joined: 21st Oct 2009

Ride: Ford Falcon XK Wagon

Location: Gold Coast
QLD, Australia

Gday all,

I have just picked up a sweet XK wagon, but its got the original 2-speed auto in it! I was wondering if there was any chance a BW-35 would bolt up to the block or do i need an adaptor bellhousing? Any thoughts?? I would love to convert it to a 3 speed manual on the tree, but i cannot find any spares apart from ebay and they are all in bloody vic!!

Can anyone help?

Cheers





Attachments:

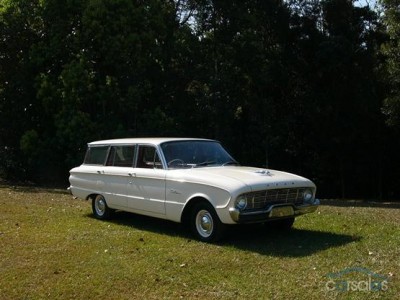

File comment: My XK wagon, at alst
6406887.jpg [ 42.45 KiB | Viewed 95 times ]
Top
 Profile


 Post subject: Re: XK 144ci gearbox upgrade
Posted: Sat Oct 24, 2009 9:30 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

I'm fairly certain that the later transmissions of any sort won't bolt up to a 144/170....the bolt pattern for the bellhousing is too small.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: XK 144ci gearbox upgrade
Posted: Thu Oct 29, 2009 9:59 am
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 863

Joined: 26th Nov 2007

Gallery: 20 images

Ride: XH Ute / AU3 V8 Wagon

Location: Bris-Vegas
QLD, Australia

Didnt the later XM/XP's have a 3 speed auto behind the 170? Maybe talk to a few auto shops and see what you can find out.
BTW, that is a neat looking wagon...OZBMX will be very jealous.. :D



_________________

Yes, I own a Ute. No, I won't help you move!

EL Wagon Build Thread http://www.fordmods.com/the-garage-f53/sooty72-s-ef-futura-wagon-long-term-project-t90025.html
XH Ute Thread http://www.fordmods.com/post1138970.html#p1138970

Top
 Profile


 Post subject: Re: XK 144ci gearbox upgrade
Posted: Thu Oct 29, 2009 9:37 pm
Fordmods Newbie
Offline

Age: 36

Posts: 3

Joined: 21st Oct 2009

Ride: Ford Falcon XK Wagon

Location: Gold Coast
QLD, Australia

Its all good, picked up a 3-speed manual and all the bits..will post about the change in another topic!! Cant wait!! Love the 3-on-the-tree!!!
Top
 Profile


 Post subject: Re: XK 144ci gearbox upgrade
Posted: Fri Oct 30, 2009 7:15 pm
Getting Side Ways
Offline
User avatar

Age: 27

Posts: 1998

Joined: 31st Dec 2007

Gallery: 9 images

Ride: xc wag's, tnklane wag's

Location: Munruben
QLD, Australia

Yeah scooty i believed there was 3 spd manual and auto's available. I've got the 2spd auto in mine.

Far out thats one smick wagon, hope to see you out and about in it at some stage.

Let me guess you probably even have seats? :lol:

Any more pics.



_________________

Signature removed by moderator.signature must not exceed 120x500 pixles

Top
 Profile


 Post subject: Re: XK 144ci gearbox upgrade
Posted: Thu Nov 19, 2009 4:02 pm
Tyre Shredder
Offline

Age: 29

Posts: 365

Joined: 22nd Nov 2007

Ride: FG MK2 XR6T

Location: Bexley, Sydney
NSW, Australia

Excuse my ignorance, but wouldn't it be worth keeping a vehicle of that vintage as original as possible?



_________________

Formerly LV XR5 Turbo, AU Fairmont Ghia V8 & EBII Fairmont I6.

Now......
Feb 2012 FG MK2 XR6 Turbo
- Manual
- Luxury Pack

Top
 Profile


 Post subject: Re: XK 144ci gearbox upgrade
Posted: Fri Dec 11, 2009 11:26 am
Fordmods Newbie
Offline

Age: 52

Posts: 1

Joined: 11th Dec 2009

Ride: ford xk wagon,ford xp sedan

Location: melbourne
VIC, Australia

hi just saw this - hope your 3 speed Manual conversion is progressing .

just for your info :
the early (Xk to Xp ) falcons when they have a 3 speed (non synchro first)manual or 2 speed auto box had whats called a 'narrow block' 6 cylinder and matching bellhousing
the Xp onwards BW 35 3 speed auto ( and XR onwards (all synchro)manual) had a wide block belhousing (6 cylinder ) and wide block motor
all refer to the bellhousing bolt up arrangement.

so if you have a 3 speed auto box/ XR onwards 3 speed manual box and an early narrow block -they wont bolt up.



you can also get adapter plates to make the narrow block a wide one for bolt up of 3 speed auto or later wide 3 speed ( all syncro)manual boxes as below

http://i686.photobucket.com/albums/vv22 ... rplate.jpg


brett
Top
 Profile


 Post subject: Re: XK 144ci gearbox upgrade
Posted: Fri Dec 11, 2009 11:48 am
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 4285

Joined: 8th Dec 2004

Gallery: 25 images

Ride: EB2 Ghia,Mighty Boy,Eb1 Xr8 5spd

Location: ** In the Shed! **
VIC, Australia

sd1800 wrote:
Excuse my ignorance, but wouldn't it be worth keeping a vehicle of that vintage as original as possible?


If he is fitting the 3 on the tree manual that is correct for the model that it's much of a muchness.

I've got a 3 on the tree manual in my torana, only gripe i have is if you slip on a quick 1st to 2nd change you can break your knuckles on the windscreen. :oops: I also have a bench seat still in it, and i won't change that, so it's staying a column shift.

Xklover -> That's one sweet looking wagon you have there. A nice cruise machine.

Cheers

ToranaGuy



_________________

I am the ToranaGuy!|74 Lh Torana Turbo|78 Hz PanelVan|86 Mighty Boy Ute|93 EB2 Ghia,GT Mockup,5spd,LPGI,Full Leather|2 x EB Xr8 5spd's|FS [VIC]: Wrecking - Eb XR8 - Parts available |Build Thread|Ebay Items - Ford Parts|

Top
 Profile


 Post subject: Re: XK 144ci gearbox upgrade
Posted: Fri Mar 12, 2010 3:03 pm
Smokin em up
Offline

Age: 37

Posts: 288

Joined: 18th Jan 2006

Ride: Falcon

Location: sydney
NSW, Australia

Hello there

Some machine shops have the adaptor plate to suit the later BW35 to the 'narrower bellhousing bolts.'

I bought one for my XP as i got a hold of the older 170 when i decided to blow up the older engine.

Im down here in Sydney, i got it from Dellow Automotive from old sock that they have.

Might try giving them a call maybe.

Great looking XK there, very nice.
Top
