6cyl power steering rebuild, seems very easy!



Page 1 of 4 [ 60 posts ] Go to page 1, 2, 3, 4  Next


 Post subject: 6cyl power steering rebuild, seems very easy!
Posted: Mon Dec 12, 2011 4:01 pm
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 4599

Joined: 30th Aug 2010

Ride: BF XR6,

Location: NEWCASTLE
NSW, Australia

i have 2 leaky p/steering pumps and was wondering if it would be worth while putting one of these kits through one and also if anyone else has experience using this seal kit, also will i need any special tools or is this for the simple diy man
http://www.ebay.com.au/itm/Ford-Falcon-EF-EL-AU-Power-Steering-Pump-Seal-Kit-/380384962323?pt=AU_Car_Parts_Accessories&hash=item5890b5e713



_________________

BF XR6
xr8 snorkel,typhoon lower snorkel,territory intake pipe,20% underdrive kit,pacemaker extractors,high flow cat,xforce exhaust,t56 conversion hd turbo clutch/ flywheel,m86 3.45 lsd,custom tune187.1rwkw as an auto

Last edited by bry40l on Tue Dec 13, 2011 1:43 pm, edited 2 times in total.

Top
 Profile


 Post subject: Re: i6 power steering reseal kit from ebay any good?
Posted: Mon Dec 12, 2011 4:05 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

Works for me.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


 Post subject: Re: i6 power steering reseal kit from ebay any good?
Posted: Mon Dec 12, 2011 5:26 pm
Fordmods Junkie
Offline
User avatar

Posts: 11739

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

snap0964 wrote:
Works for me.


+1



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


 Post subject: Re: i6 power steering reseal kit from ebay any good?
Posted: Mon Dec 12, 2011 5:31 pm
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 4599

Joined: 30th Aug 2010

Ride: BF XR6,

Location: NEWCASTLE
NSW, Australia

are these seals easily fitted without any special tools or brains which i wouldnt have lol



_________________

BF XR6
xr8 snorkel,typhoon lower snorkel,territory intake pipe,20% underdrive kit,pacemaker extractors,high flow cat,xforce exhaust,t56 conversion hd turbo clutch/ flywheel,m86 3.45 lsd,custom tune187.1rwkw as an auto

Top
 Profile


 Post subject: Re: i6 power steering reseal kit from ebay any good?
Posted: Mon Dec 12, 2011 9:22 pm
Fordmods Junkie
Offline
User avatar

Posts: 11739

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

bry40l wrote:
are these seals easily fitted without any special tools or brains which i wouldnt have lol


It is much easier to fit the seal kit if you have the front pulley off because to get to the front seal, the front pulley needs to be off...or else you have to play with a cir-clip on the shaft (internal) to remove the shaft from the housing so you can replace the seal.

It is pretty straight forward, you just have to be careful with the vanes and make sure when you remove the cover that the vanes of the pump doesn't just fall out and remember which way they go (pretty sure they are directional).

If you buy the kit, it actually has instructions.



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


 Post subject: Re: i6 power steering reseal kit from ebay any good?
Posted: Tue Dec 13, 2011 8:03 am
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 4599

Joined: 30th Aug 2010

Ride: BF XR6,

Location: NEWCASTLE
NSW, Australia

ok thanks, since i have a spare pump off the mont ill have a go at it anyway



_________________

BF XR6
xr8 snorkel,typhoon lower snorkel,territory intake pipe,20% underdrive kit,pacemaker extractors,high flow cat,xforce exhaust,t56 conversion hd turbo clutch/ flywheel,m86 3.45 lsd,custom tune187.1rwkw as an auto

Top
 Profile


 Post subject: Re: i6 power steering reseal kit from ebay any good?
Posted: Tue Dec 13, 2011 9:27 am
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 4599

Joined: 30th Aug 2010

Ride: BF XR6,

Location: NEWCASTLE
NSW, Australia

just realised my mates trade is hydraulics so even though hes in qld hes going to help if i need some advice, aparently brake cleaner is the way to go with cleaning it up and a clean work area already goes without saying with this kinda thing, jeez it smells like a transmission that hasent been serviced when the fluid got tipped out



_________________

BF XR6
xr8 snorkel,typhoon lower snorkel,territory intake pipe,20% underdrive kit,pacemaker extractors,high flow cat,xforce exhaust,t56 conversion hd turbo clutch/ flywheel,m86 3.45 lsd,custom tune187.1rwkw as an auto

Top
 Profile


 Post subject: Re: i6 power steering reseal kit from ebay any good?
Posted: Tue Dec 13, 2011 10:08 am
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 4599

Joined: 30th Aug 2010

Ride: BF XR6,

Location: NEWCASTLE
NSW, Australia

went to buy some brake cleaner and a deep socket in 18mm size and supercheap only had sets that went 14,15,16,17,19 wtf? are they really that s**t? so i grabbed a cheap spanner in 18mm. might snap some pictures of the proccess of pulling it apart for anyone interested in doing it



_________________

BF XR6
xr8 snorkel,typhoon lower snorkel,territory intake pipe,20% underdrive kit,pacemaker extractors,high flow cat,xforce exhaust,t56 conversion hd turbo clutch/ flywheel,m86 3.45 lsd,custom tune187.1rwkw as an auto

Top
 Profile


 Post subject: Re: i6 power steering reseal kit from ebay any good?
Posted: Tue Dec 13, 2011 10:26 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

These are the tools I use for power steering pumps.

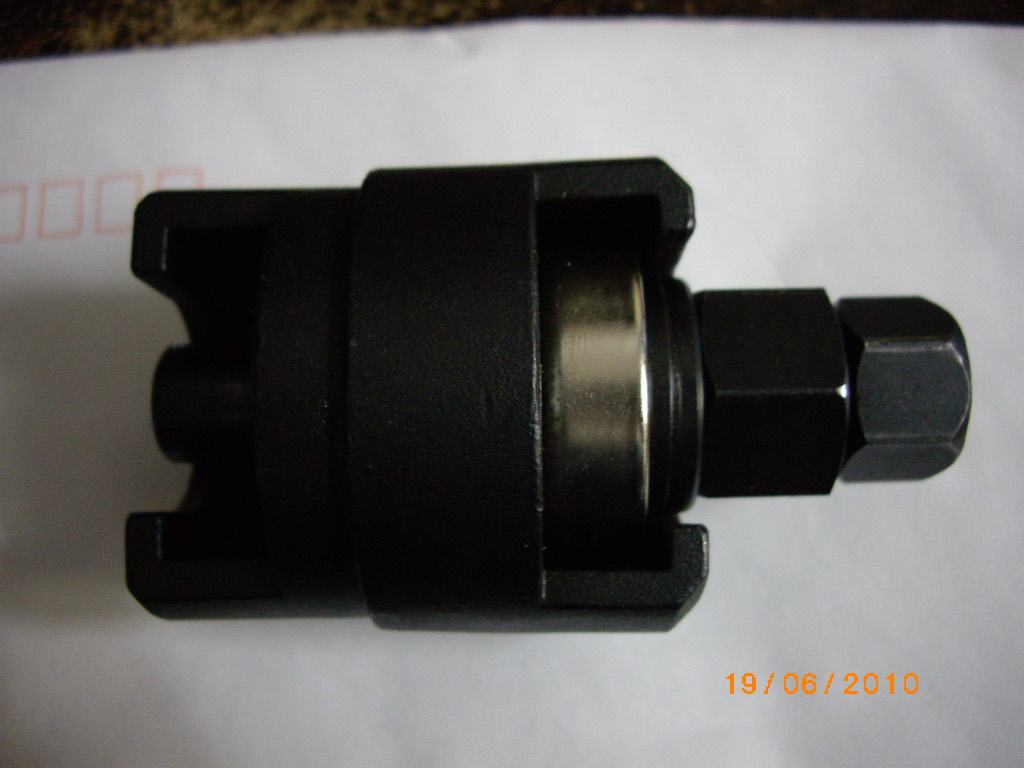

1st one is the pulley removal and installation tool.

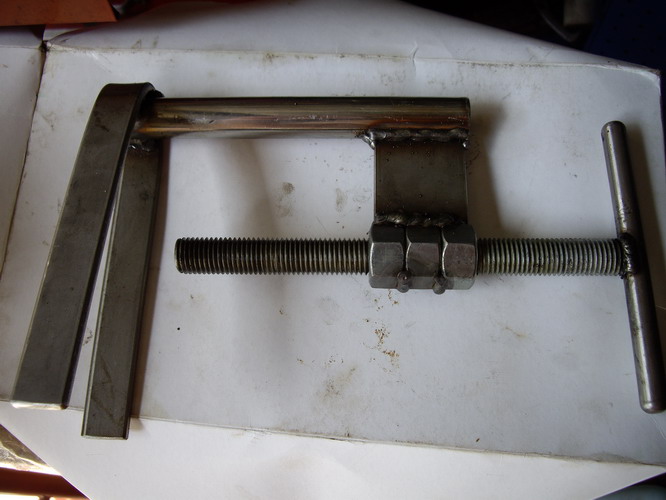

2nd one is the tool for clamping in the end plate so you can get the big circlip out, it has a big spring under it.

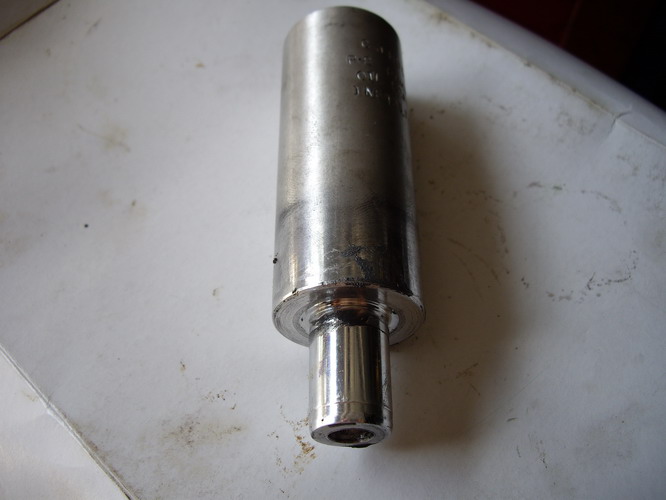

3rd one is the tool for installing the front oil seal.
It is possible to put the plate & shaft assembly in the wrong way as is it's mating opposite face ( where the vanes seal against at their ends ).
Where the 2 little rods go through the plates, 1 of the holes has little flats ( very hard to see ), they must be lined up where they came from.
Use ATF or R1-424 when assembling the pump.
Make sure you put the 'O'ring in the right groove on the pressure relief valve, or it will not work.
That seal kit won't last either, it doesn't have Viton seals & 'O'rings, and doesn't have a replacement magnet either, like the genuine Ford kits have........you get what you pay for.





Attachments:
IMGP4776.JPG [ 230.33 KiB | Viewed 99 times ]
IMGP1076_resize.JPG [ 74.35 KiB | Viewed 47 times ]
IMGP1073_resize.JPG [ 55.96 KiB | Viewed 75 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: i6 power steering reseal kit from ebay any good?
Posted: Tue Dec 13, 2011 10:33 am
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 4599

Joined: 30th Aug 2010

Ride: BF XR6,

Location: NEWCASTLE
NSW, Australia

so do i even bother if i dont have these tools?



_________________

BF XR6
xr8 snorkel,typhoon lower snorkel,territory intake pipe,20% underdrive kit,pacemaker extractors,high flow cat,xforce exhaust,t56 conversion hd turbo clutch/ flywheel,m86 3.45 lsd,custom tune187.1rwkw as an auto

Top
 Profile


 Post subject: Re: i6 power steering reseal kit from ebay any good?
Posted: Tue Dec 13, 2011 11:23 am
Getting Side Ways
Offline

Posts: 6166

Joined: 8th May 2007

lol f**k that, go buy another pump, theyre cheap as chips for the I6's
Top
 Profile


 Post subject: Re: i6 power steering reseal kit from ebay any good?
Posted: Tue Dec 13, 2011 11:26 am
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 4599

Joined: 30th Aug 2010

Ride: BF XR6,

Location: NEWCASTLE
NSW, Australia

im sitting around all day bored as f**k so i might aswell pull it apart and $17 later i have one that will hopefully not leak and ive learnt something, if it still leaks ill just throw it and buy a new one but at least it will keep me busy for a few hours, if it works ill look into buying a proper ford seal kit and do my other one and flog it off on ebay



_________________

BF XR6
xr8 snorkel,typhoon lower snorkel,territory intake pipe,20% underdrive kit,pacemaker extractors,high flow cat,xforce exhaust,t56 conversion hd turbo clutch/ flywheel,m86 3.45 lsd,custom tune187.1rwkw as an auto

Top
 Profile


 Post subject: Re: i6 power steering reseal kit from ebay any good?
Posted: Tue Dec 13, 2011 12:07 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

bry40l wrote:
so do i even bother if i dont have these tools?
Yes, because you only need a decent G clamp to do the spring loaded plate, and you don't necessarily need the front pulley off - remove the rear circlip instead. Improvise where you need to.

Borrow a ford shop manual - it covers this really well. As for the kits - my local steering specialist sells the same brand kits for nearly double $$$. Magnet: If you have to prise the existing one off, you don't really need a new one. Cleanliness and use 424 or compatible ATF as mentioned.

I have done 2 pumps and 2 steering racks using these guys kits - 18 mths on they're fine.
If you go there in person - speak to Uri - he knows his sh*t and is happy to pass on his knowledge.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


 Post subject: Re: i6 power steering reseal kit from ebay any good?
Posted: Tue Dec 13, 2011 12:15 pm
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 4599

Joined: 30th Aug 2010

Ride: BF XR6,

Location: NEWCASTLE
NSW, Australia

this spring loaded plate thats held on by the big circlip came straight off and wasnt really very spring loaded, how do i access the rest of the pump through there? nothing else seems to wanna remove from the rest of the pump housing unless im not trying hard enough.
i can get pictures if you like
also the magnet was just sitting in there and came straight out, i already cleaned it up and its all good
there seems to be play in the pulley so does that mean i need to chase up a bearing or is a little bit of play ok?
thanks for the help mate



_________________

BF XR6
xr8 snorkel,typhoon lower snorkel,territory intake pipe,20% underdrive kit,pacemaker extractors,high flow cat,xforce exhaust,t56 conversion hd turbo clutch/ flywheel,m86 3.45 lsd,custom tune187.1rwkw as an auto

Top
 Profile


 Post subject: Re: i6 power steering reseal kit from ebay any good?
Posted: Tue Dec 13, 2011 12:48 pm
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 4599

Joined: 30th Aug 2010

Ride: BF XR6,

Location: NEWCASTLE
NSW, Australia

i was just reading my workshop manual and i need to sit the pump so the pulley is in the air and give it a tap and the insides will fall out? the manual doesnt have any pictures but i think i know what its on about lol



_________________

BF XR6
xr8 snorkel,typhoon lower snorkel,territory intake pipe,20% underdrive kit,pacemaker extractors,high flow cat,xforce exhaust,t56 conversion hd turbo clutch/ flywheel,m86 3.45 lsd,custom tune187.1rwkw as an auto

Top
