95 EF XR6 T5 World Class or Non World Class ?



Page 1 of 2 [ 18 posts ] Go to page 1, 2  Next


 Post subject: 95 EF XR6 T5 World Class or Non World Class ?
Posted: Wed Jan 13, 2010 11:39 pm
Getting Side Ways
Offline
User avatar

Age: 50

Posts: 480

Joined: 10th Feb 2005

Gallery: 28 images

Ride: EF Fairmont Station Wagon.

Power: 150 rwkw

Location: Mandurah
WA, Australia

OK I have searched but are still not sure. Box is in a 95 EF XR6, Trans - K, Trans ID tag reads - 94DA 7003 AA, 0552-012, 4009, (4009 is stamped not raised) can any one help.



_________________

4.0L EF Fairmont Station Wagon. EL GT Snorkel. K&N Pod in air box. 3" Intake piping.
Home port job. 1636 Wade cam. Wildcat Extractors, 2 1/2" cat and exhaust.
2200/2400rpm Dominator More Stall. Stage two mechanical shift kit. 3.73 4 pinion LSD. 15.078 @ 92mph.

Top
 Profile


 Post subject: Re: 95 EF XR6 T5 World Class or Non World Class ?
Posted: Wed Jan 13, 2010 11:51 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

EF/EL have WC Boxes.
infact anything above EB2 have WC unless its been changed.

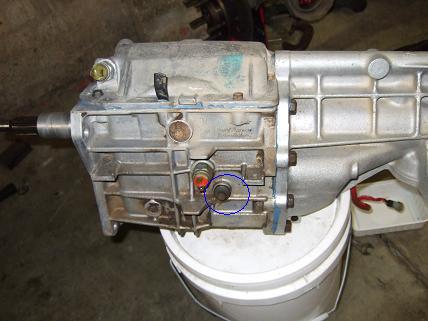

Look for this pin:
With = WC
Without = Non WC




_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


 Post subject: Re: 95 EF XR6 T5 World Class or Non World Class ?
Posted: Thu Jan 14, 2010 12:30 am
Getting Side Ways
Offline
User avatar

Age: 50

Posts: 480

Joined: 10th Feb 2005

Gallery: 28 images

Ride: EF Fairmont Station Wagon.

Power: 150 rwkw

Location: Mandurah
WA, Australia

Thanks man, saved the picture and will check. A company online had the last three numbers of the second line of my code '012' listed as Non World Class just wanted to check.



_________________

4.0L EF Fairmont Station Wagon. EL GT Snorkel. K&N Pod in air box. 3" Intake piping.
Home port job. 1636 Wade cam. Wildcat Extractors, 2 1/2" cat and exhaust.
2200/2400rpm Dominator More Stall. Stage two mechanical shift kit. 3.73 4 pinion LSD. 15.078 @ 92mph.

Top
 Profile


 Post subject: Re: 95 EF XR6 T5 World Class or Non World Class ?
Posted: Thu Jan 14, 2010 8:34 pm
Getting Side Ways
Offline
User avatar

Age: 50

Posts: 480

Joined: 10th Feb 2005

Gallery: 28 images

Ride: EF Fairmont Station Wagon.

Power: 150 rwkw

Location: Mandurah
WA, Australia

I have checked the gearbox and it has the pin which is a good thing. So the Non World Class box has nothing in this position at all, just want to make sure.



_________________

4.0L EF Fairmont Station Wagon. EL GT Snorkel. K&N Pod in air box. 3" Intake piping.
Home port job. 1636 Wade cam. Wildcat Extractors, 2 1/2" cat and exhaust.
2200/2400rpm Dominator More Stall. Stage two mechanical shift kit. 3.73 4 pinion LSD. 15.078 @ 92mph.

Top
 Profile


 Post subject: Re: 95 EF XR6 T5 World Class or Non World Class ?
Posted: Thu Jan 14, 2010 8:45 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 3804

Joined: 22nd Apr 2007

Gallery: 5 images

Ride: DENTED UP OLD AUT WAGON

Location: Wellington
New Zealand

Hey Wagon Dad... Just to pour some confusion on the issue, when talking to Borg Warner about this subject (they were really nice - Honestly couldn't have asked to be dealing with a nicer bunch... I lucked in there big time) they did not actually confirm this pin position thing as being 100% correct.

But yeah, anything above EB2 was supposedly WC. Which is a good thing, you're quite right. Means you don't have odd dimension roller pins to loose in your sump when trying to install shafts...

If I was a half decent mechanic I'd never have worked on my magnet on wire and string tool.
"Sump Fishing, where the lures don't need jigging..."
Top
 Profile


 Post subject: Re: 95 EF XR6 T5 World Class or Non World Class ?
Posted: Thu Jan 14, 2010 9:07 pm
Getting Side Ways
Offline
User avatar

Age: 50

Posts: 480

Joined: 10th Feb 2005

Gallery: 28 images

Ride: EF Fairmont Station Wagon.

Power: 150 rwkw

Location: Mandurah
WA, Australia

Thanks Fiend, I might pull the box and check the internals to make sure, I dont know the history of the car just bought it (EF XR6 in need of some tender loving care) , it looks all standard but looks can be decieving.



_________________

4.0L EF Fairmont Station Wagon. EL GT Snorkel. K&N Pod in air box. 3" Intake piping.
Home port job. 1636 Wade cam. Wildcat Extractors, 2 1/2" cat and exhaust.
2200/2400rpm Dominator More Stall. Stage two mechanical shift kit. 3.73 4 pinion LSD. 15.078 @ 92mph.

Top
 Profile


 Post subject: Re: 95 EF XR6 T5 World Class or Non World Class ?
Posted: Thu Jan 14, 2010 9:14 pm
Getting Side Ways
Offline

Age: 33

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: NCII Fairlane

Location: Bathurst
NSW, Australia

what is this WC vs non WC?



_________________

R.I.P Tobias my son.

Top
 Profile


 Post subject: Re: 95 EF XR6 T5 World Class or Non World Class ?
Posted: Thu Jan 14, 2010 9:52 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

WC is a revised box, it has a few upgrades, as in:
some needle roller bearings.
reverse synchronizer mech.
different ratio.

its basically a series 2 box.



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


 Post subject: Re: 95 EF XR6 T5 World Class or Non World Class ?
Posted: Thu Jan 14, 2010 11:12 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5587

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

Non WC: XF/EA boxes
WC: EBII onwards
That pin/'roofing nail head' in the pic is the easiest way externally to tell the 2 types of boxes apart.
That pin is part of the reverse gear detent revised setup.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


 Post subject: Re: 95 EF XR6 T5 World Class or Non World Class ?
Posted: Fri Jan 15, 2010 6:50 am
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 3804

Joined: 22nd Apr 2007

Gallery: 5 images

Ride: DENTED UP OLD AUT WAGON

Location: Wellington
New Zealand

The Borg Warner guy seemed to think that there were some floating around with roller pins AND the pictured "lug", "pin" etc. Whatever. I am damn sure that in 99.9999 reoccurring percent of the time you'd be correct.

Was also told that it was a DATE OF MANUFACTURE thing and that maybe, just maybe, that date is not directly in correlation to the EB2 production cycle.
Top
 Profile


 Post subject: Re: 95 EF XR6 T5 World Class or Non World Class ?
Posted: Fri Jan 15, 2010 9:50 am
Getting Side Ways
Offline
User avatar

Age: 50

Posts: 480

Joined: 10th Feb 2005

Gallery: 28 images

Ride: EF Fairmont Station Wagon.

Power: 150 rwkw

Location: Mandurah
WA, Australia

I have got the option to pull the gear box and have the car sit for a while, I dont need it on the road, this XR6 is my first Adult ( kids almost ready to move out) project car a long way from my first car a 302 XW Fairmont.
Now that we have 99% established that the box should be a WC, what is the best kit to get and where to get it. Thanks.



_________________

4.0L EF Fairmont Station Wagon. EL GT Snorkel. K&N Pod in air box. 3" Intake piping.
Home port job. 1636 Wade cam. Wildcat Extractors, 2 1/2" cat and exhaust.
2200/2400rpm Dominator More Stall. Stage two mechanical shift kit. 3.73 4 pinion LSD. 15.078 @ 92mph.

Top
 Profile


 Post subject: Re: 95 EF XR6 T5 World Class or Non World Class ?
Posted: Sat Jan 16, 2010 10:05 am
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 3804

Joined: 22nd Apr 2007

Gallery: 5 images

Ride: DENTED UP OLD AUT WAGON

Location: Wellington
New Zealand

Top
 Profile


 Post subject: Re: 95 EF XR6 T5 World Class or Non World Class ?
Posted: Sat Jan 16, 2010 7:55 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

WagonDad wrote:
I have got the option to pull the gear box and have the car sit for a while, I dont need it on the road, this XR6 is my first Adult ( kids almost ready to move out) project car a long way from my first car a 302 XW Fairmont.
Now that we have 99% established that the box should be a WC, what is the best kit to get and where to get it. Thanks.



http://www.gforcetransmissions.com/



_________________

PERMANENTLY BANNED

Top
 Profile


 Post subject: Re: 95 EF XR6 T5 World Class or Non World Class ?
Posted: Sat Jan 16, 2010 8:31 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 3804

Joined: 22nd Apr 2007

Gallery: 5 images

Ride: DENTED UP OLD AUT WAGON

Location: Wellington
New Zealand

Top
 Profile


 Post subject: Re: 95 EF XR6 T5 World Class or Non World Class ?
Posted: Sun Jan 17, 2010 11:40 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5587

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

fiend wrote:
The Borg Warner guy seemed to think that there were some floating around with roller pins AND the pictured "lug", "pin" etc. Whatever. I am damn sure that in 99.9999 reoccurring percent of the time you'd be correct.
This transmission will have a tapered bearing between the input shaft and mainshaft, not the 15 needle rollers.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
