Are live and irs au diff centres the same?



Page 1 of 1 [ 3 posts ]


 Post subject: Are live and irs au diff centres the same?
Posted: Wed Dec 24, 2008 12:13 am
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 490

Joined: 10th Feb 2006

Ride: NF Fairlane

Location: Brisbane
QLD, Australia

Hey guys

Been up for 37hrs straight and dog tired so excuse me for not searching but i need to know whether AU live and irs diff centres are interchangeable

I kinda need to know by tomorrow morning, not going to pull 2 diffs apart tomorrow and waist my time if this won't wprk

I want to put a 3.45 LSD centre from LIVE axle diff into a non LSD IRS setup

Any helpful info appreciated :)

Ohh by the way while we are at it are the ea-el LSD centres same as well?

Anyway gotta go get some zzzzzz



_________________

If you don't do it whilst your livin, you aint got no bloody chance when your dead!!!

Top
 Profile


Posted: Wed Dec 24, 2008 1:28 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

EA centres are 25 spline. The centres of IRS & live are slightly different. There is a little plate inside the IRS centres.
There other centre is an EBII centre.
I know the pinions are different, thread size, and slight differences in lengths. That all started in the EL series.





Attachments:

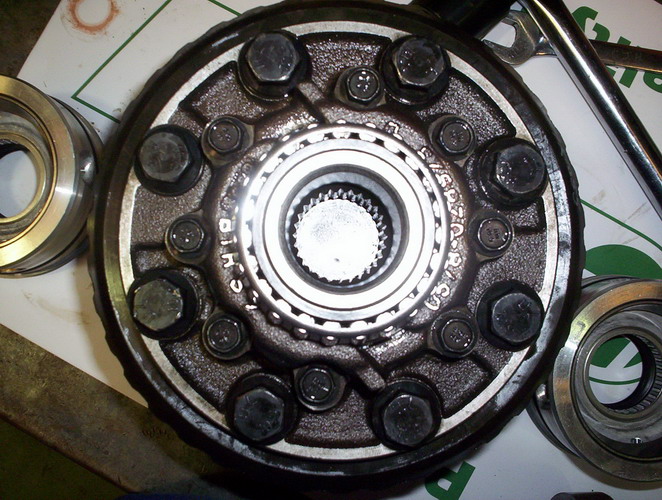

AU IRS diff assembly 002_resize.jpg
AU IRS diff assembly 002_resize.jpg [ 127.54 KiB | Viewed 575 times ]

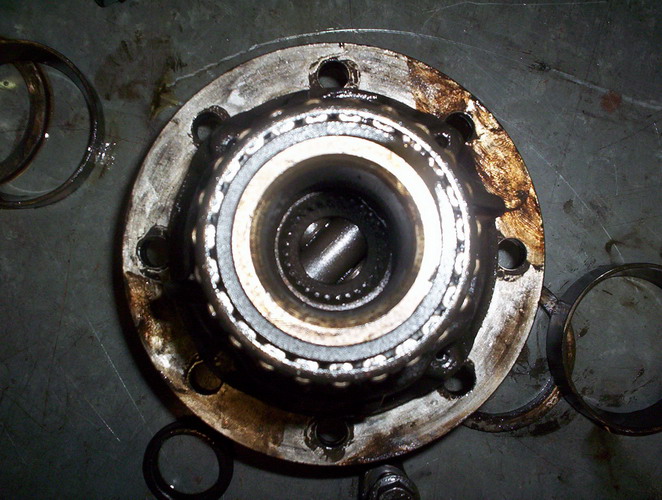

AU IRS diff assembly 001_resize.jpg
AU IRS diff assembly 001_resize.jpg [ 146.86 KiB | Viewed 572 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sat Dec 27, 2008 9:47 pm
Getting Side Ways
Offline

Age: 29

Posts: 4182

Joined: 30th May 2005

Ride: 1993 EB XR8

Location: BrisVegas
QLD, Australia

No, the IRS centre has circlip grooves, where as the non IRS does not, if you can wait, i have an IRS LSD centre coming out you can have for $50



_________________

ILL60 - EF XR8, Sunroof, Ticky Kit, 19x8.5/19x11 TE37's, 347, AFr185's, TFS BoxRcustom converter, Hurst Quarterstick, huge billet cam.

51TER - DL LTD. Stock.
