AU XR6 Diff - What type of LSD?



Page 1 of 1 [ 8 posts ]


 Post subject: AU XR6 Diff - What type of LSD?
Posted: Tue Nov 22, 2011 10:27 pm
Parts Gopher
Offline

Posts: 82

Joined: 22nd Nov 2010

Gallery: 1 images

Ride: EL XR6

Location: Auckland
New Zealand

I couldn't find too much information about the XR6 diff on the interest other than it's a 3.45 ratio LSD. Does anyone know what type of diff it is? Is it a Hydro-trac like the EF or did they go to the Detroit locker?
Top
 Profile


 Post subject: Re: AU XR6 Diff - What type of LSD?
Posted: Wed Nov 23, 2011 12:08 pm
Parts Gopher
Offline

Posts: 82

Joined: 22nd Nov 2010

Gallery: 1 images

Ride: EL XR6

Location: Auckland
New Zealand

Yeah, I know some aren't LSD, but the ones that are LSD what type of diff are they?

^^Above: *on the internet
Top
 Profile


 Post subject: Re: AU XR6 Diff - What type of LSD?
Posted: Wed Nov 23, 2011 12:19 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

afaik only certain model xh ute got the hydratrack, this is a clutch type lsd similar to a kaaz type lsd..
none got a detroit locker...
otherwise all the factory ford lsd's are a cone in hemisphere based lsd.. if anyone remembers really old school push bikes with back pedal brakes(where you go to pedal backwards to brake) this is a similar design to the lsd centres used.
Top
 Profile


 Post subject: Re: AU XR6 Diff - What type of LSD?
Posted: Wed Nov 23, 2011 1:29 pm
Getting Side Ways
Offline

Posts: 836

Joined: 1st Apr 2005

Gallery: 4 images

Ride: EF XR6 Wagon, AU2 XR6 VCT

Power: 148 rwkw

Location: Auckland
New Zealand

Pretty sure its a Borg-Warner, but not sure what model.

Edit: Everything I can find says it's a Borg-Warner 78 series.



_________________

95 EF XR6 wagon, 17" FTRs, DBA, QFM, KYB/Koni, AU block, ported EF head, SS Inductions, Territory intake, MLS gasket, milled, Franklin RH24B cam, Coby headers, no cat, Tickford 2.5", 2800rpm stall, J3 chip

Top
 Profile


 Post subject: Re: AU XR6 Diff - What type of LSD?
Posted: Wed Nov 23, 2011 2:46 pm
NSW Cruise Moderator
Offline
User avatar

Age: 39

Posts: 7331

Joined: 5th Nov 2004

Gallery: 12 images

Ride: TE50

Location: ɹǝpun uʍop
NSW, Australia

LSD? No drugs in my car..

Borg Warner 78 series..



_________________


I have a car.

Top
 Profile


 Post subject: Re: AU XR6 Diff - What type of LSD?
Posted: Wed Nov 23, 2011 5:07 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 1833

Joined: 3rd May 2007

Gallery: 8 images

Ride: AUII XR6 Uterus

Location: South Coast
NSW, Australia

*Bog Warmer :P

My 'High performance LSD' tagged borg warner doesn't act quite so high performance anymore hehe They usually have a tag. A tag with a ratio and no sign of lsd or spin resistant diff would denote a single spinner in my opinion.

Second hand cars can always have odd ball parts, wether they came like that or someone penny pinched on replacement who knows :wink: Only way to tell is pop the back cover off, investigate, get you're hands dirty.



_________________

Not to get technical, but according to chemistry alcohol is a solution.

Top
 Profile


 Post subject: Re: AU XR6 Diff - What type of LSD?
Posted: Thu Nov 24, 2011 9:10 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

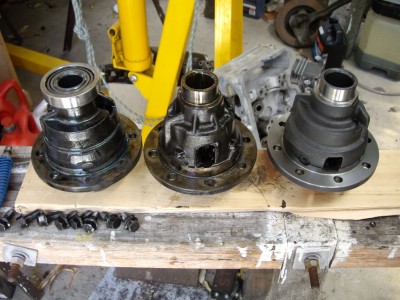

Different centres.......left = 25 spline 2 pinion LSD ( EA S pack).....middle = 28 spline 4 pinion open centre ( EBII ).....right = 28 spline 4 pinion LSD ( brand new aftermarket).





Attachments:
IMGP2958.JPG [ 390.39 KiB | Viewed 46 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
