 Post subject: au11 new pads over heat brakes
Posted: Wed Aug 01, 2012 6:01 pm
Oompa Loompa
Offline

Age: 31

Posts: 46

Joined: 31st Jul 2012

Ride: ford au11

Location: bairnsdale
VIC, Australia

hey,
My au11 sr is having probs when i replace the brake pads. I get preped remove my cap for brake resivor and place a flat block of wood on the brake pistons, use a g clamp to push them back, fit new pads. But every time i have done so 3 times now the brakes seem to stick or not release and over heat. I bought 2 dif pad brands, bendix n some cheap s**t n makes no difference. I bleed my brakes properly, and even checked the rotor diameters and its all flush. I Regreased my calliper slides and it helped till i drove about 10 kms then My ABS light on dash lit up and i stopped, sure enough my brakes were red hot.

Any help plz?
Top
 Profile


 Post subject: Re: au11 new pads over heat brakes
Posted: Wed Aug 01, 2012 9:22 pm
Getting Side Ways
Offline

Age: 66

Posts: 2548

Joined: 18th Mar 2006

Ride: EF-XR8chaser

Location: wollongong
NSW, Australia

metal-mania wrote:
hey,
My au11 sr is having probs when i replace the brake pads. I get preped remove my cap for brake resivor and place a flat block of wood on the brake pistons, use a g clamp to push them back, fit new pads. But every time i have done so 3 times now the brakes seem to stick or not release and over heat. I bought 2 dif pad brands, bendix n some cheap s**t n makes no difference. I bleed my brakes properly, and even checked the rotor diameters and its all flush. I Regreased my calliper slides and it helped till i drove about 10 kms then My ABS light on dash lit up and i stopped, sure enough my brakes were red hot.

Any help plz?

how tight was the g clamp pushing the pistons back?pistons may be stuck and not springing back when the pressure is released.



_________________

R.I.P HANS HARTMAN

Top
 Profile


 Post subject: Re: au11 new pads over heat brakes
Posted: Thu Aug 02, 2012 5:47 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

The pistons are tight. need a rebuild.



_________________

PERMANENTLY BANNED

Top
 Profile


 Post subject: Re: au11 new pads over heat brakes
Posted: Fri Aug 03, 2012 1:47 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

AU2's have Phenolic caliper pistons...you'll need a rebuild by the sounds of it.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: au11 new pads over heat brakes
Posted: Fri Aug 03, 2012 7:52 am
Getting Side Ways
Offline

Posts: 836

Joined: 1st Apr 2005

Gallery: 4 images

Ride: EF XR6 Wagon, AU2 XR6 VCT

Power: 148 rwkw

Location: Auckland
New Zealand

Piston seized in the caliper for sure. Had the same once on my EF.



_________________

95 EF XR6 wagon, 17" FTRs, DBA, QFM, KYB/Koni, AU block, ported EF head, SS Inductions, Territory intake, MLS gasket, milled, Franklin RH24B cam, Coby headers, no cat, Tickford 2.5", 2800rpm stall, J3 chip

Top
 Profile


 Post subject: Re: au11 new pads over heat brakes
Posted: Fri Aug 03, 2012 4:39 pm
Oompa Loompa
Offline

Age: 31

Posts: 46

Joined: 31st Jul 2012

Ride: ford au11

Location: bairnsdale
VIC, Australia

the pistons went in smooth. It just seem that once i put the pads in, i pump the brake they just stay on. I have to keep putting my old pads back on. They work fine with the old pads.
Top
 Profile


 Post subject: Re: au11 new pads over heat brakes
Posted: Fri Aug 03, 2012 7:47 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

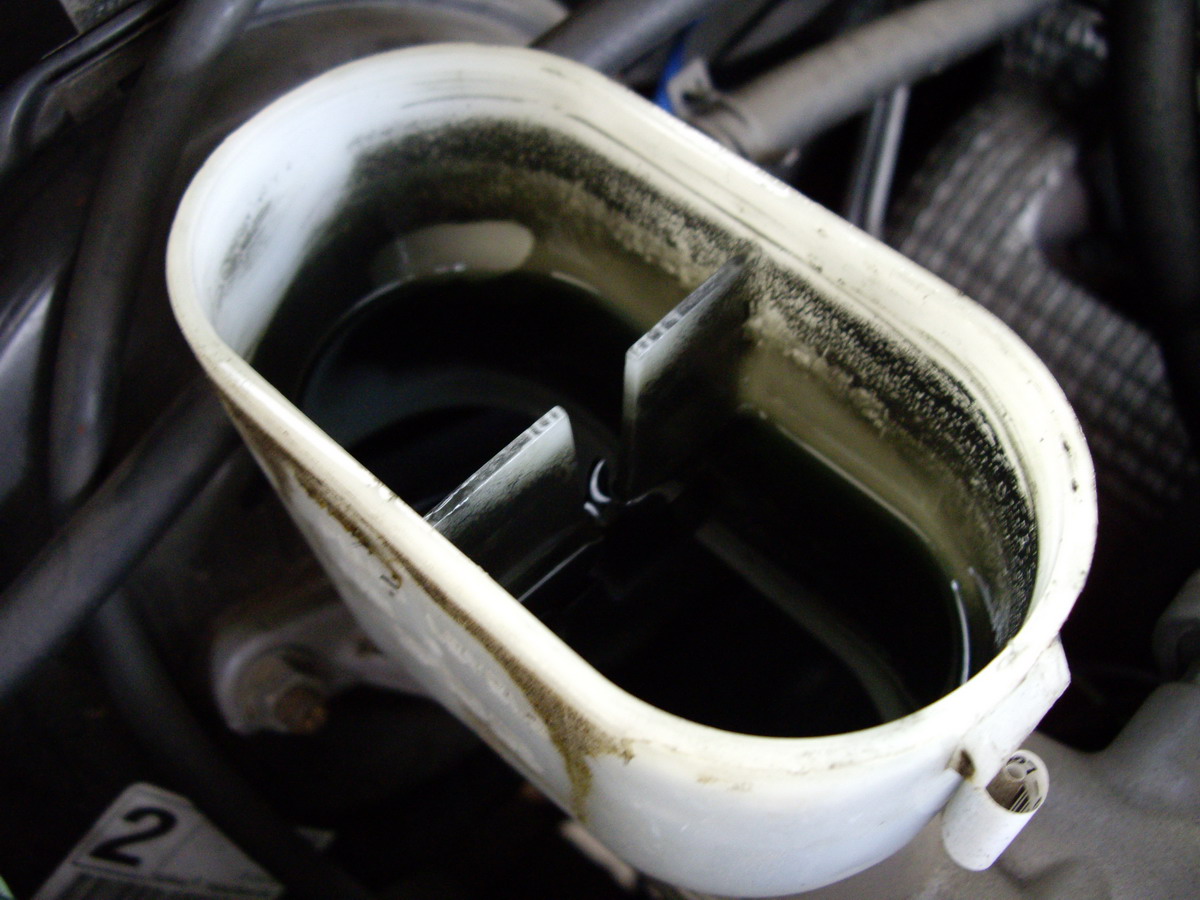

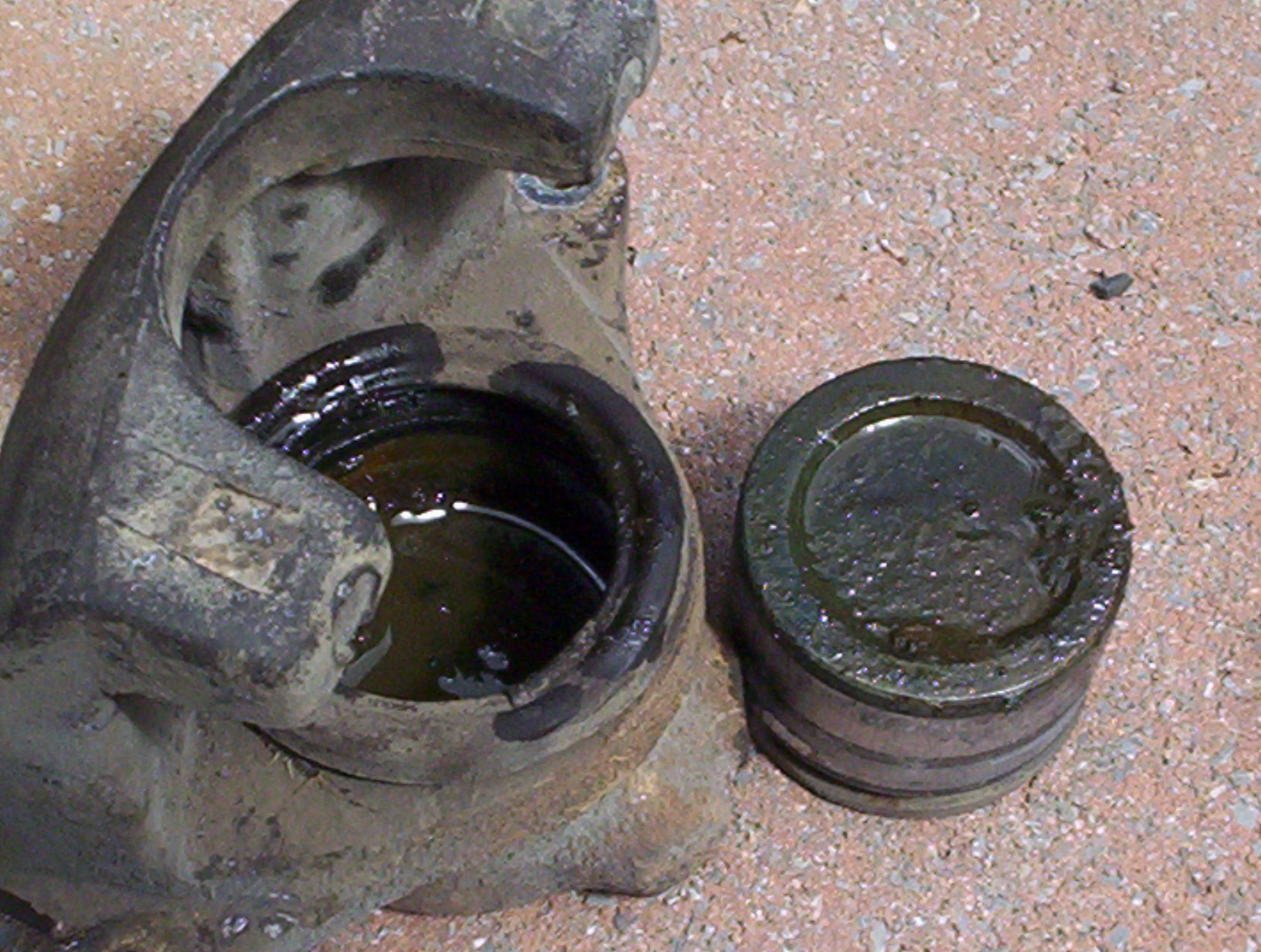

Crud builds up behind the pistons in the caliper, hence why I change the brake fluid the way I do.

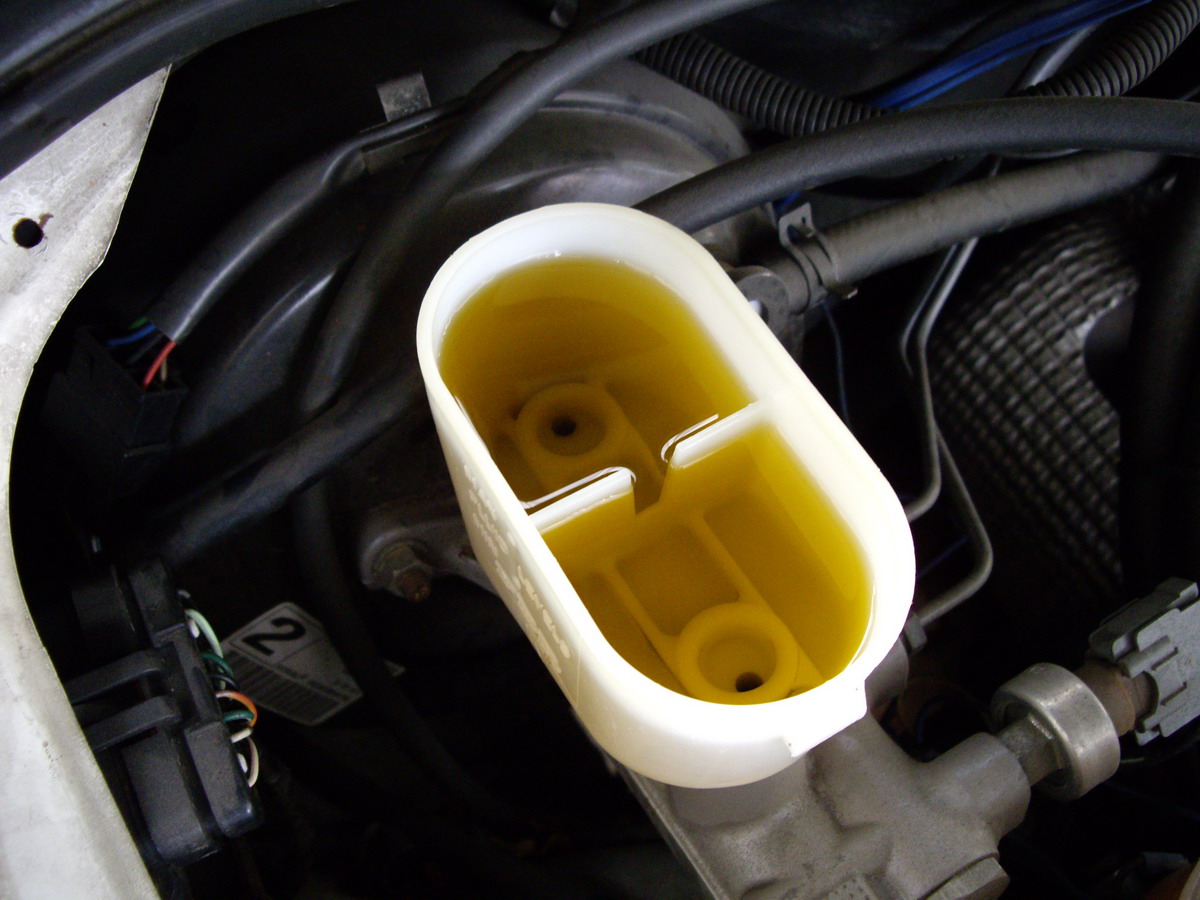

I use a vacuum brake bleeder......suck out the old fluid from the reservoir, clean out the crud there if possible and refill with new fluid, clamp off the brake hose, remove and clear the bleeder nipple, put Antisieze compound on the thread of the bleeder nipple, refit, and put the vacuum bleeder on the nipple, crack the bleeder open anmd suck out the fliud till clean stuff comes through.
Then reclamp the hose, and help the piston/s go back in, then undo the clamp till clear again.
Do this on all 4 calipers.
Remember to keep an eye on the reservoir fluid level.
Fit new pads if required, check the caliper slides are free.
then pump out the pads with engine running, BUT, only pump it anout 1/4 to 1/3 the pedal travel.....
DO NOT PUMP IT TO THE FLOOR.
A brake master cylinder really only wears the first 1/4 to 1/3 of the cylinder.....pumping it past this point can be detremental to the master cylinder.





Attachments:
Lance's P76 rotors for AUII ABS tone wheels 07 008.jpg
Lance's P76 rotors for AUII ABS tone wheels 07 008.jpg [ 407.64 KiB | Viewed 42 times ]
IMGP1304_resize.JPG [ 216.39 KiB | Viewed 58 times ]
IMGP1302_resize.JPG [ 209.77 KiB | Viewed 45 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: au11 new pads over heat brakes
Posted: Sun Aug 05, 2012 5:31 pm
Oompa Loompa
Offline

Age: 31

Posts: 46

Joined: 31st Jul 2012

Ride: ford au11

Location: bairnsdale
VIC, Australia

thanks heaps for the tips and the pics mate. ill give it a go, will keep posted.
Top
 Profile


 Post subject: Re: au11 new pads over heat brakes
Posted: Thu Aug 09, 2012 3:19 pm
Oompa Loompa
Offline

Age: 31

Posts: 46

Joined: 31st Jul 2012

Ride: ford au11

Location: bairnsdale
VIC, Australia

It tried as stated above, there was minimal sludge build up. There was a difference but the brakes still stick on after a short drive. I thought maybe uneven wear on the rotors but they are flush and smooth.
