AU2 Manual Conversion Questions



Page 2 of 3 [ 34 posts ] Go to page Previous  1, 2, 3  Next


 Post subject: Re: AU2 Manual Conversion Questions
Posted: Tue Mar 15, 2011 2:00 pm
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 1832

Joined: 3rd May 2007

Gallery: 8 images

Ride: AUII XR6 Uterus

Location: South Coast
NSW, Australia

and no you don't need another tail shaft, although alot of people usually just get one with the conversion.



_________________

Not to get technical, but according to chemistry alcohol is a solution.

Top
 Profile


 Post subject: Re: AU2 Manual Conversion Questions
Posted: Tue Mar 15, 2011 2:13 pm
Getting Side Ways
Offline

Age: 40

Posts: 3405

Joined: 7th Feb 2005

Ride: AU2 Ute

Location: melbourne
VIC, Australia

low_ryda wrote:
and no you don't need another tail shaft, although alot of people usually just get one with the conversion.


Yes you do. :|
Top
 Profile


 Post subject: Re: AU2 Manual Conversion Questions
Posted: Tue Mar 15, 2011 2:35 pm
Getting Side Ways
Offline

Age: 35

Posts: 4183

Joined: 30th May 2005

Ride: 1993 EB XR8

Location: BrisVegas
QLD, Australia

Dansedgli wrote:
low_ryda wrote:
and no you don't need another tail shaft, although alot of people usually just get one with the conversion.


Yes you do. :|


Only in AU-FG. But I'm sure Dan knew that. The AU onwards manuals are significantly longer than a pre AU manual box. The Auto's are the same length.



_________________

ILL60 - EF XR8, Sunroof, Ticky Kit, 19x8.5/19x11 TE37's, 347, AFr185's, TFS BoxRcustom converter, Hurst Quarterstick, huge billet cam.

OO0Y4 - BA2 XR6 Turbo, Nizpro Plenum, Process West stage 3 cooler, 4” dump, 3.5” exhaust, ID1000’s, ZF Auto - 11.8@116

Top
 Profile


 Post subject: Re: AU2 Manual Conversion Questions
Posted: Tue Mar 15, 2011 2:50 pm
Getting Side Ways
Offline

Age: 40

Posts: 3405

Joined: 7th Feb 2005

Ride: AU2 Ute

Location: melbourne
VIC, Australia

This is an AU manual conversion thread isnt it.
Top
 Profile


 Post subject: Re: AU2 Manual Conversion Questions
Posted: Tue Mar 15, 2011 3:03 pm
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 1832

Joined: 3rd May 2007

Gallery: 8 images

Ride: AUII XR6 Uterus

Location: South Coast
NSW, Australia

it's an auII thread actually :P

with my conversion, side by side the auto tailshaft that came out was the same length as the manual one that went in (auII), just with a balancing weight(?) on the yolk which actually reduced the available travel in/out from the box.

i know the au box is longer (40mm?) but i still thought the tailshafts were the same, if i've been supplied an auto shaft with my manual conversion (which i doubt, it all came from the same car) it still worked so proves it ?

Now i'm confused hehe



_________________

Not to get technical, but according to chemistry alcohol is a solution.

Top
 Profile


 Post subject: Re: AU2 Manual Conversion Questions
Posted: Tue Mar 15, 2011 3:16 pm
Getting Side Ways
Offline

Age: 40

Posts: 3405

Joined: 7th Feb 2005

Ride: AU2 Ute

Location: melbourne
VIC, Australia

I tried fitting my auto tailshaft into the manual box because I didnt have a manual ute shaft at the time.

The yoke bottomed out in the gearbox and the shaft was still too long to mount to the diff.

Is your car lowered? Maybe that makes enough of a difference to get the auto one to fit.
Top
 Profile


 Post subject: Re: AU2 Manual Conversion Questions
Posted: Tue Mar 15, 2011 3:30 pm
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 1832

Joined: 3rd May 2007

Gallery: 8 images

Ride: AUII XR6 Uterus

Location: South Coast
NSW, Australia

i was going to say, as i understand the more you lower the car the further the yolk protrudes inside the box. Having said that though, as far as i know i'm only standard XR ride height. nothing non-standard.

I also never tried it on either, maybe the auto shafts have a shallower centre preventing the interchange like e series ? another ford killjoy lol



_________________

Not to get technical, but according to chemistry alcohol is a solution.

Top
 Profile


 Post subject: Re: AU2 Manual Conversion Questions
Posted: Tue Mar 15, 2011 3:37 pm
Getting Side Ways
Offline

Age: 40

Posts: 3405

Joined: 7th Feb 2005

Ride: AU2 Ute

Location: melbourne
VIC, Australia

How much room do you have on your yoke when the car is parked?

My car was standard XL ute height when I did the conversion.
Top
 Profile


 Post subject: Re: AU2 Manual Conversion Questions
Posted: Tue Mar 15, 2011 3:46 pm
Moderator
Offline

Posts: 14489

Joined: 7th Nov 2004

Ride: AU XR8

Location: a shit suburb in sydney
NSW, Australia

the au manual tailshaft should be aprox 50mm shorter then the auto one..

eg, an au auto is the same as e series and is a direct swap into ed ect using e series tailshaft.
but the au 5 speed is longer and is not a direct swap for e series,as the shift sits further back..
Top
 Profile


 Post subject: Re: AU2 Manual Conversion Questions
Posted: Tue Mar 15, 2011 3:56 pm
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 1832

Joined: 3rd May 2007

Gallery: 8 images

Ride: AUII XR6 Uterus

Location: South Coast
NSW, Australia

you have me worried now.... next time i'm under it i'll re-assess.

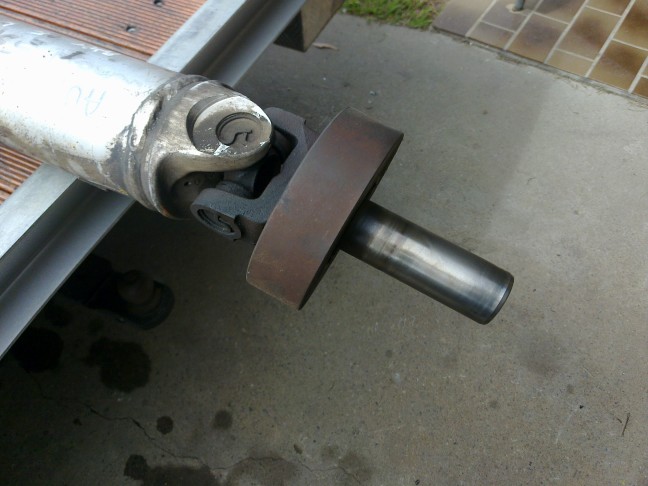

when your talking about measuring room dan do you mean from the box housing to the end of the parallel part of the yolk to assess travel ? because the 'balancer' i have on the manual tailshaft actually reduces this travel. hard to explain...
Attachment:
phpUIGbghPM.jpg [ 85.23 KiB | Viewed 166 times ]

that was the manual shaft supplied with conversion, side by side with the auto shaft that came out, apart from that balancer they were the same.



_________________

Not to get technical, but according to chemistry alcohol is a solution.

Top
 Profile


 Post subject: Re: AU2 Manual Conversion Questions
Posted: Tue Mar 15, 2011 10:25 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 2517

Joined: 27th Mar 2006

Gallery: 1 images

Ride: FG MkII Xr6t Ute

Location: Brisbane
QLD, Australia

Not sure if sedans are different to utes, but I'm fairly sure as well as the tailshaft overall length being different the yokes had different lengths when I did mine...

I can't 100% remember and cbf pulling it out to check though.



_________________

EVL098 wrote:
Cramping in the hand from having it on your Wang for an excessive period of time is a definate con.
Seriously do people google "f**k up modifications for Fords owned by Jews" and get linked straight to this site nowadays?

AU,factory fitted tickford kit/IRS, t5,Sports ryder/KYB: gone.

Top
 Profile


 Post subject: Re: AU2 Manual Conversion Questions
Posted: Wed Mar 16, 2011 4:56 pm
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 1832

Joined: 3rd May 2007

Gallery: 8 images

Ride: AUII XR6 Uterus

Location: South Coast
NSW, Australia

i've done too many trouble free km's already in mine to be pulling it out also... (touch wood) i'm still curious now though.
Thats why i miss my e series :( go go gadget transformer!



_________________

Not to get technical, but according to chemistry alcohol is a solution.

Top
 Profile


 Post subject: Re: AU2 Manual Conversion Questions
Posted: Fri Mar 25, 2011 9:02 pm
Stock as a Rock
Offline
User avatar

Age: 33

Posts: 131

Joined: 29th Jun 2008

Gallery: 3 images

Ride: AUII Futura

Location: melbourne
VIC, Australia

Grimketel wrote:
At this point, with the gearbox changed over and the pedal box in you will need a tow to a tuner with SCT software to reflash your ecu. A guy in geelong did mine with ticky police maps, a 5700rpm limit and removed speed limiter for 200 bucks. Not that the ticky police maps do any good without the ticky head cam and fuel reg, but Ill take it anyway lol.

How many tuners can do this? Anyone know someone in Melb?
Top
 Profile


 Post subject: Re: AU2 Manual Conversion Questions
Posted: Sat Mar 26, 2011 7:05 pm
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 1832

Joined: 3rd May 2007

Gallery: 8 images

Ride: AUII XR6 Uterus

Location: South Coast
NSW, Australia

i didn't need to do that with an auII smartsheild xr......



_________________

Not to get technical, but according to chemistry alcohol is a solution.

Top
 Profile


 Post subject: Re: AU2 Manual Conversion Questions
Posted: Sun Apr 10, 2011 10:08 pm
Stock as a Rock
Offline
User avatar

Age: 33

Posts: 131

Joined: 29th Jun 2008

Gallery: 3 images

Ride: AUII Futura

Location: melbourne
VIC, Australia

hi guys,
all went well with the conversion. still running auto ecu (but in contact with a guy off the forums about getting it flashed to a manual one as the ecu i recieved was an S1 WAAC catchcode).
so i have a few questions with my last issues.

clutch is QUITE hard... is this normal? (even though i replaced the clutch cable and bushes, and the clutch & flywheel i got were in quite good nick, also new throwout bearing)

also

will i have to change anything to do with the wiring? i had the clutch switch for cruise set up, i bridged the inhibitor for starting, and used the existing spade connectors from the auto for the reverse lights.
anything i'm missing if it is to be flashed to a manual ecu?
(what does flashing it to a manual actually do?)

thanks guys!
