 Post subject: Automatic transmision cooler
Posted: Mon Jul 31, 2006 10:15 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

At the moment my trannys got the metal lines going from it to near the radiator, then runs rubber tranny fluid lines to what looks like a factory fitted auto tranny radiator, sits infront of the coolant radiator on what looks like factory brackets. Anyways, my coolant radiator is pretty new, an the tranny cooler that's build into the drivers side of it has never been hooked up (may have on previous radiator but they never did to this one). Was thinking of running the tranny fluid first through the built in radiator then into the external one, then back to the box, reason being for this order is that I think the external radiator prolly has the potential to cool the fluid to the lowest temperature of the two (as the built in radiator is connected/sitting next to very hot coolant). Reason for running through both coolers is: a. couse I can and b. shoudln't do it anyharm and the tranny fluid will probably like to be as cool as posiable.
Few questions, firstly will the pump on the tranny be strong enough to pump the fluid through both radiators? 2nd, which of the lines coming out of the tranny is the return line and which is the pumped line? Should the fluid enter or leave the factory built in radiator at the top or bottom? And should the fluid enter or leave the aftermark tranny fluid radiator at the top or bottom?



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Mon Jul 31, 2006 10:18 pm
Getting Side Ways
Offline

Age: 31

Posts: 3893

Joined: 15th Nov 2004

Gallery: 24 images

Ride: BF MKII V8 Fairmont Ghia

Location: Perth
WA, Australia

well, it runs though both from factory where fitted.



_________________

2007 Steel BF Ghia MKII V8 - 19" GTP's + Superlows

Top
 Profile


Posted: Tue Aug 01, 2006 12:15 am
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 5051

Joined: 5th Nov 2004

Ride: Kia Rio - 1.4L Auto

Power: 238 rwkw

Location: Westside
VIC, Australia

I'm sure it would work well, since thats how its done at the factory.
Top
 Profile


Posted: Tue Aug 01, 2006 10:41 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

Excellent, so any ideas as to weather it goes in at the top and comes out the bottom or goes in at the bottom and comes out at the top?



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Tue Aug 01, 2006 10:50 am
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 5051

Joined: 5th Nov 2004

Ride: Kia Rio - 1.4L Auto

Power: 238 rwkw

Location: Westside
VIC, Australia

I think its in the bottom of the radiator, out of the top to the external cooler, then out of the external cooler to the pipe that was cut, which goes back to the trans.

I can verify when I go to lunch. I'll have a look under my bonnet.
Top
 Profile


Posted: Tue Aug 01, 2006 7:10 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

Thanks. Any idea if it should go in at the top of the external cooler or in at the bottom? I assume in at the top as then when it's cool it goes down, as hot stuff rises.
And any idea which outlet on the tranny is the return and which is the pump (both my lines have been cut already).



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Wed Aug 02, 2006 12:15 am
Smokin em up
Offline
User avatar

Age: 34

Posts: 284

Joined: 4th Dec 2005

Gallery: 15 images

Ride: ED Classic

Location: Melbourne
VIC, Australia

It most definately goes through the bottom and up though the top radiator connection as i unhooked the top 1 started the engine and saw it pumping out and all over my engine bay. wasnt the smartest thing to do but i just had to know and see it with my own eyes.

the tranny pump will cope just fine with external coolers as ive got 2 craig davies coolers hooked up and after going though the second cooler fluid is ice cold. (not really but u know what i mean) :lol:


hook it up to come out of the top of the radiator and into the external cooler.
think its a 3/8 inch connection



_________________

93 ED Classic
<a href="http://img302.imageshack.us/slideshow/player.php?id=img302%2F4404%2F1151722371mrk.smil" title="EB GT Bodykit Slideshow" >EB GT Bodykit Slideshow</a>

Top
 Profile


Posted: Wed Aug 02, 2006 10:08 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

Are you entering at the top or bottom of your external radiator?
Do you know which line from the tranny is the return and which is the pumped one?



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Wed Aug 02, 2006 6:55 pm
Smokin em up
Offline
User avatar

Age: 34

Posts: 284

Joined: 4th Dec 2005

Gallery: 15 images

Ride: ED Classic

Location: Melbourne
VIC, Australia

twr7cx wrote:
Are you entering at the top or bottom of your external radiator?
Do you know which line from the tranny is the return and which is the pumped one?


1. its flowing from the lower tranny line to the radiator core and out the top, then into the top of the 2 tranny coolers connected in series. Then goes back to the return tranny cooler(top)

2. Not sure which flow for each line at the tranny,
a little line tracing never went astray.

Just start with Bottom radiator line, that is the *pumped* line and trace it back to the tranny good luck with it all.

dont forget to buy thread sealant as trany fluid is $$$





Attachments:

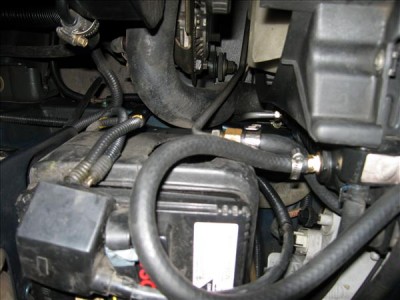

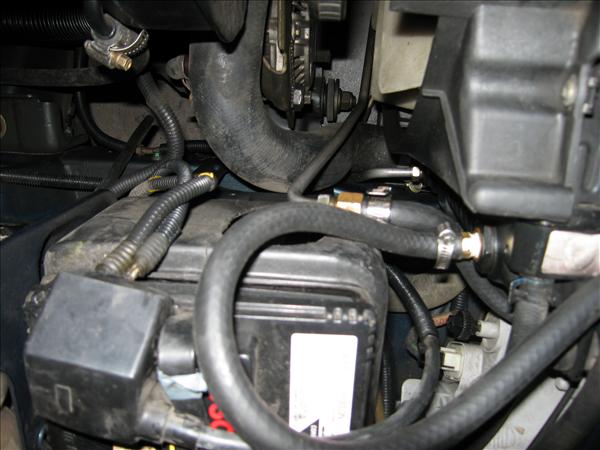

solid_return_line.jpg [ 52.05 KiB | Viewed 32 times ]

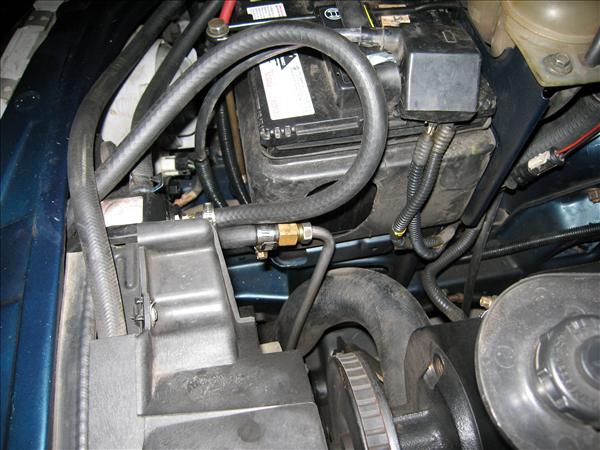

winding_hose_pumped.jpg [ 40.65 KiB | Viewed 30 times ]

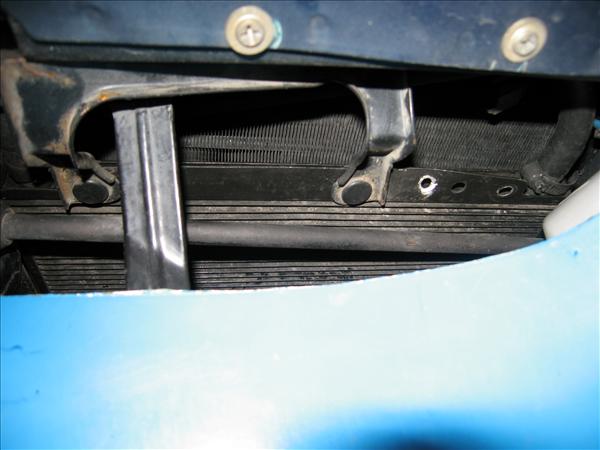

top right.jpg
top right.jpg [ 31.79 KiB | Viewed 37 times ]

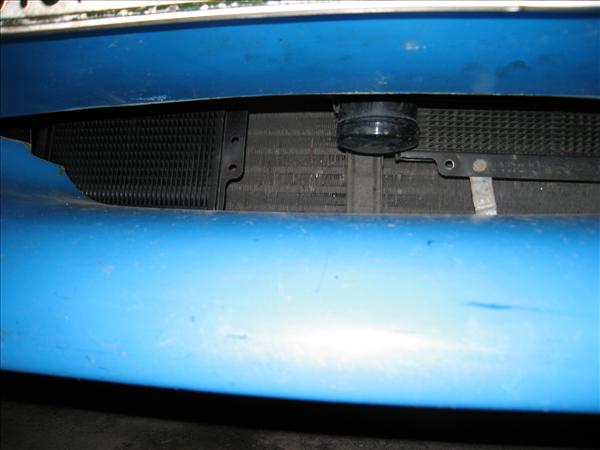

coolers_far_left_&_Right.jpg [ 27.17 KiB | Viewed 31 times ]



_________________

93 ED Classic
<a href="http://img302.imageshack.us/slideshow/player.php?id=img302%2F4404%2F1151722371mrk.smil" title="EB GT Bodykit Slideshow" >EB GT Bodykit Slideshow</a>

Last edited by Pet_ED on Thu Aug 03, 2006 12:08 am, edited 1 time in total.

Top
 Profile


Posted: Wed Aug 02, 2006 11:11 pm
Smokin em up
Offline
User avatar

Posts: 250

Joined: 10th Apr 2006

Ride: EF OPT20

Location: Country
SA, Australia

Original factory routing is:
No auxiliary cooler:
Rear (upper) line from auto goes to top radiator connection (inlet) - bottom radiator connection goes to forward (lower) line on auto (return).
With auxiliary cooler:
Rear (upper) line from auto goes to top auxiliary cooler connection (inlet), bottom auxiliary cooler connection goes to top radiator connection, bottom radiator connection goes to forward (lower) line on auto (return).



_________________

'94 EF GLI
Dash Mat
Color-coded Ashtray
Polished Wheel Nuts

Top
 Profile


Posted: Wed Aug 02, 2006 11:50 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 520

Joined: 23rd Dec 2005

Ride: EF Futura Wagon

Location: Toowoomba
QLD, Australia

You don't want to feed the cooler from the bottom as when you are low on fluid your box level will drop until enough fluid has pumped through lines to raise to the top line to return to the box. You will also be putting more pressure on the pump as it has to fight gravity to raise the fluid.



_________________

If it doesn't fit, jam it. If that doesn't work use a hammer. - Engineers Motto

Top
 Profile


Posted: Thu Aug 03, 2006 12:06 am
Smokin em up
Offline
User avatar

Age: 34

Posts: 284

Joined: 4th Dec 2005

Gallery: 15 images

Ride: ED Classic

Location: Melbourne
VIC, Australia

u know i never thought of the gravity issue. just left mine stock and added the external coolers due the previous tranny overheating.

Why would ford choose to pump the tranny fluid up through the radiator and not down like coolant?



_________________

93 ED Classic
<a href="http://img302.imageshack.us/slideshow/player.php?id=img302%2F4404%2F1151722371mrk.smil" title="EB GT Bodykit Slideshow" >EB GT Bodykit Slideshow</a>

Top
 Profile


Posted: Thu Aug 03, 2006 4:26 pm
Smokin em up
Offline
User avatar

Posts: 250

Joined: 10th Apr 2006

Ride: EF OPT20

Location: Country
SA, Australia

Quote:
Why would ford choose to pump the tranny fluid up through the radiator
They don't - please read my post above..



_________________

'94 EF GLI
Dash Mat
Color-coded Ashtray
Polished Wheel Nuts

Top
 Profile


Posted: Thu Aug 03, 2006 4:37 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

Pet_ED wrote:
Why would ford choose to pump the tranny fluid up through the radiator and not down like coolant?


the engines water pump is on the bottom radiator hose remember.



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Thu Aug 03, 2006 4:37 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

i'v got to get ahold of somee fiittings to go into the built in radiator tranny coolers now so I can run the lines to it.



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!
