 Post subject: Re: Brembo's hitting on rim need spacer help!!!!
Posted: Sat Sep 12, 2009 8:38 pm
Tyre Shredder
Offline
User avatar

Age: 42

Posts: 363

Joined: 7th Feb 2007

Ride: BLOWN 347 EB GT/ BF XR6 TURBO

Power: 345 rwkw

Location: eastern creek
NSW, Australia

will post photos and part number soon



_________________

MY CAR PLZ TAKE A LOOK forums/xtt909-update-t66227.html

DAZFAB MEMBERS ,,,,DAZZLE, EBI347, TERRORISTGHIA, TROYMAN ,SWC, XTT909

Top
 Profile


 Post subject: Re: Brembo's hitting on rim need spacer help!!!!
Posted: Sat Sep 12, 2009 9:10 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 3737

Joined: 22nd May 2006

Ride: BF F6 Tornado - #0077

Location: Bendigo
VIC, Australia

put the std calipers on and then these. http://cgi.ebay.com.au/Brembo-Style-Dis ... 286.c0.m14

it'll stop just as good



_________________

** For Sale ** http://www.fordmods.com/ford-parts-for-sale-f17/assorted-e-series-parts-t124697.html

F6 Tornado 2006 Build

Is it about sex? The engine in my car? Or a cure for cancer?
No?

Then f**k off

Top
 Profile


 Post subject: Re: Brembo's hitting on rim need spacer help!!!!
Posted: Sat Sep 12, 2009 9:34 pm
Getting Side Ways
Offline

Age: 48

Posts: 419

Joined: 16th Jan 2005

Ride: EF Ghia 5.0

Location: Adelaide
SA, Australia

:)

They actually look pretty good! 95% of people wouldn't know they are fake. Except us Ford guys who know how hard it is to upgrade our damn brakes!

Mike



_________________

EF Ghia 5.0 - XR8 in a tuxedo....classy, low and loud

Bordeaux Purple, Tickford kit, slammed, 18" BA XR8's, EL Ghia chrome, full leather, Pioneer audio, C&C, ABS, LSD, Crane cam, GT40P heads, high flow cats, Genie extractors, lots of woodgrain, chrome and interior lights!

Top
 Profile


 Post subject: Re: Brembo's hitting on rim need spacer help!!!!
Posted: Tue Sep 15, 2009 6:09 pm
Site Admin
Offline
User avatar

Age: 34

Posts: 8831

Joined: 18th Dec 2002

Gallery: 6 images

Ride: AUII V8 LTD

Power: 270 rwkw

Location: Sydney
NSW, Australia

XTT909 wrote:
guys ford actually made 1.5mm spacers found on the rear assembly for AU2 onwards as the twin piston assembly offset was made 1.5 mm too large and to help handling they put spacers on the rear to enlarge the track to compensate


Really? They weren't fitted to my LTD..



_________________

WAG363: AUII LTD Supercharged 363 Dart Stroker [Supercharged 363 LTD Build]
WAGGIN: 2012 Volkswagen Passat Wagon - V6 4Motion.

Top
 Profile


 Post subject: Re: Brembo's hitting on rim need spacer help!!!!
Posted: Tue Sep 15, 2009 6:22 pm
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 3805

Joined: 22nd Apr 2007

Gallery: 5 images

Ride: DENTED UP OLD AUT WAGON

Location: Wellington
New Zealand

Waggin wrote:
XTT909 wrote:
they put spacers on the rear to enlarge the track to compensate
Really? They weren't fitted to my LTD..
Maybe the IRS was different? :wink:
Top
 Profile


 Post subject: Re: Brembo's hitting on rim need spacer help!!!!
Posted: Thu Sep 17, 2009 12:04 am
Stock as a Rock
Offline
User avatar

Age: 30

Posts: 159

Joined: 13th Dec 2008

Gallery: 1 images

Ride: AU Wagon/ 1967 XR

Location: Melb East
VIC, Australia

fiend wrote:
ADAPTERS... Hate to repeat myself so soon but have a look..

viewtopic.php?f=17&t=77715&start=20

No issue with studs, as you bolt these on and then they have their own studs sticking out more... They have a center raised lip to act as a replacement hub for the rears, which you could use on the front of yours as it looks like you will run out of hub before your required twenty mm or so......

Longer wheel studs could be bought or manufactured (not sure on legalities of that, but can't see that many issues) but you still need the wheel sitting on a hub.

The wheel adapter sits on your hub and then has an extension that replicates the hub further out.

Have a decent look at the pictures on this thread dude.

viewtopic.php?f=17&t=77715&start=20


Cheers mate this is the only way around it forget spacers altogether theyre useless for this situation ill have to try and check how much clearance i need to fit the rim on and at the same time make sure im not going to scrub the christ out of the guards eventhough theyve been rolled as the adapter will bring it out a fair bit id think? thanks again anyway
Top
 Profile


 Post subject: Re: Brembo's hitting on rim need spacer help!!!!
Posted: Thu Sep 17, 2009 12:06 am
Stock as a Rock
Offline
User avatar

Age: 30

Posts: 159

Joined: 13th Dec 2008

Gallery: 1 images

Ride: AU Wagon/ 1967 XR

Location: Melb East
VIC, Australia

EFNA wrote:
you can get 25mm hub adaptors on ebay, they have there own studs so rim bolt up smooth

http://cgi.ebay.com/ebaymotors/25mm-5X1 ... ccessories


cheers for the link i think thats my way out just there.
Top
 Profile


 Post subject: Re: Brembo's hitting on rim need spacer help!!!!
Posted: Thu Sep 17, 2009 12:13 am
Stock as a Rock
Offline
User avatar

Age: 30

Posts: 159

Joined: 13th Dec 2008

Gallery: 1 images

Ride: AU Wagon/ 1967 XR

Location: Melb East
VIC, Australia

Waggin wrote:
I'll swap you my Brembo 4 pot fronts - they should fit :) I've certainly got tonnes of space under the 20's!! :mrgreen:


i thought the 4 and 6 pots are the same width? if not i just made things a whole lot hard for an extra bit of stopping power which in all honesty is not that neccessary wat a bit*h!
Top
 Profile


 Post subject: Re: Brembo's hitting on rim need spacer help!!!!
Posted: Thu Sep 17, 2009 7:24 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 862

Joined: 8th May 2005

Ride: BA Wagon Turbo, Ba Fairlane G220

Location: Colac
VIC, Australia

I still dont think using adapters that you will be able to run your rims. Even with a 15-20mm adapter it would still have to hit the guards, unless you have your car running 4wd style. I just know from running 19's on the missus BA they scrub as it is let alone bringing it out another 20mm.



_________________

Congo Green Ba Wagon With F6 6 Speed Manual Driveline.

Top
 Profile


 Post subject: Re: Brembo's hitting on rim need spacer help!!!!
Posted: Thu Sep 17, 2009 2:01 pm
Stock as a Rock
Offline
User avatar

Age: 30

Posts: 159

Joined: 13th Dec 2008

Gallery: 1 images

Ride: AU Wagon/ 1967 XR

Location: Melb East
VIC, Australia

its either this, new rims or ditch the brakes. its gonna be dam close but id rather know for sure than die trying, how close do the e series cars get when running au to fg rims with adapters anyone?
Top
 Profile


 Post subject: Re: Brembo's hitting on rim need spacer help!!!!
Posted: Thu Sep 17, 2009 2:36 pm
Fordmods Addict
Offline
User avatar

Age: 31

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

get new rims, pushing your rims out 15-25mm more is definately going to cause guard clearance issues.
e-series need the adaptors to make up for different offset, it's not comparable to what you are doing.

trial and error finding a set that fit the brembos though.
even factory rims are very close, they are a big caliper.



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


 Post subject: Re: Brembo's hitting on rim need spacer help!!!!
Posted: Thu Sep 17, 2009 3:25 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 862

Joined: 8th May 2005

Ride: BA Wagon Turbo, Ba Fairlane G220

Location: Colac
VIC, Australia

It is basically the same as the standard offset

WGN-485 wrote:
its either this, new rims or ditch the brakes. its gonna be dam close but id rather know for sure than die trying, how close do the e series cars get when running au to fg rims with adapters anyone?



_________________

Congo Green Ba Wagon With F6 6 Speed Manual Driveline.

Top
 Profile


 Post subject: Re: Brembo's hitting on rim need spacer help!!!!
Posted: Fri Sep 18, 2009 3:48 pm
Tyre Shredder
Offline
User avatar

Age: 42

Posts: 363

Joined: 7th Feb 2007

Ride: BLOWN 347 EB GT/ BF XR6 TURBO

Power: 345 rwkw

Location: eastern creek
NSW, Australia

here some options for u

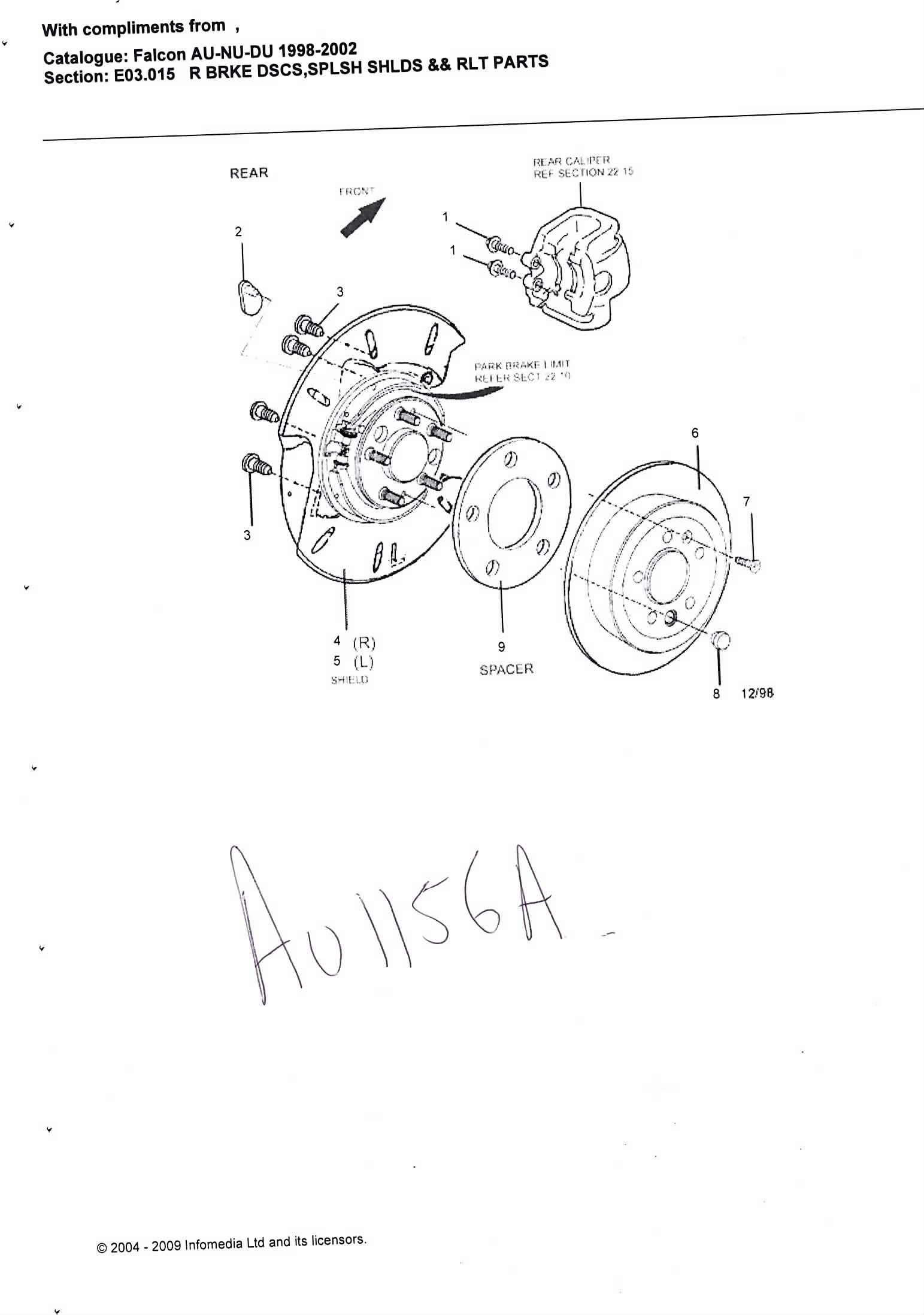

first one is the factory made spacer for AU and part number is AU1156A and if u can find some they are 1.25mm thick

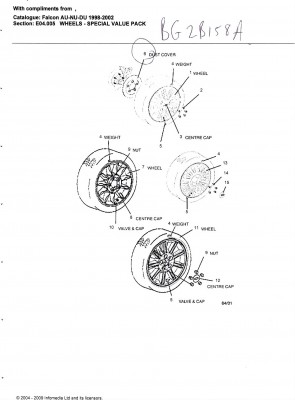

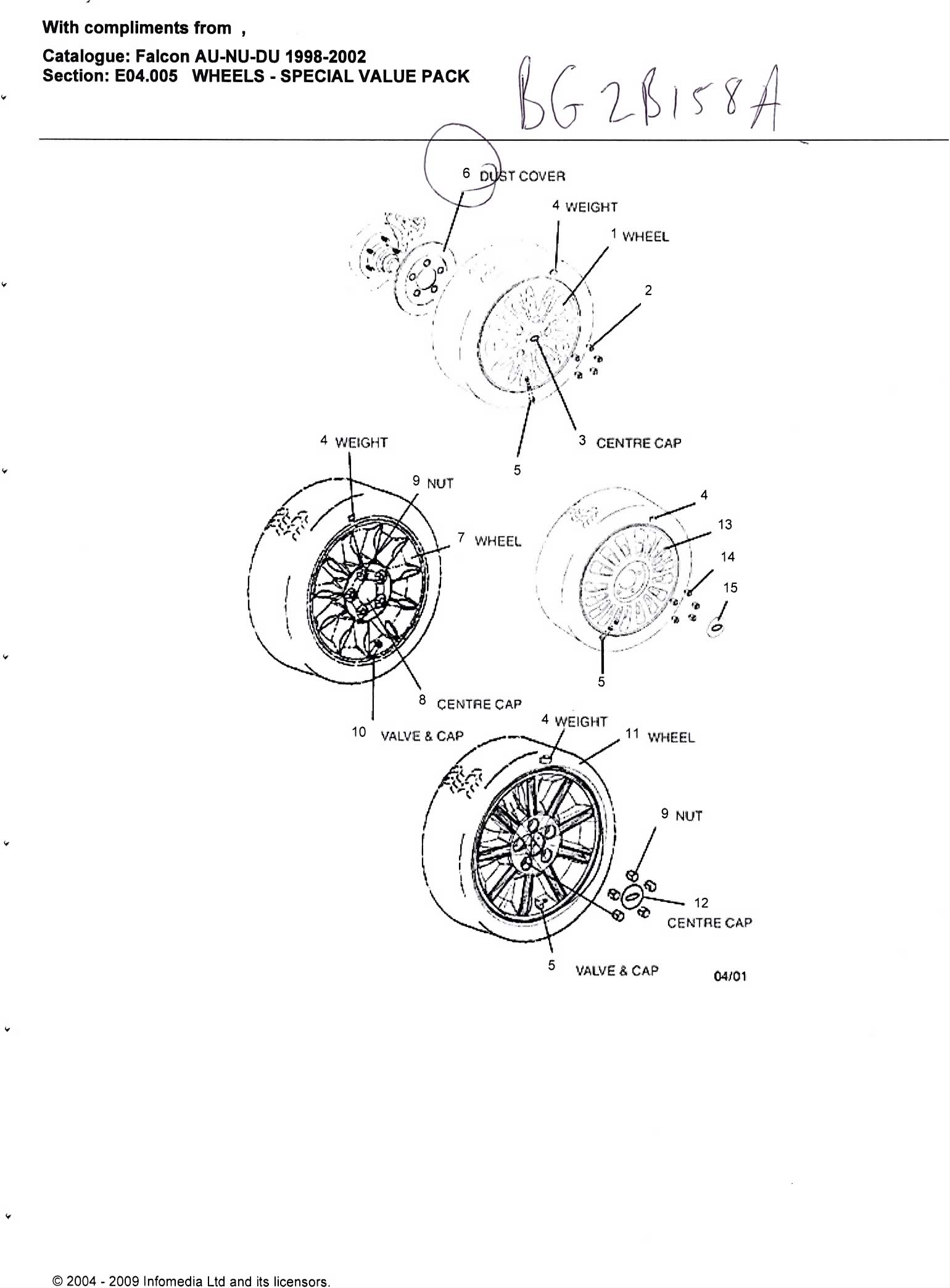

they second one is a more common one and is the dust sheild and part number is BG2B158A and is what i have done a few times in the past got 6 of them machined down to the size of the face of the disc and used them as a shim cost me $30 at the engineering shop to get 6 of them cut down(3 each side)





Attachments:
EPSON005.JPG [ 192.75 KiB | Viewed 48 times ]
EPSON006.JPG [ 205.49 KiB | Viewed 28 times ]



_________________

MY CAR PLZ TAKE A LOOK forums/xtt909-update-t66227.html

DAZFAB MEMBERS ,,,,DAZZLE, EBI347, TERRORISTGHIA, TROYMAN ,SWC, XTT909

Top
 Profile


 Post subject: Re: Brembo's hitting on rim need spacer help!!!!
Posted: Fri Sep 18, 2009 6:42 pm
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 3805

Joined: 22nd Apr 2007

Gallery: 5 images

Ride: DENTED UP OLD AUT WAGON

Location: Wellington
New Zealand

Note how those spaces sit BEHIND the brake rotor (disk) and not on the wheel side of the equation.

Hmm... I wonder what the original poster of this thread has done?
Swapping brakes with WAGGIN seems like a bloody good idea to me.
Top
 Profile


 Post subject: Re: Brembo's hitting on rim need spacer help!!!!
Posted: Fri Sep 18, 2009 7:02 pm
Site Admin
Offline
User avatar

Age: 34

Posts: 8831

Joined: 18th Dec 2002

Gallery: 6 images

Ride: AUII V8 LTD

Power: 270 rwkw

Location: Sydney
NSW, Australia

fiend wrote:
Swapping brakes with WAGGIN seems like a bloody good idea to me.


I agree, what difference does 2 pots make? :P



_________________

WAG363: AUII LTD Supercharged 363 Dart Stroker [Supercharged 363 LTD Build]
WAGGIN: 2012 Volkswagen Passat Wagon - V6 4Motion.

Top
