camber kit help



Page 1 of 3 [ 36 posts ] Go to page 1, 2, 3  Next


 Post subject: camber kit help
Posted: Sun Jul 10, 2011 7:14 am
Parts Gopher
Offline

Posts: 58

Joined: 7th Feb 2011

Location: sydney
NSW, Australia

hey i have a 95 ford ef and i lowered it a few months ago and not my tyres have worn on the inside how many camber kits will i need? or will 1 set be enough?
Top
 Profile


 Post subject: Re: camber kit help
Posted: Sun Jul 10, 2011 9:11 am
Getting Side Ways
Offline

Age: 72

Posts: 2542

Joined: 18th Mar 2006

Ride: EF-XR8chaser

Location: wollongong
NSW, Australia

uniacidz wrote:
You only need one kit.

The shims are used to determine how many degrees the front wheels sits. usually between -1 and 0 is normal

when you change over use a level on the wheel,vert. to start packing the shims in to get it close for the wheel alignment.you need 4 pivots,1 kit.



_________________

R.I.P HANS HARTMAN

Top
 Profile


 Post subject: Re: camber kit help
Posted: Sun Jul 10, 2011 10:07 am
Parts Gopher
Offline

Posts: 58

Joined: 7th Feb 2011

Location: sydney
NSW, Australia

i just rang Nepean Spare Parts in St Marys the price is $110 a kit and he claimed i need 2
Top
 Profile


 Post subject: Re: camber kit help
Posted: Sun Jul 10, 2011 10:22 am
Parts Gopher
Offline
User avatar

Age: 32

Posts: 59

Joined: 14th Feb 2010

Gallery: 4 images

Ride: BF MK2 XR6 Turbo 6spd manual

Location: Tarago
NSW, Australia

You will need one kit per side.



_________________

2007 BF MKII XR6T 6 spd Manual, Bionic Blue

Top
 Profile


 Post subject: Re: camber kit help
Posted: Sun Jul 10, 2011 10:35 am
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 907

Joined: 13th Jul 2005

Gallery: 10 images

Ride: ef futura/ef fairmont

Location: sydney
NSW, Australia

try cv joint aus there cheaper just under $100 a set! i had mine done and now camper sits at 1.5 and there's no room to go any further.



_________________

custom airbox,custom intake
paccie comps,lukey 2.5 cat back,high flow cat
CMS stg2 head,CMS stg2.A. cam,CMS hybrid auto with mod shift,3.9 lsd
custom 3500rpm hi stall
ANZ mayhem 18's,custom interior,venom body kit,xr wing,jumbo 2' low springs
143rwkw and 407rwnm on CMS dyno

Top
 Profile


 Post subject: Re: camber kit help
Posted: Sun Jul 10, 2011 1:08 pm
Getting Side Ways
Offline

Age: 35

Posts: 4183

Joined: 30th May 2005

Ride: 1993 EB XR8

Location: BrisVegas
QLD, Australia

How much thread is remaining on the upper control arm mounts? That determines if you require a camber kit or not.



_________________

ILL60 - EF XR8, Sunroof, Ticky Kit, 19x8.5/19x11 TE37's, 347, AFr185's, TFS BoxRcustom converter, Hurst Quarterstick, huge billet cam.

OO0Y4 - BA2 XR6 Turbo, Nizpro Plenum, Process West stage 3 cooler, 4” dump, 3.5” exhaust, ID1000’s, ZF Auto - 11.8@116

Top
 Profile


 Post subject: Re: camber kit help
Posted: Sun Jul 10, 2011 2:26 pm
Parts Gopher
Offline

Posts: 58

Joined: 7th Feb 2011

Location: sydney
NSW, Australia

67RCE wrote:
How much thread is remaining on the upper control arm mounts? That determines if you require a camber kit or not.



im not sure on what you mean?
Top
 Profile


 Post subject: Re: camber kit help
Posted: Sun Jul 10, 2011 5:03 pm
Getting Side Ways
Offline

Age: 72

Posts: 2542

Joined: 18th Mar 2006

Ride: EF-XR8chaser

Location: wollongong
NSW, Australia

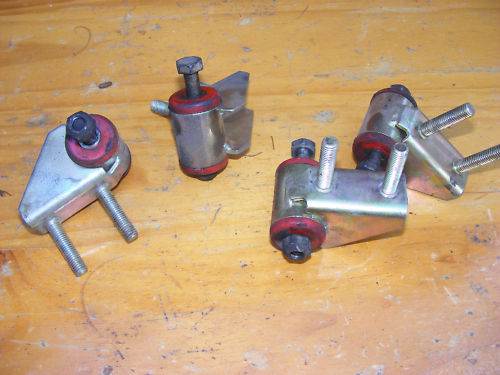

Attachment:
$(KGrHqEOKi8E35f3Pk6NBOGSkrye5Q~~_12.jpg [ 43.71 KiB | Viewed 146 times ]
that is a kit-4,bot no shims in pic----ebay.the threads are about 50mm long.



_________________

R.I.P HANS HARTMAN

Top
 Profile


 Post subject: Re: camber kit help
Posted: Sun Jul 10, 2011 7:25 pm
Parts Gopher
Offline

Posts: 58

Joined: 7th Feb 2011

Location: sydney
NSW, Australia

i know what they look like but i was abit confused about why the stock ones would have any thread left
Top
 Profile


 Post subject: Re: camber kit help
Posted: Sun Jul 10, 2011 7:41 pm
Moderator
Offline

Posts: 14489

Joined: 7th Nov 2004

Ride: AU XR8

Location: a shit suburb in sydney
NSW, Australia

the std upper arm mounts are pretty much the same as the ones in the pic, except the thread is not as long..
although we just got our au aligned with the std upper mounts, and still had enough thread for the camber to be shimed up with enough thread left to saftly bolt back up..
Top
 Profile


 Post subject: Re: camber kit help
Posted: Sun Jul 10, 2011 7:55 pm
Parts Gopher
Offline

Posts: 58

Joined: 7th Feb 2011

Location: sydney
NSW, Australia

so if i can get a hold of shims or what ever it should be fine cause the bushes look fine
Top
 Profile


 Post subject: Re: camber kit help
Posted: Sun Jul 10, 2011 8:04 pm
Moderator
Offline

Posts: 14489

Joined: 7th Nov 2004

Ride: AU XR8

Location: a shit suburb in sydney
NSW, Australia

that really all depends on how low the car is and how bad the camber is.
if the car has alot of camber and needs alot of shims you might not get away with using the std one..
Top
 Profile


 Post subject: Re: camber kit help
Posted: Sun Jul 10, 2011 10:03 pm
Parts Gopher
Offline

Posts: 58

Joined: 7th Feb 2011

Location: sydney
NSW, Australia

i have pedders superlows at the front
Top
 Profile


 Post subject: Re: camber kit help
Posted: Sun Jul 10, 2011 10:15 pm
Getting Side Ways
Offline

Age: 35

Posts: 4183

Joined: 30th May 2005

Ride: 1993 EB XR8

Location: BrisVegas
QLD, Australia

Spring height isn't going to help if you need a camber kit or not. I had Superlow fronts in my AU and I DID NOT require a camber kit, and had 0.75° of camber with plenty of adjustment remaining. My Fairlane, on Superlows, does require a camber kit to get under 1° of negative camber. It is a car by car basis.



_________________

ILL60 - EF XR8, Sunroof, Ticky Kit, 19x8.5/19x11 TE37's, 347, AFr185's, TFS BoxRcustom converter, Hurst Quarterstick, huge billet cam.

OO0Y4 - BA2 XR6 Turbo, Nizpro Plenum, Process West stage 3 cooler, 4” dump, 3.5” exhaust, ID1000’s, ZF Auto - 11.8@116

Top
 Profile


 Post subject: Re: camber kit help
Posted: Sun Jul 10, 2011 10:30 pm
Parts Gopher
Offline

Posts: 58

Joined: 7th Feb 2011

Location: sydney
NSW, Australia

so how can i adjust the stock camber do i just shove washers in there

thats if i have plenty of thread left on the stock camber?
Top
