 Post subject: Re: CLUTCH CABLE ROUTING
Posted: Sun Mar 13, 2011 9:36 pm
Getting Side Ways
Offline

Age: 32

Posts: 1044

Joined: 4th Aug 2010

Ride: NA Fairlane, DC LTD

Location: Alice Springs
NT, Australia

Enjoy!

Don't want to burst a bubble but keep an eye on your clutch pedal pivot rod, and firewall where the cable goes through (check my thread for details) especially if you got a heavy duty clutch.



_________________

[color=#004080]Cheers, Jacob.

NA Fairlane Build thread:
the-garage-f53/my-fairlane-build-lowlane-t94891.html.
Also in the garage....
AU LTD, DC LTD, and Lowlane.

Top
 Profile


 Post subject: Re: CLUTCH CABLE ROUTING
Posted: Sun Mar 13, 2011 9:44 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 3374

Joined: 11th Mar 2008

Ride: EA SVO, AU2 Forte

Location: Bendigo
VIC, Australia

pedal box has already been strengthened and i have a local engineer making me a firewall plate



_________________

Daily driver: AU2. 5 speed. 19" FG luxos. Full exhaust. Lowered. AU3 XR leather interior, converted to full power windows. 3.45 LSD. IN THE FUTURE: Tickford 6
Weekend driver: EA SVO AU motor. Built BTR. TCE 2800 stall. T76 turbo. Locked diff. On E85. approx 320rwkw. 11.5 @121mph

Top
 Profile


 Post subject: Re: CLUTCH CABLE ROUTING
Posted: Sun Mar 13, 2011 9:51 pm
Getting Side Ways
Offline

Age: 32

Posts: 1044

Joined: 4th Aug 2010

Ride: NA Fairlane, DC LTD

Location: Alice Springs
NT, Australia

Sweet.

Did you got heavy duty clutch? What brand?



_________________

[color=#004080]Cheers, Jacob.

NA Fairlane Build thread:
the-garage-f53/my-fairlane-build-lowlane-t94891.html.
Also in the garage....
AU LTD, DC LTD, and Lowlane.

Top
 Profile


 Post subject: Re: CLUTCH CABLE ROUTING
Posted: Sun Mar 13, 2011 9:52 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 3374

Joined: 11th Mar 2008

Ride: EA SVO, AU2 Forte

Location: Bendigo
VIC, Australia

an exedy heavy duty. 300 bucks



_________________

Daily driver: AU2. 5 speed. 19" FG luxos. Full exhaust. Lowered. AU3 XR leather interior, converted to full power windows. 3.45 LSD. IN THE FUTURE: Tickford 6
Weekend driver: EA SVO AU motor. Built BTR. TCE 2800 stall. T76 turbo. Locked diff. On E85. approx 320rwkw. 11.5 @121mph

Top
 Profile


 Post subject: Re: CLUTCH CABLE ROUTING
Posted: Sun Mar 13, 2011 10:00 pm
Getting Side Ways
Offline

Age: 32

Posts: 1044

Joined: 4th Aug 2010

Ride: NA Fairlane, DC LTD

Location: Alice Springs
NT, Australia

Nice.



_________________

[color=#004080]Cheers, Jacob.

NA Fairlane Build thread:
the-garage-f53/my-fairlane-build-lowlane-t94891.html.
Also in the garage....
AU LTD, DC LTD, and Lowlane.

Top
 Profile


 Post subject: Re: CLUTCH CABLE ROUTING
Posted: Sun Mar 13, 2011 10:24 pm
Oompa Loompa
Offline
User avatar

Age: 26

Posts: 44

Joined: 22nd May 2010

Ride: 1992 XF ute w/T5

Location: bannockburn
VIC, Australia

WILDEB wrote:
pedal box has already been strengthened and i have a local engineer making me a firewall plate

i was going to say get the pedal box beefed up, and with the fire wall its not uncommen to crack and break through. on XD-XE models they run a plate which is bolted to the firewall, on XF to XH/EA-EL they have a tube welded in by the factory.



_________________

CHEERS MARK

CUT BAIT OR GO FISHING!

Top
 Profile


 Post subject: Re: CLUTCH CABLE ROUTING
Posted: Mon Mar 14, 2011 9:44 am
Getting Side Ways
Offline

Age: 50

Posts: 912

Joined: 22nd Mar 2005

Gallery: 1 images

Location: FNQ
QLD, Australia

snap0964 wrote:
Well, my setups have a nice sweeping loop with the bracket in place, so no tight bends there.
I'd say the bracket should be there also for extra support - have a look while someone operates the pedal - I'd think the cable will try to straighten up - correct me if I'm wrong.
What's this bracket on the other side of the bellhousing ??
2 foot shorter would to be a mistype??
EF/EL/XH cables are around 3-4" shorter than EB/ED ones.
Yeah obviously, there has to be 2 bends, try and make them as smooth as you can.


Re-reading the earlier posts, I have to agree that concern about the inner cable sawing sideways is absolutely spot on - without that bracket holding it straight in, then it needs to be watched real close for trying to cut sideways - if it doesn't seem to be doing it (YET) then have a second look and then keep watching it. The white stuff (teflon?) on the inner cable is fecking tough s**t and will cut through just about anything!! The outer sheath is evidently lined internally with the same material but I'm not sure it reaches right to the outer edge (I've had issues at the other end with that when I first did my firewall reinforcement).

The bracket I'm talking about IS that support bracket - ie. on the other side in relation to the column side - I perhaps wasn't real clear.

Yes - 2 foot is actually way too much - it'd be more like 4 or 5 inches - and for that reason I was indeed going to fit a new later model cable when I fitted my new heavily beefed up pedal box (body broke out in rust so I pensioned the car off before fitting up the new gear).



_________________

96 EF Auto GLi - Bilstein Shocks - Adjustable Front sway bar - JMM Cam - TI Perf J3 - TCI 2500/3000 stall converter. 2015 Jeep Cherokee Trailhawk.

Top
 Profile


 Post subject: Re: CLUTCH CABLE ROUTING
Posted: Mon Mar 14, 2011 1:46 pm
Oompa Loompa
Offline
User avatar

Age: 26

Posts: 44

Joined: 22nd May 2010

Ride: 1992 XF ute w/T5

Location: bannockburn
VIC, Australia

Attachment:

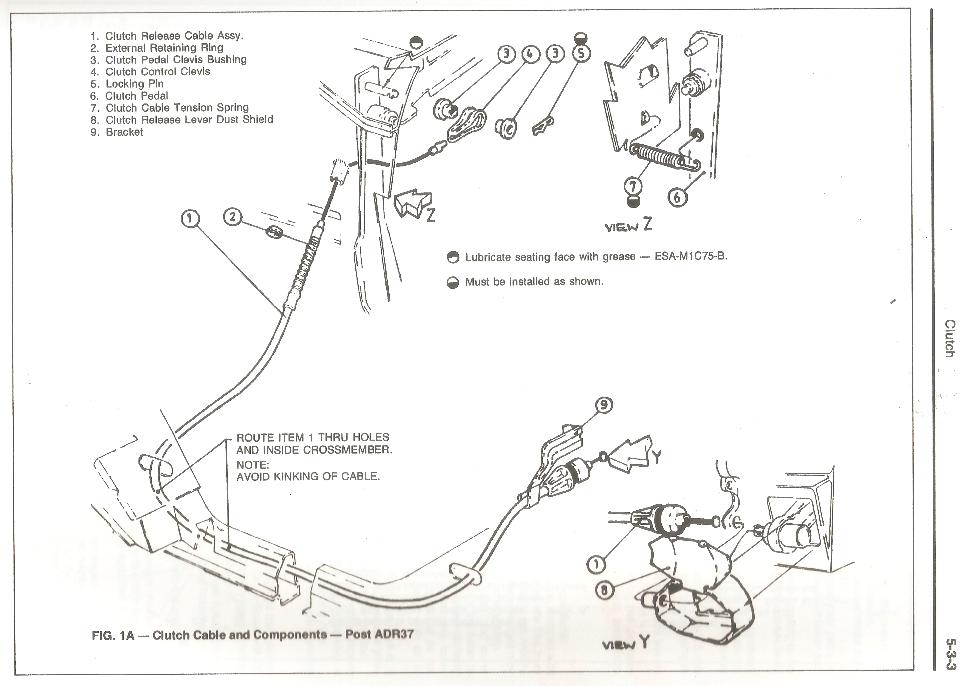

Clutchcablediag.jpg [ 76.63 KiB | Viewed 280 times ]

i know this pic is for unleaded XF models and XG models but it should give you a rough idea of clutch cable routing for E series/XH.



_________________

CHEERS MARK

CUT BAIT OR GO FISHING!

Top
 Profile


 Post subject: Re: CLUTCH CABLE ROUTING
Posted: Mon Mar 14, 2011 3:59 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

Good picture showing the mounting hardware - which is pretty much the same. Location is similar.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion
