Clutch Cable



Page 1 of 1 [ 8 posts ]


 Post subject: Clutch Cable
Posted: Sun May 27, 2012 3:03 pm
Parts Gopher
Offline

Age: 28

Posts: 56

Joined: 27th Oct 2011

Ride: Ford Falcon EF

Location: Ballina NSW
NSW, Australia

Ok so i'm doing a manual conversion in my ef falcon and was wondering witch way the clutch cable runs (over the top of the engine or underneath?) if someone has some photos of the way it goes would be great.
Cheers Guys
Top
 Profile


 Post subject: Re: Clutch Cable
Posted: Sun May 27, 2012 3:16 pm
Fordmods Junkie
Offline
User avatar

Posts: 11738

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

Torza80 wrote:
Ok so i'm doing a manual conversion in my ef falcon and was wondering witch way the clutch cable runs (over the top of the engine or underneath?) if someone has some photos of the way it goes would be great.
Cheers Guys


Under. It runs out of the firewall, follows the steering intermediate shaft, along above the steering rack (below the sump/bellhousing), then bends straight into the clutch fork.



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


 Post subject: Re: Clutch Cable
Posted: Sun May 27, 2012 6:57 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

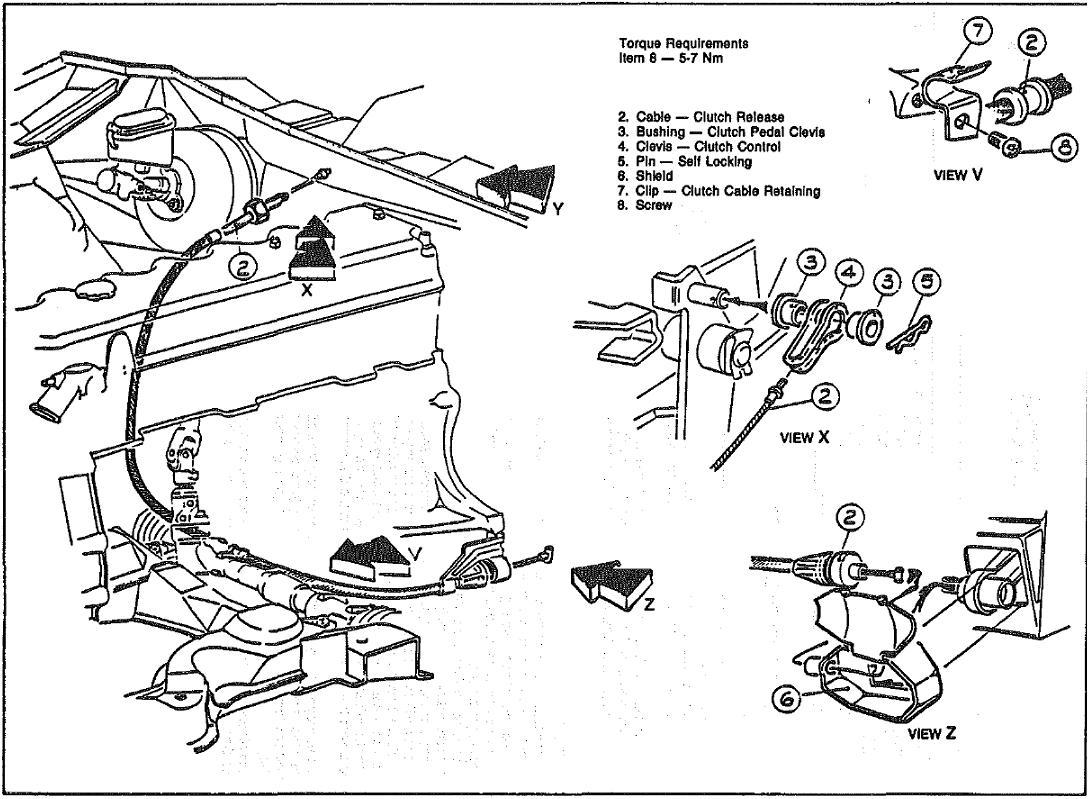

see attached.





Attachments:
cable.JPG [ 155.68 KiB | Viewed 404 times ]



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


 Post subject: Re: Clutch Cable
Posted: Mon Jun 04, 2012 11:52 am
Getting Side Ways
Offline

Age: 50

Posts: 912

Joined: 22nd Mar 2005

Gallery: 1 images

Location: FNQ
QLD, Australia

OP youre probably wondering exactly where it goes because it looks too long to comfortably fit across the rack? - unfortunately that is indeed where the f&^%er goes...

I reckon the rotten things need to be either a few inches shorter (and BTW I think EF / EL ones are shorter than earlier models ones - but still that's not quite enough IMO) - or about 3 feet longer - ie. so that they either sit happier across the rack without too tight bends on either side - or you have the length to make them comfortably run in a gentle arc further forward and under the engine.



_________________

96 EF Auto GLi - Bilstein Shocks - Adjustable Front sway bar - JMM Cam - TI Perf J3 - TCI 2500/3000 stall converter. 2015 Jeep Cherokee Trailhawk.

Top
 Profile


 Post subject: Re: Clutch Cable
Posted: Mon Jun 04, 2012 3:39 pm
Oompa Loompa
Offline

Age: 24

Posts: 34

Joined: 22nd Apr 2010

Gallery: 2 images

Ride: el futura

Location: tumut
NSW, Australia

also you cant buy them from ford for 6cly any more unless its a AU which is to short and would hit on the exhaust manifold
Top
 Profile


 Post subject: Re: Clutch Cable
Posted: Mon Jun 04, 2012 3:41 pm
Fordmods Junkie
Offline
User avatar

Posts: 11738

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

rooseEL wrote:
also you cant buy them from ford for 6cly any more unless its a AU which is to short and would hit on the exhaust manifold


Really? Well that sucks...



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


 Post subject: Re: Clutch Cable
Posted: Mon Jun 04, 2012 4:19 pm
Getting Side Ways
Offline

Age: 34

Posts: 1166

Joined: 31st Mar 2005

Gallery: 2 images

Ride: ef falcon, el fairmont ghia

Location: Christchurch
New Zealand

since when? i priced one from ford in january (which was over priced)
Top
 Profile


 Post subject: Re: Clutch Cable
Posted: Mon Jun 04, 2012 4:27 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

yes you can,, i purchased a new cable from ford to suit a ef/el about 6 weeks ago..
it cost $97
Top
