 Post subject: Clutch fork modification.
Posted: Tue Nov 18, 2014 3:39 pm
Oompa Loompa
Offline

Age: 29

Posts: 25

Joined: 9th Nov 2014

Ride: 1996 XH Longreach

Location: Yarra Valley
VIC, Australia

Hey all,

So yesterday I was heading into trade school early morning, I pulled up to a set of lights, clutched in to take off and *snap*! Clutch clable broke, front row on a highway. Was not awesome.
Vehicle is a '96 XH Falcon Ute, T5.
Worst part was the cable being quite literally a month old.
So I stuck my head under once it was pushed to he side and yes, it had snapped right down at the bellhousing/shiftfork again.
So I pulled it all apart, took it off to repco and got a warranty part after a bit of mucking around. The guy on the other end of the phone mentioned "grinding the shift fork back and greasing it down at the connection, so the cable can't rub through."
Is this common practice? Are there any other modifications that can be made? Example; fitting some rubber so the cuble can't rub metal on metal?
I used a small file, smoothed it as best I could and put a ton of grease on it.
Any more I can do? Don't wanna replace cables every few months.

Regards,
Brutus
Top
 Profile


 Post subject: Re: Clutch fork modification.
Posted: Tue Nov 18, 2014 6:11 pm
Getting Side Ways
Offline

Age: 40

Posts: 1110

Joined: 27th Dec 2011

Gallery: 6 images

Ride: ef falcon futura

Power: 154 rwkw

Location: Koo Wee Rup
VIC, Australia

your fork is more than likely slightly bent, or the rubber in the insulator is cactus.. get one of these http://www.ebay.com.au/itm/Ford-Falcon- ... 3a97b3a659 and you should never have to replace it again



_________________

ef futura, pacemakers, 2.5inch catback, k&n panel filter and 3.45 lsd. extractors/cat, ticky head, custom cam grind, t5. now onto cosmetics.

Top
 Profile


 Post subject: Re: Clutch fork modification.
Posted: Tue Nov 18, 2014 6:58 pm
Technical Contributor
Offline
User avatar

Age: 34

Posts: 3714

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

^^^ I have one of those... My fork was pulled sideways and dodgy looking... Never rubbed through a cable but... Depends what yours looks like...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: Clutch fork modification.
Posted: Tue Nov 18, 2014 7:08 pm
Oompa Loompa
Offline

Age: 29

Posts: 25

Joined: 9th Nov 2014

Ride: 1996 XH Longreach

Location: Yarra Valley
VIC, Australia

Thanks for that a lot guys.
I don't think there's any rubber on the end of the fork what-so-ever.
I'll see about ordering one tonight.

Regards,
Brutus.
Top
 Profile


 Post subject: Re: Clutch fork modification.
Posted: Tue Nov 18, 2014 7:12 pm
Getting Side Ways
Offline

Age: 40

Posts: 1110

Joined: 27th Dec 2011

Gallery: 6 images

Ride: ef falcon futura

Power: 154 rwkw

Location: Koo Wee Rup
VIC, Australia

The rubber isnt on the fork. Its in the cylinder looking thing behind it holding the fork in place



_________________

ef futura, pacemakers, 2.5inch catback, k&n panel filter and 3.45 lsd. extractors/cat, ticky head, custom cam grind, t5. now onto cosmetics.

Top
 Profile


 Post subject: Re: Clutch fork modification.
Posted: Tue Nov 18, 2014 8:25 pm
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

I re-routed my cable so it has a smoother path....looks untidy, but it works



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Clutch fork modification.
Posted: Wed Nov 19, 2014 6:50 am
Oompa Loompa
Offline

Age: 29

Posts: 25

Joined: 9th Nov 2014

Ride: 1996 XH Longreach

Location: Yarra Valley
VIC, Australia

cjh wrote:
I re-routed my cable so it has a smoother path....looks untidy, but it works


Hey man,
Any chance you could post some photos of how your cable is run?
Tidiness isn't such of a concern, more so the practicallity.

Regards,
Brutus.
Top
 Profile


 Post subject: Re: Clutch fork modification.
Posted: Wed Nov 19, 2014 6:52 am
Oompa Loompa
Offline

Age: 29

Posts: 25

Joined: 9th Nov 2014

Ride: 1996 XH Longreach

Location: Yarra Valley
VIC, Australia

ranga83 wrote:
The rubber isnt on the fork. Its in the cylinder looking thing behind it holding the fork in place


Hey,
Thanks for the reply.
Would you happen to have a photo of the rubber youmre talking about?
I don't remember seeing any rubber when I was under there.

Regards,
Brutus.
Top
 Profile


 Post subject: Re: Clutch fork modification.
Posted: Wed Nov 19, 2014 9:13 am
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Brutus wrote:
cjh wrote:
I re-routed my cable so it has a smoother path....looks untidy, but it works


Hey man,
Any chance you could post some photos of how your cable is run?
Tidiness isn't such of a concern, more so the practicallity.

Regards,
Brutus.

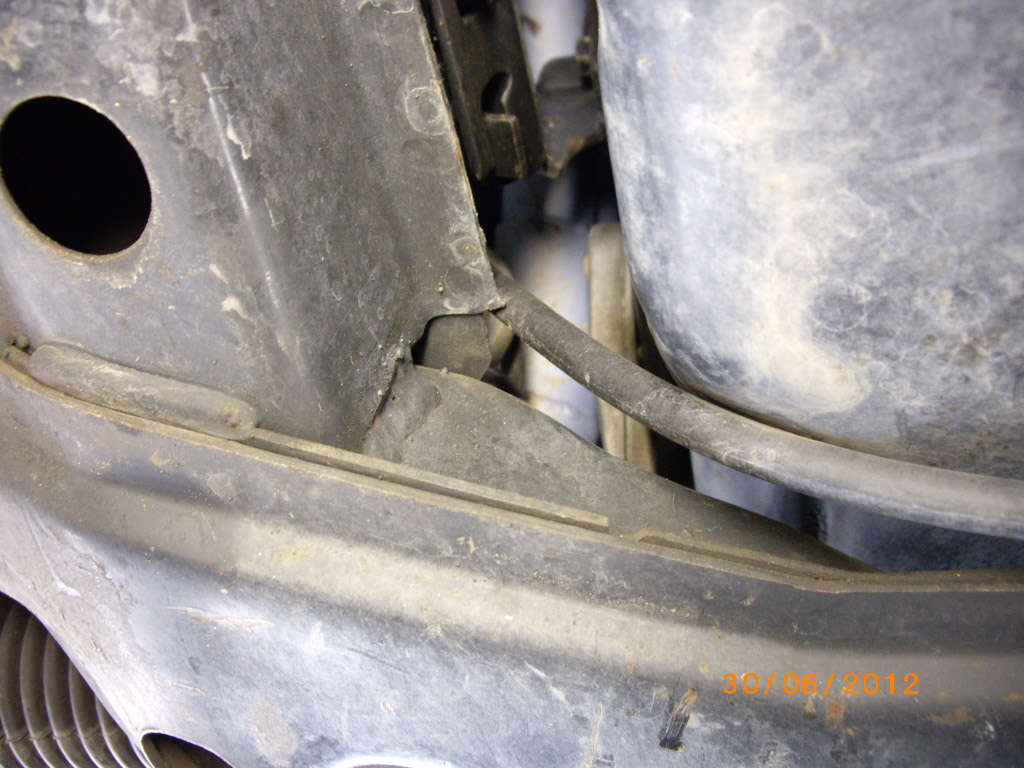

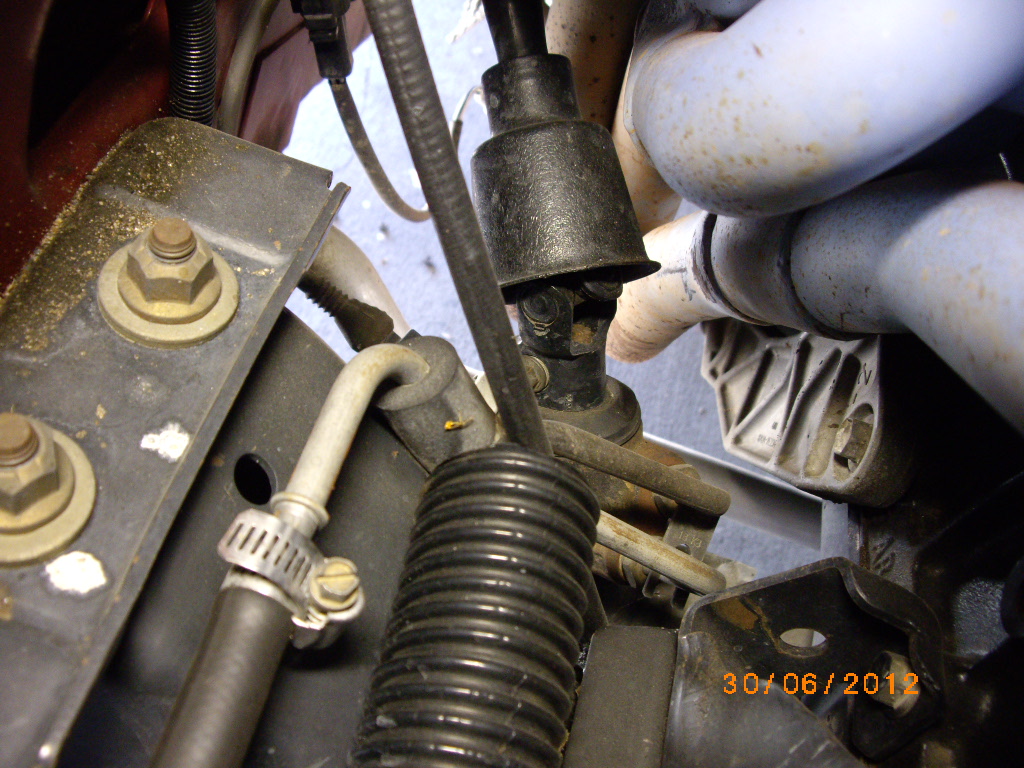

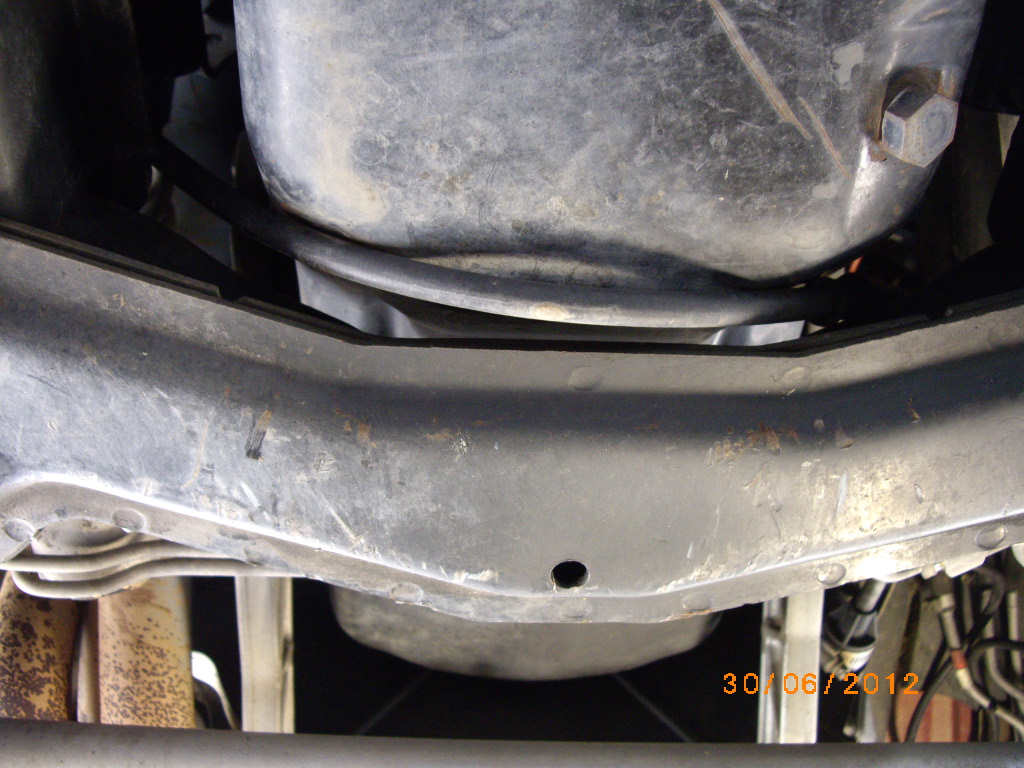

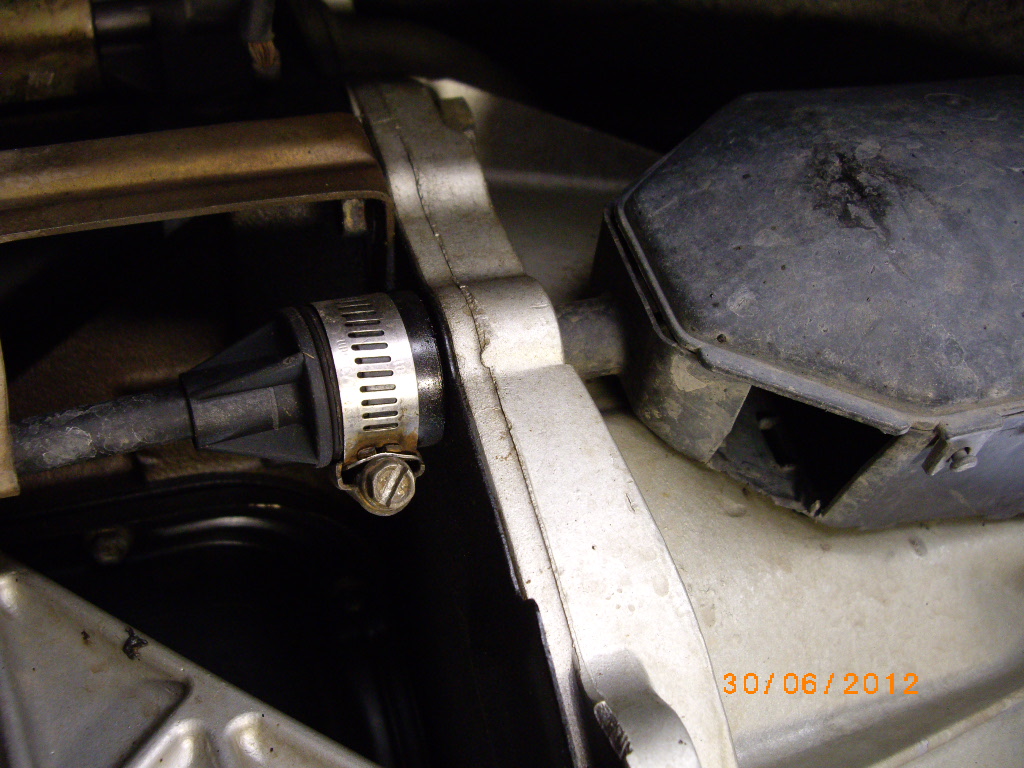

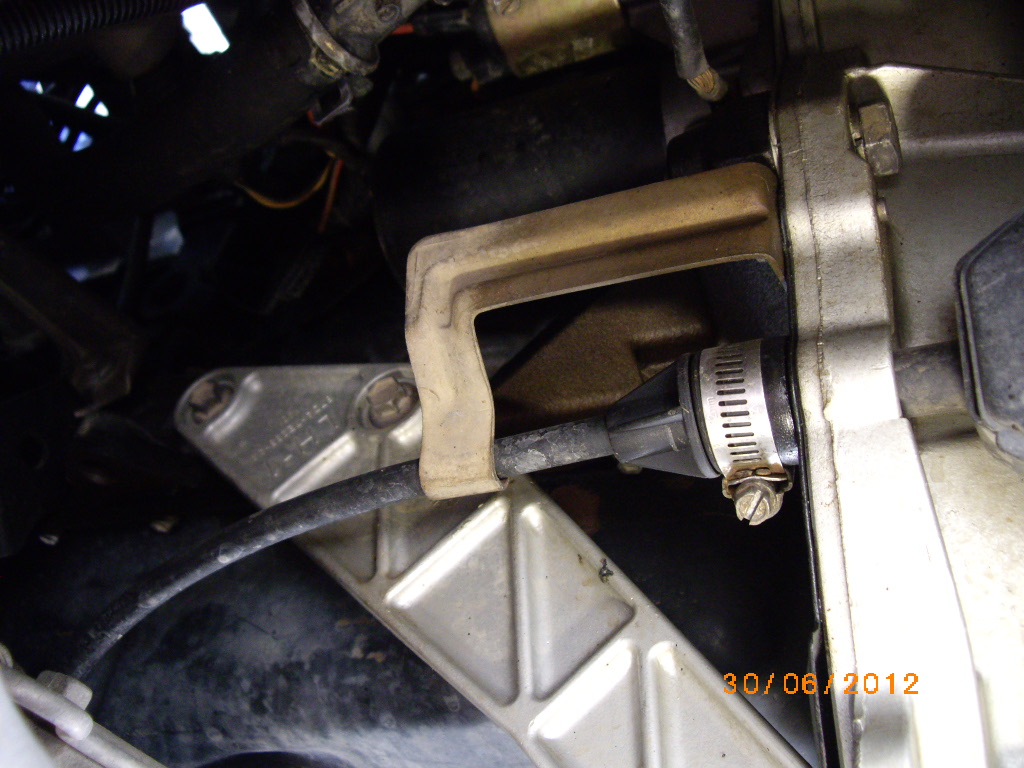

My car is an ED.....and the hose clamp....it gives you about 2-3mm of cable travel for free....it stops the rubber cushion from squashing so much when the clutch pedal is engaged.
