 Post subject: Clutch Pedal Stopper
Posted: Sat Jul 12, 2008 8:54 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 3184

Joined: 8th Nov 2004

Gallery: 6 images

Ride: EF Falcon

Location: Townsville
QLD, Australia

I am leading this on from my last topic about the pedal being too high, but think it deserved its own thread.

I have done my manual conversion now, and the clutch pedal sits about a day in front (2" to 2.5") of the other pedals. It also means i need my knees up around my ears to put my foot on the clutch.

the flywheel has been machined at least once, and looked well used before i put it on, unfortunately i didnt measure how much meat was on it before installing it (didn't know i would need to)

the clutch is brand new, and is fully engaged about one inch off the floor. The rest of the travel is just taking up slack in the pressure plate (i think that is the right terminology for what i want)

to combat the high pedal, i want to put a stopper in the pedal, making it sit back down a bit. it wont affect the clutch engagement doing this, it really is fully engaged well before this.

the question i want to know the answer to though is whether or not the throwout bearing will wear out really quickly with there being a bit of pressure against it all the time?

if anyone can shed any light on this it would be appreciated.


Cheers,
Nic



_________________

Nicco's M112 Blown, T-56 equipped EF
forums/viewtopic.php?t=68319

Top
 Profile


Posted: Sat Jul 12, 2008 9:05 pm
Getting Side Ways
Offline

Age: 33

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: NCII Fairlane

Location: Bathurst
NSW, Australia

Can i suggest getting mock up something like a rubber bush just duct taped on or somethin to "prototype" it until you figure out how much you need to add and to see if it affects the pedal and the gearshifting



_________________

R.I.P Tobias my son.

Top
 Profile


Posted: Sat Jul 12, 2008 9:15 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 3184

Joined: 8th Nov 2004

Gallery: 6 images

Ride: EF Falcon

Location: Townsville
QLD, Australia

we are going to put a bolt with two nuts through the clutch switch mount (i have a manual pedal box) so it can be adjusted.

we got that covered!! ;) :lol:



_________________

Nicco's M112 Blown, T-56 equipped EF
forums/viewtopic.php?t=68319

Top
 Profile


Posted: Sat Jul 12, 2008 9:16 pm
Getting Side Ways
Offline

Posts: 6913

Joined: 6th Nov 2004

Gallery: 4 images

Ride: BF XR6, BF XT Wagon

Power: 197 rwkw

Location: Perth
WA, Australia

Can you adjust the pedal using the nut in the engine bay? Sounds like something is not right.



_________________

EL XR8
Timmeh banned himself from being a moderator.

Top
 Profile


Posted: Sat Jul 12, 2008 9:18 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 3184

Joined: 8th Nov 2004

Gallery: 6 images

Ride: EF Falcon

Location: Townsville
QLD, Australia

yeah, to get the clutch to disengage properly we had to use the adjusting nuts in the engine bay. they wound out a fair way.



_________________

Nicco's M112 Blown, T-56 equipped EF
forums/viewtopic.php?t=68319

Top
 Profile


Posted: Sat Jul 12, 2008 10:26 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 824

Joined: 10th May 2007

Ride: Xr6 Turbo

Location: Melbourne
VIC, Australia

dude i just looked in my repair manual and it says it should be 178 and 180something. so i dun think you have anything wrong with it....



_________________


Previous cars


1995 ef futura - nothing special
2003 xr6 turbo 5 -speed 307rwkw

Top
 Profile


Posted: Sat Jul 12, 2008 10:58 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 3184

Joined: 8th Nov 2004

Gallery: 6 images

Ride: EF Falcon

Location: Townsville
QLD, Australia

it actually doesnt look as bad in the picture as it feels or looks from the drivers seat




_________________

Nicco's M112 Blown, T-56 equipped EF
forums/viewtopic.php?t=68319

Top
 Profile


Posted: Sat Jul 12, 2008 10:59 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 3184

Joined: 8th Nov 2004

Gallery: 6 images

Ride: EF Falcon

Location: Townsville
QLD, Australia

also, i thought it was meant to be around 140mm from the floor for max travel



_________________

Nicco's M112 Blown, T-56 equipped EF
forums/viewtopic.php?t=68319

Top
 Profile


Posted: Sun Jul 13, 2008 10:27 am
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 850

Joined: 10th Nov 2004

Gallery: 20 images

Ride: 03 BA Fairmont

Location: Forest Lake
QLD, Australia

my eb is factory manual, and thats exactly the way the clutch sits and is supposed to sit. quit ya whinging!!! :P



_________________

Regards,
Punnisher_42
_____________
2003 BA Fairmont - Stock standard
1994 U13 cough Nissan Cough Bluebird

Favorite Quotes:
"Sportwagon = homo-erotic wank-fest." - downingj

Top
 Profile


Posted: Sun Jul 13, 2008 10:33 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

my clutch pedal sits about 10-15 mm higher than the brake pedal..
and the clutch starts to engage about 20mm of the floor.
Top
 Profile


Posted: Sun Jul 13, 2008 1:07 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2450

Joined: 5th Nov 2004

Gallery: 1 images

Ride: NL V8 Fairlane

Location: Sydney
NSW, Australia

Did you get the spring that connects the pedal to the floor? That helps pull it back a little.



_________________

There are 10 types of people in this world.
Those who know binary and those who don't.

Top
 Profile


Posted: Sun Jul 13, 2008 1:33 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5587

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

The pedal height is determined by the cable adjustment - a bump stop won't alter this. Slight pressure on the TO bearing, so it contacts the PP is normal - the spring mentioned above helps this.
Normally the clutch pedal should sit level or slightly higher than the brake pedal.
The flywheel thickness/pressure plate will determine where the friction point is (assuming the other components are okay - fork, etc).
I had similar with my wagon using a 3 bolt flywheel/pressure plate - the clutch was so heavy it broke the cable eventually, so I ditched this and got a 6 bolt flywheel and HD pressure plate, clutch is nice and soft, and no probs - normal pedal height too.
All you can do at this time is have the friction point as close to the floor as you can, but still be able to engage/disengage normally - too high means the PP gets overtravelled, which isn't good long term. You won't meet factory dimensions, so no point trying.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Sun Jul 13, 2008 6:04 pm
Getting Side Ways
Offline

Age: 31

Posts: 3893

Joined: 15th Nov 2004

Gallery: 24 images

Ride: BF MKII V8 Fairmont Ghia

Location: Perth
WA, Australia

On mine, its quite the opposite. I can push the clutch in half way and changes gears. I rarely ever push it to the floor, just a little stab is all it needs to disengage?

I adjusted it 140mm from the floor.



_________________

2007 Steel BF Ghia MKII V8 - 19" GTP's + Superlows

Top
 Profile


Posted: Mon Jul 14, 2008 12:36 am
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 3184

Joined: 8th Nov 2004

Gallery: 6 images

Ride: EF Falcon

Location: Townsville
QLD, Australia

punnisher: i want it right :lol:

troy: i did some measuring today, brake pedal sits around 110mm from the firewall, clutch pedal is around 170mm!! its a long way out.

drone: no, i didnt even know there was a spring meant to be there, although it makes sense now that you've mentioned it! it wont pull the pedal back as far as i want it back though.

ray: i'll draw a pic of what i mean with the bump stop. i had trouble explaining it with words. My acutal clutch isnt *that* heavy. I currently have it engaging about 20 or 30mm off the floor, nice and early. It seems fully engaged within another 30mm or so. leaving the pedal another 100mm of travel with nothing really happening. Its only even a light pressure on the pedal at that stage.

gaz: you smug bastard!! lol



_________________

Nicco's M112 Blown, T-56 equipped EF
forums/viewtopic.php?t=68319

Top
 Profile


Posted: Mon Jul 14, 2008 12:46 am
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 3184

Joined: 8th Nov 2004

Gallery: 6 images

Ride: EF Falcon

Location: Townsville
QLD, Australia

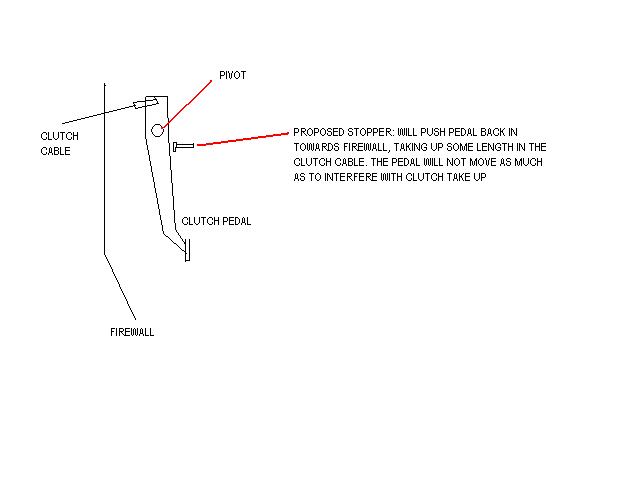

This is a bit of a drawing of how the stopper will work (couldnt be bother to autocad it :lol: )

it will actually partially engage the clutch.

this is why i am worried about the throwout bearing not being able to take the extra force acting on it all the time.


we have both actually had another idea which involves slightly modifying the lever ratio of the pedal itself by moving the cable pick up point further away from the pivot. this will mean the pedal pad will move a shorter distance for the same amount of cable travel. Will be tuneable to allow for adjustment down the track too.

the only downsides we can see with this are that the pedal will feel slightly heavier, and that the pedal will be more sensitive around the pickup point.
upside is that we dont have to worry about the throwout bearing always having pressure acting on it.

thoughts?
