Cracked Firewall Repairs



Page 1 of 1 [ 15 posts ]


 Post subject: Cracked Firewall Repairs
Posted: Thu Apr 10, 2008 3:18 pm
Oompa Loompa
Offline

Posts: 22

Joined: 24th Jan 2005

Location: Melbourne
VIC, Australia

hey all.

looks like my au has a crackd firewall and pedal box. really starting to become annoying so time to get it fixed. do you guys know anywhere in melbourne that can weld it all up etc? im desperate.

cheers



_________________

AU XR6 S2. Manual, Black.

Top
 Profile


Posted: Thu Apr 10, 2008 7:56 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Is it an AU 1 or 2/3???? The AU 2/3's have a laminated firewall with a type of urethane insulation inbetween the steel sheets. Very hard to weld.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Thu Apr 10, 2008 8:15 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 3184

Joined: 8th Nov 2004

Gallery: 6 images

Ride: EF Falcon

Location: Townsville
QLD, Australia

sorry to steer the topic slightly, but CJH, do the II and IIIs have as many firewall issues as the e series with that design?

I havent heard of that before



_________________

Nicco's M112 Blown, T-56 equipped EF
forums/viewtopic.php?t=68319

Top
 Profile


Posted: Fri Apr 11, 2008 2:54 pm
Oompa Loompa
Offline

Posts: 22

Joined: 24th Jan 2005

Location: Melbourne
VIC, Australia

i've heard that nearly all the series have had some type of firewall problem. especially with the cable clutch. i think once a heavy duty clutch has been put in the extra pressure, plus flimsy bit of metal called a firewall has no chance and just gives way.

i was hoping i could just find someone where i can drop it off, fix it all up and drive away. it looks like to much of a hassle to do myself.



_________________

AU XR6 S2. Manual, Black.

Top
 Profile


Posted: Fri Apr 11, 2008 3:51 pm
Getting Side Ways
Offline

Age: 33

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: NCII Fairlane

Location: Bathurst
NSW, Australia

you will find most cars with a manual clutch system (not hydrolic) there are issues with firewall versitility (unless is it a superior design) the thing is only know with the BA etc they have put in a hydro system, ford f**k up really with have the EA to AU manual clutch setup ya think they would of found out that the firewalls crack etc etc

i am sure ring around to various places and that even ya local ford dealer and see what they say,,, it is common problem (well a fordmods one any way) there would have to be some one



_________________

R.I.P Tobias my son.

Top
 Profile


Posted: Fri Apr 11, 2008 3:59 pm
Getting Side Ways
Offline

Age: 30

Posts: 1087

Joined: 1st Sep 2007

Ride: '07 LT XR5

Power: 133 rwkw

Location: sydney
NSW, Australia

mine did it, just got a piece of metal, small hole for the cable to fit through but not the bolt, up agasint the firewall, works beautifully



_________________

So much RAM the motherboard twisted off the POST.

I lost 3 cylinders... but gained a turbo...
Proud owner of an '07 XR5Turbo

Top
 Profile


Posted: Fri Apr 11, 2008 4:22 pm
Oompa Loompa
Offline

Posts: 22

Joined: 24th Jan 2005

Location: Melbourne
VIC, Australia

Froudey wrote:
you will find most cars with a manual clutch system (not hydrolic) there are issues with firewall versitility (unless is it a superior design) the thing is only know with the BA etc they have put in a hydro system, ford f**k up really with have the EA to AU manual clutch setup ya think they would of found out that the firewalls crack etc etc

i am sure ring around to various places and that even ya local ford dealer and see what they say,,, it is common problem (well a fordmods one any way) there would have to be some one


lol funny you should mention ford. Thats the first place I took it and I got a quote on how much it would cost. This is what they came back with.

Clutch Kit
Clutch Cable
Clutch Pedal Box Assembly
Flywheel Machine
Cluth fork Bush
Firewall to be Welded Both Sides
Dash Needs to be Removed
Brake Master Cylinder, Booster, Firewall Insulation and ENGINE require to be removed to Repair Firewall
Parts Cost @1209.90
Labour @ 15.5 Hours $1670.90
Welding and Reinforcement Repair $250.00
Tow Truck Transport from Panel Shop $240.00

For a Total cost of 3370.80.

I dont want to sounds arrogant, but seriosuly how dumb do they think some of us are?



_________________

AU XR6 S2. Manual, Black.

Top
 Profile


Posted: Sun Apr 13, 2008 10:39 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

I have repaired firewalls before, and I didn't remove the engine. The whole dash assembly, yes, booster, yes.
Most of the time, the problem is caused by a clutch cable that hasn't been adjusted properly, or there was a prob with the clutch.
My 88 EA has never had the firewall fixed, or pedal box repaired or replaced. It has a HD clutch, been in it for about 2yrs or more now, haven't had a prob.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sun Apr 13, 2008 10:58 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 11791

Joined: 5th Nov 2004

Gallery: 13 images

Ride: Holden VF Calais / NL FBT

Location: SE Melb
VIC, Australia

Any mechanic should be able to do it
Pretty common problem that they come up against



_________________

Nicko

Top
 Profile


Posted: Fri May 02, 2008 1:31 pm
Getting Side Ways
Offline

Posts: 2448

Joined: 5th Nov 2004

Gallery: 7 images

Location: Brisbane
QLD, Australia

The X-Series didnt have this problem did they - and they had a manual cable clutch using a bolt-on point. Is this a good way to pre-modify an E-Series before they die perhaps?

Nigel
Top
 Profile


Posted: Fri May 02, 2008 1:50 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

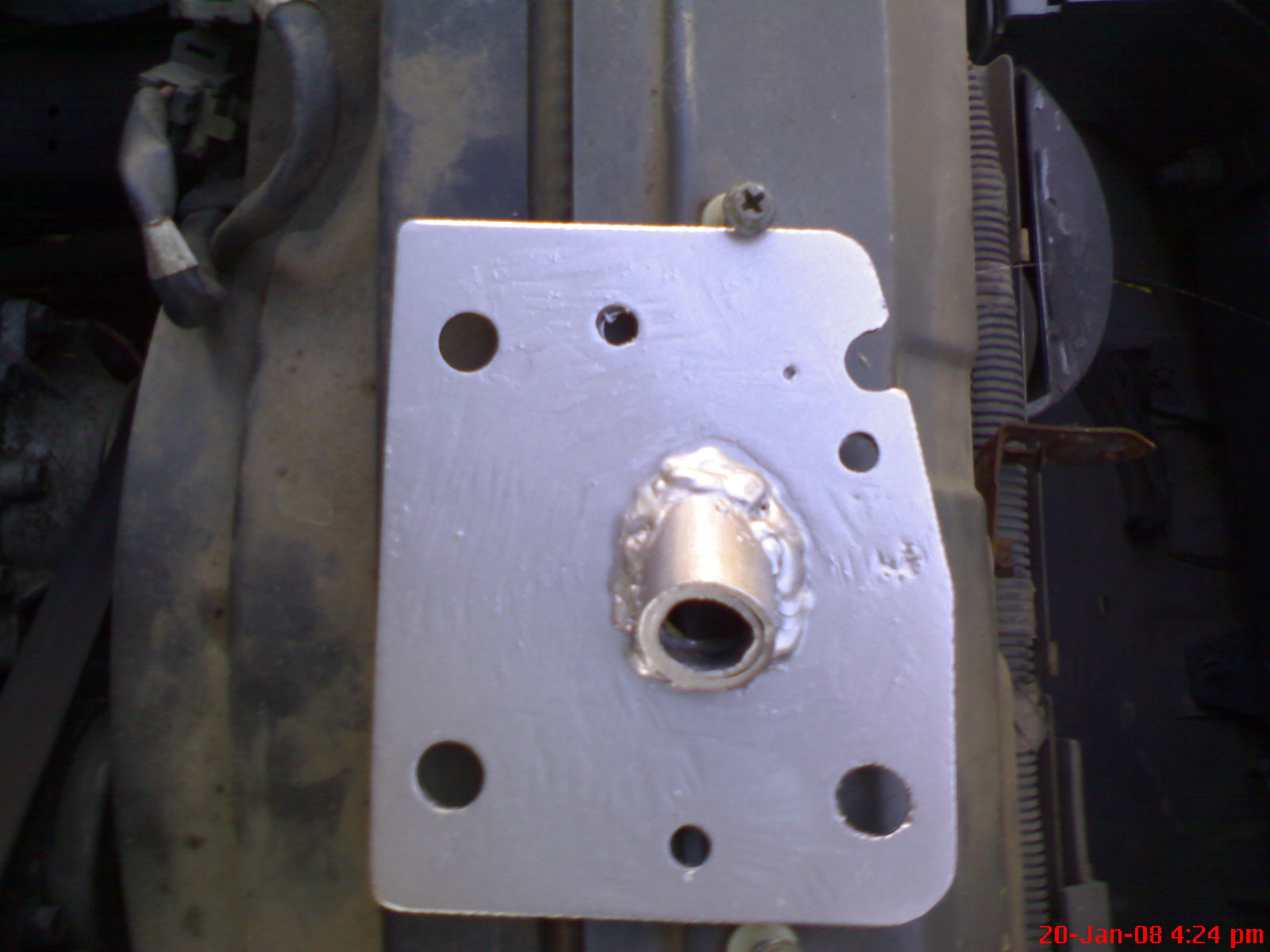

or you could make a 3mm plate that goes over the firewall with a pipe welded to it..

this is one i made for the e series..





Attachments:

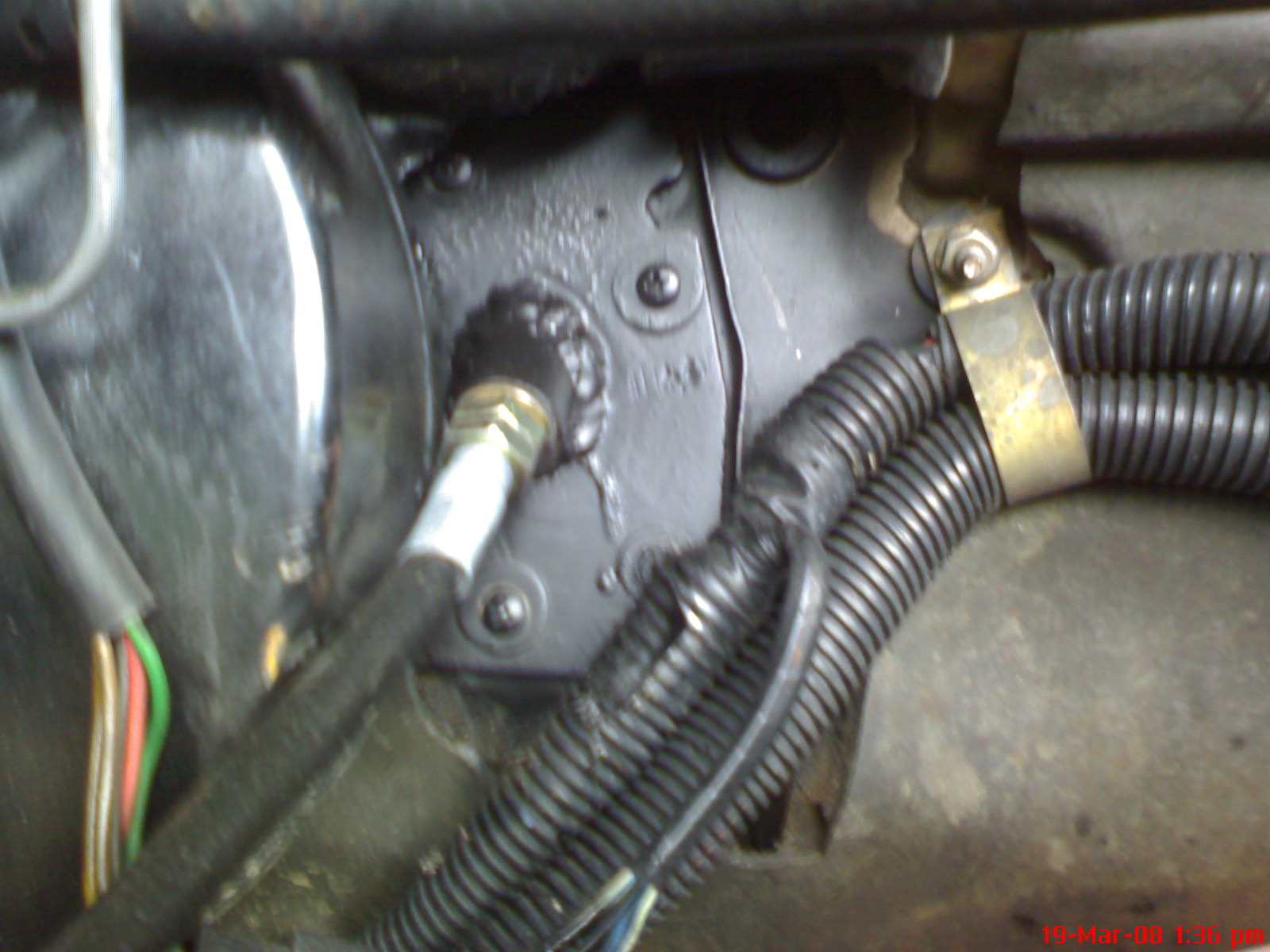

File comment: here it is fitted..
DSC00677.JPG [ 265.42 KiB | Viewed 164 times ]
DSC00603.JPG [ 202.58 KiB | Viewed 159 times ]
Top
 Profile


Posted: Fri May 02, 2008 2:20 pm
Getting Side Ways
Offline

Posts: 2448

Joined: 5th Nov 2004

Gallery: 7 images

Location: Brisbane
QLD, Australia

I get that - was just thinking that the XD/E stuff should be easy to find these days, and it would bolt/screw straight on.
Top
 Profile


Posted: Fri May 02, 2008 3:14 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 741

Joined: 29th May 2007

Ride: EF XR8 347

Power: 232 rwkw

Location: Perth
WA, Australia

Troyman, reckon you could fabricate a load of those and do a FM group buy? :D



_________________

347 XR8 Build Thread

Top
 Profile


Posted: Fri May 02, 2008 4:24 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

s-tranzor wrote:
Troyman, reckon you could fabricate a load of those and do a FM group buy? :D


umm i might be able to make a few??
it depends on how much spare time i get lol.

i have made a doco on how to make it but i havent submitted it yet..
Top
 Profile


Posted: Fri May 02, 2008 4:37 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 741

Joined: 29th May 2007

Ride: EF XR8 347

Power: 232 rwkw

Location: Perth
WA, Australia

If you ever wanted to id be defo up for it. Got a HD Mal Wood clutch on my 347 so naturally im worried about pedalbox.
