diff not locking up



Page 1 of 1 [ 12 posts ]


 Post subject: diff not locking up
Posted: Sun Jan 03, 2010 12:09 am
Stock as a Rock
Offline

Age: 26

Posts: 145

Joined: 12th Jul 2009

Gallery: 1 images

Ride: manual ef xr6

Location: wallan
VIC, Australia

hey i have a ef xr6 manual diff is not locking up out of corners but will lock up in a straight line
Top
 Profile


 Post subject: Re: diff not locking up
Posted: Sun Jan 03, 2010 12:27 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Get the diff hot, then change the oil. Make sure you put LSD oil in it.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: diff not locking up
Posted: Sun Jan 03, 2010 10:52 am
Getting Side Ways
Offline

Age: 29

Posts: 4182

Joined: 30th May 2005

Ride: 1993 EB XR8

Location: BrisVegas
QLD, Australia

LSD's are not designed to Lock up. They limit slip on one wheel, by allowing the other to spin aswell. What you have is a classic case of a dying LSD.



_________________

ILL60 - EF XR8, Sunroof, Ticky Kit, 19x8.5/19x11 TE37's, 347, AFr185's, TFS BoxRcustom converter, Hurst Quarterstick, huge billet cam.

51TER - DL LTD. Stock.

Top
 Profile


 Post subject: Re: diff not locking up
Posted: Sun Jan 03, 2010 2:36 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 3374

Joined: 11th Mar 2008

Ride: EA SVO, AU2 Forte

Location: Bendigo
VIC, Australia

crosby611 wrote:
hey i have a ef xr6 manual diff is not locking up out of corners but will lock up in a straight line


you'll have alot of ppl telling you it's dead but i thought that when i bought a second hand ED XR diff from the wreckers. but i fixed it.

all i did was drain the diff oil and then just put some LS90 in it for about 2 weeks of normal driving, then changed it again and put Castrol XFA something something (can't remember the rest) proper Ford factory V8 LSD oil in it when i did axle seals and wheel bearing. works a treat. beware it is $35 a litre!



_________________

Daily driver: AU2. 5 speed. 19" FG luxos. Full exhaust. Lowered. AU3 XR leather interior, converted to full power windows. 3.45 LSD. IN THE FUTURE: Tickford 6
Weekend driver: EA SVO AU motor. Built BTR. TCE 2800 stall. T76 turbo. Locked diff. On E85. approx 320rwkw. 11.5 @121mph

Top
 Profile


 Post subject: Re: diff not locking up
Posted: Sun Jan 03, 2010 5:05 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

You don't need to use the Castrol SF-XA......Castrol LSX90 will do just fine.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: diff not locking up
Posted: Sun Jan 03, 2010 8:13 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 3374

Joined: 11th Mar 2008

Ride: EA SVO, AU2 Forte

Location: Bendigo
VIC, Australia

cjh wrote:
You don't need to use the Castrol SF-XA......Castrol LSX90 will do just fine.


tried it. kept spinning leggers



_________________

Daily driver: AU2. 5 speed. 19" FG luxos. Full exhaust. Lowered. AU3 XR leather interior, converted to full power windows. 3.45 LSD. IN THE FUTURE: Tickford 6
Weekend driver: EA SVO AU motor. Built BTR. TCE 2800 stall. T76 turbo. Locked diff. On E85. approx 320rwkw. 11.5 @121mph

Top
 Profile


 Post subject: Re: diff not locking up
Posted: Sun Jan 03, 2010 8:41 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

WILDEB wrote:
cjh wrote:
You don't need to use the Castrol SF-XA......Castrol LSX90 will do just fine.


tried it. kept spinning leggers


Then it needs a rebuild.....there's a mob called "Street & Strip Gears" that sell new 28 spline, 4 pinion LSD centre for about $600, including freight.
I have one in my ED right now.....I changed to a higher grade of fasteners to hold the centre together though.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: diff not locking up
Posted: Sun Jan 03, 2010 8:43 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 3374

Joined: 11th Mar 2008

Ride: EA SVO, AU2 Forte

Location: Bendigo
VIC, Australia

cjh wrote:
WILDEB wrote:
cjh wrote:
You don't need to use the Castrol SF-XA......Castrol LSX90 will do just fine.


tried it. kept spinning leggers


Then it needs a rebuild.....there's a mob called "Street & Strip Gears" that sell new 28 spline, 4 pinion LSD centre for about $600, including freight.
I have one in my ED right now.....I changed to a higher grade of fasteners to hold the centre together though.


no i don't. oil choice can change everything. like i said. that castrol XFA stuff works awesome



_________________

Daily driver: AU2. 5 speed. 19" FG luxos. Full exhaust. Lowered. AU3 XR leather interior, converted to full power windows. 3.45 LSD. IN THE FUTURE: Tickford 6
Weekend driver: EA SVO AU motor. Built BTR. TCE 2800 stall. T76 turbo. Locked diff. On E85. approx 320rwkw. 11.5 @121mph

Top
 Profile


 Post subject: Re: diff not locking up
Posted: Sun Jan 03, 2010 8:50 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

WILDEB wrote:

no i don't. oil choice can change everything. like i said. that castrol XFA stuff works awesome


I changed the oil in a mates AU XR8, to that Castrol SF-XA, and the diff started making noises 3 weeks later.....and he doesn't drive hard...he's a grandma at driving.
I rebuilt the diff, and used LSX90 in it, and had no more probs with it after that.
The SF-XA seems thinner straight out of the bottle than LSX90, I noticed.

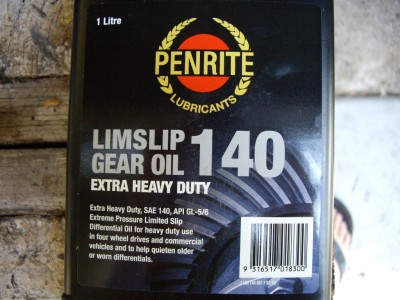

I use Penrite Limslip 140.





Attachments:
IMGP3192.JPG [ 405.61 KiB | Viewed 34 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: diff not locking up
Posted: Mon Jan 04, 2010 1:23 am
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 3374

Joined: 11th Mar 2008

Ride: EA SVO, AU2 Forte

Location: Bendigo
VIC, Australia

cjh wrote:
WILDEB wrote:

no i don't. oil choice can change everything. like i said. that castrol XFA stuff works awesome


I changed the oil in a mates AU XR8, to that Castrol SF-XA, and the diff started making noises 3 weeks later.....and he doesn't drive hard...he's a grandma at driving.
I rebuilt the diff, and used LSX90 in it, and had no more probs with it after that.
The SF-XA seems thinner straight out of the bottle than LSX90, I noticed.
I use Penrite Limslip 140.


Ford use Castrol factory. and it's 80w140



_________________

Daily driver: AU2. 5 speed. 19" FG luxos. Full exhaust. Lowered. AU3 XR leather interior, converted to full power windows. 3.45 LSD. IN THE FUTURE: Tickford 6
Weekend driver: EA SVO AU motor. Built BTR. TCE 2800 stall. T76 turbo. Locked diff. On E85. approx 320rwkw. 11.5 @121mph

Top
 Profile


 Post subject: Re: diff not locking up
Posted: Mon Jan 04, 2010 8:29 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

as 67rce said its a lsd (limited slip) not a lock diff, so there will be the odd occasions where it may not spin both wheels..
the thing is some oils are better than others, i use penrite 10 tenths hd gear oil and it works a treat..
but even with castrol lsx the lsd should work as its meant to..
so if the diff is showing signs of loose/lazy lsd? its tired and ready for a reco..
Top
 Profile


 Post subject: Re: diff not locking up
Posted: Mon Jan 04, 2010 4:36 pm
Tyre Shredder
Offline

Posts: 341

Joined: 5th Dec 2009

Location: Perth
WA, Australia

Ford recommend 90 weight for the 3.23 and 85/140 for the 3.45.
Unless you do burnouts you wont need 85/140, too heavy for everyday driving and will increase fuel consumption slightly.
I use lsx90 in my 3.45 lsd and it is fine, of course the diff was already in good nick.
