 Post subject: diff swap from ed to ea
Posted: Fri Mar 10, 2006 4:07 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

hi

i just got a diff from a ed xr and want to put it in my ea
i noticed that the pinion yolks are different the ed has a round flange wih the uni clips on the outside and the ea has a saddle type flange(uni joins strait to yolk).with uni clips on the inside
will i have to get a different tail shaft or will i have to get a custom uni...
or do you think the uni's are interchangable....???????????





Attachments:

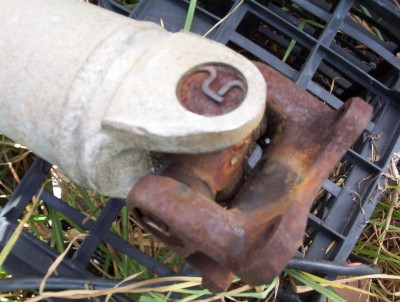

File comment: ea universal
ea uni.jpg
ea uni.jpg [ 81.13 KiB | Viewed 17 times ]

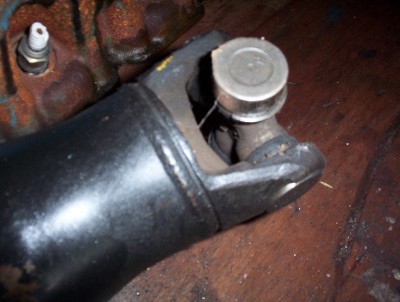

File comment: ed universal
ed uni.jpg
ed uni.jpg [ 97.3 KiB | Viewed 28 times ]
Top
 Profile


Posted: Sun Mar 19, 2006 12:31 am
Getting Side Ways
Offline

Age: 33

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: NCII Fairlane

Location: Bathurst
NSW, Australia

hmm that ed one looks a bit cRusty and yeah??



_________________

R.I.P Tobias my son.

Top
 Profile


Posted: Sun Mar 19, 2006 9:03 am
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 1434

Joined: 5th Nov 2004

Gallery: 15 images

Ride: ALTED XR6 - ALTED EA - EF TAXI

Location: Sunshine Coast QLD
QLD, Australia

Okay, you need to change the flange on your EA diff on to your ED diff, Not hard at all, Or get a EB2-ED tailshalft (better option)

Also, You need to do something with the rear lower control arms, EA's had smaller bushes with the rear control arms, EB2-ED had bigger ones.

What you can do is use your EA ones, press the rear bush out (where it joins the diff housing) and put a EB2-ED one in .

Done & done .
Top
 Profile


Posted: Sun Mar 19, 2006 10:50 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

Froudey wrote:
hmm that ed one looks a bit cRusty and yeah??


yea its a bit rusty its been sitting outside for the last 5 years
the tail shafts bent due to the car hitting a pole..
i used it to show the difference...
Top
 Profile


Posted: Sun Mar 19, 2006 10:54 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

altedxr6 wrote:
Okay, you need to change the flange on your EA diff on to your ED diff, Not hard at all, Or get a EB2-ED tailshalft (better option)

Also, You need to do something with the rear lower control arms, EA's had smaller bushes with the rear control arms, EB2-ED had bigger ones.

What you can do is use your EA ones, press the rear bush out (where it joins the diff housing) and put a EB2-ED one in .

Done & done .


ok
so the flange on the diffs are interchangable..??
if so cool !!...i will just change the flanges over because i will put the ea diff in the ed so i can sell it..
thanks
