E series ball joints help wanted



Page 1 of 1 [ 11 posts ]


 Post subject: E series ball joints help wanted
Posted: Fri May 29, 2009 4:09 am
Getting Side Ways
Offline
User avatar

Age: 55

Posts: 1566

Joined: 12th Apr 2008

Gallery: 17 images

Ride: 5.0lt NF /351 ZD Fairlane

Location: Wattle Grove
NSW, Australia

apparently i need two bottom ball joints on the NF, was quoted $420 incl. wheel alignment, pedders who else, mates workshop said between $250 - $300, i say F**K!!! are these models so hard to change? really? they are only stinkin' ball joints right? i have done many X series what is the go with E series?



_________________

NF Fairlane with 5.0 and 5 speed goodness!
ZD build thread under construction at post1136180.html#p1136180

Top
 Profile


 Post subject: Re: E series ball joints help wanted
Posted: Fri May 29, 2009 8:33 am
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

You need a HUGE press to get them in and out.

You can get a set of 4 from Suzukisuper on Ebay for $55, and Wholesale Suspension in Penrith quoted Racedirector $70 to remove and replace them. Provided of course you take them the upright already removed.

BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: E series ball joints help wanted
Posted: Fri May 29, 2009 11:19 am
Getting Side Ways
Offline
User avatar

Age: 55

Posts: 1566

Joined: 12th Apr 2008

Gallery: 17 images

Ride: 5.0lt NF /351 ZD Fairlane

Location: Wattle Grove
NSW, Australia

Once again it's BenJ to the rescue, thanks for that!



_________________

NF Fairlane with 5.0 and 5 speed goodness!
ZD build thread under construction at post1136180.html#p1136180

Top
 Profile


 Post subject: Re: E series ball joints help wanted
Posted: Fri May 29, 2009 3:48 pm
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 1597

Joined: 20th Mar 2005

Ride: EDL Fairmont Wagon/AU XR8 Ghia

Location: Riverstone
NSW, Australia

Yup, just did that. Like Ben said, Suzukisuper ball joints, picked up @ $55.00 a set. They are called CV Joints Australia in real life, in Auburn. Wholesale Suspension, Penrith changed them over (all 4) in an hour for $75.00. I took the stub axels in to them....

If you do get the ball joints from Suzkisuper, check they all have nuts! I am missing one and they have sent me the wrong replacements. Gotta get back on the phone again...

Cheers
RD



_________________

=1994 ED Wagon GLi body/EL Fairmont spec with *ALL* EL running gear.=
Build Thread: viewtopic.php?f=53&t=65695
=1998 EL Futura Sedan - The EF Fairmonts Replacement=
Build Thread: viewtopic.php?f=53&t=106588

Top
 Profile


 Post subject: Re: E series ball joints help wanted
Posted: Fri May 29, 2009 4:01 pm
Getting Side Ways
Offline

Age: 66

Posts: 2548

Joined: 18th Mar 2006

Ride: EF-XR8chaser

Location: wollongong
NSW, Australia

racedirector wrote:
Yup, just did that. Like Ben said, Suzukisuper ball joints, picked up @ $55.00 a set. They are called CV Joints Australia in real life, in Auburn. Wholesale Suspension, Penrith changed them over (all 4) in an hour for $75.00. I took the stub axels in to them....

If you do get the ball joints from Suzkisuper, check they all have nuts! I am missing one and they have sent me the wrong replacements. Gotta get back on the phone again...

Cheers
RD

can you give me the adress for wholesale suspensions-penrith,as i have a set to be changed also,do i get the ford mods discount? got the same labour problem down here :twisted: :twisted: :twisted: :twisted: will come up early for a kks meet and have them done soon.



_________________

R.I.P HANS HARTMAN

Top
 Profile


 Post subject: Re: E series ball joints help wanted
Posted: Fri May 29, 2009 4:05 pm
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 1597

Joined: 20th Mar 2005

Ride: EDL Fairmont Wagon/AU XR8 Ghia

Location: Riverstone
NSW, Australia

hans hartman wrote:
racedirector wrote:
Yup, just did that. Like Ben said, Suzukisuper ball joints, picked up @ $55.00 a set. They are called CV Joints Australia in real life, in Auburn. Wholesale Suspension, Penrith changed them over (all 4) in an hour for $75.00. I took the stub axels in to them....

If you do get the ball joints from Suzkisuper, check they all have nuts! I am missing one and they have sent me the wrong replacements. Gotta get back on the phone again...

Cheers
RD

can you give me the adress for wholesale suspensions-penrith,as i have a set to be changed also,do i get the ford mods discount? got the same labour problem down here :twisted: :twisted: :twisted: :twisted: will come up early for a kks meet and have them done soon.

Dunno about fordmods discount :)

Address is 129 Coreen Ave, Penrith - phone 4721 2112.

Damn nice people, even offered a coffee while I waited....

Cheers
RD



_________________

=1994 ED Wagon GLi body/EL Fairmont spec with *ALL* EL running gear.=
Build Thread: viewtopic.php?f=53&t=65695
=1998 EL Futura Sedan - The EF Fairmonts Replacement=
Build Thread: viewtopic.php?f=53&t=106588

Last edited by racedirector on Fri May 29, 2009 4:23 pm, edited 1 time in total.

Top
 Profile


 Post subject: Re: E series ball joints help wanted
Posted: Fri May 29, 2009 4:20 pm
Getting Side Ways
Offline

Age: 66

Posts: 2548

Joined: 18th Mar 2006

Ride: EF-XR8chaser

Location: wollongong
NSW, Australia

thanks RD im still at home and more tests,reconditioning me at the moment,then the cars.



_________________

R.I.P HANS HARTMAN

Top
 Profile


 Post subject: Re: E series ball joints help wanted
Posted: Fri May 29, 2009 5:01 pm
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 1597

Joined: 20th Mar 2005

Ride: EDL Fairmont Wagon/AU XR8 Ghia

Location: Riverstone
NSW, Australia

hans hartman wrote:
thanks RD im still at home and more tests,reconditioning me at the moment,then the cars.

You get/stay well Hans, health is more important than cars!



_________________

=1994 ED Wagon GLi body/EL Fairmont spec with *ALL* EL running gear.=
Build Thread: viewtopic.php?f=53&t=65695
=1998 EL Futura Sedan - The EF Fairmonts Replacement=
Build Thread: viewtopic.php?f=53&t=106588

Top
 Profile


 Post subject: Re: E series ball joints help wanted
Posted: Fri May 29, 2009 7:25 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 1833

Joined: 3rd May 2007

Gallery: 8 images

Ride: AUII XR6 Uterus

Location: South Coast
NSW, Australia

yer i've got a dodgey 6 tonne shop press at home and i can't get them out. for the time it would take me to make proper dies n dollies etc it's cheaper for me to take them to pedders. thats the knuckle/stubaxle assembly out of the car of course.

took them to selby's once and had one flog out before 5,000k's wasn't happy n they didn't want to know about it. everyone i talked to or showed it to reckoned it mustve had at least 500,000k's on it, what a load.



_________________

Not to get technical, but according to chemistry alcohol is a solution.

Top
 Profile


 Post subject: Re: E series ball joints help wanted
Posted: Fri May 29, 2009 8:14 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

I recently experimented with removing the ball joints from a spare set of spindles I had and I got them out easily by Hammer and water pipe. I then did the same on my car spindles but took it to repco to get them pressed in.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


 Post subject: Re: E series ball joints help wanted
Posted: Mon Jun 01, 2009 11:43 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

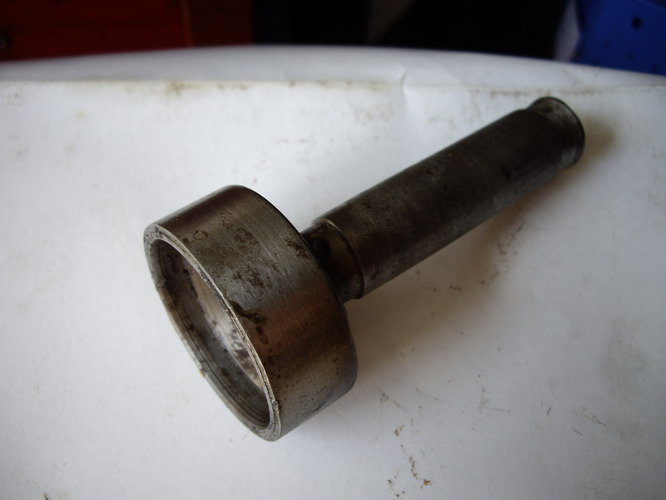

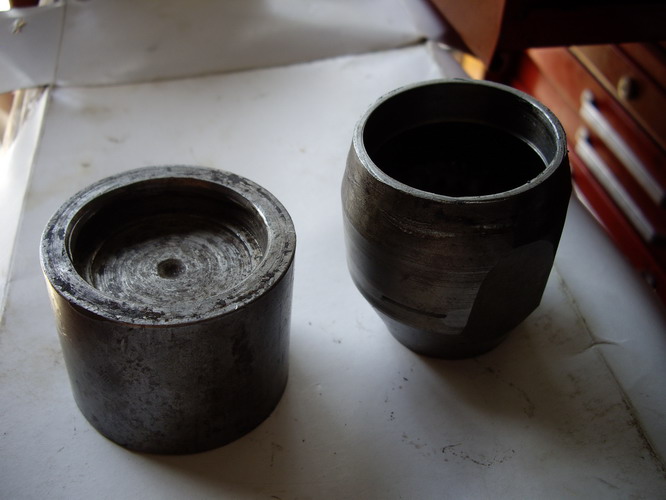

The ball joints sre easy to get out, just used a long heavy drift and a decent size hammer, out in 3 to 4 whacks. I made some instalation tools to put them back in, but depending on what brand they are, you usually have to take the boots off, so as not to damage them.
I even made a tool to put the grease cap on.





Attachments:
IMGP1070_resize.JPG [ 52.08 KiB | Viewed 16 times ]
IMGP1069_resize.JPG [ 68.58 KiB | Viewed 16 times ]
