EB into EA - NEED TO SWAP CENTRES



Page 1 of 1 [ 11 posts ]


 Post subject: EB into EA - NEED TO SWAP CENTRES
Posted: Tue Mar 10, 2009 2:42 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 529

Joined: 22nd Aug 2008

Gallery: 4 images

Ride: EB

Location: Wellington
New Zealand

I just scored a 3.23 lsd out of an eb for a song. Am I going to have any forseable trouble putting it in? Any tips/link to a walkthrough? Maybe I would be better off putting just the centre in? Currently have a 3.08.

Thanks

EDIT-Ok now i have to swap centres, the trailing arms are gone. Is it easy to swap the centres? Does anyone knowif the 3.23 was 28 or 25 spline i.e. am I gonna have to swap axles aswell?



_________________

1989 EA Falcon column shift - SOLD
1990 EAII, BBM, EL ECU, T5, LSD - SOLD
1993 EBII Fairmont Ghia V8 - SOLD
2006 BF Fairlane Ghia 6C

Huge thanks to BenJ, TROYMAN, fiend and XR-Lane. The E-series knowledge/motivation pool.

Last edited by NZEA on Wed Mar 11, 2009 2:34 pm, edited 1 time in total.

Top
 Profile


 Post subject: Re: EB diff into EA
Posted: Tue Mar 10, 2009 6:23 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

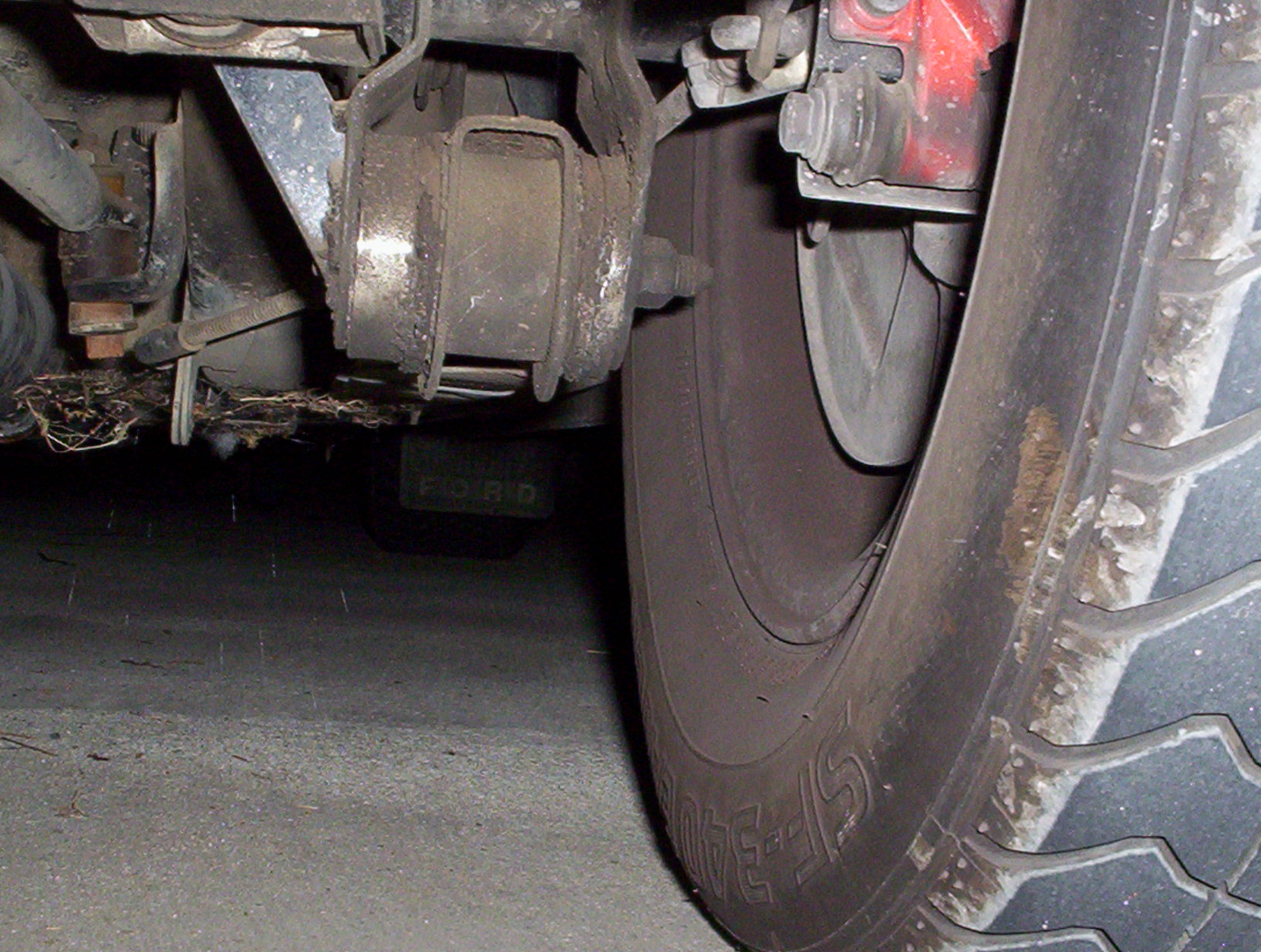

Use the EB tailshaft.....and you'll need to make some spacers for the lower trailing arms. The bushes in the EA lower trailing arms are narrower than the EB/ED ones.





Attachments:
Rear trailing arm spacers & bracing. 002.jpg
Rear trailing arm spacers & bracing. 002.jpg [ 413.23 KiB | Viewed 14 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: EB diff into EA
Posted: Tue Mar 10, 2009 7:08 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 529

Joined: 22nd Aug 2008

Gallery: 4 images

Ride: EB

Location: Wellington
New Zealand

s**t haha! I was just out there having a look at it and thats what i thought and I can't believe how different my drive shaft is! Could I use the trailing arms off the EB? They're still up there for me to grab, so is the drive shaft thank f**k.

What do you all reckon about swapping the centres being easier to do than this?



_________________

1989 EA Falcon column shift - SOLD
1990 EAII, BBM, EL ECU, T5, LSD - SOLD
1993 EBII Fairmont Ghia V8 - SOLD
2006 BF Fairlane Ghia 6C

Huge thanks to BenJ, TROYMAN, fiend and XR-Lane. The E-series knowledge/motivation pool.

Top
 Profile


 Post subject: Re: EB diff into EA
Posted: Tue Mar 10, 2009 7:42 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 1833

Joined: 3rd May 2007

Gallery: 8 images

Ride: AUII XR6 Uterus

Location: South Coast
NSW, Australia

not sure bout swappin the centers, if your not experienced i wouldn't recommend it if it's an lsd, they have to be shimmed and all sorts of shyte.

i just changed the tailshaft in mine,for one reason or another the diff union was different and the trailing arms the same (go ford for consistancy!), from the stupid seat arranement to the flange style. more reliable engineering wise i would imagine. i've heard of the spacers before and i'm pretty sure you can't just change the arms to because the chasis mounts are different pitch aswell. short of that you could cut the two sets in half, mix n' match then re-attatch. would be ok aslong as you know how to put down a decent weld. properly thought out spacers should do the job though.



_________________

Not to get technical, but according to chemistry alcohol is a solution.

Top
 Profile


 Post subject: Re: EB diff into EA
Posted: Tue Mar 10, 2009 7:52 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 529

Joined: 22nd Aug 2008

Gallery: 4 images

Ride: EB

Location: Wellington
New Zealand

Thanks for the replies! Ok stick the whole thing in it is! Yeah the newer drive shafts look much more reliable. I'll go grab that.

What should I make the spacers out of? Should be easy enough to get the measurements, just fill in the gap to the nearest milimetre. Don't have a welder so hybrid arm not an option...



_________________

1989 EA Falcon column shift - SOLD
1990 EAII, BBM, EL ECU, T5, LSD - SOLD
1993 EBII Fairmont Ghia V8 - SOLD
2006 BF Fairlane Ghia 6C

Huge thanks to BenJ, TROYMAN, fiend and XR-Lane. The E-series knowledge/motivation pool.

Top
 Profile


 Post subject: Re: EB diff into EA
Posted: Tue Mar 10, 2009 8:41 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 1833

Joined: 3rd May 2007

Gallery: 8 images

Ride: AUII XR6 Uterus

Location: South Coast
NSW, Australia

will need a lathe to make bushes (spacers) acurately, catch 22 lol

you would want the bushes to be mild steel i would imagine, while i'd be inclined to make them out of ally, it's best to keep the compositions the same, otherwise you might be introducing parts that are prone to premature wear.

another alternative is to cut the brackets on the diff off (either inner or outer) and move to where necessary but since you don't have a welder thats useless information lol



_________________

Not to get technical, but according to chemistry alcohol is a solution.

Top
 Profile


 Post subject: Re: EB diff into EA
Posted: Tue Mar 10, 2009 8:51 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

or you can use the eb lower arms..
but you will need to grind of the 10mm or so spacers that are tack welded to the body where the lower arms mount.
thats what i did when i put the ed diff in my ea..
Top
 Profile


 Post subject: Re: EB diff into EA
Posted: Tue Mar 10, 2009 8:57 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 529

Joined: 22nd Aug 2008

Gallery: 4 images

Ride: EB

Location: Wellington
New Zealand

Yeah latheless i am...

Troyman I just saw your post saying exactly that and decided to stop thread trawling for answers right there. Seems to me the best way to go will be to go get the arms and grind those redundant spacers off so as to fit them up, no angle problem as mentioned above?

And I'll get the better looking drive shaft on there too.

Thanks for all the help guys, have been racking my brain over what to do, good to know methods that have been tried and proven aye.



_________________

1989 EA Falcon column shift - SOLD
1990 EAII, BBM, EL ECU, T5, LSD - SOLD
1993 EBII Fairmont Ghia V8 - SOLD
2006 BF Fairlane Ghia 6C

Huge thanks to BenJ, TROYMAN, fiend and XR-Lane. The E-series knowledge/motivation pool.

Top
 Profile


 Post subject: Re: EB diff into EA
Posted: Tue Mar 10, 2009 9:26 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 1833

Joined: 3rd May 2007

Gallery: 8 images

Ride: AUII XR6 Uterus

Location: South Coast
NSW, Australia

seems like the best way to go,

another enlightening post by troyman :) a valuble assett of fordmods.



_________________

Not to get technical, but according to chemistry alcohol is a solution.

Top
 Profile


 Post subject: Re: EB diff into EA
Posted: Wed Mar 11, 2009 7:51 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 529

Joined: 22nd Aug 2008

Gallery: 4 images

Ride: EB

Location: Wellington
New Zealand

Seconded!

Are the axles, gears and centre gonna fit in my EA housing??

Maybe I'm just being lazy and need to rip the lower arms out of another car. Just not sure sbout the grinding, will have to make some measurements.



_________________

1989 EA Falcon column shift - SOLD
1990 EAII, BBM, EL ECU, T5, LSD - SOLD
1993 EBII Fairmont Ghia V8 - SOLD
2006 BF Fairlane Ghia 6C

Huge thanks to BenJ, TROYMAN, fiend and XR-Lane. The E-series knowledge/motivation pool.

Top
 Profile


 Post subject: Re: EB diff into EA
Posted: Wed Mar 11, 2009 5:14 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

NZEA wrote:
Seconded!

Are the axles, gears and centre gonna fit in my EA housing??

Maybe I'm just being lazy and need to rip the lower arms out of another car. Just not sure sbout the grinding, will have to make some measurements.


The EBII housing has an oil drain in it, and the EA doesn't.
I fitted the EBII housing, and put my EA LSD centre in, with the EBII gears and used the EA axles.
So i got the EBII ratio of 3.27......down from the EA ratio of 2.92.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile
