 Post subject: ef 3.45 lsd whole diff into eb series 1 falcon
Posted: Sat Mar 17, 2007 10:24 pm
Getting Side Ways
Offline
User avatar

Posts: 1603

Joined: 7th Nov 2004

Gallery: 5 images

Ride: v6 anniversary accord

Location: kempsey
NSW, Australia

once again im a fat lazy f**k...this time i actually did look first...
i have a complete ef ghia 3.45 lsd sitting in the shed..i want to put it into my eb...i have to change trailing arms dont i?
wot else and can anyone point me in the direction of a thread re this as i need to know about speedo changes as well.
cheers.



_________________

'WALKER f**k MY WIFE AND ALL I GOT WAS THIS s**t SIGGIE'

Top
 Profile


Posted: Sat Mar 17, 2007 10:46 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

hi
i put a ed diff in me ea and i had to change the bushes in the lower trailing arms
because the ed has wider bushes than the ea ..(i think ea is the same series 1 eb)
so you pretty much have to use the ea arms and replace the rear lower bushes or use the ed arms and remove the spacers from the chasis where the lower arms attach the body..
and the tailshaft flange is also different..
you can use the ea/eb tail shaft and change the diff flange or you can use the ed tailshaft .. they all interchange with each other...
Top
 Profile


Posted: Sat Mar 17, 2007 11:07 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

I have an EBII diff in my 88EA. I made alloy spacers for the rear trailing arm bushes, and used the EBII tailshaft, wholusbowlus. I also added extra bracing for the bracket on the diff. Here's some pics.





Attachments:

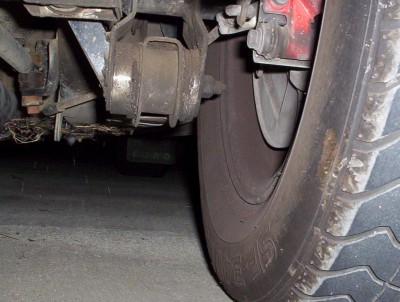

Rear trailing arm spacers & bracing. 002.jpg
Rear trailing arm spacers & bracing. 002.jpg [ 413.23 KiB | Viewed 27 times ]

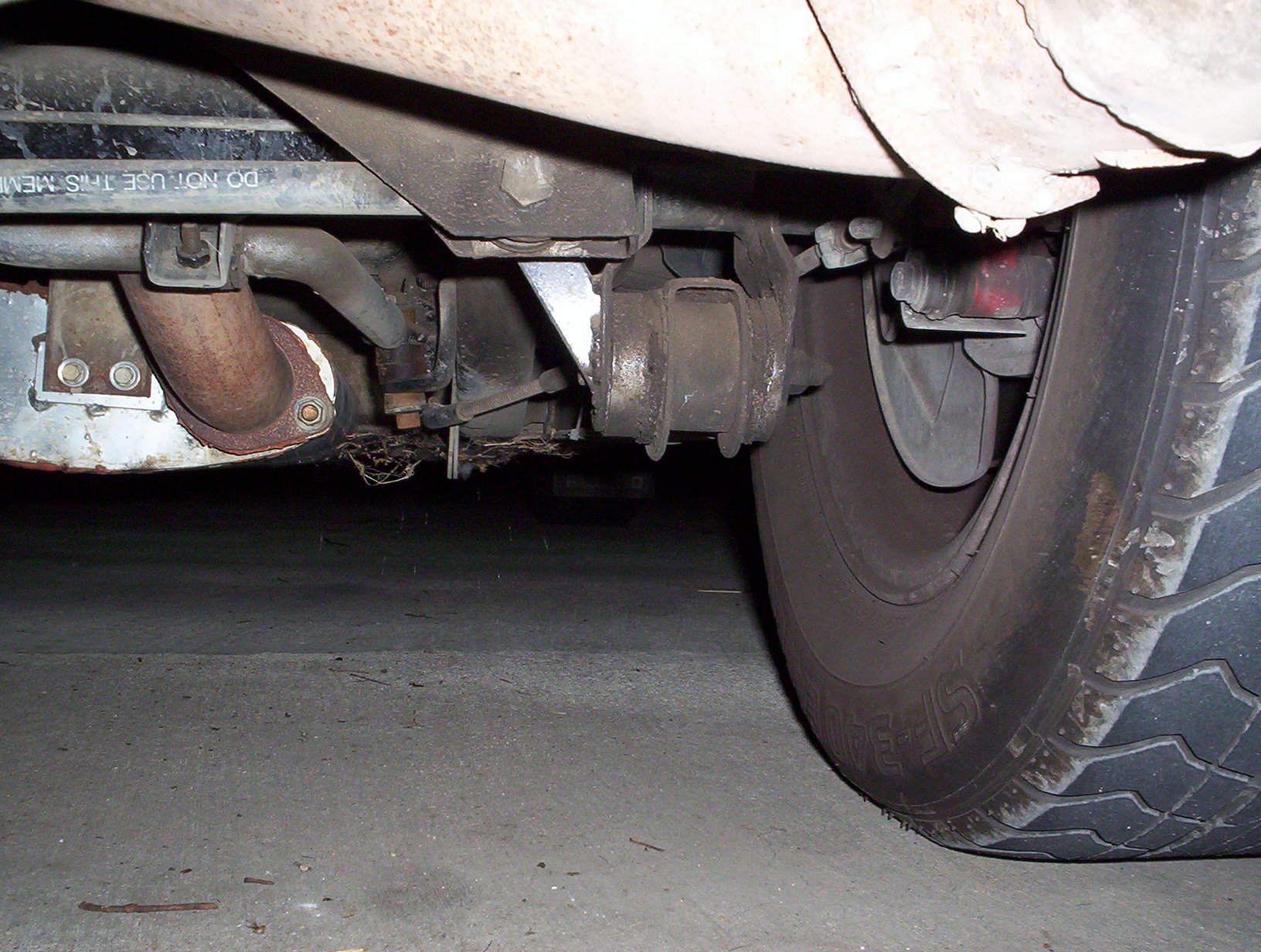

Rear trailing arm spacers & bracing. 001.jpg
Rear trailing arm spacers & bracing. 001.jpg [ 476.44 KiB | Viewed 38 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sat Mar 24, 2007 1:10 am
Tyre Shredder
Online
User avatar

Age: 31

Posts: 325

Joined: 15th Apr 2006

Ride: F350, EF2 Ghia, XC & Corty

Power: 218 rwkw

Location: Wangaratta
VIC, Australia

My XE is running an EB2 3.27 diff. I used the XE trailing arms which is used up to EB1, and fitted a spacer made of flat plate with a hole drilled in it, and an EF XR6 tailshaft. Big bad harmonic bal on tailshaft yolk nearly rubs on floor tho.



_________________

13.28@103.73mph

Top
 Profile


Posted: Sat Mar 24, 2007 4:26 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

balizticbobo wrote:
My XE is running an EB2 3.27 diff. I used the XE trailing arms which is used up to EB1, and fitted a spacer made of flat plate with a hole drilled in it, and an EF XR6 tailshaft. Big bad harmonic bal on tailshaft yolk nearly rubs on floor tho.


EA's never had those balancer slip yoke setups. I'd be using an earlier t/shaft, it might fix your wobble prob.
