 Post subject: ef auto to manual conversion HELP ON ELECTRIAL
Posted: Mon Aug 06, 2007 9:55 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 721

Joined: 31st Dec 2005

Ride: EF V8 Futura, 180sx

Location: Brisbane, Burpengary
QLD, Australia

hey guys
ive already got the t5 box in and all clutch pedal and cable and all that gear in all i got left is electrical which is where my problem is.

Anyone know what modification are ment to be done to the manual loom???

the manual loom i got one of the netural saftey switch on a single plug on it own with no where to connect too

what am i doing wrong????

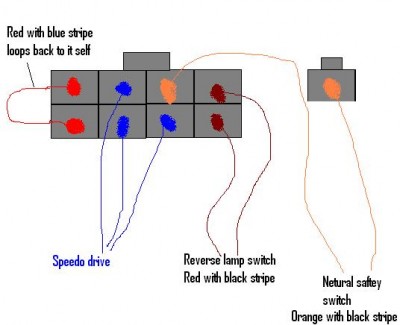

the pic below is a drawing of the manual loom





Attachments:
manual loom.JPG
manual loom.JPG [ 26.12 KiB | Viewed 129 times ]



_________________

Ford EF Futura Black
18" koya Strykers, AU engine with port and polish EB head, crow valve springs, standard cam, Large aftermarket RX7 turbo, T5 manual 3" intercooler piping, 600x300x100 intercooler core, MSII with innovate wideband O2 sensor and guage. BA F6 bodykit

Top
 Profile


Posted: Mon Aug 06, 2007 10:20 pm
Getting Side Ways
Offline
User avatar

Age: 42

Posts: 1001

Joined: 5th Nov 2004

Gallery: 19 images

Ride: EL Fairmont Ghia

Power: 132 rwkw

Location: Brisbane
QLD, Australia

where in brissy are ya man, i have converted mine to a manual too, was a bit fiddly, but I used the auto harness and cut a bit of the manual harness and got it all working that way.


neutral safety switch is on top of the gear box at the front by memory. and the reverse sensor is at the side on the left hand side.



_________________

175.7hp 15.5 @ 374,000km
Team I have two E-Series AND all my teeth.

Top
 Profile


Posted: Mon Aug 06, 2007 10:41 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 721

Joined: 31st Dec 2005

Ride: EF V8 Futura, 180sx

Location: Brisbane, Burpengary
QLD, Australia

i live in burpengary and i work in windsor so im in city way so im able to go anywhere after work cause im in middle of city nearly.

so what did you use off the manual loom and auto loom?
if you could draw up a sketch or some out something. really killing me having no car as well as can't wait for a manual.



_________________

Ford EF Futura Black
18" koya Strykers, AU engine with port and polish EB head, crow valve springs, standard cam, Large aftermarket RX7 turbo, T5 manual 3" intercooler piping, 600x300x100 intercooler core, MSII with innovate wideband O2 sensor and guage. BA F6 bodykit

Top
 Profile


Posted: Mon Aug 06, 2007 10:53 pm
Getting Side Ways
Offline
User avatar

Age: 42

Posts: 1001

Joined: 5th Nov 2004

Gallery: 19 images

Ride: EL Fairmont Ghia

Power: 132 rwkw

Location: Brisbane
QLD, Australia

I used an ea wagon box loom. I cant remember what i used, but i know i didnt use the neutral switch cos i hate those bloody things. Im over at virginia/zillmere/cashmere lately, so if you want i could meet you somewhere and show you the wiring harness i made up
do you have a manual ecu dude?



_________________

175.7hp 15.5 @ 374,000km
Team I have two E-Series AND all my teeth.

Top
 Profile


Posted: Mon Aug 06, 2007 10:56 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 721

Joined: 31st Dec 2005

Ride: EF V8 Futura, 180sx

Location: Brisbane, Burpengary
QLD, Australia

yer i go threw chermenside everyday right next door really

i only got auto ecu so i got to mod the auto plug as well from what ive herd



_________________

Ford EF Futura Black
18" koya Strykers, AU engine with port and polish EB head, crow valve springs, standard cam, Large aftermarket RX7 turbo, T5 manual 3" intercooler piping, 600x300x100 intercooler core, MSII with innovate wideband O2 sensor and guage. BA F6 bodykit

Top
 Profile


Posted: Tue Aug 07, 2007 6:03 pm
Getting Side Ways
Offline
User avatar

Age: 42

Posts: 1001

Joined: 5th Nov 2004

Gallery: 19 images

Ride: EL Fairmont Ghia

Power: 132 rwkw

Location: Brisbane
QLD, Australia

yeah you do. if the car wont start its probably because the ecu thinks the car is in gear or not in gear.
Keep your eye out for a manual ecu, as they make the car run farq loads better than a modded auto ecu



_________________

175.7hp 15.5 @ 374,000km
Team I have two E-Series AND all my teeth.

Top
 Profile


Posted: Tue Aug 07, 2007 6:58 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 721

Joined: 31st Dec 2005

Ride: EF V8 Futura, 180sx

Location: Brisbane, Burpengary
QLD, Australia

yer thought so

dosen't really matter aboute ecu anyhow i do plan to run aftermarket one in future unless i can get manual ecu cheap
