EF master cylinder switches



Page 1 of 2 [ 16 posts ] Go to page 1, 2  Next


 Post subject: EF master cylinder switches
Posted: Sun Feb 19, 2006 12:29 am
Getting Side Ways
Offline
User avatar

Posts: 3363

Joined: 27th Dec 2004

Gallery: 4 images

Ride: MCMXCV Falcon

Location: G town
VIC, Australia

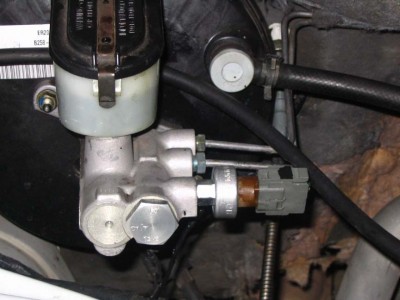

what is the plug at the end on some master cylinders not the other plug under the cylinder..

(pic attached)

is it for the ABS or cruise...

my EF fairmont has it....(has ABS & cruise)
on another EF2 fairmont it also had it..

but on another 3 EF GLis/futuras I saw that had ABS & cruise they didnt have it...

so it seems if its a cruise control switch its only on fairmonts and not on GLIs





Attachments:
t_pressure_switch_205.jpg [ 30.42 KiB | Viewed 127 times ]



_________________


Top
 Profile


Posted: Sun Feb 19, 2006 1:15 am
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 1000491

Joined: 6th Nov 2004

Gallery: 2 images

Ride: AUXR6 HP With Ducati SupA Bike!

Location: Perth
WA, Australia

that is a cruise control switch



_________________

RIP SCOTT

Top
 Profile


Posted: Sun Feb 19, 2006 2:04 am
Getting Side Ways
Offline
User avatar

Posts: 3363

Joined: 27th Dec 2004

Gallery: 4 images

Ride: MCMXCV Falcon

Location: G town
VIC, Australia

why is not on all cars with cruise installed?



_________________


Top
 Profile


Posted: Sun Feb 19, 2006 2:26 am
Getting Side Ways
Offline

Age: 36

Posts: 3794

Joined: 9th Aug 2005

Ride: Hilux

Location: Mornington
VIC, Australia

it should be.... its the cruise control de-activate switch.



_________________

Now driving a Hilux

Top
 Profile


Posted: Sun Feb 19, 2006 3:08 am
Getting Side Ways
Offline

Posts: 3516

Joined: 8th Nov 2004

[self-deleted]

Last edited by blackjack_original on Fri Jun 06, 2014 8:22 pm, edited 1 time in total.

Top
 Profile


Posted: Sun Feb 19, 2006 3:50 am
Getting Side Ways
Offline
User avatar

Posts: 3363

Joined: 27th Dec 2004

Gallery: 4 images

Ride: MCMXCV Falcon

Location: G town
VIC, Australia

there is also another plug under the cylinder which is for the brake warning light...all have these but this one on the front is not always there...



_________________


Top
 Profile


Posted: Sun Feb 19, 2006 3:57 am
Getting Side Ways
Offline

Age: 36

Posts: 3794

Joined: 9th Aug 2005

Ride: Hilux

Location: Mornington
VIC, Australia

the brake fail light switch is a smaller white one



_________________

Now driving a Hilux

Top
 Profile


Posted: Sun Feb 19, 2006 4:11 am
Getting Side Ways
Offline

Posts: 3516

Joined: 8th Nov 2004

[self-deleted]

Last edited by blackjack_original on Fri Jun 06, 2014 8:22 pm, edited 1 time in total.

Top
 Profile


Posted: Sun Feb 19, 2006 11:23 am
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5588

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

It's for the cruise control, and all EF/EL/NF/NL/DF/DL vehicles fitted with factory cruise will have it. http://www.fordmods.com/forums/viewtopi ... ght=cruise
Also have a look at the doco: http://www.fordmods.com/forums/documents.php?doc=11 .



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Sun Feb 19, 2006 12:38 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 4102

Joined: 18th Nov 2004

Gallery: 10 images

Ride: PX2 Ranger 4x4 XLT Dual CAB

Location: Carrum Downs
VIC, Australia

Leroy wrote:
it should be.... its the cruise control de-activate switch.



its the cruise control de-activate Fail Safe switch. As normal de-actvation of the cruise is by the brake light switch.



_________________

She's meanness put to music and the b**ch is born to run!
Like the sign says, "speed's just a question of money. How fast can you go?"

Top
 Profile


Posted: Sun Feb 19, 2006 12:49 pm
Getting Side Ways
Offline
User avatar

Age: 79

Posts: 1233

Joined: 7th Apr 2005

Gallery: 7 images

Ride: GTHO PH 1 EF ex chaser

Location: Willow vale, GOLD COAST
QLD, Australia

blackjack_original wrote:
How very odd. Seems it does both accodring to my manual. Apparently, it is the warning switch on ABS equiped cars. On non-abs ones the warning switch is the one located underneath. And i just checked my car, non-abs, it has the small one underneath, and this one, with wires leading directly to the cruise control thing, so yeah can safley conclude it's for the CC on my GLi.

EDIT: Yeah, i thought i'd mention, i'm mostly eating my words, seems i was somewhat wrong. So anyway, can someone with a real ford manual check this out, so we all know for sure. Mines is a s**t one so it could be wrong.

If you have any questions pertaining to fords I have ALL the genuine mqanuals from XP to EL and am happy to help at any time, being a retired auto engineer I enjoy helping the FM guys and am on here EVERY day for at least 5 hours :roll: :D :D



_________________

Rotten Old Revhead!!! XW GTHO + EF ex cop car (exractors 2.5 cat back zorst !6" Simmons K&N +airbox mods Lowered with Bilstein shocks+Whiteline Bars NEXT THING Swap HO for GTP or Ferrari!

Top
 Profile


Posted: Sun Feb 19, 2006 4:13 pm
Getting Side Ways
Offline
User avatar

Posts: 3363

Joined: 27th Dec 2004

Gallery: 4 images

Ride: MCMXCV Falcon

Location: G town
VIC, Australia

yeah I saw the other post but it didnt seem to have a definate answer..

Yes it seems its part of the cruise system but that doesnt explain why it is missing from the EF GLI I have sitting here that has cruise installed....and also it was missing from another EF GLI that had cruise...



_________________


Top
 Profile


Posted: Mon Feb 20, 2006 12:12 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1097

Joined: 10th Nov 2004

Gallery: 10 images

Ride: GU patrol, XH XR6, Isuzu Mux

Location: Mackay
QLD, Australia

MINE WAS LEAKING HAD TO GET A NEW ONE FROM FORD, IT WAS LISTED AS A CRUSE PRESSURE SWITCH.



_________________

' 96 Xh XR6 Ute
'96 DF LTD 6cy
'08 GU Nissan Patrol
'15 Isuzu MUX LST

Top
 Profile


Posted: Mon Feb 20, 2006 8:33 am
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 4102

Joined: 18th Nov 2004

Gallery: 10 images

Ride: PX2 Ranger 4x4 XLT Dual CAB

Location: Carrum Downs
VIC, Australia

gogetta wrote:
yeah I saw the other post but it didnt seem to have a definate answer..

Yes it seems its part of the cruise system but that doesnt explain why it is missing from the EF GLI I have sitting here that has cruise installed....and also it was missing from another EF GLI that had cruise...


Maybe Ford added it to later models after all the brake light switch failures.
Or it could be the differance between Factory Fitted & Dealer Fitted.



_________________

She's meanness put to music and the b**ch is born to run!
Like the sign says, "speed's just a question of money. How fast can you go?"

Top
 Profile


Posted: Mon Feb 20, 2006 4:29 pm
Getting Side Ways
Offline
User avatar

Age: 79

Posts: 1233

Joined: 7th Apr 2005

Gallery: 7 images

Ride: GTHO PH 1 EF ex chaser

Location: Willow vale, GOLD COAST
QLD, Australia

madmax wrote:
gogetta wrote:
yeah I saw the other post but it didnt seem to have a definate answer..

Yes it seems its part of the cruise system but that doesnt explain why it is missing from the EF GLI I have sitting here that has cruise installed....and also it was missing from another EF GLI that had cruise...


Maybe Ford added it to later models after all the brake light switch failures.
Or it could be the differance between Factory Fitted & Dealer Fitted.

You Hit the nail on the head it was added as a fail safe in case the brake light switch FAILED. :D



_________________

Rotten Old Revhead!!! XW GTHO + EF ex cop car (exractors 2.5 cat back zorst !6" Simmons K&N +airbox mods Lowered with Bilstein shocks+Whiteline Bars NEXT THING Swap HO for GTP or Ferrari!

Top
 Profile
