 Post subject: EF Transmission Cooler
Posted: Wed Mar 25, 2009 11:19 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1097

Joined: 10th Nov 2004

Gallery: 10 images

Ride: GU patrol, XH XR6, Isuzu Mux

Location: Mackay
QLD, Australia

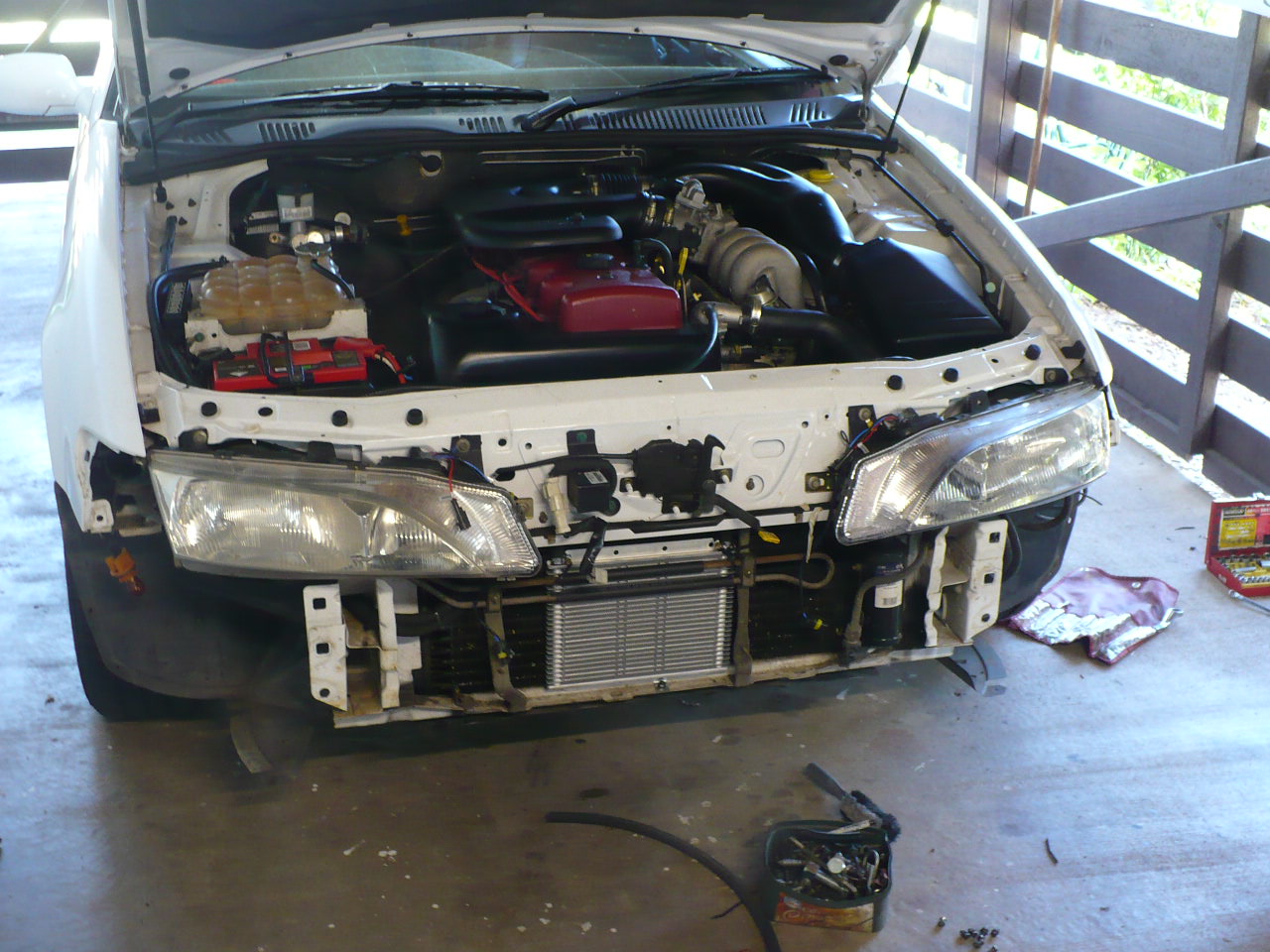

Instaled a PWR transmission cooler on my EF II Ghia today, Just wondering which is the best way to connect it. The instructions say to connect it in series with the existing radiator cooler down stream of the radiator which is the way I have connected it, or is it just better to completly bypass the radiator cooler and just install the new cooler in its place?





Attachments:
P1030430.JPG [ 252.94 KiB | Viewed 93 times ]



_________________

' 96 Xh XR6 Ute
'96 DF LTD 6cy
'08 GU Nissan Patrol
'15 Isuzu MUX LST

Top
 Profile


 Post subject: Re: EF Transmission Cooler
Posted: Thu Mar 26, 2009 12:48 am
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 2705

Joined: 6th Nov 2004

Gallery: 11 images

Ride: 2009 FG XR6 Sedan

Location: Melbourne
VIC, Australia

Best to have it in series with the radiator but after the return line from the radiator.
Top
 Profile


 Post subject: Re: EF Transmission Cooler
Posted: Thu Mar 26, 2009 8:32 am
Getting Side Ways
Offline

Posts: 2410

Joined: 4th Sep 2006

Location: Sydney
NSW, Australia

Hey dude

Can you post some close up pictures of the install and what u had to do to get it to fit like brackets and so on. Also what part number cooler is that???



_________________

Wanted Either Capri/Cortina/XY/XW/XR/XT with tough V8 stroker engine, auto, 9inch, upgraded brakes etc[/SIZE][/size][/color]

Top
 Profile


 Post subject: Re: EF Transmission Cooler
Posted: Thu Mar 26, 2009 11:20 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1097

Joined: 10th Nov 2004

Gallery: 10 images

Ride: GU patrol, XH XR6, Isuzu Mux

Location: Mackay
QLD, Australia

that is the only picture i have of the install and now its all back together but just mounted by a small 'L' shaped bracket bolted to the bottom of the cooler and the bottom radiator support panel. the top is just atteched to the power steering lines using cable ties, power steering lines are insulated with hose to stop rubbing through.

the cooler is a PWR PWR0/CV8 its the biggest model for a V8, i got it from E-Bay $135 delivered


I will just leave the cooler in series then

Im also giving the cooling system a birthday with a new water pump and radiator, its already got new hoses thermostat and thermostst cover. And soon to come going to Mechine the head and replace the head gasket with an AU falcon gasket.

Its already got the fan controller installed so by the end of it my plans are to have a cooling system able to with-stand the hottest of days even when towing.



_________________

' 96 Xh XR6 Ute
'96 DF LTD 6cy
'08 GU Nissan Patrol
'15 Isuzu MUX LST

Top
 Profile


 Post subject: Re: EF Transmission Cooler
Posted: Thu Mar 26, 2009 11:51 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 2705

Joined: 6th Nov 2004

Gallery: 11 images

Ride: 2009 FG XR6 Sedan

Location: Melbourne
VIC, Australia

Top
 Profile


 Post subject: Re: EF Transmission Cooler
Posted: Sat Mar 28, 2009 6:44 pm
Smokin em up
Offline
User avatar

Posts: 205

Joined: 14th Oct 2007

Gallery: 1 images

Ride: EF futura 96

Location: Le BrisVois
QLD, Australia

With a massive cooler such as yours, I hope you kept it instream with the radiator, or your auto probably wouldnt get up to temp that quickly. That pwr is twice the size of my pwr, and my pwr was twice the size of the factory fitted cooler.

Did you trim down that hose covering the ps cooler? you'll be losing cooling by covering almost half of the cooler with hose?

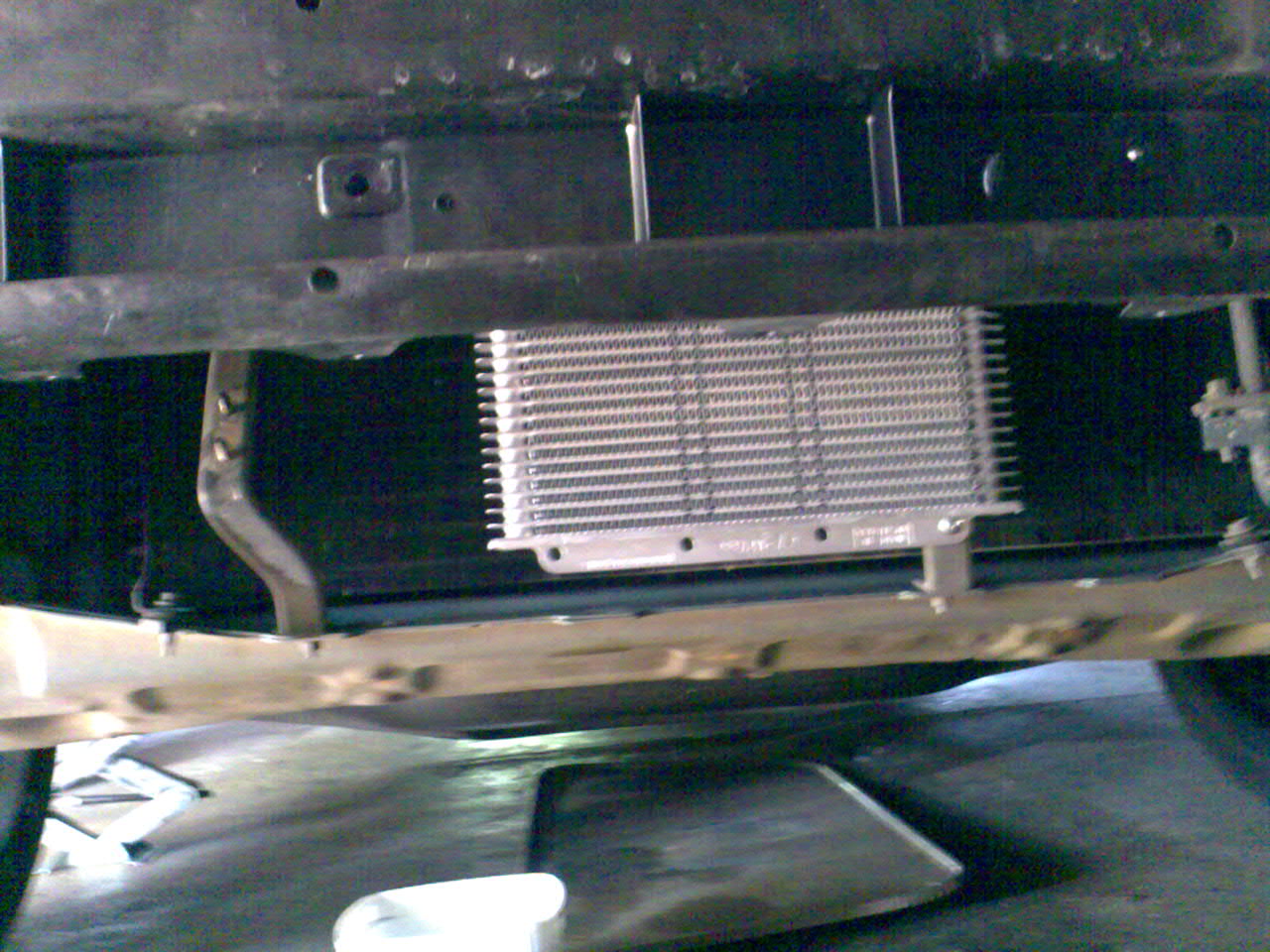

Micky, this is a s**t photo of my mounting, you can see the bottom screw, but the other is screwed on the same mounting up top, I think i used a cable tie over the left hand side like voids, It was pretty firm just with two screws but the tie is just a precaution.





Attachments:
Image010.jpg [ 227.48 KiB | Viewed 55 times ]
Image009.jpg [ 211.99 KiB | Viewed 51 times ]
Top
 Profile


 Post subject: Re: EF Transmission Cooler
Posted: Sat Mar 28, 2009 10:27 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1097

Joined: 10th Nov 2004

Gallery: 10 images

Ride: GU patrol, XH XR6, Isuzu Mux

Location: Mackay
QLD, Australia

yep my power steering lines are covered with a bit of hose to stop cooler from rubbing, but i figure 95% of my driving is highway so power steering is not working under too much load, maybe slower city driving might pose an issue.
