Fordmods Logo

ef xr diff into el



Page 1 of 2 [ 22 posts ] Go to page 1, 2  Next


 Post subject: ef xr diff into el
Posted: Sat Aug 12, 2006 3:15 pm
Commercial Sponsor
Offline
User avatar

Age: 34

Posts: 141

Joined: 21st Apr 2005

Ride: KH 4x4 turbo tx3

Location: lismore
NSW, Australia

hey just picked up a ef xr6 diff to go into my el, do i need to use the ef upper and lower control arms? also there is wires coming from the front side of the brakes on both sides and they run down the lower control arm, is this abs? thanks



_________________

KF 4x4 turbo tx3...with very few stock parts!
Forged bottom end, oversize pistons, Autronic ECU, D2 coilovers.
22 p.s.i

www.playwithcarbon.com
For all your carbonfiber, fiberglass needs!

Top
 Profile


Posted: Sat Aug 12, 2006 4:34 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

The upper control arms are the ones that changed between EF and EL. I am not sure but from what I recall, if it is an XR diff then it is this geometry that the EL suspension was based on. It may well be that the EL uppers fit anyway. The cables referred to are the ABS.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Sat Aug 12, 2006 9:23 pm
Getting Side Ways
Offline

Age: 34

Posts: 756

Joined: 21st Nov 2005

Gallery: 25 images

Ride: 1999 AU futura

Location: griffith
NSW, Australia

It will fit.The wires that come off the back of the disc area is for the abs sensors.I fitted a EL XR diff to a EF Falcon the other day at work straight bolt up.You might also wont to check your speedo once you replace your diff with an XR one,being different ratio's will put your speedo out.



_________________

COMING SOON,XD WITH A TURBO...CLEVO STYLE

Top
 Profile


Posted: Sun Aug 13, 2006 12:30 pm
Commercial Sponsor
Offline
User avatar

Age: 34

Posts: 141

Joined: 21st Apr 2005

Ride: KH 4x4 turbo tx3

Location: lismore
NSW, Australia

so with the upper control arms do i need to use the mounting brakets off the ef or only the arms, the brakets on the ef one seem to have 2 bolts holding it on and the el only has 1 i assume the arms will fit into the el brakets



_________________

KF 4x4 turbo tx3...with very few stock parts!
Forged bottom end, oversize pistons, Autronic ECU, D2 coilovers.
22 p.s.i

www.playwithcarbon.com
For all your carbonfiber, fiberglass needs!

Top
 Profile


Posted: Sun Aug 13, 2006 1:51 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2450

Joined: 5th Nov 2004

Gallery: 1 images

Ride: NL V8 Fairlane

Location: Sydney
NSW, Australia

You'll need the upper control arms, park brake cables are different.



_________________

There are 10 types of people in this world.
Those who know binary and those who don't.

Top
 Profile


Posted: Sun Aug 13, 2006 2:04 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2450

Joined: 5th Nov 2004

Gallery: 1 images

Ride: NL V8 Fairlane

Location: Sydney
NSW, Australia

EF arms will fit into the EL mounts, but they are an inch longer. tailshaft will be pointing towards the cabin.



_________________

There are 10 types of people in this world.
Those who know binary and those who don't.

Top
 Profile


Posted: Mon Aug 14, 2006 10:37 pm
Commercial Sponsor
Offline
User avatar

Age: 34

Posts: 141

Joined: 21st Apr 2005

Ride: KH 4x4 turbo tx3

Location: lismore
NSW, Australia

so where do i get a new speedo gear do i just go to my local ford dealer or do they charge a million dollars for them like they do everything else?



_________________

KF 4x4 turbo tx3...with very few stock parts!
Forged bottom end, oversize pistons, Autronic ECU, D2 coilovers.
22 p.s.i

www.playwithcarbon.com
For all your carbonfiber, fiberglass needs!

Top
 Profile


Posted: Tue Aug 15, 2006 6:52 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

Mr Ed wrote:
so where do i get a new speedo gear do i just go to my local ford dealer or do they charge a million dollars for them like they do everything else?
They are around or less than $10 from Fraud. There is a wheel size calc somewhere on here that you can work out which color one you need.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Sun Aug 20, 2006 7:02 pm
Commercial Sponsor
Offline
User avatar

Age: 34

Posts: 141

Joined: 21st Apr 2005

Ride: KH 4x4 turbo tx3

Location: lismore
NSW, Australia

ok well im halfway through doing this now and have some problems.. it seems that the upper control arms dont fit into the brackets,the EL's brakets are parallel with the car and the ef's control arms are at a bit of an angle. so, i'm assuming i use the ef's brackets, the problem is i dont know which side they go on.. depending on which side i put it on it can either move the arm up or down.. it looks more likely that it should be down, it all seems to line up better that way but then i realised you cant get the bolt that holds the arm in so i'll have to put the brackets on the arm first then put the diff in! does this sound right am i on the right track? thanks



_________________

KF 4x4 turbo tx3...with very few stock parts!
Forged bottom end, oversize pistons, Autronic ECU, D2 coilovers.
22 p.s.i

www.playwithcarbon.com
For all your carbonfiber, fiberglass needs!

Top
 Profile


Posted: Sun Aug 20, 2006 8:22 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

From memory the upper control arms are the same offsets and angles the only difference is the overall length. The mounting points should be square with the car not angled. The diff needs to be parrallel to the car othewise it might be difficult to get the bolts in.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Sun Aug 20, 2006 8:26 pm
Commercial Sponsor
Offline
User avatar

Age: 34

Posts: 141

Joined: 21st Apr 2005

Ride: KH 4x4 turbo tx3

Location: lismore
NSW, Australia

the xr arms arnt square with the car..



_________________

KF 4x4 turbo tx3...with very few stock parts!
Forged bottom end, oversize pistons, Autronic ECU, D2 coilovers.
22 p.s.i

www.playwithcarbon.com
For all your carbonfiber, fiberglass needs!

Top
 Profile


Posted: Sun Aug 20, 2006 8:27 pm
Commercial Sponsor
Offline
User avatar

Age: 34

Posts: 141

Joined: 21st Apr 2005

Ride: KH 4x4 turbo tx3

Location: lismore
NSW, Australia

they are square where they join the diff but not where they join the car



_________________

KF 4x4 turbo tx3...with very few stock parts!
Forged bottom end, oversize pistons, Autronic ECU, D2 coilovers.
22 p.s.i

www.playwithcarbon.com
For all your carbonfiber, fiberglass needs!

Top
 Profile


Posted: Sun Aug 20, 2006 8:33 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

You might need to get some EF non XR upper control arms then.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Sun Aug 20, 2006 8:49 pm
Commercial Sponsor
Offline
User avatar

Age: 34

Posts: 141

Joined: 21st Apr 2005

Ride: KH 4x4 turbo tx3

Location: lismore
NSW, Australia

hmm i think i'll try it with the xr ones surely they must work.. has anyone out there done this before??



_________________

KF 4x4 turbo tx3...with very few stock parts!
Forged bottom end, oversize pistons, Autronic ECU, D2 coilovers.
22 p.s.i

www.playwithcarbon.com
For all your carbonfiber, fiberglass needs!

Top
 Profile


Posted: Sun Aug 20, 2006 9:06 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

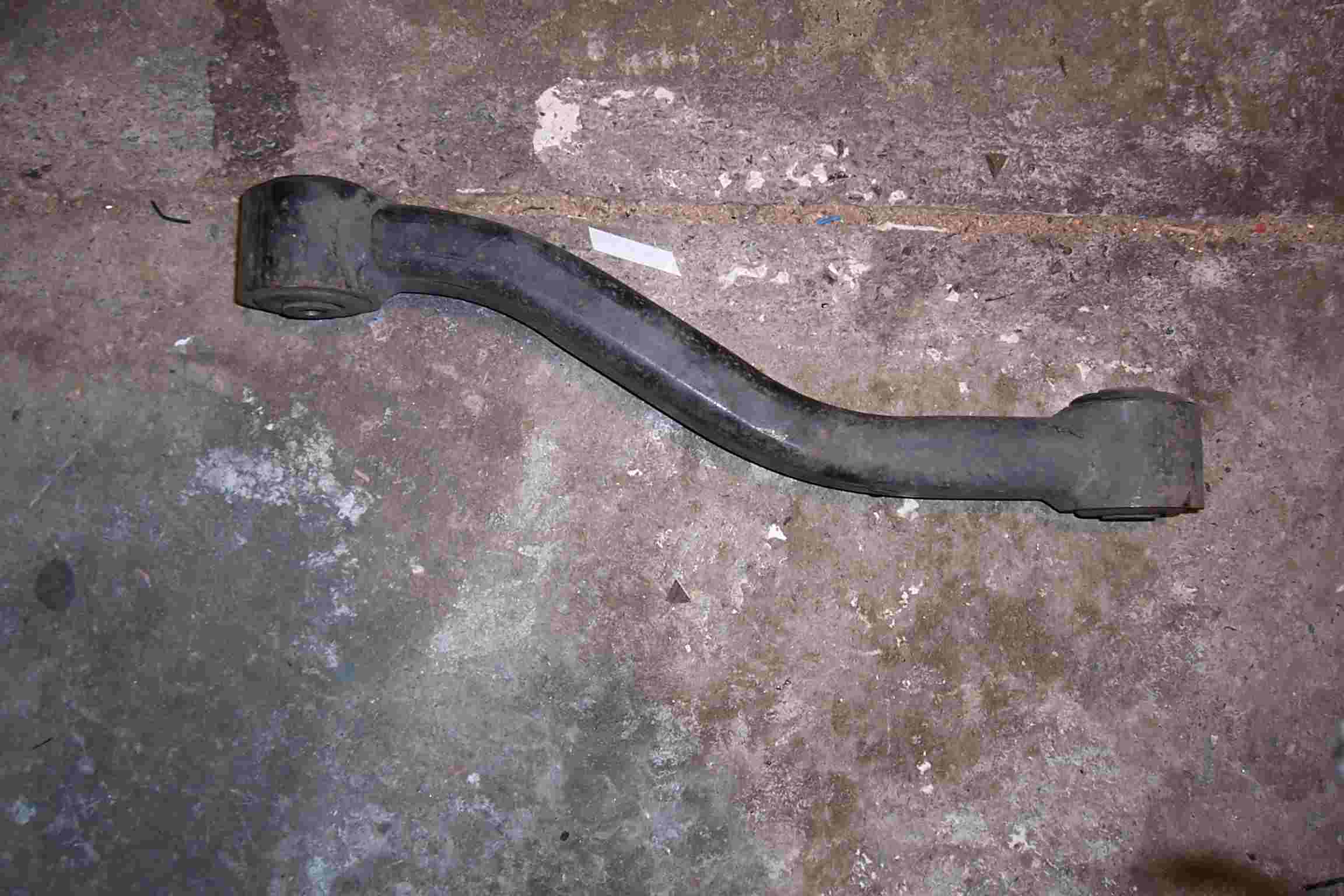

This is an EF upper I had in the shed.
To the eye the pivot axis on the front and rear is parallel, in other words they are square to the body.





Attachments:
EF Upper.jpg
EF Upper.jpg [ 125.61 KiB | Viewed 16 times ]



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile

Display posts from previous:
Sort by
 Page 1 of 2  [ 22 posts ]  Go to page 1, 2  Next

Who is online

Users browsing this forum: Google Adsense [Bot] and 15 guests


You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum





It is currently Sun Dec 17, 2017 2:45 am All times are UTC + 11 hours





(c)2014 Total Web Solutions Australia - Australian Web Hosting and Domain Names
