El diff in a EF



Page 1 of 2 [ 22 posts ] Go to page 1, 2  Next


 Post subject: El diff in a EF
Posted: Mon Aug 06, 2007 8:52 pm
Getting Side Ways
Offline

Age: 61

Posts: 434

Joined: 8th Nov 2004

Gallery: 13 images

Ride: 94 Futura

Location: Bilpin
NSW, Australia

OK I fitted an EL diff in my Ef and used the top mounting holes as in the EF but I wonder if I should use the EL holes as I think the pinion angle is not right.

How do you measure the angle?

The reason was due to the EF LSD I bought had a problem so I bought another that turned out to be an EL and the std diff and the new engine and XR6chick driving my car it eats RHS tyres in a month.



_________________

In Henry I Trust

Top
 Profile


Posted: Mon Aug 06, 2007 9:26 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

If you used the top holes then you must have removed the retainers, this is OK with the standard EF arms provided you are not lowered. If you are lowered then you will be better off getting XR upper arms which mount to the rear holes. These are the same length as the EF but have a bend at the rear to clear the diff. Otherwise you can use EL uppers and mount them to the front holes.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Mon Aug 06, 2007 9:41 pm
Getting Side Ways
Offline

Age: 61

Posts: 434

Joined: 8th Nov 2004

Gallery: 13 images

Ride: 94 Futura

Location: Bilpin
NSW, Australia

The car is lowered and I had new EF Tickford Upper control arms with neoprene bushes and after market lower control arms with the same.



_________________

In Henry I Trust

Top
 Profile


Posted: Mon Aug 06, 2007 9:43 pm
Getting Side Ways
Offline
User avatar

Posts: 3331

Joined: 27th Dec 2004

Gallery: 4 images

Ride: MCMXCV Falcon

Location: G town
VIC, Australia

i doubt u can use the EF xr6 upper arms without the brackets that attatches between the arms and the body



_________________


Top
 Profile


Posted: Mon Aug 06, 2007 9:49 pm
Getting Side Ways
Offline

Age: 61

Posts: 434

Joined: 8th Nov 2004

Gallery: 13 images

Ride: 94 Futura

Location: Bilpin
NSW, Australia

Its in and fitted and driving but it has a Vibration below 80kmph that why I thought the pinon angle was wrong. Also I fitted an alloy tail shaft.



_________________

In Henry I Trust

Top
 Profile


Posted: Mon Aug 06, 2007 9:50 pm
Getting Side Ways
Offline
User avatar

Posts: 3331

Joined: 27th Dec 2004

Gallery: 4 images

Ride: MCMXCV Falcon

Location: G town
VIC, Australia

heres some pics of regular EF arms and XR arms

XRs are way different - and shows u cannot use the arms without the adaptors





Attachments:

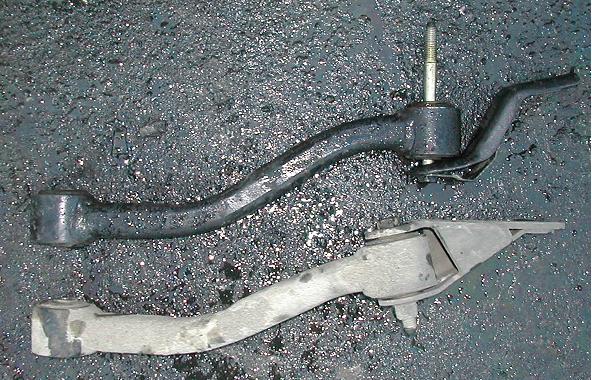

EF2 XR & std rear arms2.JPG
EF2 XR & std rear arms2.JPG [ 87.46 KiB | Viewed 99 times ]

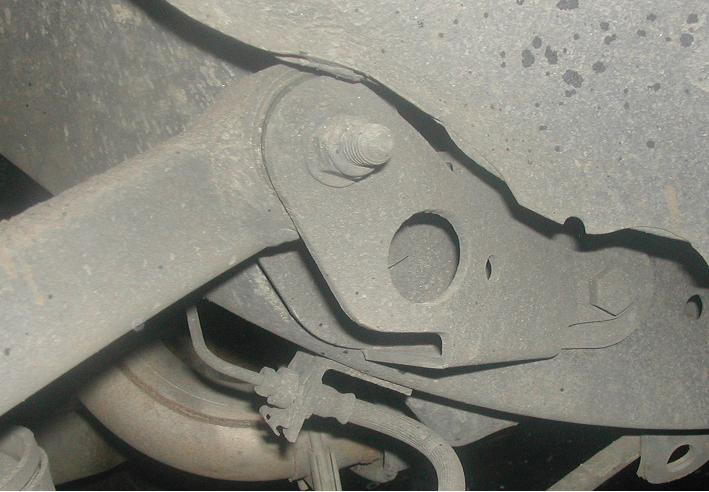

EF2 XR upper arms.JPG
EF2 XR upper arms.JPG [ 50.88 KiB | Viewed 98 times ]

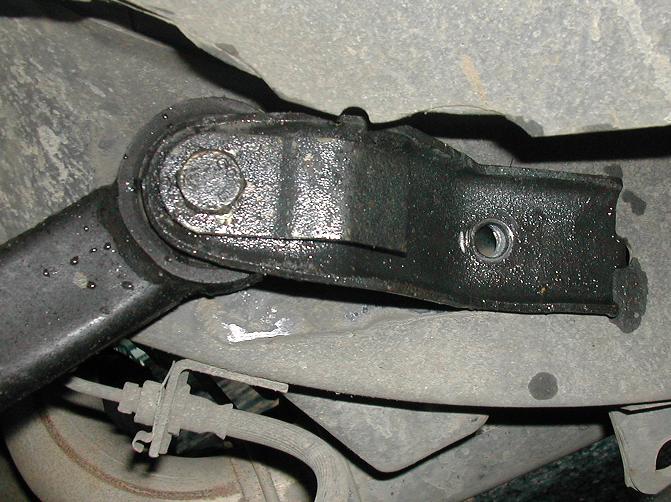

ef upper arms.JPG
ef upper arms.JPG [ 70.57 KiB | Viewed 99 times ]



_________________


Top
 Profile


Posted: Mon Aug 06, 2007 9:56 pm
Getting Side Ways
Offline

Age: 61

Posts: 434

Joined: 8th Nov 2004

Gallery: 13 images

Ride: 94 Futura

Location: Bilpin
NSW, Australia

I didnt fit it I only got the parts so I will have a look on the weekend. It is a Series 1 Futura



_________________

In Henry I Trust

Top
 Profile


Posted: Mon Aug 06, 2007 10:09 pm
Getting Side Ways
Offline
User avatar

Posts: 3331

Joined: 27th Dec 2004

Gallery: 4 images

Ride: MCMXCV Falcon

Location: G town
VIC, Australia

dasmq wrote:
The car is lowered and I had new EF Tickford Upper control arms with neoprene bushes and after market lower control arms with the same.


what do your "EF tickford upper arms" look like?



_________________


Top
 Profile


Posted: Mon Aug 06, 2007 10:25 pm
Technical Contributor
Offline
User avatar

Age: 44

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

might be worth getting the EL XR uppers,

pic here:
http://www.fordmods.com/forums/viewtopi ... light=diff



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


Posted: Mon Aug 06, 2007 10:32 pm
Getting Side Ways
Offline
User avatar

Posts: 3331

Joined: 27th Dec 2004

Gallery: 4 images

Ride: MCMXCV Falcon

Location: G town
VIC, Australia

Krytox wrote:
might be worth getting the EL XR uppers,

pic here:
http://www.fordmods.com/forums/viewtopi ... light=diff


the EL xr arms look alot simpler than the EF versions....do know if all EF and EL use the same position for the 2 bolt holes on the chassis where the arms or adaptors attatach?



_________________


Top
 Profile


Posted: Mon Aug 06, 2007 10:39 pm
Getting Side Ways
Offline
User avatar

Age: 59

Posts: 1072

Joined: 6th Jul 2006

Gallery: 13 images

Ride: BA Falcon

Power: 106 rwkw

Location: Craigmore
SA, Australia

you will need to put in EL arms or you will get the 50kmh vibration cos the pinion angle is wrong. found this out the hard way when I bought an EL and someone put an EF diff in it and didnt change the arms. took me ages to figure it out.



_________________

2003 BA Falcon Egas Taxi Pack - XR Replica
Tpak MKII Build Thread

1984 ZL Fairlane
The Project

Top
 Profile


Posted: Mon Aug 06, 2007 11:08 pm
Getting Side Ways
Offline

Age: 61

Posts: 434

Joined: 8th Nov 2004

Gallery: 13 images

Ride: 94 Futura

Location: Bilpin
NSW, Australia

How much are EL XR Uppers?

Thanks for the quick replys?



_________________

In Henry I Trust

Top
 Profile


Posted: Mon Aug 06, 2007 11:29 pm
Getting Side Ways
Offline
User avatar

Posts: 3331

Joined: 27th Dec 2004

Gallery: 4 images

Ride: MCMXCV Falcon

Location: G town
VIC, Australia

dasmq wrote:
How much are EL XR Uppers?

Thanks for the quick replys?


the EL uppers will only work if ford didnt move the body mounting point from EF to EL...

quote from motor magazine when the EL was new...

"for EL XRs the arms are longer and both body and axel pickup points are changed"



_________________


Top
 Profile


Posted: Tue Aug 07, 2007 10:26 am
Fordmods Addict
Offline
User avatar

Age: 38

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

EL mounting point to body is the same as EF XR, which is the same as EB-ED weirdly enough.
I never knew EF's had that weird angled mount, bizarre.



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


Posted: Tue Aug 07, 2007 12:18 pm
Getting Side Ways
Offline

Age: 61

Posts: 434

Joined: 8th Nov 2004

Gallery: 13 images

Ride: 94 Futura

Location: Bilpin
NSW, Australia

neither did I as they are sold as EF EL so I thought they were all the same I know Whiteline have uppers set up slightly different to realign the diff to better geometry(bad spell)



_________________

In Henry I Trust

Top
 Profile
