Fordmods Logo

EL XR Upper control arms. Anyone have pics?



Page 1 of 2 [ 20 posts ] Go to page 1, 2  Next


 Post subject: EL XR Upper control arms. Anyone have pics?
Posted: Sun Mar 04, 2007 6:42 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 2705

Joined: 6th Nov 2004

Gallery: 11 images

Ride: 2009 FG XR6 Sedan

Location: Melbourne
VIC, Australia

Ok i just replaced the lower control arms on my EL Fairmont ghia with the boxed type Nolathane arms (made the rear alot quieter and tighter). Anyway the pinion angle still isnt correct with the Angle master. Now does anyone with an EL XR6 or 8 have any pics and possible lengths on the upper contol arms. If there isnt any real difference i will just have to space up the trans to get the front and rear within 1 degree angle. Any help would be great thanks.
Top
 Profile


Posted: Sun Mar 04, 2007 7:26 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

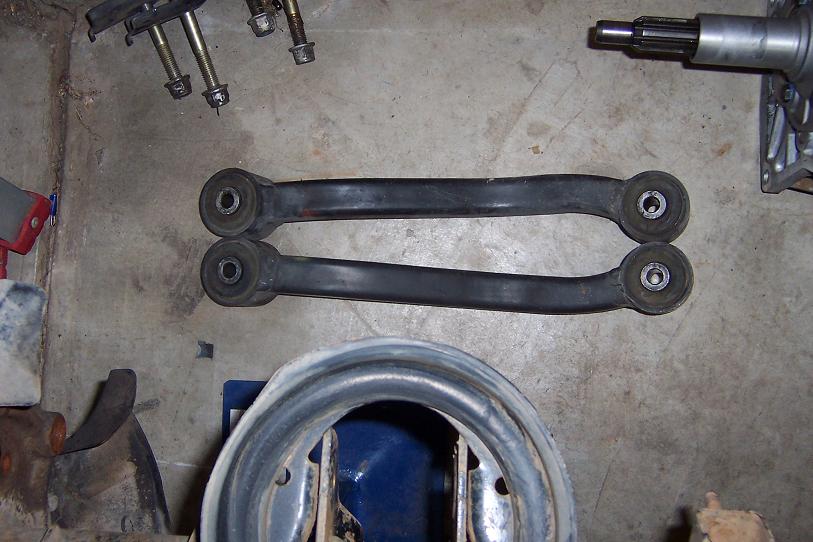

here, you can just see the kick on the ends.





Attachments:
EL_XR_UPPER.JPG [ 75.37 KiB | Viewed 84 times ]



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


Posted: Sun Mar 04, 2007 7:45 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 2705

Joined: 6th Nov 2004

Gallery: 11 images

Ride: 2009 FG XR6 Sedan

Location: Melbourne
VIC, Australia

Thanks for the super quick reply, i knew about the bend on the rear but are they a different length to the standard EL upper control arms (320mm from memory between holes) and do the XR type mount to the rear holes on the diff? not the fronts as standard on non XR's?
Top
 Profile


Posted: Sun Mar 04, 2007 8:12 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

EF and EF/L XR are the same length at 340mm
EL sedan are 320mm. The difference between xr and non XR s the bend at the end shown in Krytox's pic. Hope this helps.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Sun Mar 04, 2007 8:14 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

From my understanding the EL STD ride height ones are 320mm vs. 340mm XR hole to hole.



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


Posted: Sun Mar 04, 2007 8:17 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 2705

Joined: 6th Nov 2004

Gallery: 11 images

Ride: 2009 FG XR6 Sedan

Location: Melbourne
VIC, Australia

That 340mm would make sense as the rear mount hole on the diff is about 20mm further. It would also adjust the geometry when the car is lowered the same as an XR. I posted Phongus about his EL XR6 upper control arms.
Top
 Profile


Posted: Sun Mar 04, 2007 8:31 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

yeh, in theory the diff rolls up instead of staying straight.
I had these in my car, and every bump I took on the way to adelaide I was rubbing the tail shaft on the tunnel (just b4 the yoke).

I installed std EL arms and the problem is no longer existant.

overall I found the EF arms on the EF diff was the best combo for me. however Both XR diffs I aquired were EL's.. and I decided to change the watts link and arms all in one hit... then I had the probs.... 10mths later i fixed it :/



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


Posted: Sun Mar 04, 2007 8:53 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 2705

Joined: 6th Nov 2004

Gallery: 11 images

Ride: 2009 FG XR6 Sedan

Location: Melbourne
VIC, Australia

Yeah the EF upper arms are 350mm between holes. But the geometry was changed for the EF II and EL. Now my EL Fairmont LSD diff has 3 mounting holes for the upper arm with a cage that holds a nut that has the option to mount on only 2 of them. I was guessing the rear hole would be for the XR arms! I will wait for a reply from Phongus and go from there.
Top
 Profile


Posted: Sun Mar 04, 2007 8:56 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2450

Joined: 5th Nov 2004

Gallery: 1 images

Ride: NL V8 Fairlane

Location: Sydney
NSW, Australia

To my knowledge, EL arms are shorter by one inch. EF are longer. However EL's have the three mounting holes to change pinion angle.



_________________

There are 10 types of people in this world.
Those who know binary and those who don't.

Top
 Profile


Posted: Sun Mar 04, 2007 9:14 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

I think too, that the upper mountings on the diff are a different angle than previous EF.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sun Mar 04, 2007 9:17 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

there are 3 types or arms alltogether.
and 2 diff's!

EF diff has one set.
EL has 2 sets. (xr and non)
The Third hole on the EL diff is for provision for backwards compatibility.
so yes, you could use the TOP hole with EF arms on an EL car. (watts link and handbrake setup will need to be changed too)

None are made to change angle just by changing the hole, you need the required arms to do so correctly.



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


Posted: Sun Mar 04, 2007 9:23 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 2705

Joined: 6th Nov 2004

Gallery: 11 images

Ride: 2009 FG XR6 Sedan

Location: Melbourne
VIC, Australia

The EL has 3 holes on the diff but only 2 can be used unless the cage for the nut is removed. The 3 holes are too extreme to simply change the pinion angle with standard upper control arms. This is why im asking about the XR type of arms with a bend in the rear of them. Dont forget that the pinion angle should not exceed 4 degree and the mounting holes on the diff are about 15mm (x3) apart which would well exceed the desired angle with just the standard arms
Top
 Profile


Posted: Sun Mar 04, 2007 9:23 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

I remember being told in Ford school, that the diffs were not inter changeable, because of the mountings on top off the diff for the upper arms.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Mon Mar 05, 2007 10:26 am
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 5051

Joined: 5th Nov 2004

Ride: Kia Rio - 1.4L Auto

Power: 238 rwkw

Location: Westside
VIC, Australia

Such a simple question, yet so hard to answer.

If you have purchased the 320mm (Centre to Centre - Part 46905) arms, they are standard EL length and go into the higher front hole that the captive nut runs to. But if you are running lowered springs, using these arms will cause vibrations as you have assumed by reading the pinion angle.

If you have purchased the 340mm (Centre to Centre - Part 46900A) arms, they are the EL XR length, and go into the lower rear hole that the captive nut runs to. Using these arms in your diff will cause no vibrations or problems with the diff. Its really the only way to lower the rear end of an EL to superlow or ultra low height without any problems. It obviously causes the pinion to sit within the required angles.
Top
 Profile


Posted: Mon Mar 05, 2007 11:08 am
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 2705

Joined: 6th Nov 2004

Gallery: 11 images

Ride: 2009 FG XR6 Sedan

Location: Melbourne
VIC, Australia

arm79 wrote:
Such a simple question, yet so hard to answer.

If you have purchased the 320mm (Centre to Centre - Part 46905) arms, they are standard EL length and go into the higher front hole that the captive nut runs to. But if you are running lowered springs, using these arms will cause vibrations as you have assumed by reading the pinion angle.

If you have purchased the 340mm (Centre to Centre - Part 46900A) arms, they are the EL XR length, and go into the lower rear hole that the captive nut runs to. Using these arms in your diff will cause no vibrations or problems with the diff. Its really the only way to lower the rear end of an EL to superlow or ultra low height without any problems. It obviously causes the pinion to sit within the required angles.



I have the standard EL upper arms on now (320mm) and they are mounted to the front lower holes on the diff. They cannot mount to the top holes as you say as the pinion angle would be way too much and there is a cage holding the nut that only has the option for the front or rear holes. Would be great if anyone has a pic of the XR setup fully mounted.
Top
 Profile

Display posts from previous:
Sort by
 Page 1 of 2  [ 20 posts ]  Go to page 1, 2  Next

Who is online

Users browsing this forum: No registered users and 21 guests


You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum





It is currently Tue Dec 12, 2017 10:11 am All times are UTC + 11 hours





(c)2014 Total Web Solutions Australia - Australian Web Hosting and Domain Names
