 Post subject: EL XR6 diff into EB2
Posted: Sat Dec 22, 2007 2:16 am
Getting Side Ways
Offline

Age: 70

Posts: 657

Joined: 24th Sep 2007

Gallery: 10 images

Location: Central Coast
NSW, Australia

I know the subject of what upper arms to use when fitting an EL diff to an earlier model has been advised on many times, yet despite the accurate info posted by some members, the waters get muddied time and again.
I thought I'd post pics of my recent diff adjustment with the aim of giving someone a visual guide to the solution of my pinion alignment problem.
If your car is lower than mine [-50mm at rear] XR6 arms may be needed to lower the pinion angle even further than the std EL arms I used.
Pic 1: Is of the car to illustrate the ride hight.
Pic 2: BenJ and I re-fitted the larger and longer EB2 arms to see what angle we'd have to fix with either std EL or XR6 arms. [muddied waters]
The rest of the pictures are self explanatory, I think, but if anyone is unclear on them I will be glad to explain what they're meant to highlight.
The last pic is the happy ending, good to 5K rpm smooth and strong, notice the impact marks just up from the uni joint.
After fitting the front bolts of both EL arms to the body, the pinion was lowered by placing the floor jack under the Watts link and gently raising that until the rear bolt holes aligned.
It is much easier having a second person on the jack, I had sadly lost the services of BenJ for this last exercise as I think he could have mastered 'floorjack 101' with a little effort. In his favour he does the complex things well.
All up, less travel time, removing the arms at the wreckers and re-fitting them took less than 2 hours, a quick and easy fix to bad problem.
Paul
PS I must have hit the upload wall, Pics 1 and 2 to follow.





Attachments:

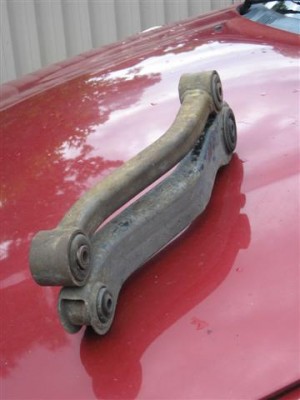

File comment: Short but strong
IMG_0298 (Small).jpg
IMG_0298 (Small).jpg [ 38.53 KiB | Viewed 48 times ]

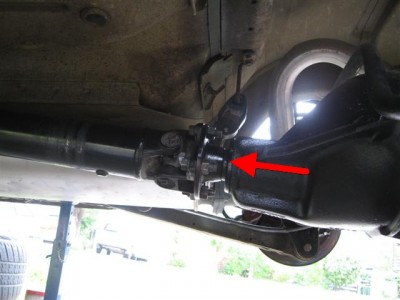

File comment: Another View
IMG_0299 (Small).jpg
IMG_0299 (Small).jpg [ 25.84 KiB | Viewed 40 times ]

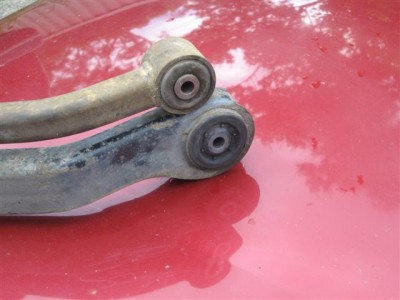

File comment: EL bolt and retainer
IMG_0300 (Small).jpg
IMG_0300 (Small).jpg [ 54.2 KiB | Viewed 45 times ]

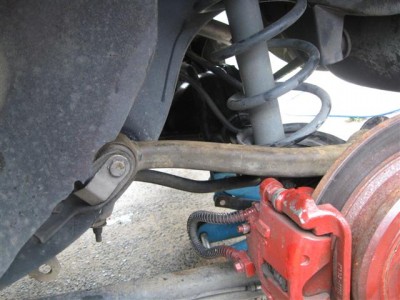

File comment: One arm in place, note gap.
IMG_0301 (Small).jpg
IMG_0301 (Small).jpg [ 147.09 KiB | Viewed 46 times ]

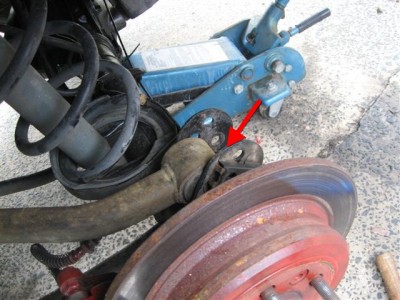

File comment: Straight enough
IMG_0303 (Small).jpg
IMG_0303 (Small).jpg [ 102.73 KiB | Viewed 57 times ]



_________________

What goes around, comes around.

Top
 Profile


Posted: Sat Dec 22, 2007 2:31 am
Getting Side Ways
Offline

Age: 70

Posts: 657

Joined: 24th Sep 2007

Gallery: 10 images

Location: Central Coast
NSW, Australia

I should make it clear that the standard arms only fit the front [upper] captive nut location, only the XR6 'bent' arms will fit the lower hole without problems.
Pics 1 & 2 attached. 3 for good measure.
Paul





Attachments:
File comment: Ride Height
Diffdun (Small).jpg
Diffdun (Small).jpg [ 142.61 KiB | Viewed 48 times ]
File comment: EB2 arms, pinion angle way too high.
IMG_0302 (Small).jpg
IMG_0302 (Small).jpg [ 115.39 KiB | Viewed 60 times ]

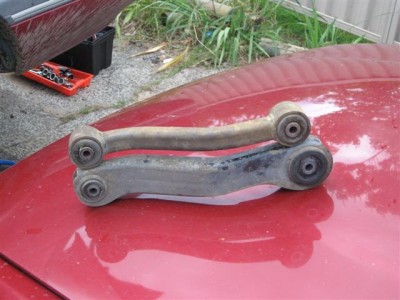

File comment: Comparison, EL std arm on top.
