Snaps discription was very accurate. If you look at the reverse switch its just near that if its there.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__
Top
 Profile


phongus
Posted: Thu Oct 26, 2006 1:22 pm
Fordmods Junkie
Offline
User avatar

Posts: 11752

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia
okay....im a noob at the transmission thingy...but i can work things out myself. Anyways I managed to source out a T5 conversion from some guy who said it was from an EBII. I read this topic and now i know how to check if it is an EBII box or not but one other thing.....im guessing the end that connects to flywheel or something is the input shaft and the output shaft is the one that connects towards the diff?

One more thing...do EBII boxes fit straight into an EL without having to replace bellhousing and such?

cheers

phong =P~



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)
Top
 Profile


twase
Posted: Thu Oct 26, 2006 3:59 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia
There is no difference in the EBII to EL box as far as I have been able to determine.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__
Top
 Profile


huggiebear
Posted: Thu Oct 26, 2006 5:30 pm
Getting Side Ways
Offline
User avatar

Age: 47

Posts: 5361

Joined: 31st Oct 2005

Gallery: 28 images

Ride: NC II Fairlane

Location: morayfield
NSW, Australia
all 6CYL falcons use the same bellhousing on the T5's



_________________

Prendre soin de sa sante www.viagrasansordonnancefr.com vente libre en France
Top
 Profile


twase
Posted: Thu Oct 26, 2006 5:52 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia
Not quite, the AU and BA are different.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__
Top
 Profile


TROYMAN
Posted: Thu Oct 26, 2006 6:15 pm
Moderator
Offline

Posts: 14489

Joined: 7th Nov 2004

Ride: AU XR8

Location: a shit suburb in sydney
NSW, Australia
twason wrote:
Not quite, the AU and BA are different.


well there not exactly the same but they still fit..

ive got a au engine and its bolted to a ea t5
Top
 Profile


phongus
Posted: Thu Oct 26, 2006 6:41 pm
Fordmods Junkie
Offline
User avatar

Posts: 11752

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia
is 550 cheap for an EBII manual conversion? even though i have an EL fairmont...im there for the box only and probably sell the pedal box and ecu seperately....

phong =P~



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)
Top
 Profile


twase
Posted: Thu Oct 26, 2006 8:07 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia
TROYMAN wrote:
twason wrote:
Not quite, the AU and BA are different.


well there not exactly the same but they still fit..

ive got a au engine and its bolted to a ea t5
Actually BA is a lot different as it has a hydraulic clutch, but has the same bolt pattern as the AU....



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__
Top
 Profile


twase
Posted: Thu Oct 26, 2006 8:15 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia
phongus wrote:
is 550 cheap for an EBII manual conversion? even though i have an EL fairmont...im there for the box only and probably sell the pedal box and ecu seperately....

phong =P~
depends on the condition, if it works OK then it is cheap as wreckers are asking $750 up, but if you need to get clutch kits & cable or a bearing kit then it can add up a fair bit. Also consider some one suggested a bare BA box is new from Ford at around $850 (trade I'm guessing) then perhaps not.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__
Top
 Profile


phongus
Posted: Thu Oct 26, 2006 8:41 pm
Fordmods Junkie
Offline
User avatar

Posts: 11752

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia
hmmm

i shall recalculate my money....cheers

phong =P~



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)
Top
 Profile


twase
Posted: Thu Oct 26, 2006 8:43 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

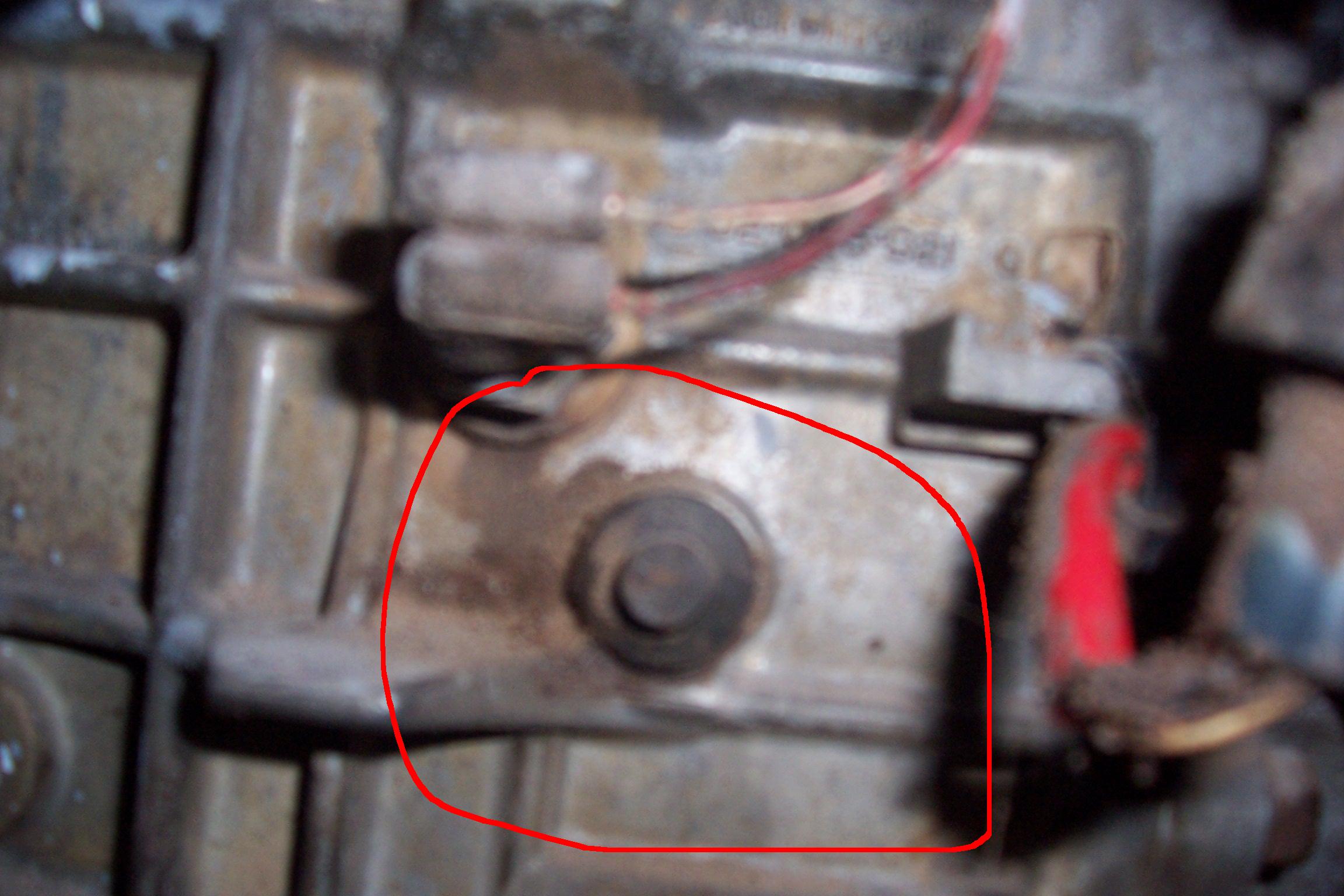

Here is the picture Roofing nail Snap spoke about.
It can be seen in this out of focus picure down and to the rear of the reversing switch. Also FWIW the TAG on this EF example has 94DA 7003 AA as the part number.





Attachments:
File comment: EF T5
EFT5.JPG [ 283.31 KiB | Viewed 172 times ]



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__
Top
 Profile


huggiebear
Posted: Thu Oct 26, 2006 9:09 pm
Getting Side Ways
Offline
User avatar

Age: 47

Posts: 5361

Joined: 31st Oct 2005

Gallery: 28 images

Ride: NC II Fairlane

Location: morayfield
NSW, Australia
here is 2 shots of mine. can you tell what one it is?




_________________

Prendre soin de sa sante www.viagrasansordonnancefr.com vente libre en France
Top
 Profile


twase
Posted: Sat Oct 28, 2006 7:59 am
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia
Sorry Huggie, I can't tell from your picture, get one from the passenger side.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__
Top
 Profile


TROYMAN
Posted: Sat Oct 28, 2006 1:04 pm
Moderator
Offline

Posts: 14489

Joined: 7th Nov 2004

Ride: AU XR8

Location: a shit suburb in sydney
NSW, Australia
twason wrote:
TROYMAN wrote:
twason wrote:
Not quite, the AU and BA are different.


well there not exactly the same but they still fit..

ive got a au engine and its bolted to a ea t5
Actually BA is a lot different as it has a hydraulic clutch, but has the same bolt pattern as the AU....

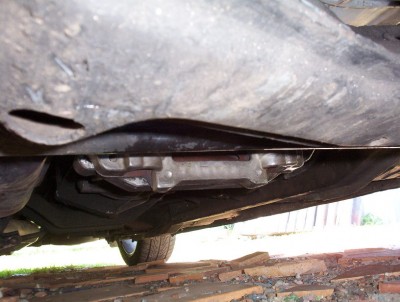

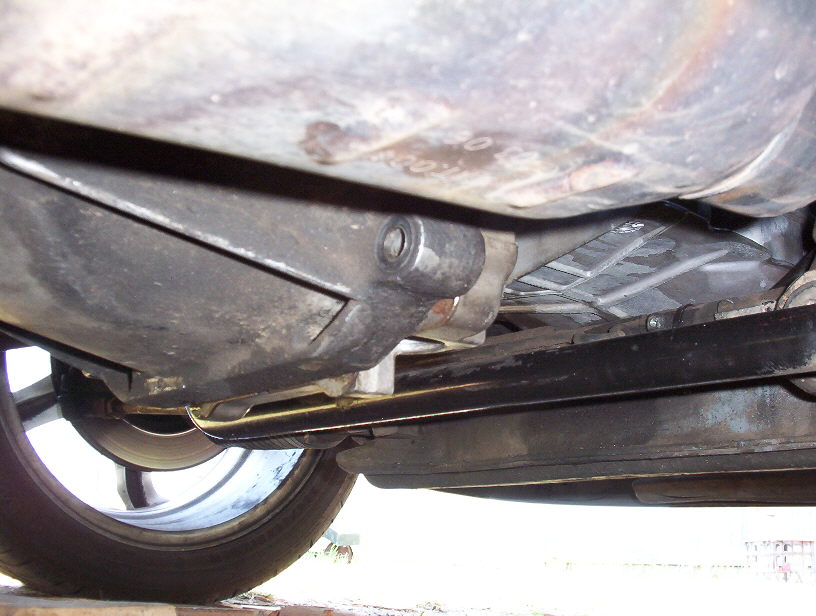

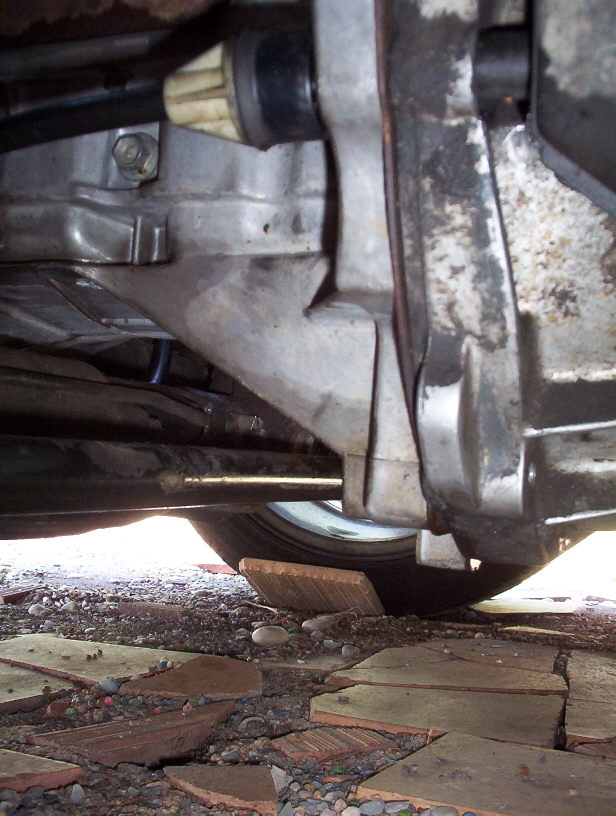

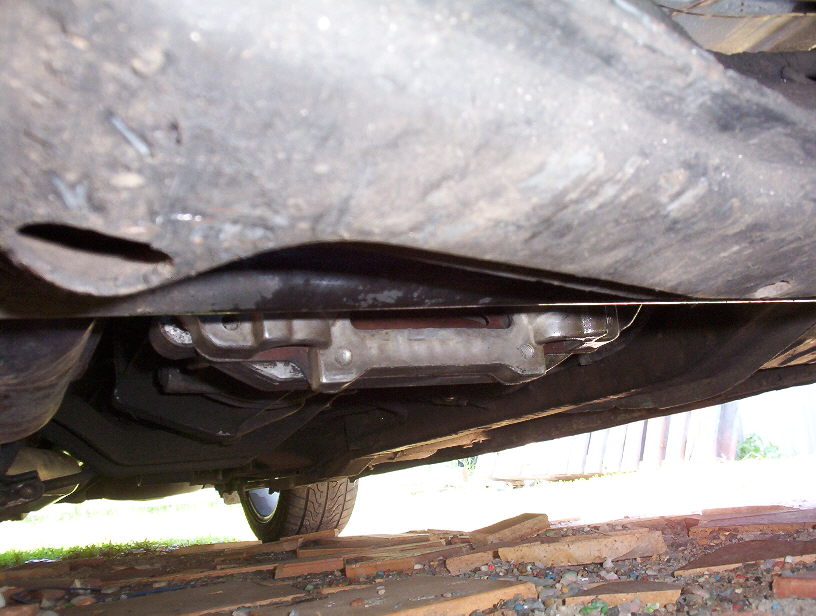

here are a few pics of the 2 holes that dont line up on the bottom of the bellhousing..





Attachments:
housing 004.jpg
housing 004.jpg [ 82.25 KiB | Viewed 142 times ]
housing 002.jpg
housing 002.jpg [ 87.39 KiB | Viewed 123 times ]
housing 001.jpg
housing 001.jpg [ 102.25 KiB | Viewed 137 times ]
Top
 Profile


Bug
Posted: Thu Apr 26, 2007 2:28 am
Getting Side Ways
Offline
User avatar

Age: 41

Posts: 577

Joined: 5th Nov 2004

Gallery: 1 images

Ride: EL XR6 5spd
Pulling out the speedo sender gear may also give you some clues.
In the speedo calc in technical documents theres a list of all the gears per model.

It might help you nail it down a little further.
