Fitting damper hook onto fork for t5 conversion



Page 1 of 1 [ 9 posts ]


 Post subject: Fitting damper hook onto fork for t5 conversion
Posted: Sat Dec 19, 2009 7:44 am
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 930

Joined: 6th Nov 2004

Ride: EB SXR6 | ED XR8 Sprint

Location: Sydney
NSW, Australia

I bought the damper hook from ford yesterday for my conversion ($35 FYI) although I'm curious to know how it fits onto the fork. Voxaces doco shows it sort of just sitting there, and in my search a few people have suggested smashing it in with a hammer. My question is how far into the fork is it supposed to sit. Is smashing it in the right way about it? I really don't want to bend or damage the fork.



_________________

EB SXR6. ED XR8 Sprint.

Top
 Profile


 Post subject: Re: Fitting damper hook onto fork for t5 conversion
Posted: Sat Dec 19, 2009 2:28 pm
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

They should be pressed ( with tooling ) in till it stops, on the shoulder.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Fitting damper hook onto fork for t5 conversion
Posted: Sat Dec 19, 2009 4:33 pm
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 930

Joined: 6th Nov 2004

Ride: EB SXR6 | ED XR8 Sprint

Location: Sydney
NSW, Australia

Thanks for that info. So it needs to go all the way in to where the two pins are? I might take it down to better brakes and get them to press it in.



_________________

EB SXR6. ED XR8 Sprint.

Top
 Profile


 Post subject: Re: Fitting damper hook onto fork for t5 conversion
Posted: Sat Dec 19, 2009 6:56 pm
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

The 2 pins, is one pin, it's in case the rubber vulcanisation lets go. They're should be a short end, right near the hook for the clutch cable, thats the end that goes in the clutch fork.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Fitting damper hook onto fork for t5 conversion-
Posted: Mon Dec 28, 2009 11:16 pm
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 930

Joined: 6th Nov 2004

Ride: EB SXR6 | ED XR8 Sprint

Location: Sydney
NSW, Australia

hi are you sure the damper hook needs to be pressed in for a t5 box? can some one who has changed the damper hook please confirm this? reason i ask is because it really doesnt look like it can be pressed in, based on all the piks i have seen it looks like it just sits there and the pressure of the cable holds it in place and doesnt allow it to fall??

confirmation please??

thanks
moe.



_________________

EB SXR6. ED XR8 Sprint.

Top
 Profile


 Post subject: Re: Fitting damper hook onto fork for t5 conversion
Posted: Mon Dec 28, 2009 11:25 pm
Getting Side Ways
Offline

Age: 36

Posts: 638

Joined: 16th Feb 2005

Ride: EA Turbo

Location: Melbourne
VIC, Australia

What's the damper hook? If it's the cylinder looking thing that the clutch cable connects to on the bellhousing side, then no, it doesn't need to be pressed in, I changed mine in my EA and it wasn't pressed in and it ran perfect until I took the whole manual conversion out.

I don't know if they're supposed to be....but they don't have to be.



_________________

1988 EA S-Pack|MPI|LSD|AIT turbo manifold|Garrett GT3540|3" Exhaust turbo back|Resprayed|microtech LT8s|60lb Injectors|Bosch 044 with surge tank|3000 RPM stall|Ported AU head|Wade turbo cam|Crow double valve springs|1.3mm MLS headgasket|C4 conversion|Built bottom end|10.6@125MPHi

Top
 Profile


 Post subject: Re: Fitting damper hook onto fork for t5 conversion
Posted: Tue Dec 29, 2009 12:26 am
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 930

Joined: 6th Nov 2004

Ride: EB SXR6 | ED XR8 Sprint

Location: Sydney
NSW, Australia

Yeah the cylinder thing is exactly what I'm talking about. So then I'm assuming the pressure of the cable holds it in place. Thatnks for that...



_________________

EB SXR6. ED XR8 Sprint.

Top
 Profile


 Post subject: Re: Fitting damper hook onto fork for t5 conversion
Posted: Tue Dec 29, 2009 7:16 pm
Getting Side Ways
Offline
User avatar

Age: 37

Posts: 2095

Joined: 19th Jan 2005

Gallery: 9 images

Ride: Blue and White Mercedes

Location: whorehouse
NSW, Australia

BOSXR8 wrote:
Yeah the cylinder thing is exactly what I'm talking about. So then I'm assuming the pressure of the cable holds it in place. Thatnks for that...


You are correct. Mine is not pressed in. neither was the one in my EF. All up, I have been driving with it like this for 4 years. The only issue that I had was when my clutch cable snapped - the damper goes flying. My suggestion is to have a spare one, just incase you can't find it if the cable snaps.



_________________

Remember kids, the more pages of crap in your build thread, the bigger your e-penis is

Top
 Profile


 Post subject: Re: Fitting damper hook onto fork for t5 conversion
Posted: Wed Dec 30, 2009 11:33 am
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

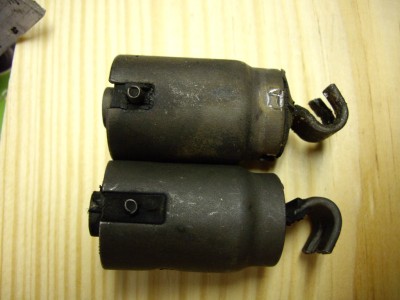

You peen the sides over to stop them moving. This is a pic of a new one next to an old one. I replaced the old one, because the hooks opened up and let the cable go.





Attachments:
IMGP3440.JPG [ 299.48 KiB | Viewed 125 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
