 Post subject: Re: Having some strange problems with my EL need help!!
Posted: Mon Aug 16, 2010 6:42 pm
Oompa Loompa
Offline

Age: 27

Posts: 29

Joined: 5th Mar 2010

Ride: Ford El xr6

Location: Melbourne
VIC, Australia

Good point guys i didn't think about it that way but yer they fixed it up a little bit its now over reeving instead of stalling and they told me the major issue with it, according to ford its a faulty air idle control valve cracked internally, they gave me a cost of 350 all up including labor 2 get in done, what should i do now >?<
Top
 Profile


 Post subject: Re: Having some strange problems with my EL need help!!
Posted: Mon Aug 16, 2010 7:35 pm
Stock as a Rock
Offline

Age: 24

Posts: 133

Joined: 30th May 2010

Gallery: 1 images

Ride: ef falon + xk falcon

Location: gympie
QLD, Australia

yeah my car does the same thing drive it round for a week or two and it does its own thing and goes back to normal



_________________

i hate it when its raining, makes my left foot slip off the clutch all the time

Top
 Profile


 Post subject: Re: Having some strange problems with my EL need help!!
Posted: Mon Aug 16, 2010 7:40 pm
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 5051

Joined: 5th Nov 2004

Ride: Kia Rio - 1.4L Auto

Power: 238 rwkw

Location: Westside
VIC, Australia

Sounds like all they've done is turned up the base idle screw as a "fix"... Basically did nothing for the $$$.

If they are sure its the idle motor, goto a wreckers and take one off a motor. Go home, remove the 2 bolts that hold the ISC down, swap the ISC and bolt it back down.

See if it solves the problem.

But since they may have bumped the base idle up, its going to be screwed until is adjusted back down.
Top
 Profile


 Post subject: Re: Having some strange problems with my EL need help!!
Posted: Mon Aug 16, 2010 8:34 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

yeah... I haven't seen an ISC fail yet...

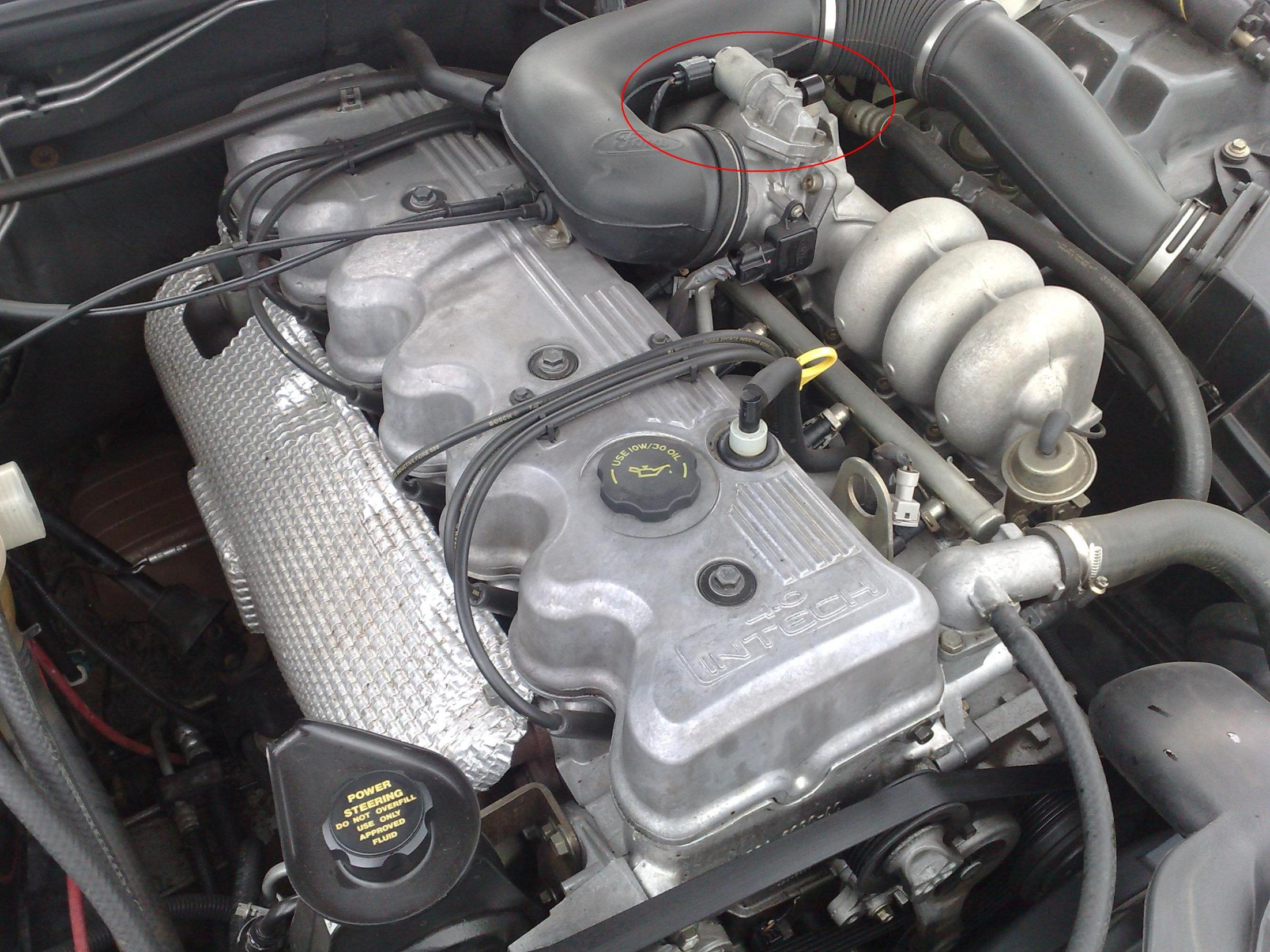

it bolts straight on top of your butterfly, being an EL? you should be able to see it easily, it will be near the highest part of the motor... As arm79 said... there is two bolts holding it down and a plug with 2 or 3 wires running to it... Takes 15 mins to swap on an EF/EL...

Attachment:
au engine specials.jpg
au engine specials.jpg [ 467.78 KiB | Viewed 35 times ]


to reset base idle you disconnect the plug to the ISC (it needs to be bolted on), preferably using a multimeter with a tacho coz its more accurate than the revs gauge, adjust the base idle screw (on a bottom corner I think) back to around, is it 680rpm? :S Can't quite remember now... Its slightly higher on a manual to help avoid stalling too... But I can't find it in my manuals now... :S maybe someone else knows off the top of their head...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: Having some strange problems with my EL need help!!
Posted: Mon Aug 16, 2010 9:53 pm
Oompa Loompa
Offline

Age: 27

Posts: 29

Joined: 5th Mar 2010

Ride: Ford El xr6

Location: Melbourne
VIC, Australia

Ok well ive taken it all in ive had a look on ebay for the ISC ( http://cgi.ebay.com.au/FORD-EF-EL-XH-6c ... 1855wt_907 )
So exactly where is this base idle screw and is it easy to adjust it because i cant have the car reeving out like card once i turn it on.
Top
 Profile


 Post subject: Re: Having some strange problems with my EL need help!!
Posted: Mon Aug 16, 2010 10:32 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

thats it... I'd check the local wreckers first though...

it will be on the underside of the throttle body... Basically it screws in and holds the butterfly open a little bit... Not sure how hard they are to get on and EF/EL falcon... I bet if you take off the plastic piping to the airbox then you'll see it under it somewhere... Not sure if it adjusts by hand or with a screw driver now... :S

so you unplug that isc when you get the new one bolt on... start the car... and adjust the screw til you get it set to base idle (I think its on a sticker stuck under the bonnet somewhere)... turn it off... reconnect the ISC and your away...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: Having some strange problems with my EL need help!!
Posted: Mon Aug 16, 2010 10:42 pm
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 5051

Joined: 5th Nov 2004

Ride: Kia Rio - 1.4L Auto

Power: 238 rwkw

Location: Westside
VIC, Australia

Yep. If you take off the intake piping at the throttle body you will see the screw at the 9 o'clock position on the throttle body. Its like a little grub screw.

Unfortunately you just cant adjust it whenever and however. The proper way is setting the ECU into test mode and setting it then. Plus you need a accurate tacho and set of feeler gauges.

I'd firstly be cleaning the ISC and lubing it up. They are known to get sticky over time and can cause a funny idle. I'm pretty sure there is something in the tech docs on how to do this.

I'd also be going to a wrecker and pocketing an ISC before spending $120 on one from ebay just in case it doesn't fix the fault.

One other thing that just comes to mind is make sure the bolts on the intake manifold are tight. A vacuum leak may cause a s**t idle. As may a crack in the MAP sensor hose.
Top
 Profile


 Post subject: Re: Having some strange problems with my EL need help!!
Posted: Mon Aug 16, 2010 10:44 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

Arm...

Test mode sets the motor to fixed timing and is only used for setting the timing, not the base idle IIRC...

And I do recommend a multimeter with a spark plug lead clamp for accuracy...

I have never seen anyone use feller gauges to set it though... :?

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: Having some strange problems with my EL need help!!
Posted: Mon Aug 16, 2010 11:11 pm
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 5051

Joined: 5th Nov 2004

Ride: Kia Rio - 1.4L Auto

Power: 238 rwkw

Location: Westside
VIC, Australia

Then you've obviously never read the EF/EL factory service manual. :wink:


I believe the feeler guage is used to ensure the throttle doesn't close fully and bind the butterfly in the bore. So its always a tad open.

Like anything Ford related, there is the way Ford says to do it (which is right almost 100% of the time) and the way everyone else does it.

Will take apologies in the form of a PM or money transfer.
Top
 Profile


 Post subject: Re: Having some strange problems with my EL need help!!
Posted: Tue Aug 17, 2010 9:09 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

haha yeah no worries :P

Na I have an ED and went looking for it in there and couldn't find it anywhere... which section is it located in?

there you go hey learn something new every day... I am sure my old man did mine ages and ages ago and I didn't think we went to that depth :S anyway it works as it is now...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: Having some strange problems with my EL need help!!
Posted: Tue Aug 17, 2010 9:29 pm
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 5051

Joined: 5th Nov 2004

Ride: Kia Rio - 1.4L Auto

Power: 238 rwkw

Location: Westside
VIC, Australia

Thats from the EF/EL factory manual. Don't know if earlier models are the same.

For some strange reason that page is missing from my boxcar manual. Should be on page 10-1-26 if you have the factory manual.
Top
 Profile


 Post subject: Re: Having some strange problems with my EL need help!!
Posted: Tue Aug 17, 2010 9:48 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

Bugger it... Looked high and low for that last night...

Thanks for that...

Tim





Attachments:
10-1-26.pdf [197.48 KiB]
Downloaded 61 times



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: Having some strange problems with my EL need help!!
Posted: Thu Aug 19, 2010 10:20 pm
Oompa Loompa
Offline

Age: 27

Posts: 29

Joined: 5th Mar 2010

Ride: Ford El xr6

Location: Melbourne
VIC, Australia

Awesome news guys i went 2 the wreckers and got the park for only $30, put it in and it didn't seem 2 do 2 much i went back 2 ford and told them the problem and said they maid it worse when then worked on it the other day, so they reset my base idle n gave the pipes a clean there was some broken bits insed from the old idle control, i watched it wile he was doing all this and now its running as good as new + they did it for free this time there was no way i was gonna pay.
Thanks for all your help guy you saved me alot of cash =p
Top
 Profile


 Post subject: Re: Having some strange problems with my EL need help!!
Posted: Thu Aug 19, 2010 11:16 pm
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 5051

Joined: 5th Nov 2004

Ride: Kia Rio - 1.4L Auto

Power: 238 rwkw

Location: Westside
VIC, Australia

Just out of curiosity... Which Ford?
Top
 Profile


 Post subject: Re: Having some strange problems with my EL need help!!
Posted: Thu Aug 19, 2010 11:24 pm
Oompa Loompa
Offline

Age: 27

Posts: 29

Joined: 5th Mar 2010

Ride: Ford El xr6

Location: Melbourne
VIC, Australia

dandy one on prinny hwy u know the 1 >?<
